SucceBuy Hand Rope Winch Hoist with Extendable Lever 1.6T 25M/20M High Strength Wire Rope for Construction Sites Warehouse

Product Description

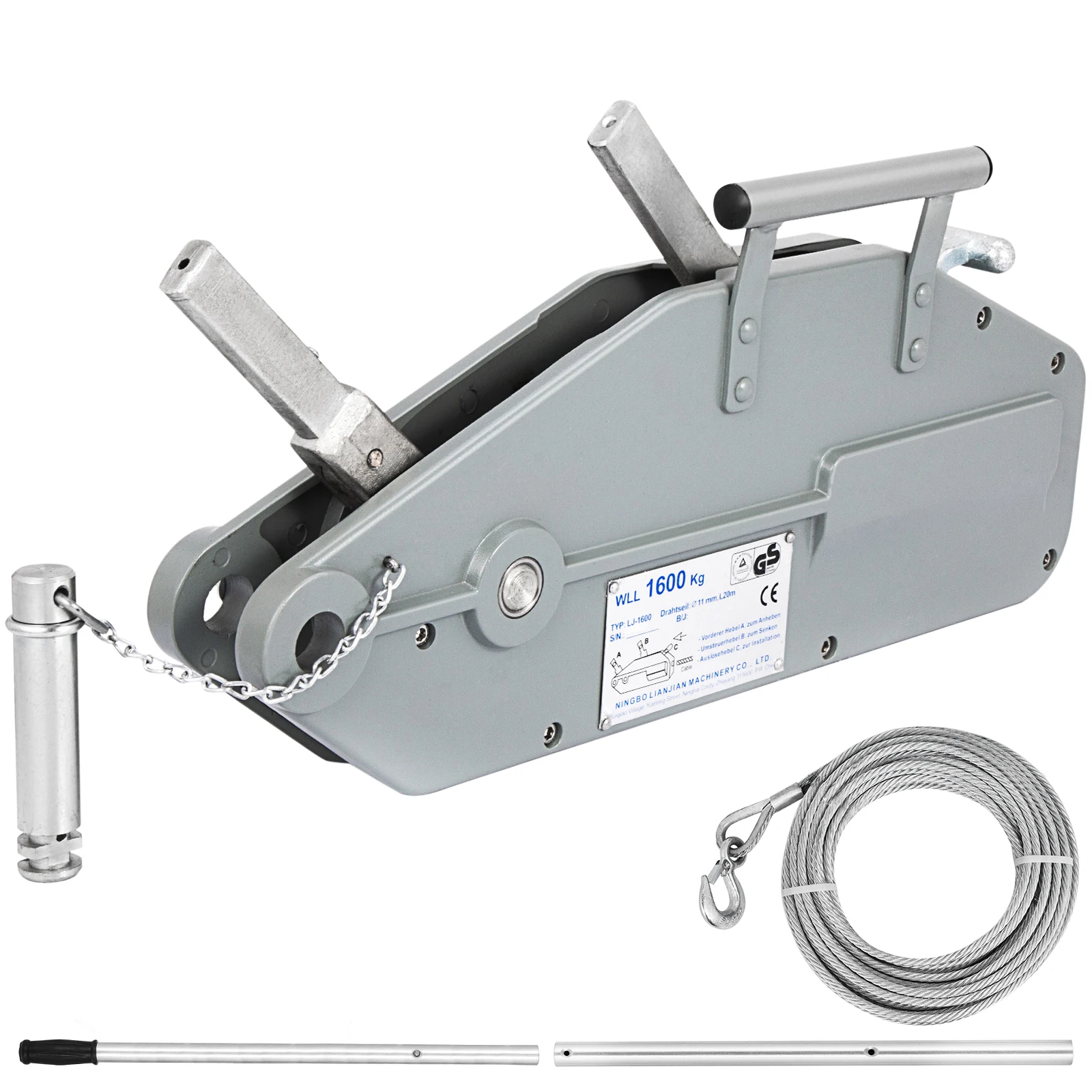

Hand Winch Hoist with 65' Wire Rope

Wire rope pulling hoist, also known as wire rope traction machine, is a new, safe, efficient, and durable lifting machinery product that has three functions of lifting, traction, and tension. It features compact structure, high safety factor, and long service life. Our product is a perfect assistant in your daily work.

Durable Construction

High Strength & Stable

Easy to Use

Safety Protection

Why Choose SucceBuy?

Premium Tough Quality

Incredibly Low Prices

Fast & Secure Delivery

30-Day Free Returns

24/7 Attentive Service

Key Features

Sturdy Structure

Aluminum alloy die-casting housing, steel plate, and shaft are designed for long-lasting use.

Large Bearing Capacity

Rated Capacity: 3500 lbs. Used to manually move trees, stumps, vehicles, or other loads that have to be moved.

High-strength Wire Rope

65' long steel rope with hook has high breaking force and wear resistance.

Extendable Lever

The extendable operating lever can be used with both forward handle and backward handle. Make the operation easier.

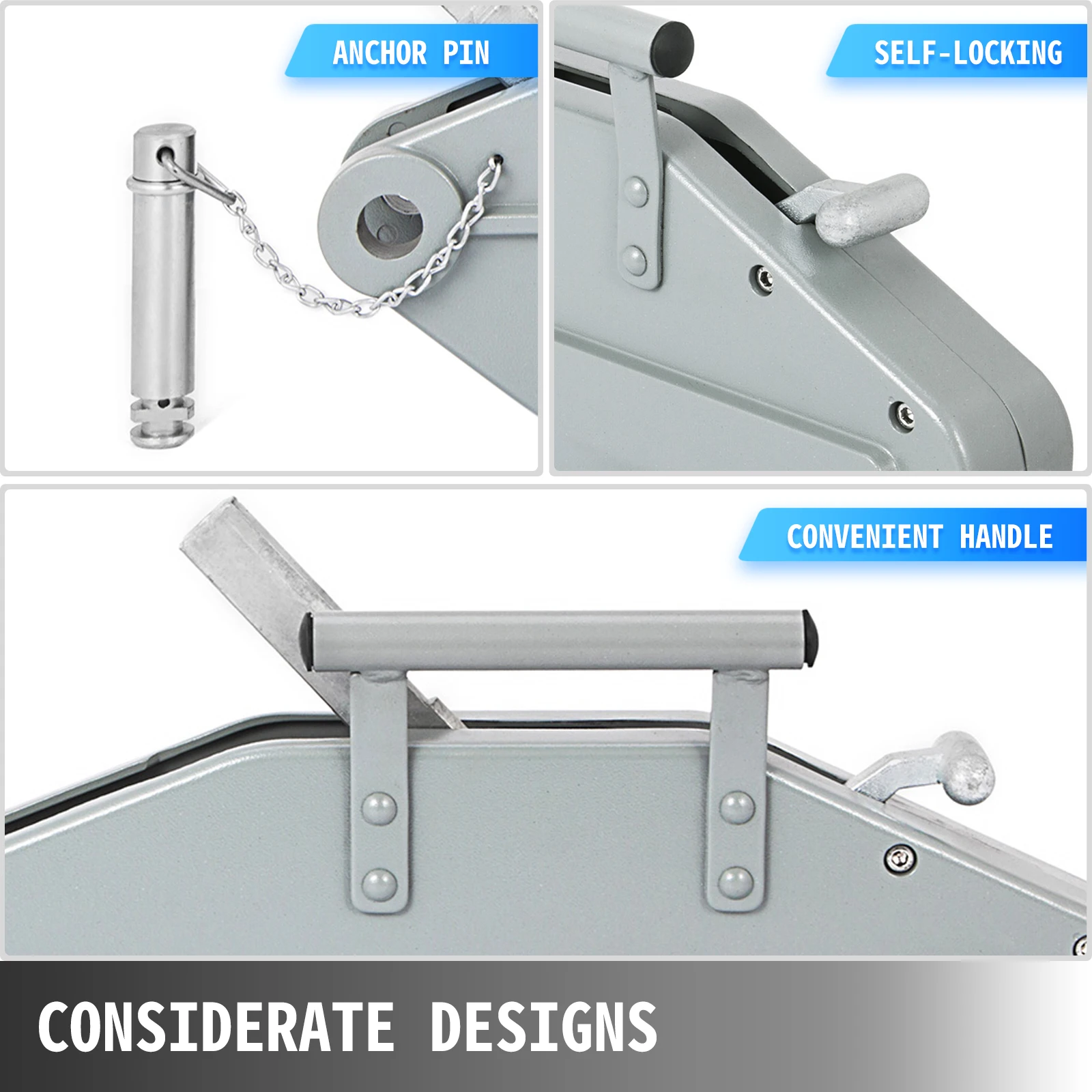

Considerate Designs

Constructed of anchor pin, a portable handle, and safe lock, it ensures high personal safety when in operation.

Widely Used

Easy to adapt to a variety of occasions, such as construction sites, ports, factories, warehouse transport, electricity, etc.

20M

Rated Capacity: 1600 kg/3500 lbs
Length of Wire Rope: 20 m/65'
Length of Operating Lever: 692-1200 cm/23'-39'
Rated Forward Hand Power: 438 N
Rated Forward Travel(Sewing it front and backward): ≥55 mm/2''
Rope Diameter: 11 mm/0.4''
Wire Rope Safety Factor Load Capacity: 5
Safety Factor & Static Load Capacity: 4
Max Traveling Load: 2400 kg/5200 lbs
Net Weight: 26 kg / 57.32 lb

25M

Rated Capacity: 1600 kg/3500 lbs
Length of Wire Rope: 25 m/82'
Length of Operating Lever: 692-1200 cm/23'-39'
Rated Forward Hand Power: 438 N
Rated Forward Travel(Sewing it front and backward): ≥55 mm/2''
Rope Diameter: 11 mm/0.4''
Wire Rope Safety Factor Load Capacity: 5
Safety Factor & Static Load Capacity: 4
Max Traveling Load: 2400 kg/5200 lbs
Net Weight: 12 kg/26 lbs

Package Content

1 x Hand Winch Rope Winch Hoist
1 x Wire Rope

Features & Details

【DURABLE CONSTRUCTION】- Constructed of aluminum alloy die-casting housing, steel plate and shaft, and 20 m / 65' long steel rope, it has high breaking force and wear-resistance. The rated capacity is up to 3500 lbs.
【HIGH STRENGTH & STABLE】- The 65' long steel rope with alloy steel hook has high toughness after heat treatment. The hook will only deform but without brittle fracture, if the body is due to overload, causing damage.
【EASY TO USE】- There' a forward handle, a backward handle, and a detachable and extendable operating lever. Using 23' -39 long operating lever makes your work more convenient.
【SAFETY PROTECTION】- Overload protection ensures high personal safety when in operation. Especially the anchor pin provides multifunctional linking modes for you. And the safe lock makes the hand winch more reliable when in use.
【WIDE APPLICATION AREA】- Perfect for fields to lift, traction, tension. Fieldwork, overhead work, communication erection, pipeline laying, power installation, and railway traction, and all of no power locations in our life.
