12V-24V OBD 2 Breakout Box with Power Plug & 27inch Extension Cable, Automotive Diagnostic Tool, Digital 16 Pin VPP Voltage

We have stock in Poland warehouse

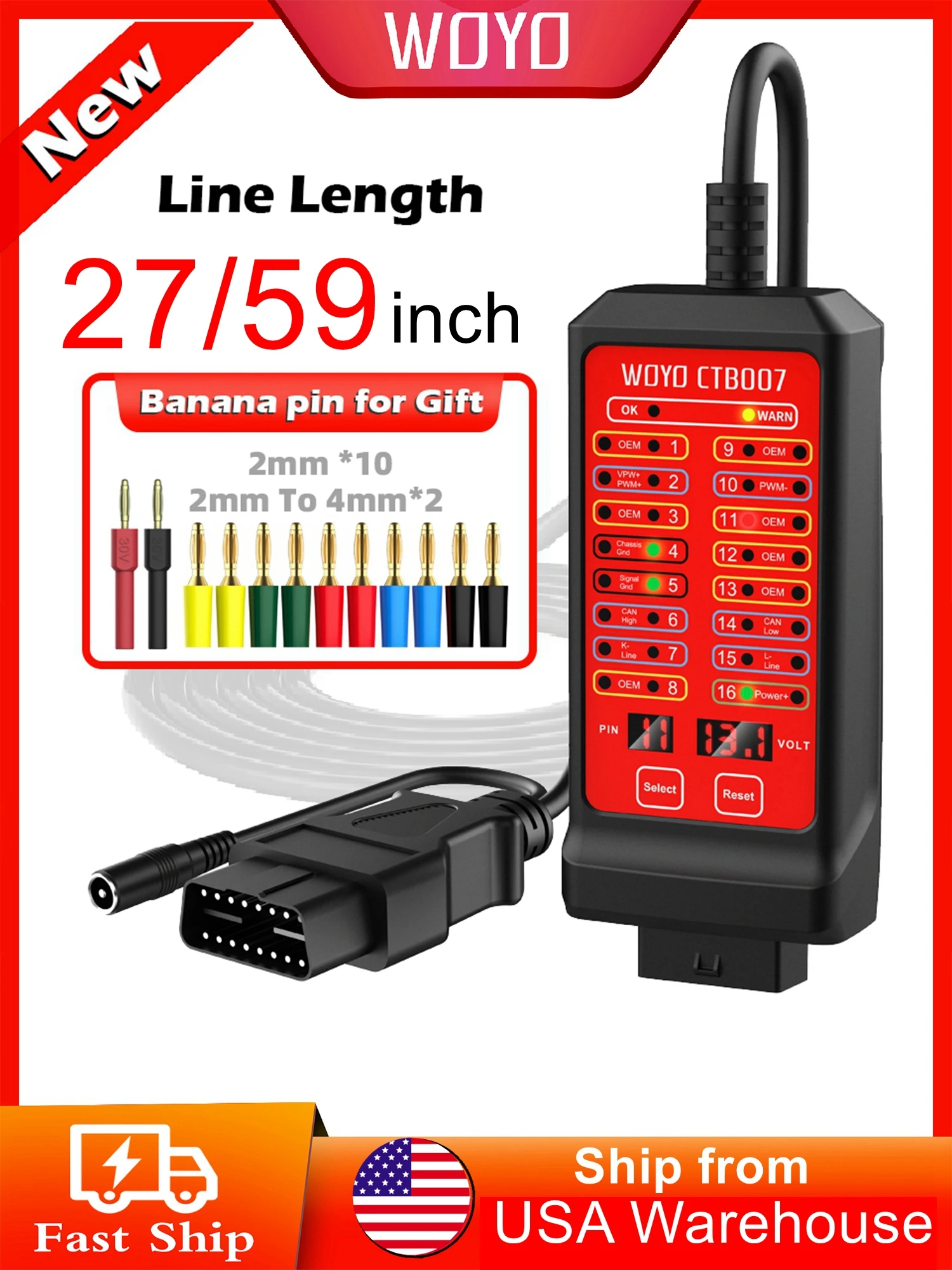

WOYO CTB007 OBD Breakout Box

1. Can connect to Car Truck Motorcycle OBD 2 Plug.

2. Can test 16 pin of OBD 2 digital, use with mulimeter and oscilloscope.

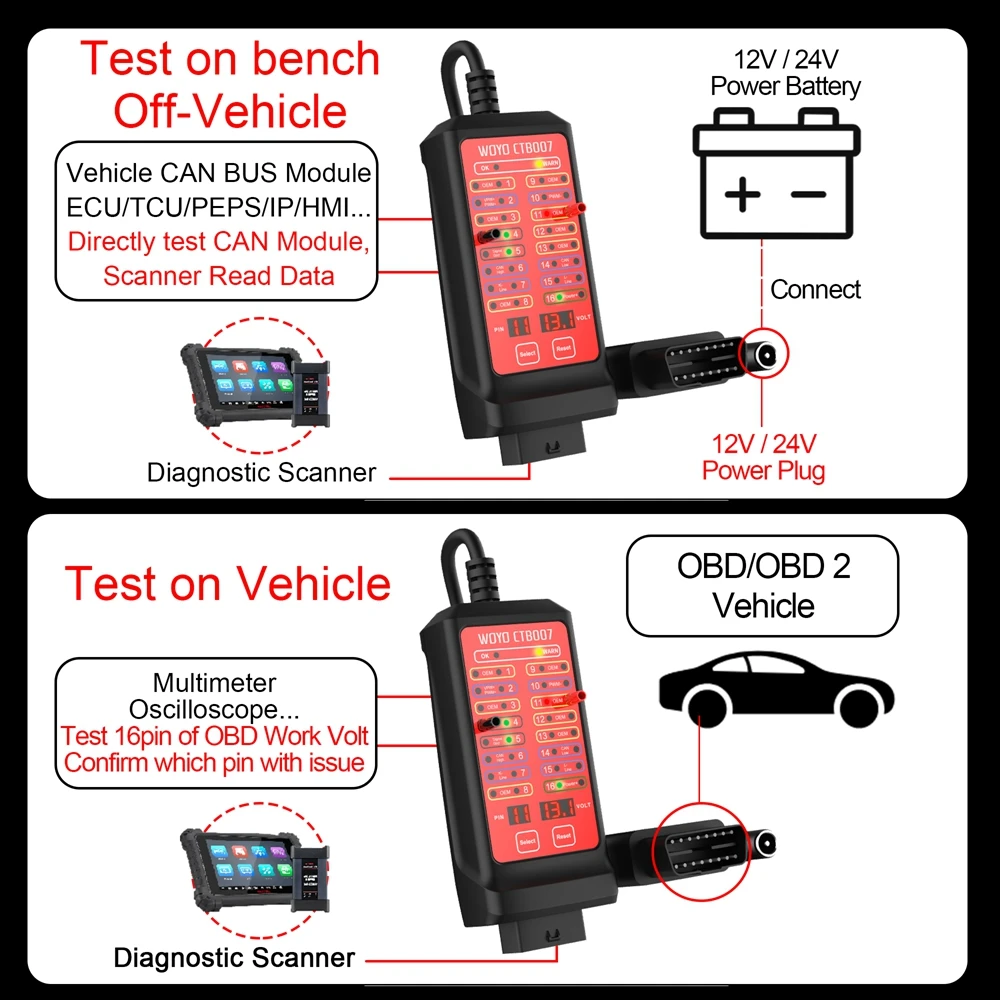

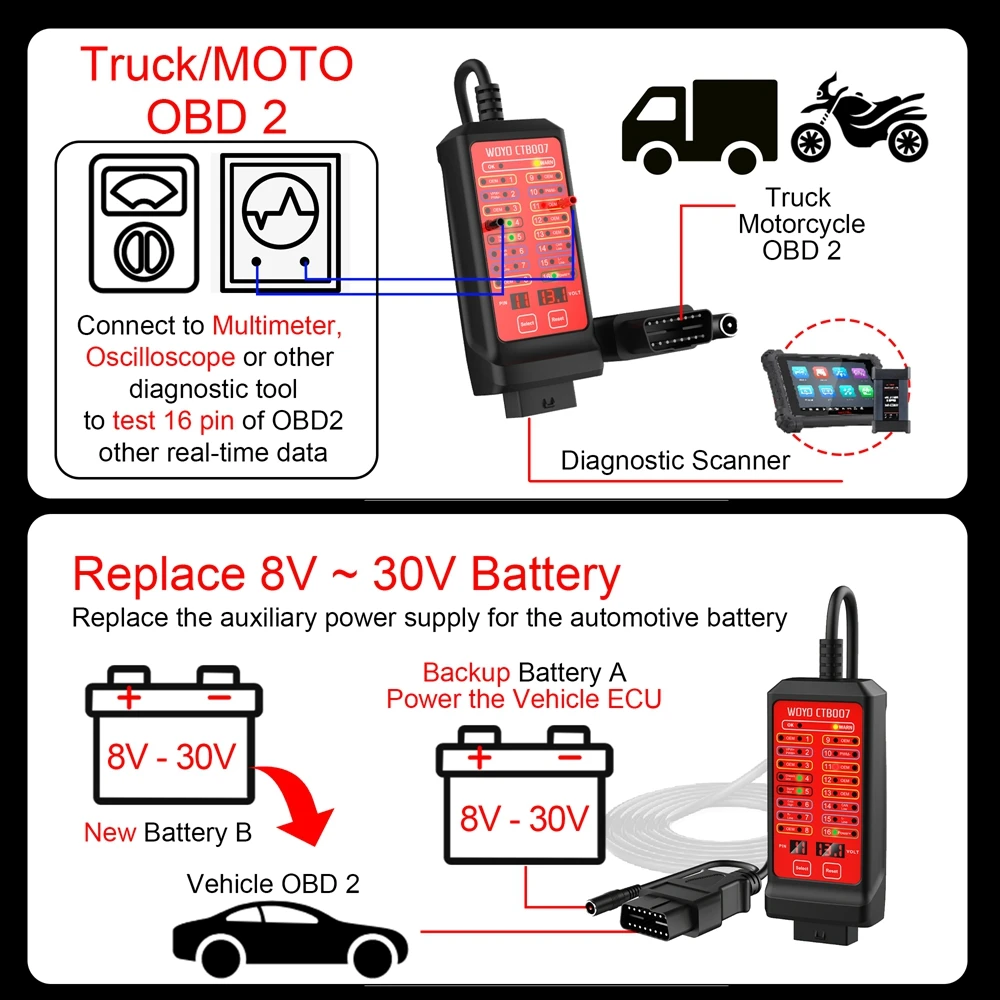

3. Can replace the battery and will not lose the ECU data when you use 12V/24V battery cable to connect to the backup battery.

4. Can connect to Diagnostic scanner to view the real time data.

New 2.0 verson with the new battery power jack

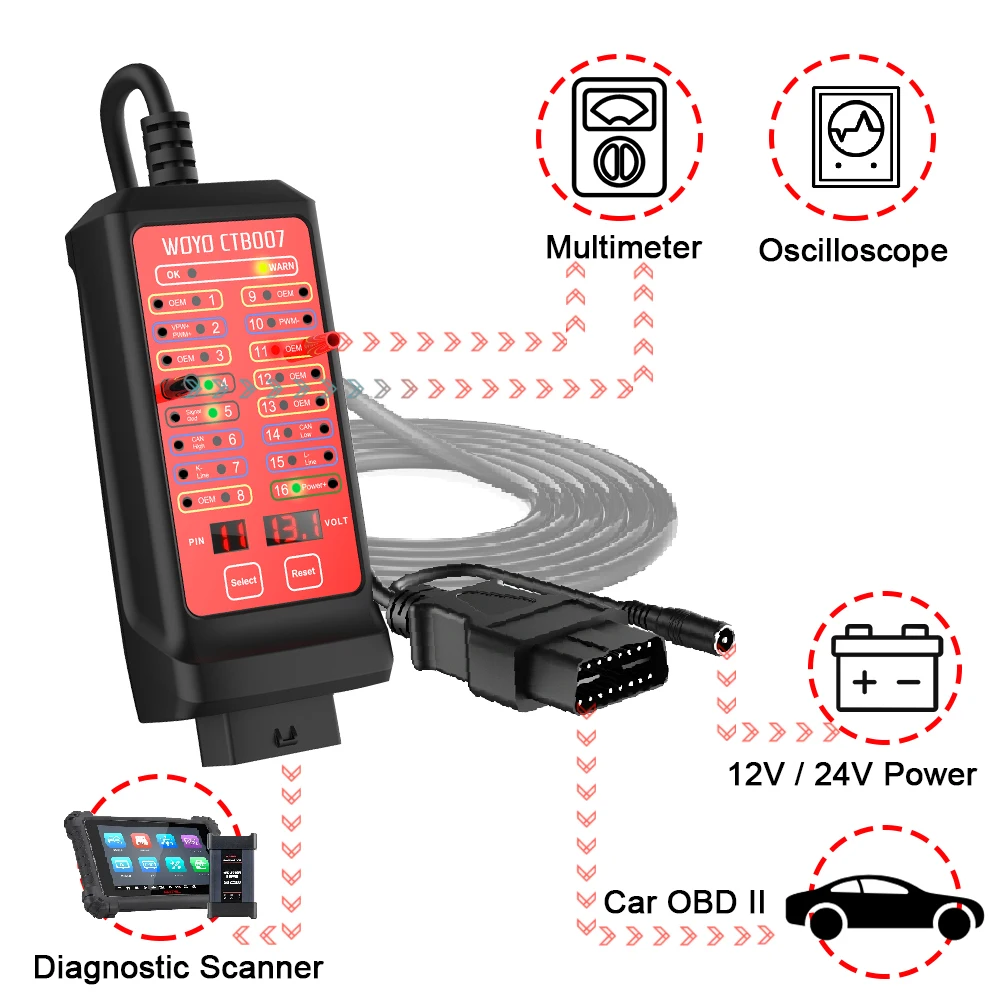

You can connect to many kinds of automotive diagnostic tools, like multimeter, oscilloscope, diagnostic scanner, etc.

You can choose the pin you need with the volt.

When you press the "Reset" button, will default to pin 16.

N​ote:

If you connect to the 12V power system, The warning range for voltage is: less than 11.8V, greater than 15.5V.
If you connect to the 24V power system, The warning range for voltage is: less than 23.6V, greater than 31V.
The low pressure alarm is a slow warning sound, while the high pressure alarm is a rapid warning sound.

Main Characters:

1.CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems;

2.Testing DLC (OBD port) if any error before connecting connecting other diagnostic equipment to DLC, such as pin short circuit and polarity reverse connection ;

3.Real-time display of communication signals ( such as communication protocol signals ) on the allocated

pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter ;

4.Fastly connect 16 pins during vehicle maintenance diagnosis;

5.Monitoring input voltage of OBD when burning module, high and low voltage alarm;

6.Quick short obd porsche communication 3-7;

   Short-circuit obd VW key all lost 1-6;

   Short-circuit obd Mitsubishi remote control 1-4;

   Short-circuit obd Toyota sync 4-13;

7.OBD workbench CAN boot box;

8.Replace the battery tool;

Specifications:

Input Voltage: 9.0-32.0VDC

Maximum Load: 2.0A

Resolution: 0.1V

Overload Protection: Yes, PTC Fuse (Self-Healing)

Reverse Polarity Protection: Yes,LED On Pin 4&5 Turn Red

Protocol Standard: PWM(J1850)、VPW（J1850）、ISO 9141-2、DIS/ISO 14230-4、CAN(J-2284)

Operating Temperature: 0℃-50℃，Humidity<70%

Banana Socket for gift: 2mm*10,2mm to 4mm*2

Power Cable Connector: 5.5 × 2.1 mm

OBD Cable Length: 70cm (27.5inch)     150cm (59.0inch)[NEW]
