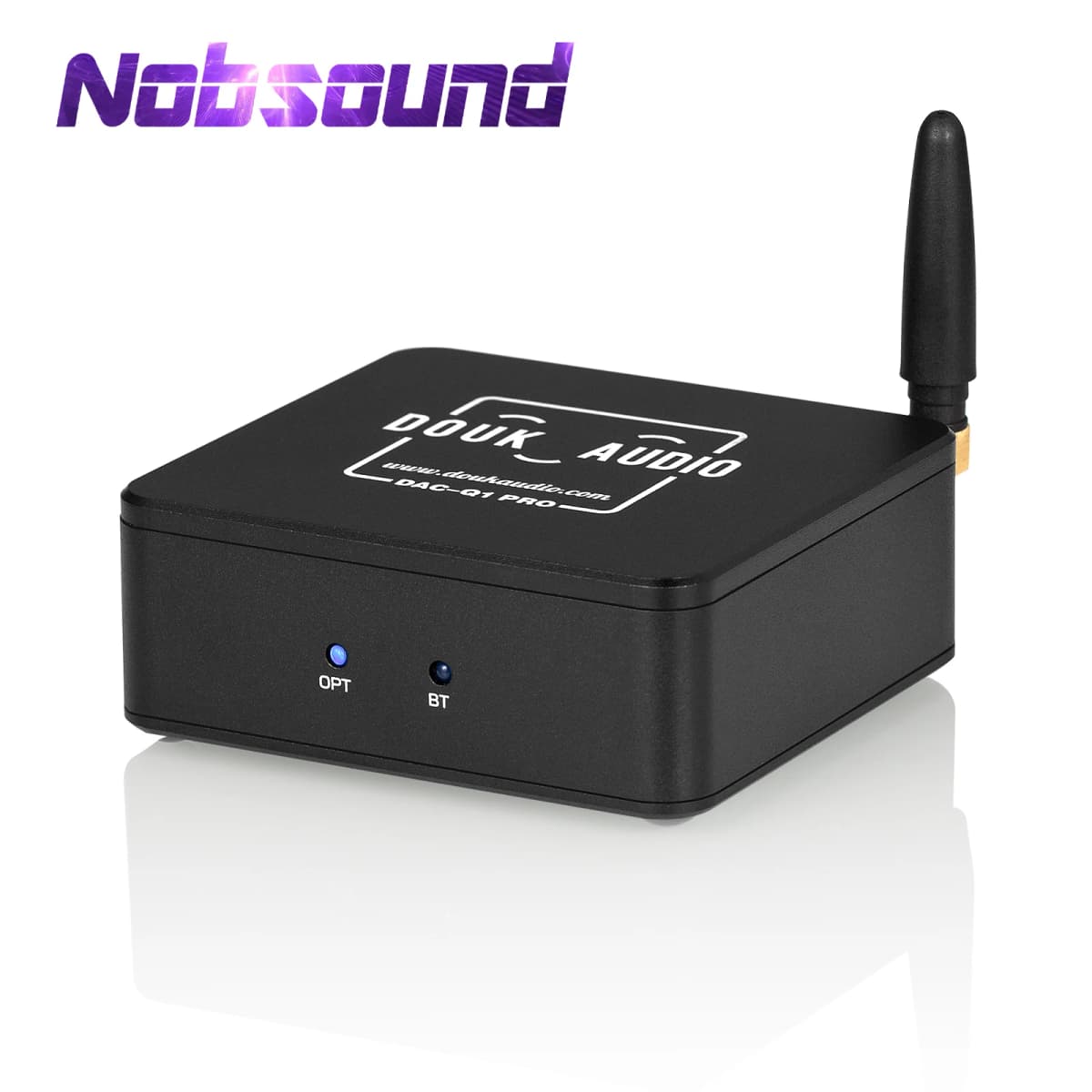

Nobsound HiFi Bluetooth 5.0 Audio Adapter Optical to RCA Analog Converter Home/Car/Desktop Stereo Audio Receiver 24Bit/192KHz

Features

Bluetooth receiver & D/A Converter: with Bluetooth 5.0 and optical fiber inputs, optical fiber and stereo RCA outputs, DAC-Q1 PRO can work perfectly with different audio devices such as phone, tablet, TV, Blu-Ray / CD player etc., rejuvenate those old amplifiers or active speakers without Bluetooth and optical inputs.

QCC5125 Bluetooth chip & ES9018K2M decoding chip: the Bluetooth of DAC-Q1 PRO support APTX-HD and LDAC to achieve faster and more stable transmission up to 24Bit/96KHz. And its optical can process digital audio at any bit depth up to 24Bit and any sample rate to 192KHz with high signal-to-noise ratio and low distortion.

Mini size but with powerful function: with an aluminum case and audiophile grade gold-plated RCA connectors, wireless connection range up to 10 meters, DAC-Q1 PRO looks good and also sounds great, DC 5V working voltage design, very suitable for home / desktop / car / boat audio system use.

Parameters

Audio input: Bluetooth 5.0 / optical

Audio output: optical / stereo RCA

Bluetooth protocol: AAC/SAC/APTX/APTX-HD/LDAC

Max sampling rate supported by Bluetooth: 96KHz/24Bit

Max sampling rate supported by optical: PCM 192KHz/24Bit

Frequency range: 20Hz-20KHz(±0.5dB)

SNR:  ≥116dB

THD: 0.02%

Input sensitivity: 0dBFS

Max output amplitude of RCA: 2VRMS

Max output amplitude of optical: 0dBFS

Working voltage: DC 5V

Dimensions (W*D*H): 84*79*30mm / 3.31*3.11*1.18in

Net weight: 192g / 0.42lb

Package weight: 400g / 0.88lb

Packing List

1* DAC-Q1 PRO

1*Type-C USB Cable

1*Bluetooth Antenna

1* Optical Cable
