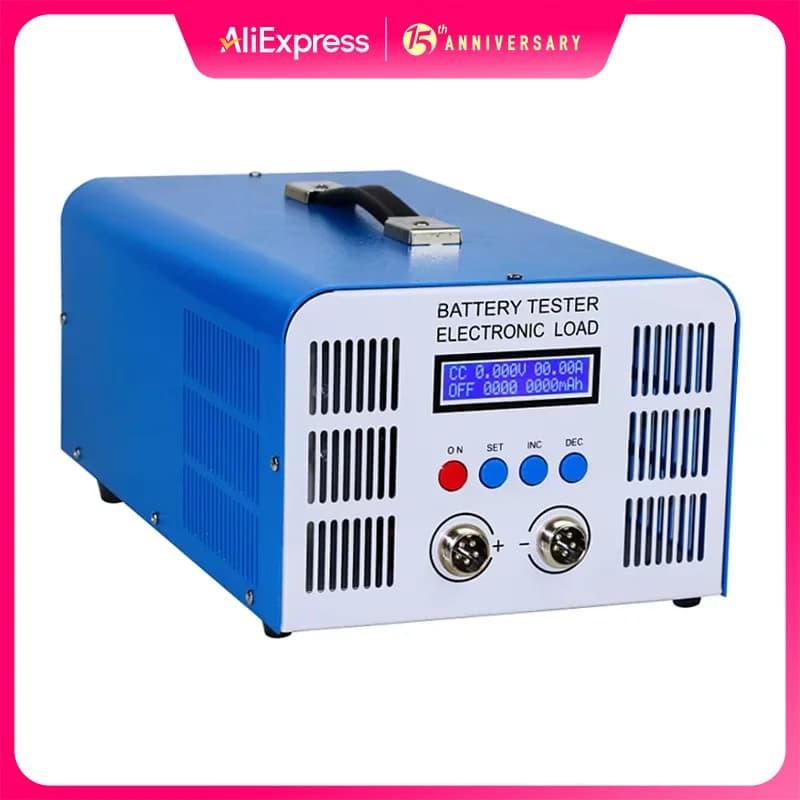

EBC-A40L 0V-5V Smart battery Tester 0V-5V 40A Charge Discharge Tester For LiFePo4 Li-ion Software Monitoring

EBC-A40L is a high-current battery charge and discharge capacity tester for 5V battery and performance testing, through the online software with more extensions.

This model default 220V power supply,

Model: EBC-A40L
Voltage range: charge 0-5V, discharge 0-5V
Voltage accuracy: 0.2% ± 0.03V
Current range: charge 0.1-40A, discharge 0.1-40A
Current accuracy: 0.2% ± 0.01A
Discharge mode: CC constant current discharge / CP Constant power
Discharge termination: time / voltage is lower than the set limit / Manual
Discharge power: maximum 200W
Charge mode: CV constant current constant voltage charging
Charge termination: constant current is less than the set limit / Manual
Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
Cooling method: fan active cooling
Equipment Supply: 220VAC
Package Include:
1x tester
1xOnline line
1x test lines
1xpower cord
