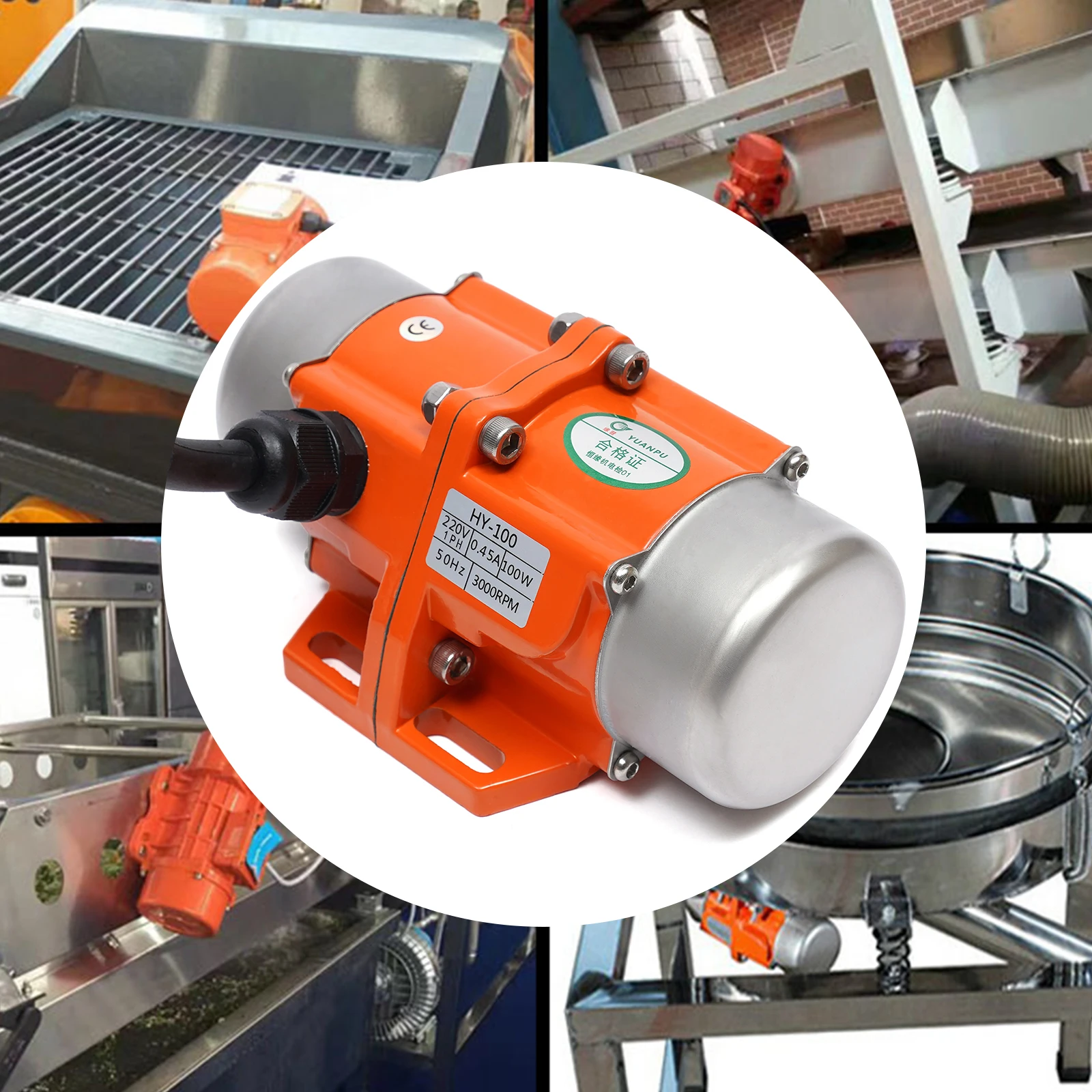

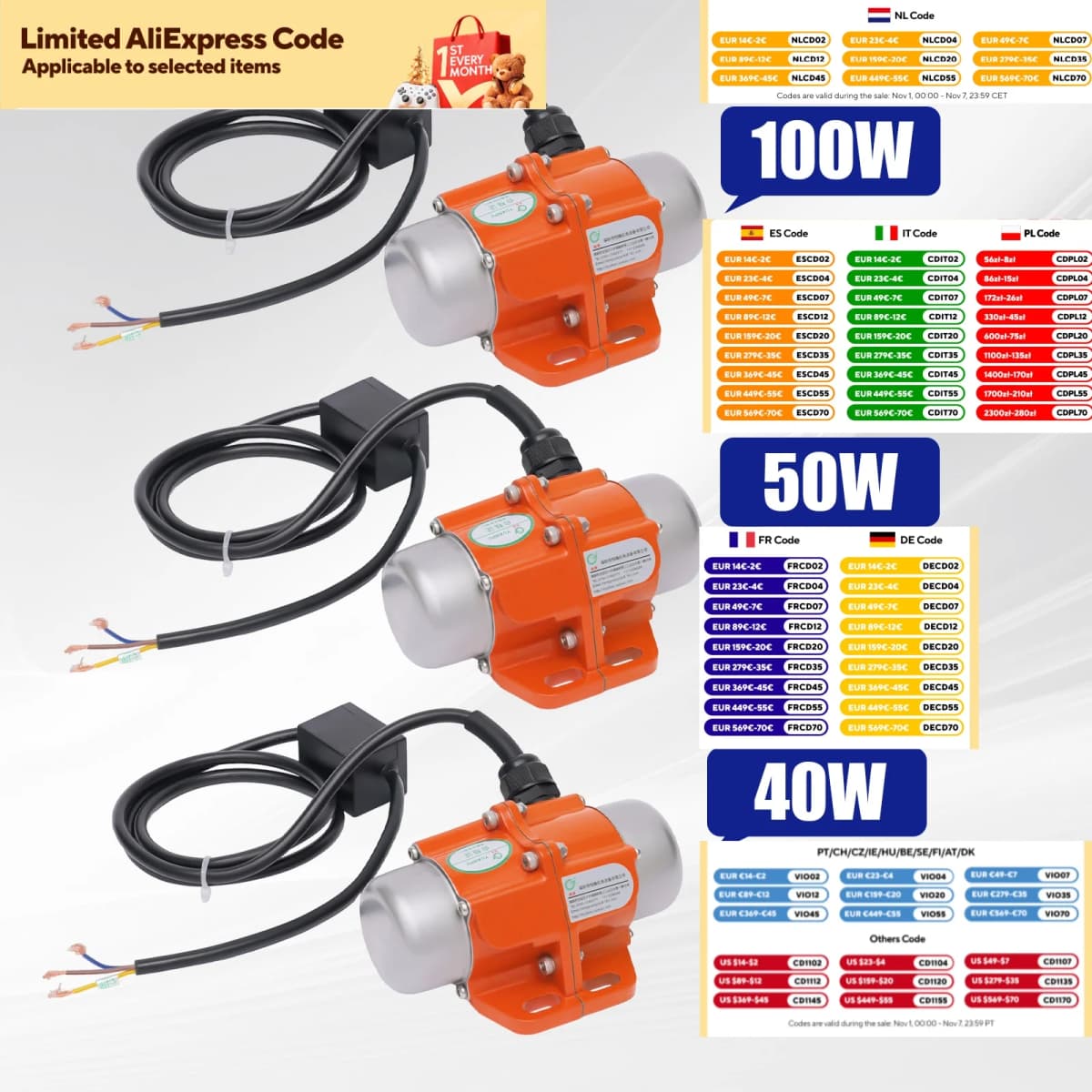

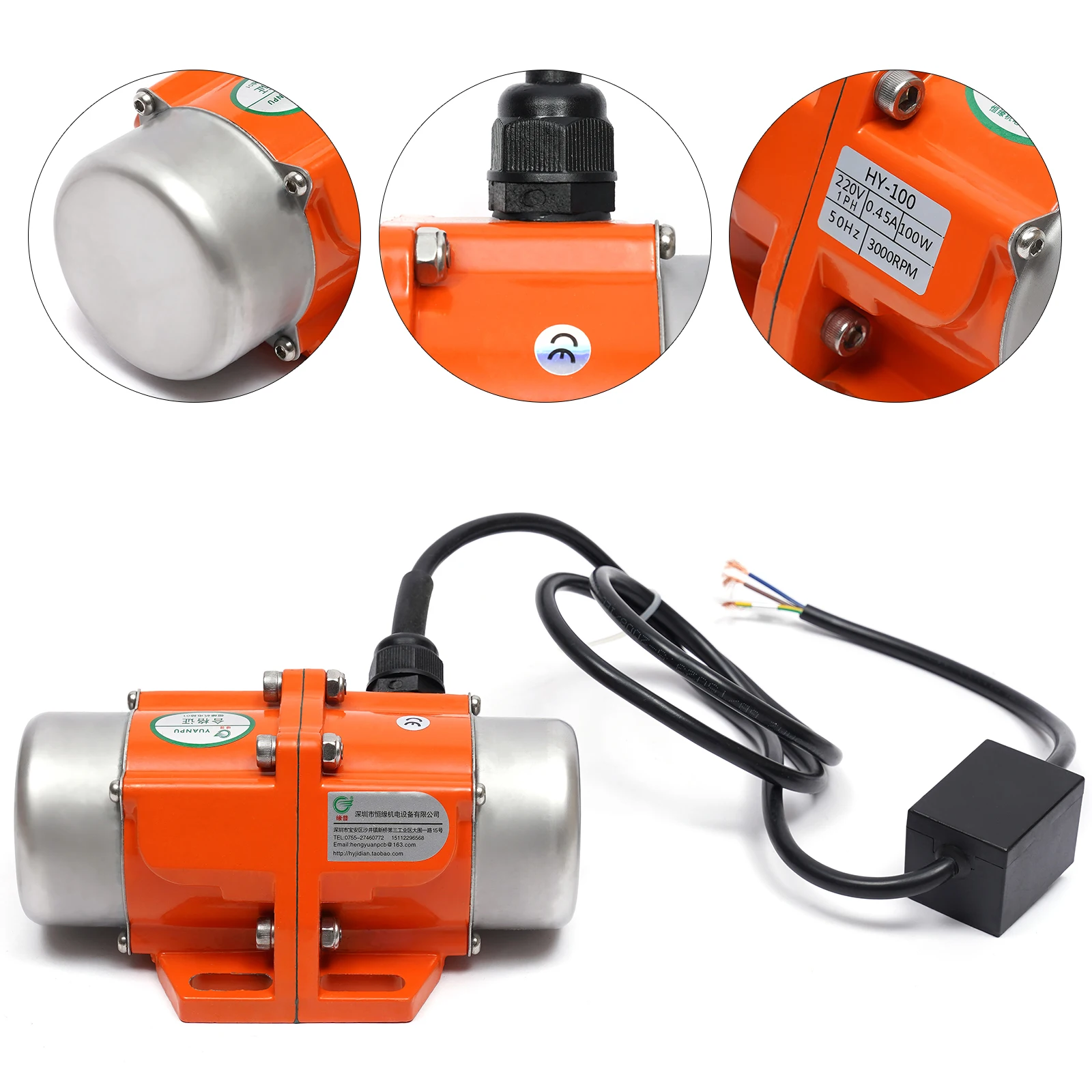

100W/50W/40W Ac Vibration Motor Vibrating Asynchronous Vibrator 220V 3000Rpm EU

Note: To Meet The Installation Needs Of Different Customers, Our Motors Do Not Include Plugs

Features:

- Adjustable Eccentricity Block: Adjust The Angle Of Eccentricity Block, Can Stepless Adjust The Excitation Force , Meet All Kinds Of Requirements

 -Adopt Of Imported Bearings, Low Noise, Smooth Operation, Long Service Life

- High Temperature Resistance Pure Copper Enameled Wire, All Copper Winding, Stator Vacuum Dip Paint, Guarantee Insulation Grade

- Aluminum Alloy Shell, Light Quality, Fast Heat Dissipation, Fast Temperature Rise

- The Machine Shell Is Precision Casting, With o-Ring Seal On The Edge, Fully Closed Structure Design, With Dustproof And Moisture-Proof Function

- Anti Vibration Special Power Cable Protection Cover To Prevent Long - Time Cable Vibration Damage

- Apply In Mining, Metallurgy, Coal, Electricity, Construction, Chemicals, Medical Equipment, Food Machinery, Etc

Wiring Method:1 Phase: Green And Yellow Wire: Ground Wire, The Other Two Wire: One Connect Neutral Live, One Connect Live Wire (Arbitrarily)

Specifications:

100W

Name: Vibrator Motor

Rated Speed: About 3000 Rpm

Rated Voltage: 220V

Type: 1 Phase 100W

Current: 1.3A

Force: 50kg

Product Size: 17*11*7.5Cm

Net Weight: 2.3kg

50W

Name: Vibrator Motor

Rated Speed: About 3000 Rpm

Rated Voltage: 220V

Type: 1 Phase 50W

Current: 0.5A

Force: 32kg

Product Size: 17*11*7.5Cm

Net Weight: 2.3kg

40W

      Name: Vibrator Motor

     Rated speed: 3000 RPM

     Rated voltage: 220V

     Type: 1 phase 40W

     Weight: approx. 1600-2500g

Package Included:

1 x Vibrator Motor(100W OR 50W OR 40W)
