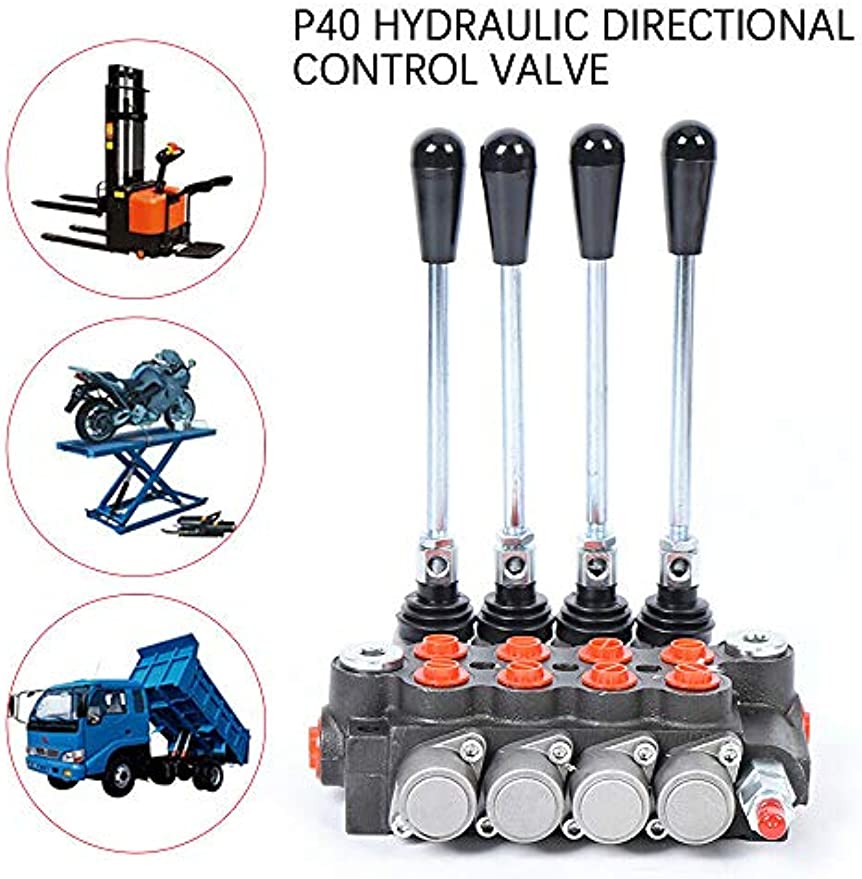

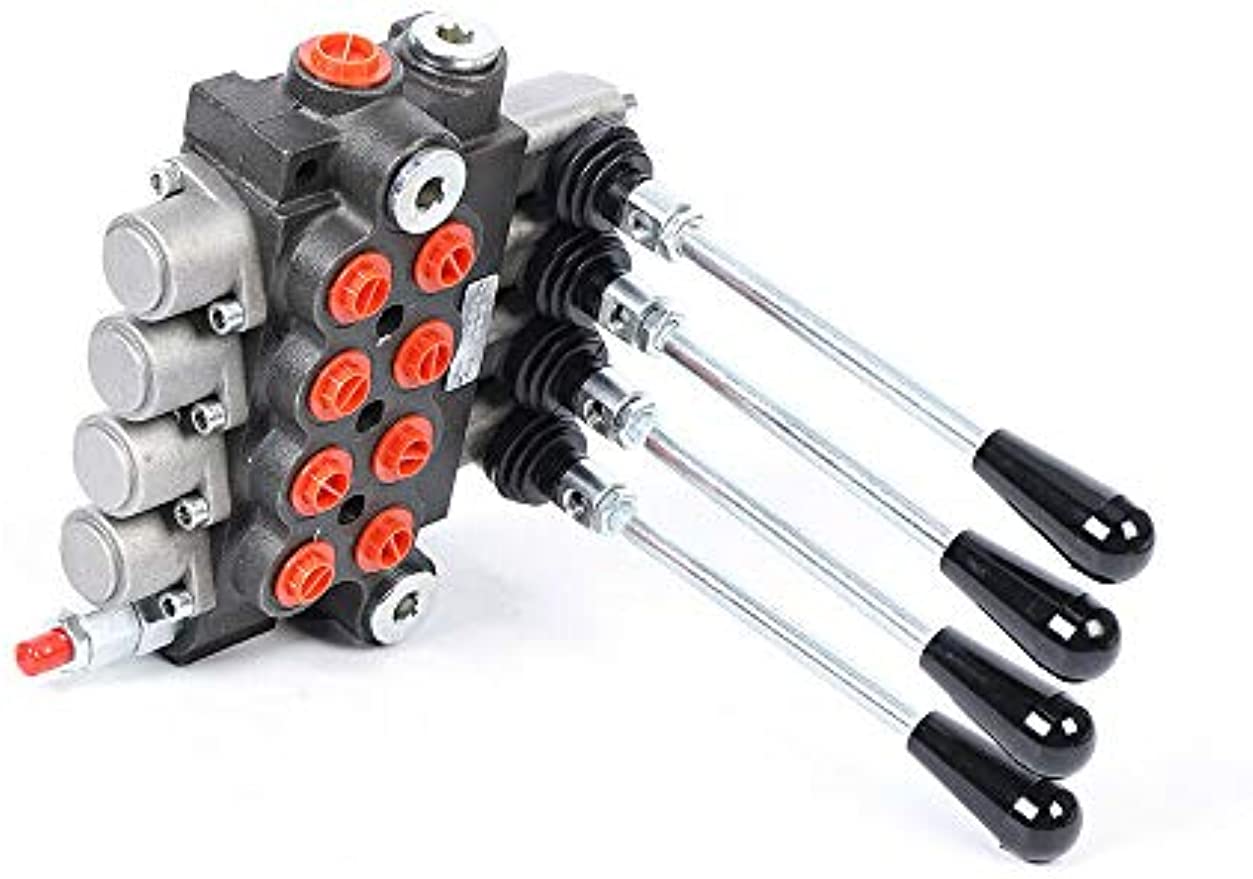

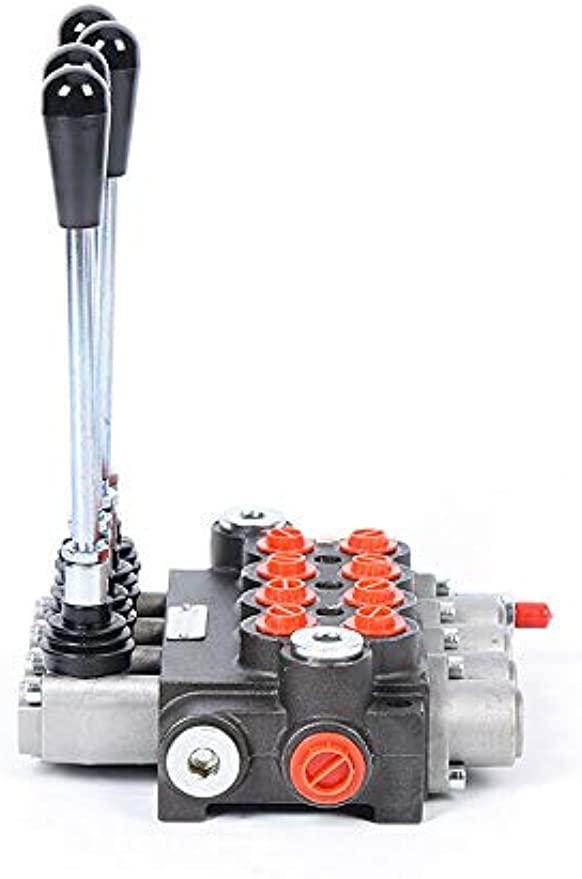

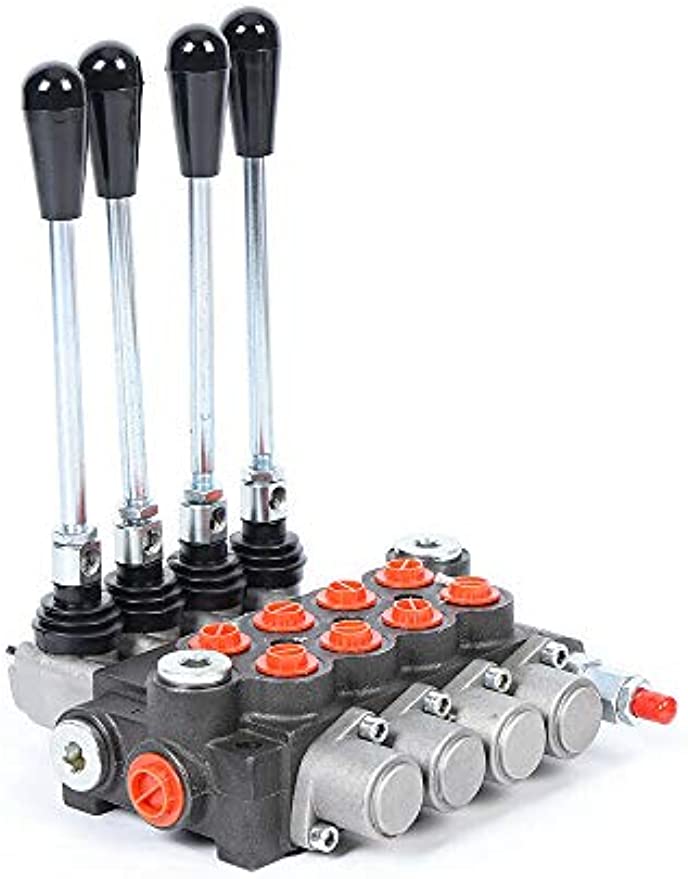

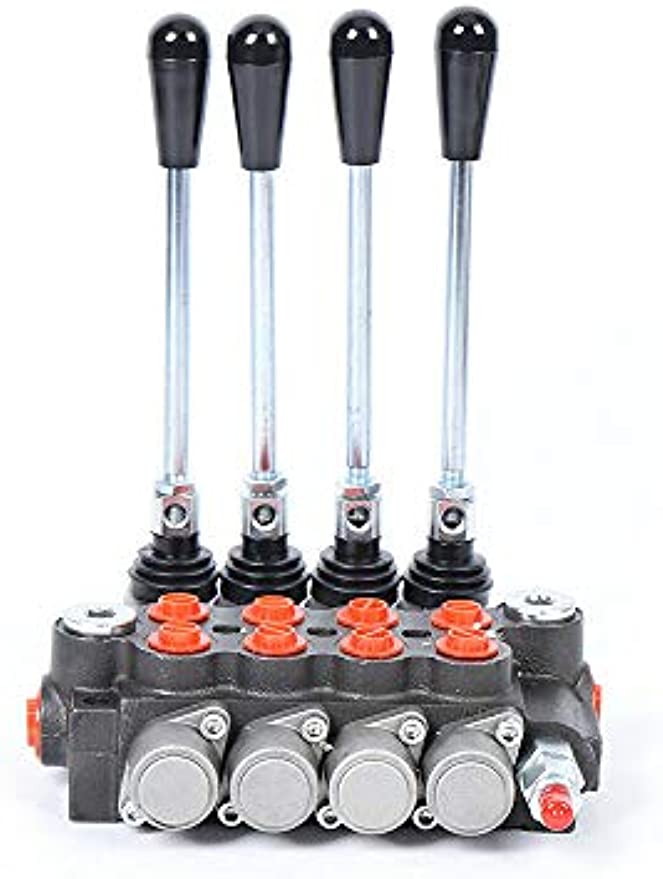

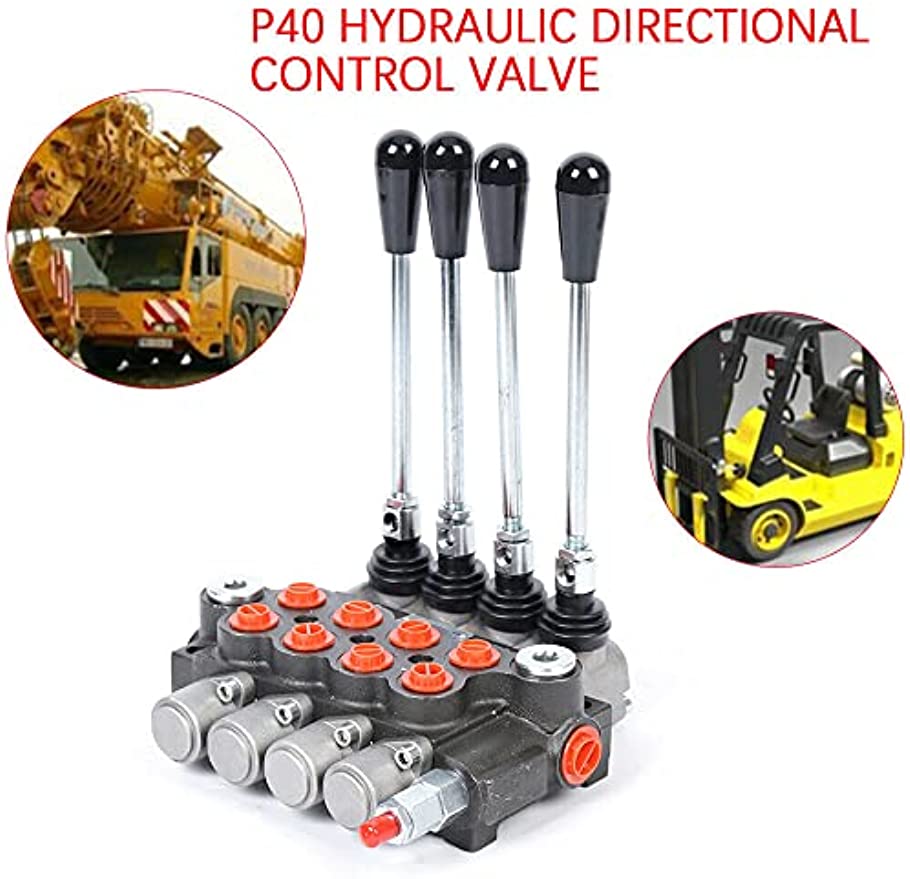

Hydraulic manual control valve 4-fold 40L for double acting cylinders DE
379.74$
122.85$
Quantity:
1
Availability:
Color
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Specifications:
l Max Operating Pressure: P = 3600psi (250 Bar);
l T = 150psi (10 Bar); A ,
l B = 4300psi (300 Bar)
l Nominal Flow: 13gpm (60L/Min)
l Relief Valve: Adjustable
l Center System: Open
l A, B Ports: 1/2" BSPP
l P, T, N Port: 1/2" BSPP
l Back Pressure: ≤1MPA
l Temperature: -20 - 80℃
l Vise Rang: 10 - 400mm2/s
l Filtrating Accuracy: ≤10um
l Product Size:16*21*27cm/6.3*8.3*10.6in
l Net Weight:5.1kg
l Gross Weight:8.323kg
Features:
l P40 Series Valves With Middle-High Pressure Monoblock Construction Is Developed Based On Europe Technology.
l Inner Check Valve: The Check Valve Inside The Valve Body Is To Insure The Hydraulic Oil Not To Be Returned.
l Inner Relief Valve: The Relief Valve Inside The Valve Body Is Able To Adjust The Hydraulic System Working Pressure.
l Oil Way: Parallel Circuit, Power Beyond Option
l Control Way: Manual Control, Pneumatic Control, Hydraulic And Electric Control For Optional.
l Valve Construction. Monoblock Construction, 1-7 Levers.Spool Function: O,Y, Pa.
l Option: Hydraulic Lock Is Available To Be Added On A And B Port.
l Available With Manual,' Pneumatic Control, Electric And Pneumatic Control, Hydraulic And Electric Control And Etc.
Applications:
l Small Tractors
l Tractors Loaders
l Log Splitters
l Other Mobile
Packages:
1 x 4P40 Hydraulic Directional Control Valve
