For Honda HDS HIM Diagnostic System Tool For HONDA Interface Module Green Double PCB With RS232 Stable Quality New V3.104.24

New V3.104.24 For Honda HDS HIM Diagnostic System Tool For HONDA Interface Module Green Double PCB With RS232 Stable Quality

HIM=For Honda Interface Module

HDS=For Honda Diagnostic System

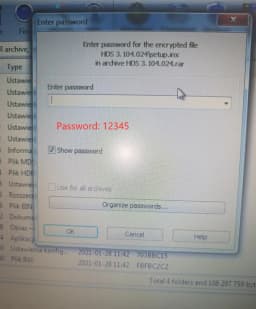

Encrypted file HDS V3.104.024 Enter password is 12345

Newest Released ,it can diagnosis for Honda cars until 2021.

Note: Software updated,if CD no include latest version ,please contact us to send you download weblink.

Newest Released V3.104.024,it can diagnosis cars until 2021. For details car model,please test in real operation.

Please Note: Standard package is EU Plug.

HDS troubleshooting issues can be resolved through this process:

Follow video and check to see if it works properly

Scenario 1: Self-test check is normal, indicating that the problem lies in the software. Follow the installation video or instructions to troubleshoot on your own, and if possible, arrange for remote processing

Scenario 2: If the self-test fails, it indicates a problem with the HDS host.

HDS Issue: Self-test pass,LED light okay stauts,but no communicate with vehicles.

Q: Self-test okay,made the test for HIM interface, and it's OK. When I plug the OBD2 connector, 2 leds blinking, and not communicate with the car. The COM port is COM1, i have tried another USB to RS232 cable, but not communicate.

A: Please check if FTDI driver set up correctly!

I have found the problem! In Windows, the HIM driver was always overwritten by another FTDI chip driver. I had to change the special settings to see which driver I wanted to use, and now it works!

Top Reasons To Get For Honda HDS:

1. Software Version: 3.104.024 ,This Version No Need Activation

2. Support VIN Reader and IMMO.

3. Test Coverage: Dynamical, Body, Chassis, ABS, SRS, Antitheft, etc.

4. For Honda HDS HIM supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.

5. Use Adapter USB to RS232 Convert Connector together(Optional), It is easy to use Honda HDS on the computer that without COM port

6. Support For Honda vehicles from 1992-2016 year

7.Support Multi-languages:

Computer System:WIN XP ,WIN 7,WIN 10

No supports VM system and WIN 11.

Note: Please close anti-virus programmer when run software

Multi-Function Display:

1. Functions Supported by Honda/Acura Protocols

Reading and decoding fault codes from control blocks memory

Deleting fault codes

Displays system current parameters in digital form

Combined displaying of data

Management of executive devices

Logs keeping,writing and keeping of digital parameters in memory

Special functions changing of permissible settings of blocks, programming etc.

2. Functions Supported by OBD-II Protocols

Mode $01  Displays system current parameters in digital form (up to 8 parameters at once)

Mode $02  Displays parameters of freeze frame

Mode $03  Reading and decoding of fault codes from control block? memory

Mode $04  Deleting of fault codes (memory clearing)

Mode $05  Displays results of oxygen sensors

Mode $06  Displays results of changeably controlled systems and components

Mode $07  Displays results of constantly controlled systems and components

Mode $08  Management of executive devices

Mode $09  Displays car identification info

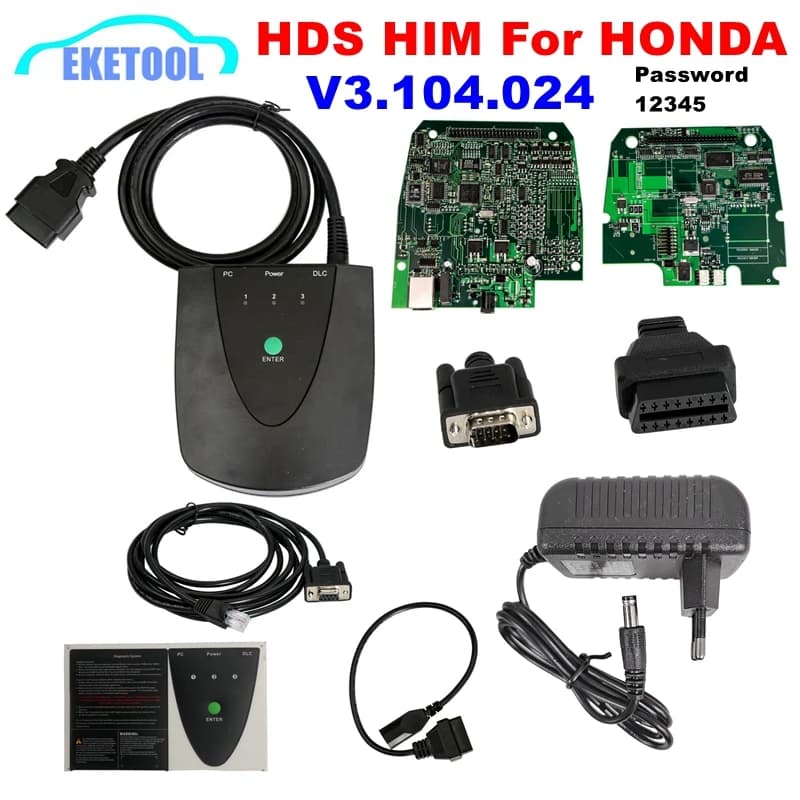

Package List:

1 x HIM with OBD II Cable

1 x 3 Pin Cable

1 x Self test Adapter

1 x AC Adapter

1 x Power Plug

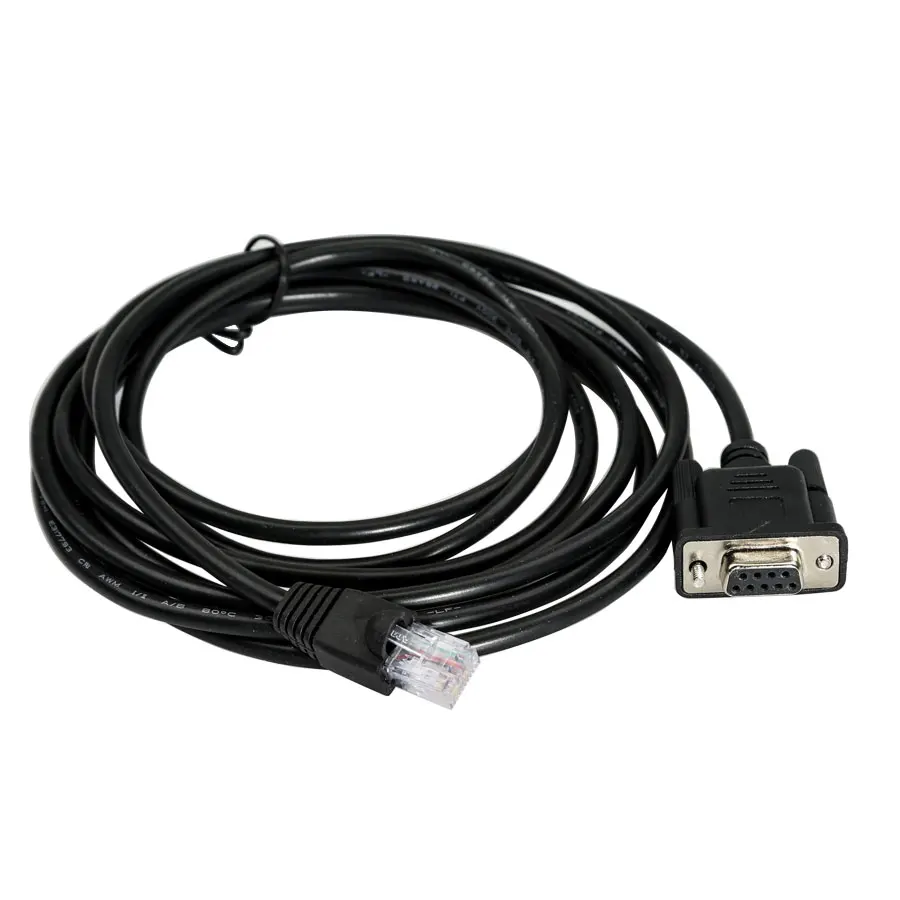

1 x USB to RS232

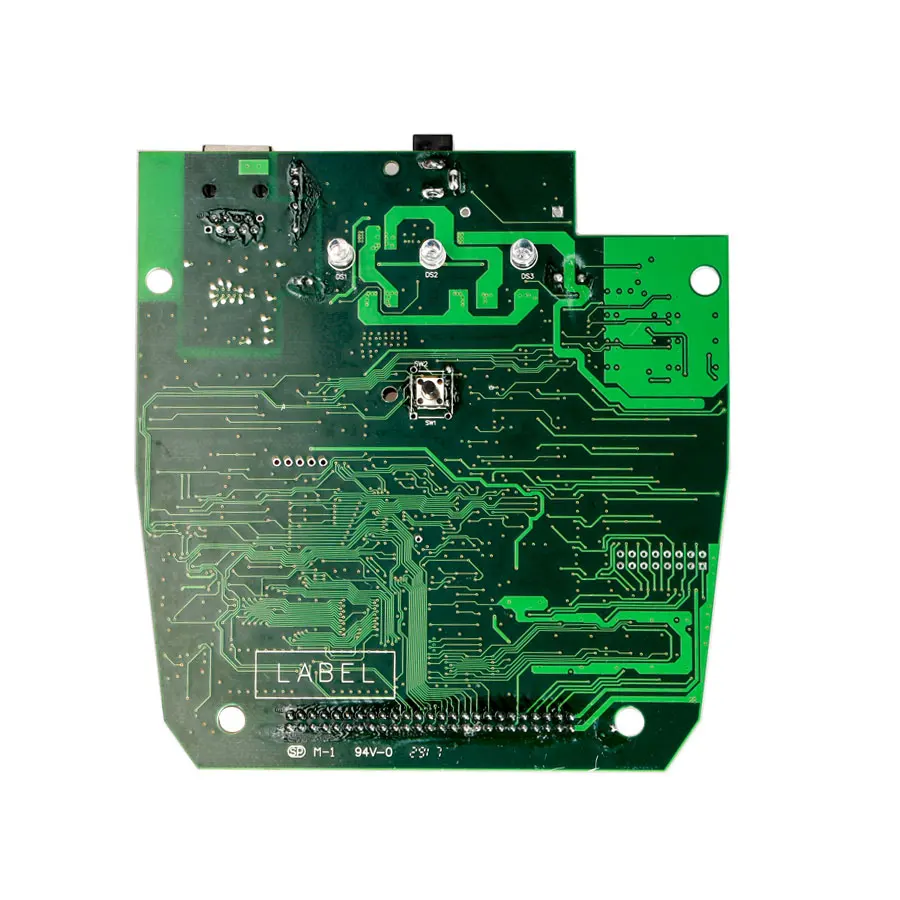

Green Double PCB Display:
