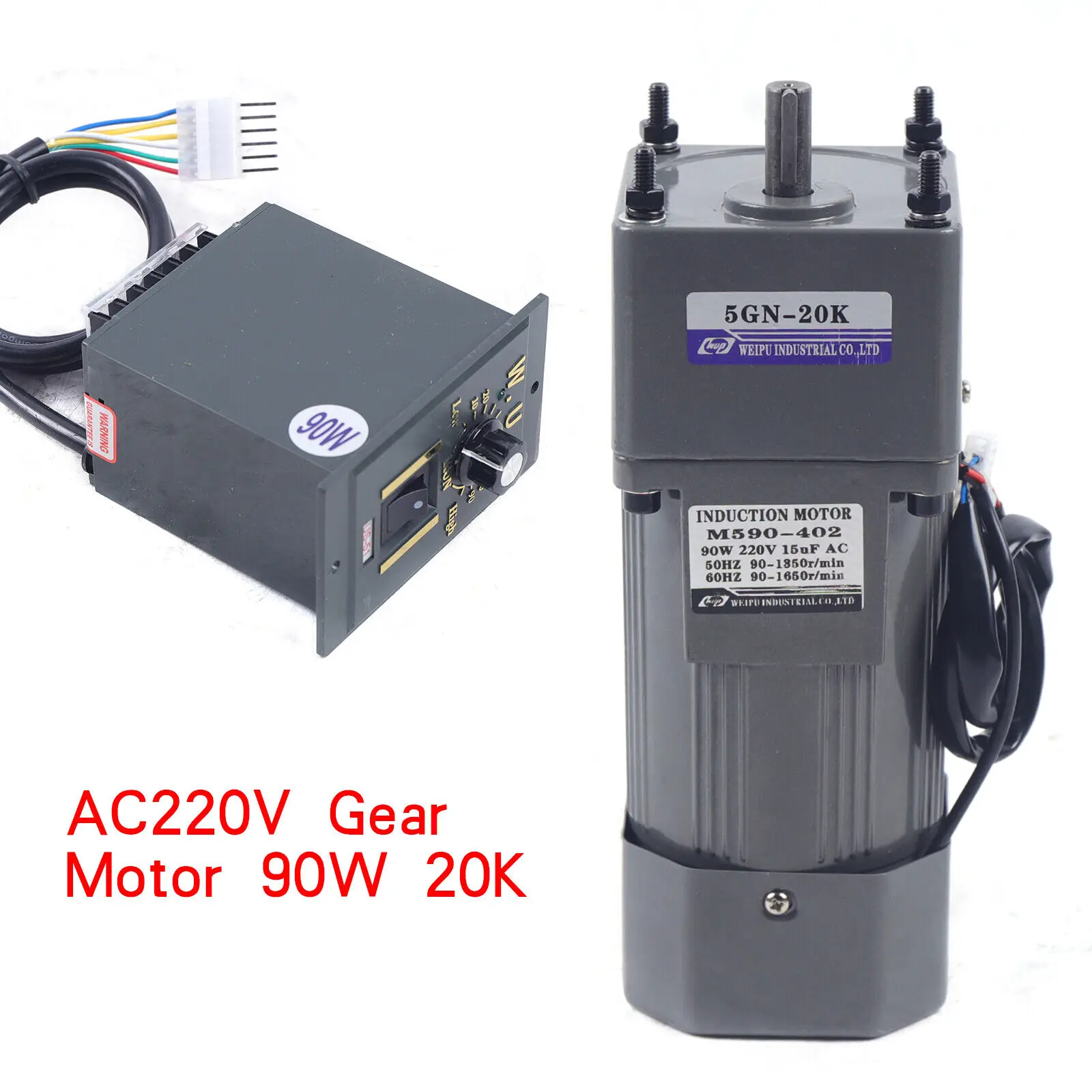

90W 220V AC Electric Gear Motor Asynchronous Gear Motor Reducer Single Phase Motor + Speed Regulator (20K)

Warm note:

Our products are divided into two packages. If you are short of one package for the time being, please contact our customer service to check whether another package is on the way.

Specification:

Name:AC gearmotor

Rated voltage: 220V

Rated speed: 0-67 RPM

Reduction ratio: 1:20（20K）

Torque: 13nm

Power Phase: single-phase

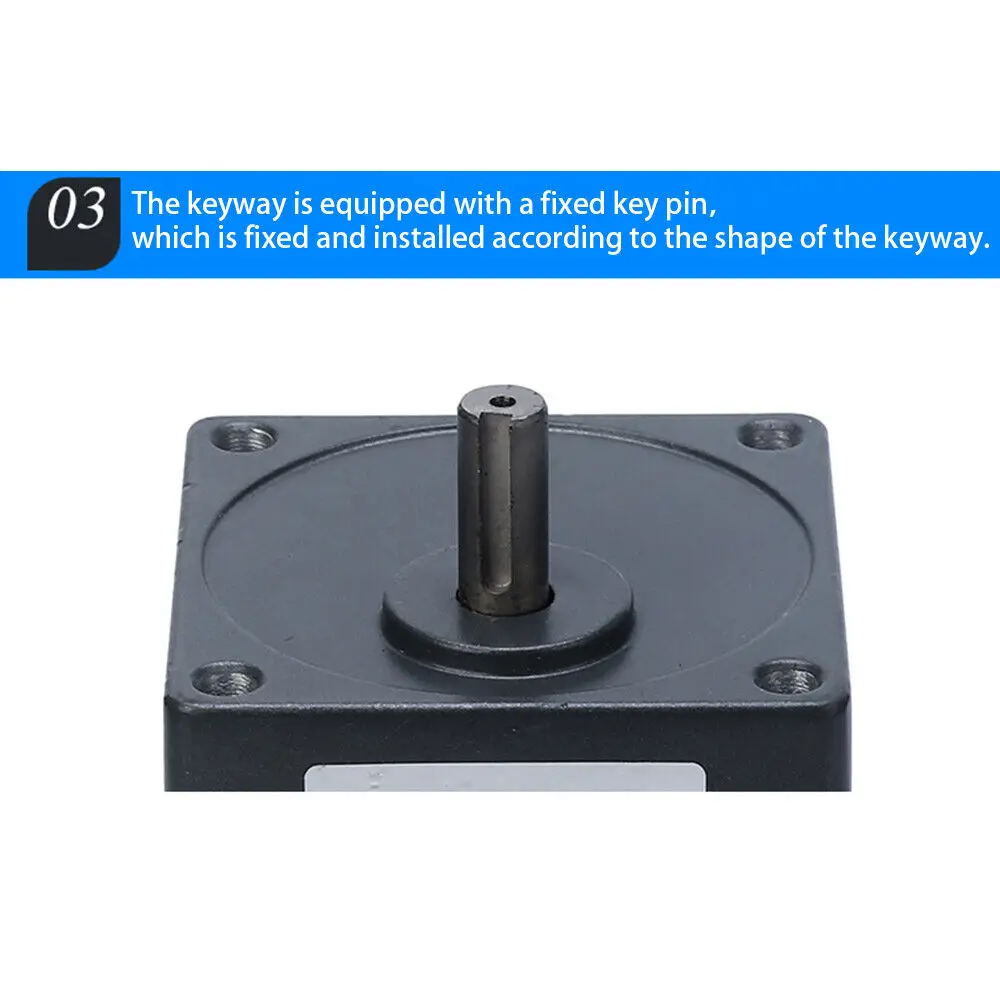

Shaft diameter：12mm

geared motorsize：164MM * 90MM *74MM

Reducer size: 61*90*74mm

Features:

Flexible installation

Efficient works

Torque large

Smooth operation

Long working life

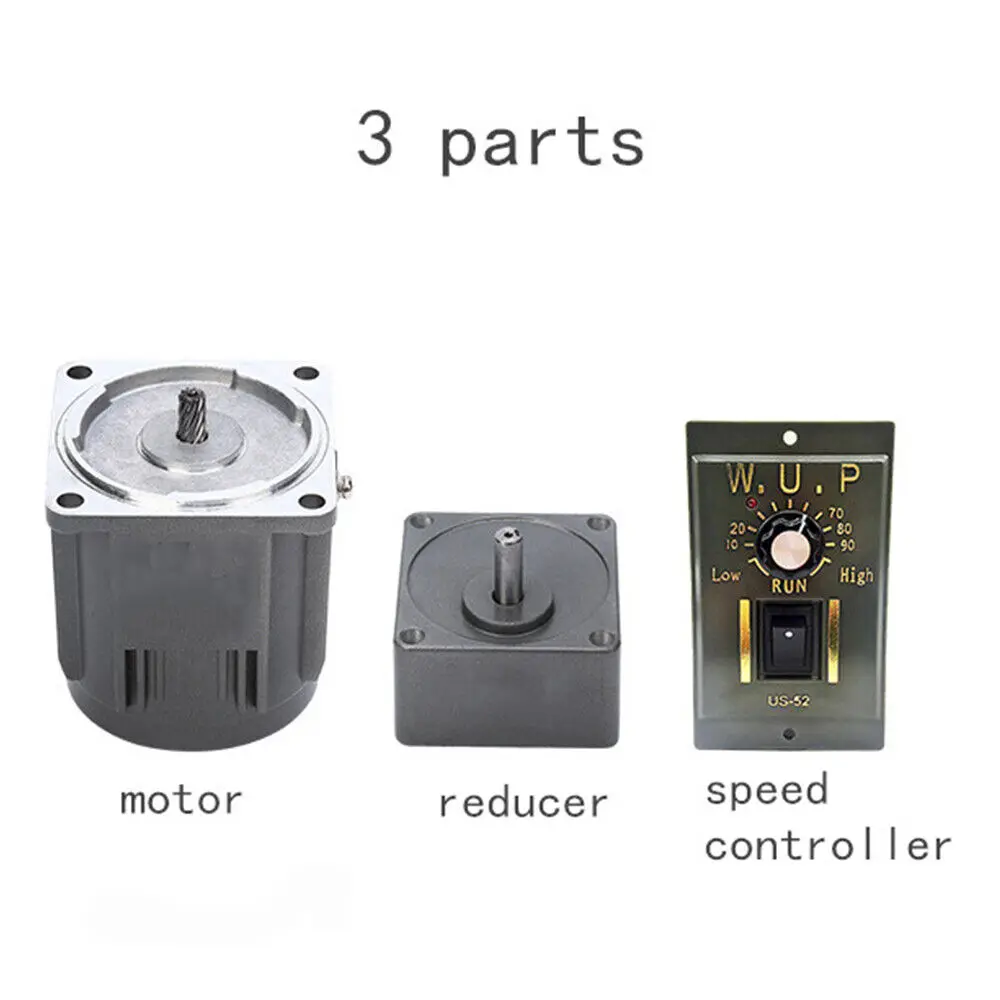

Packing list:

1 x motor

1 x reducer

1 x speed controller

Note: Under different deceleration ratio, the output shaft speed is different. The output shaft speed is equal to the motor speed of 1350 rpm divided by the deceleration ratio.

In order to reduce the inapplicability of the motor, please judge according to the selection process before placing the order

1.Judge the deceleration range first

1)The speed is within the safe speed range (e.g. 315-450r), choose the wattage according to your actual load

2)The speed is outside the safe range (such as 100-450r), choose 2-3 times of your actual load（For example, if you want to choose 100-450R 15W motor, now you need to choose 30-45w motor）

2.Judge load

1) Load product ＜1m，If the torque is 10nm, the load is generally ≤ 10kg

2) Load product ＞ 1m, please consult us

3.Continuous working time of motor

1) Continuous working time of motor＞4h, Wattage selection needs to be increased(For example: if you want the motor to Continuous work 5h, you need to choose lager watts than your actual load watts)

2) Continuous working time of motor＜4h, Wattage selection no needs to be increased

4.Judge the installation form (2 kinds in general)

1) Directly use the output shaft to drive the load [that is, the load is directly forced on the shaft, which is generally judged by comparing the data in the table, and the difference is not big]

2)second, Motor as a power source to drive a whole equipment [there are many accessories, such as roller, pole, etc.], which we usually need to match 1-2 times larger.(For example, if you choose the second installation way, you want 15W motor first, now you need to choose 30-45W product.)
