BSIDE Digital Multimeter, Non-Contact Voltmeter, DC AC Voltage Smart Detector Ohm Capacitance Hertz Connectivity Tester

This product belongs to the latest generation of intelligent digital multimeter voltage detector of BSIDE brand!

This product has current and temperature tests. The application scenarios are more extensive.

Overload protection, easy-to-use design is well received by buyers.

Exquisite appearance/reliable performance/complete functions, can meet the needs of different people, and is very suitable as a gift.

Equipped with a high-quality cloth bag made of EVA material, it is very portable.

Specification:

Display: 6000 counts

DC voltage: 0V-6.099V 0.001V ± (0.8% + 3); 6.1V-60.99V 0.01V ±（0.8% + 3）; 61.0V-620V 0.1V ±（1% + 5）

AC voltage: 0V-6.099V 0.001V ± (1.2% + 5); 6.1V-60.99V 0.01V ±（1.2% + 5）; 61.0V-620V 0.1V ±（1.2% + 5）; 10V-620V 1V ±（4.0% + 3）

DC Current: 1-610mA 0.1mA ±(1.5%+3)

AC Current: 1-610mA 0.1mA(40-1000Hz) ±(1.5%+3)

Resistance: 0-609.9Ω 0.1Ω ±(1.2%+3); 0.610KΩ-6.099KΩ 0.001KΩ ±（1.2%+3）; 6.10KΩ-60.99KΩ 0.01KΩ ±（1.2%+3）; 61.0KΩ-609.9KΩ 0.1KΩ ±（1.2%+3）; 0.610MΩ-6.099MΩ 0.001MΩ ±（1.2%+3）; 6.10MΩ-60.00MΩ 0.01MΩ ±（2.0%+10）

Capacitance: 1.0nF-60.99nF 0.01nF ±(3.5%+8); 61.0nF-609.9nF 0.1nF ±（3.5%+8）； 0.610uF-6.099uF 0.001uF ±（3.5%+8）; 6.10uF-60.99uF 0.01uF ±（3.5%+8）; 61.0uF-609.9uF 0.1uF ±（3.5%+8）; 0.610mF-6.099mF 0.001mF ±（3.5%+8）； 6.10mF-60.0mF 0.01mF ±（4.5%+10）

Frequency: 1.00Hz-9.999Hz 0.001Hz ± (1.2%+3); 10.0Hz-99.99Hz 0.01Hz ±（1.2%+3）； 100.0Hz-999.9Hz 0.1Hz ±（1.2%+3）; 1.00KHz-9.999KHz 0.001KHz ±（1.5%+5）; 10.0KHz-99.99KHz 0.01KHz ±（1.5%+5）; 100.0KHz-999.9KHz 0.1KHz ±（1.5%+5）; 1.00MHz-9.999MHz 0.001MHz ±（2.0%+10）

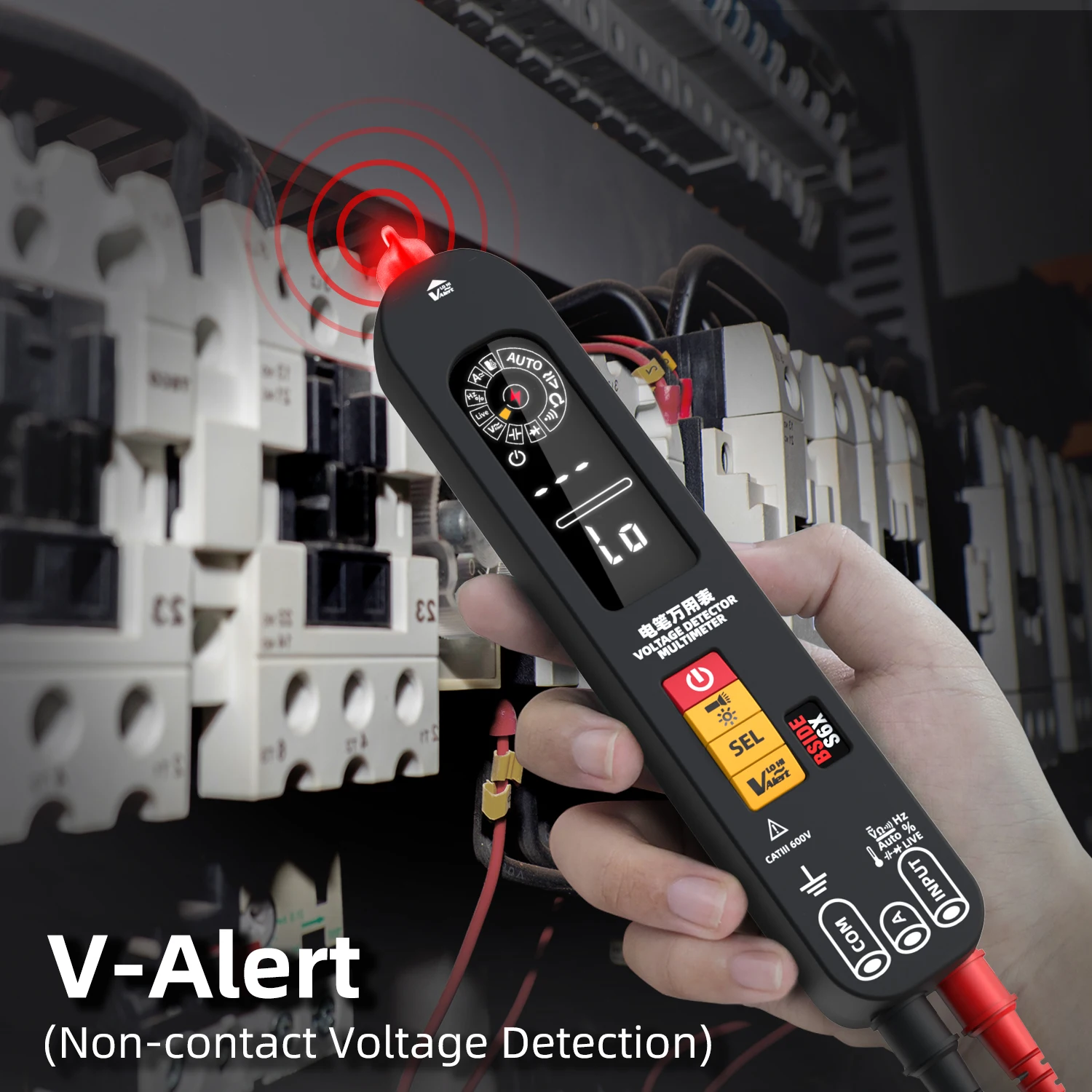

V-Alert (Non-Contact Voltage Detection): Yes

Fireline Check: Yes

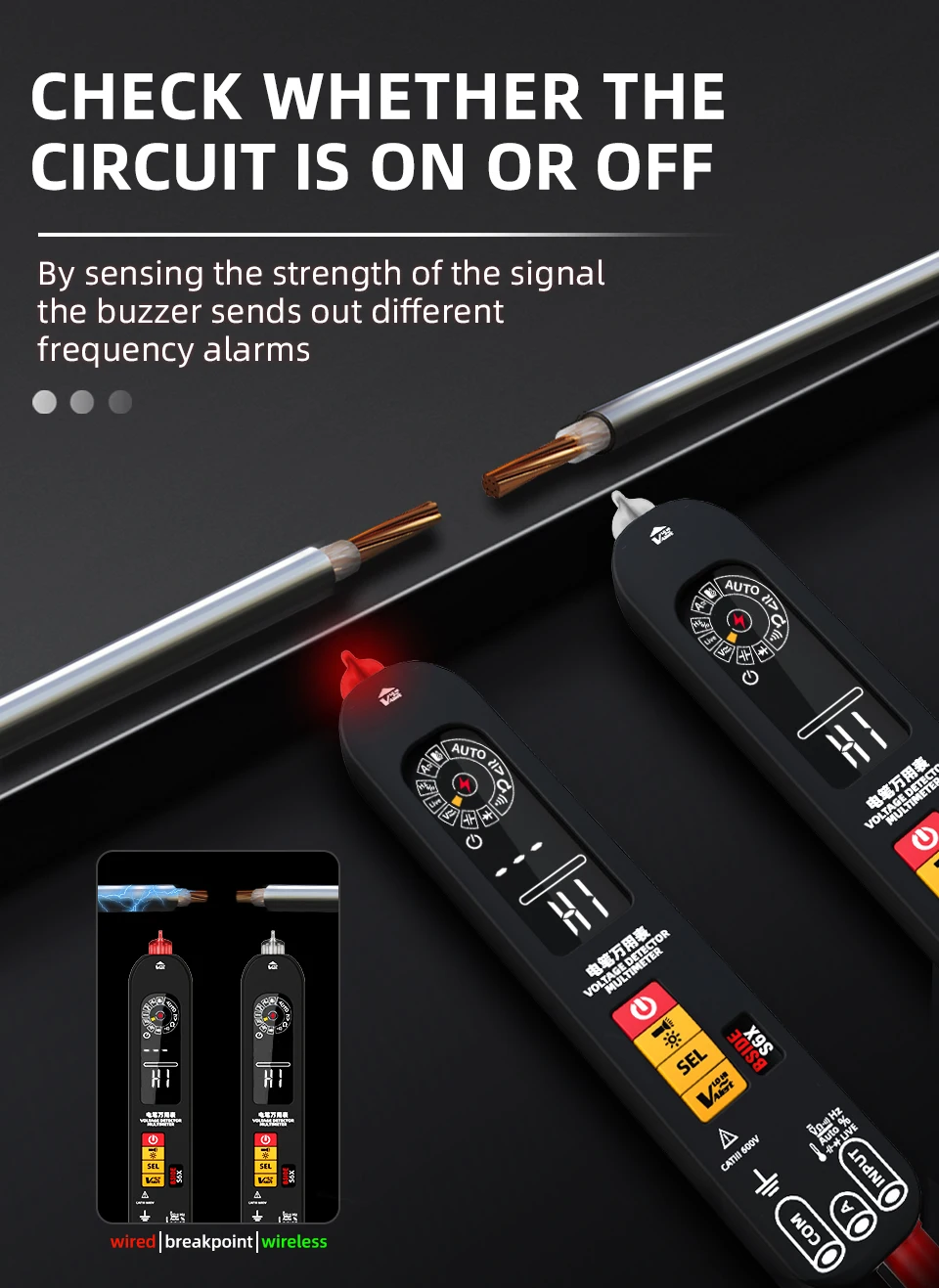

Continuity: If the resistance is less than 50Ω, the buzzer will emit it

Diode: Diodes that measure up to 3V

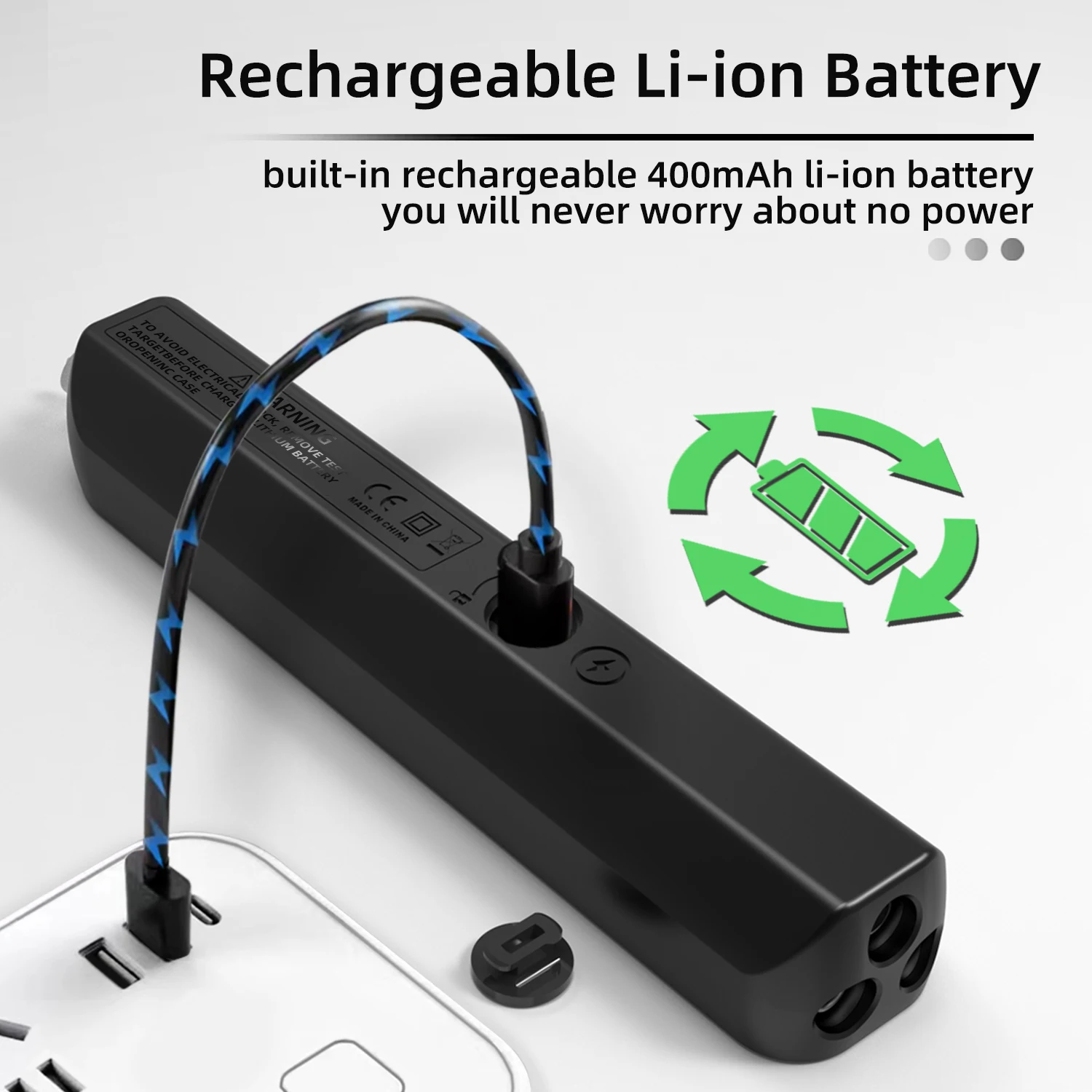

Power supply: 3.7V (built-in, rechargeable)

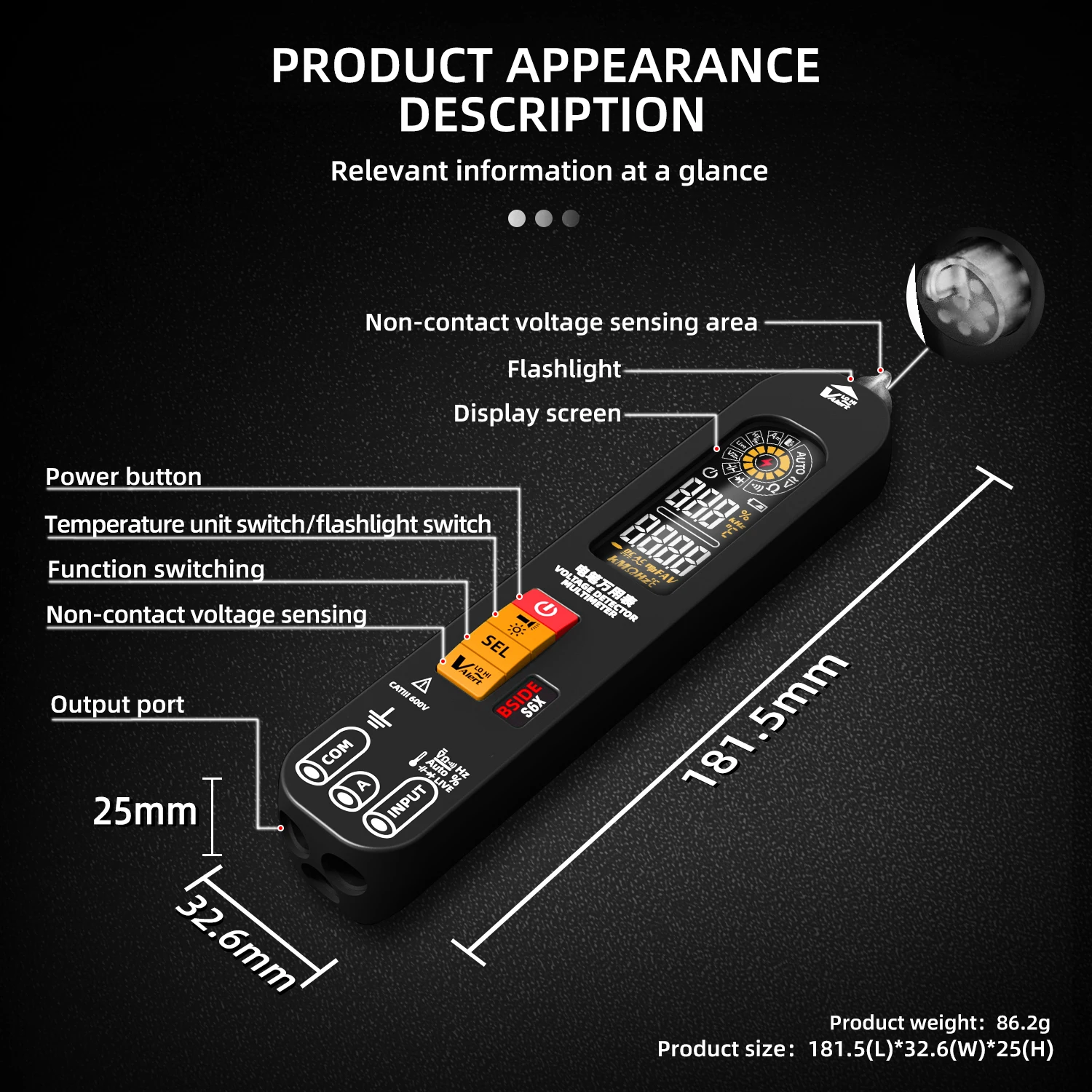

Size: 181.5*32.6*25mm

Weight: 86.2g
