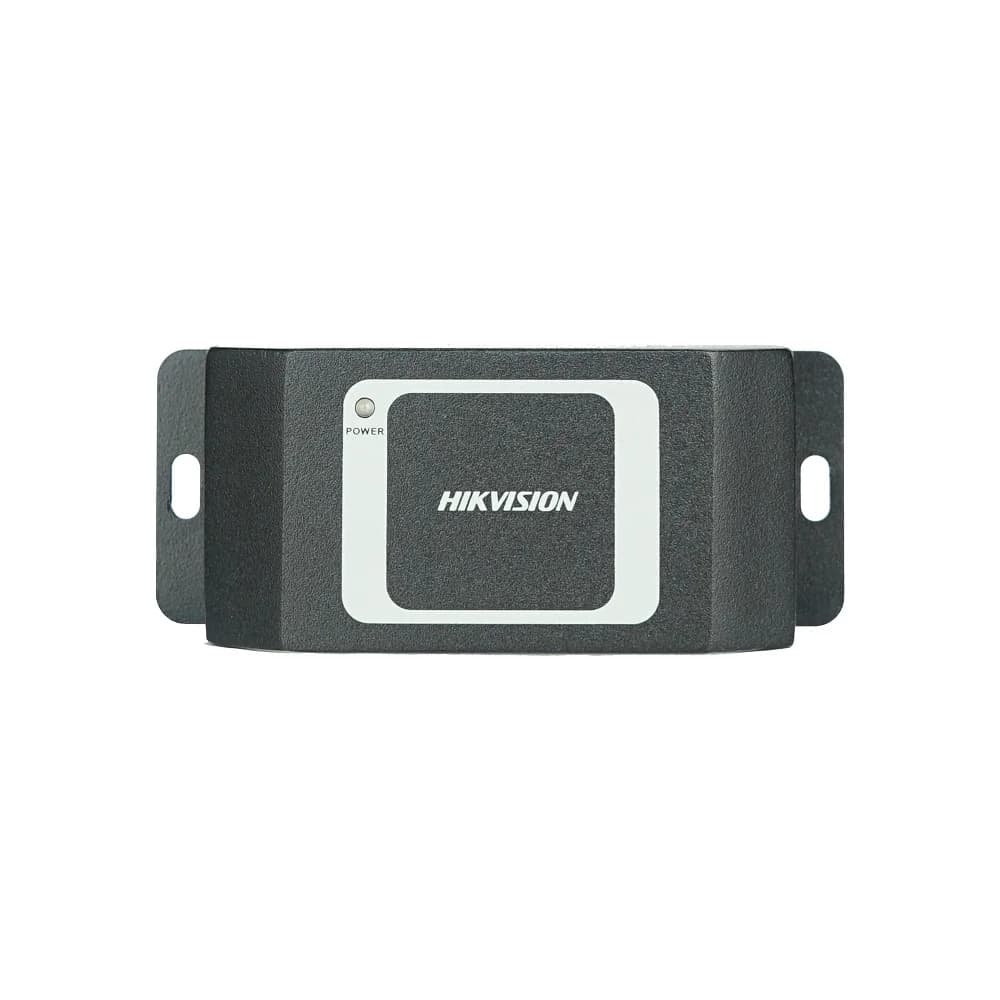

HIKVISION DS-K2M061 replace DS-K2M060 Secure Door Control Module for Access Control Terminal,for IP doorbell DS-KV8113-WME1(C)

youtu.be/kMoqKCDglnc

It can work with DS-KD8003-IME1(B)/DS-KV8113-WME1(C)/DS-KV8113-WME1(B)/DS-K1T342MFX/DS-KV8102-IM/DS-KV8202-IM/DS-KV8402-IM/DS-KV8102-IP/DS-K1T105 / DS-K1T200 / DS-K1T201 / DS-K1T300 /DS-K1T500 / DS-K1T501 / DS-K1T605 / DS-K1T606 / DS-K1T804 /DS-K1T604 ;

If you want use it to work with  DS-K5603  DS-K5604  DS-K5606 , You must tell me in advance.

Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed

Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal

Supports tampering alarm

Supports RS-485 communication indicators to show the communication status

4-ch DIP switch supporting ID No. configuration

Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card

Fire interface and exit button linkage

Step1: DIP Switch

DIP switch is located on the back of secure module.

Please set the DIP switch firstly before connecting to the door station. Please ensure that DIP Switch is the same as shown below:

Step2:Connect secure module to Door station

Wiring method as shown below:

You can find the RS485 cable on the villa door station. (DS-KV8102-VP)

The security module will be displayed as follows and the RUN light will be blink:
