NPS605W DC Power Supply Adjustable Digital 110V/220V 0-60V 0-5A Regulate Output Intelligent Voltage Regulator Current

Description

The output voltage and current can be controlled and adjusted by the variable resistor respectively, so the adjustment of voltage and current provides more convenience and accuracy. At the same time, the panel provides voltage, current, power three window digital tube high-precision display, so that users can directly see the current state of use of the machine and various parameters.

Specification

Model: NPS605W
Color: White
Assembly Required: Yes
Mounting Type: Free Standing
Display Type: LED
Plug Type: EU Standard
Input Voltage: 220V/50Hz
Output Power: 300W
Output Voltage: 0-60V
Output Current: 0-5A
Operation Environment:
Input Power Supply: AC 230V / 115V ± 10%; 50Hz / 60Hz
Working Temperature: 0℃ ~ 40℃/32℉~104℉; Relative Humidity: < 80% RH
Storage Temperature: -10℃ ~ 70℃/14℉~158℉; Relative Humidity: < 70% RH
Constant Voltage Operation:
Voltage Stability: 0.1% ± 3MV
Load Stability: 0.2% ± 3MV
Ripple Voltage: ≤ 0.5% Vp-p
Continuously Adjustable from 0 to Rated Voltage
Constant Current Operation:
Current Stability: 0.1% ± 3mA
Load Stability: 0.2% ± 3mA
Ripple Current: ≤ 0.5% Vp-p
Recovery Time: ≤ 500 μ s
0 to Rated Current Continuously Adjustable
Display Accuracy: 0.5% ± 3 Words
Display Resolution: Voltage 0.1V, Current 0.01A

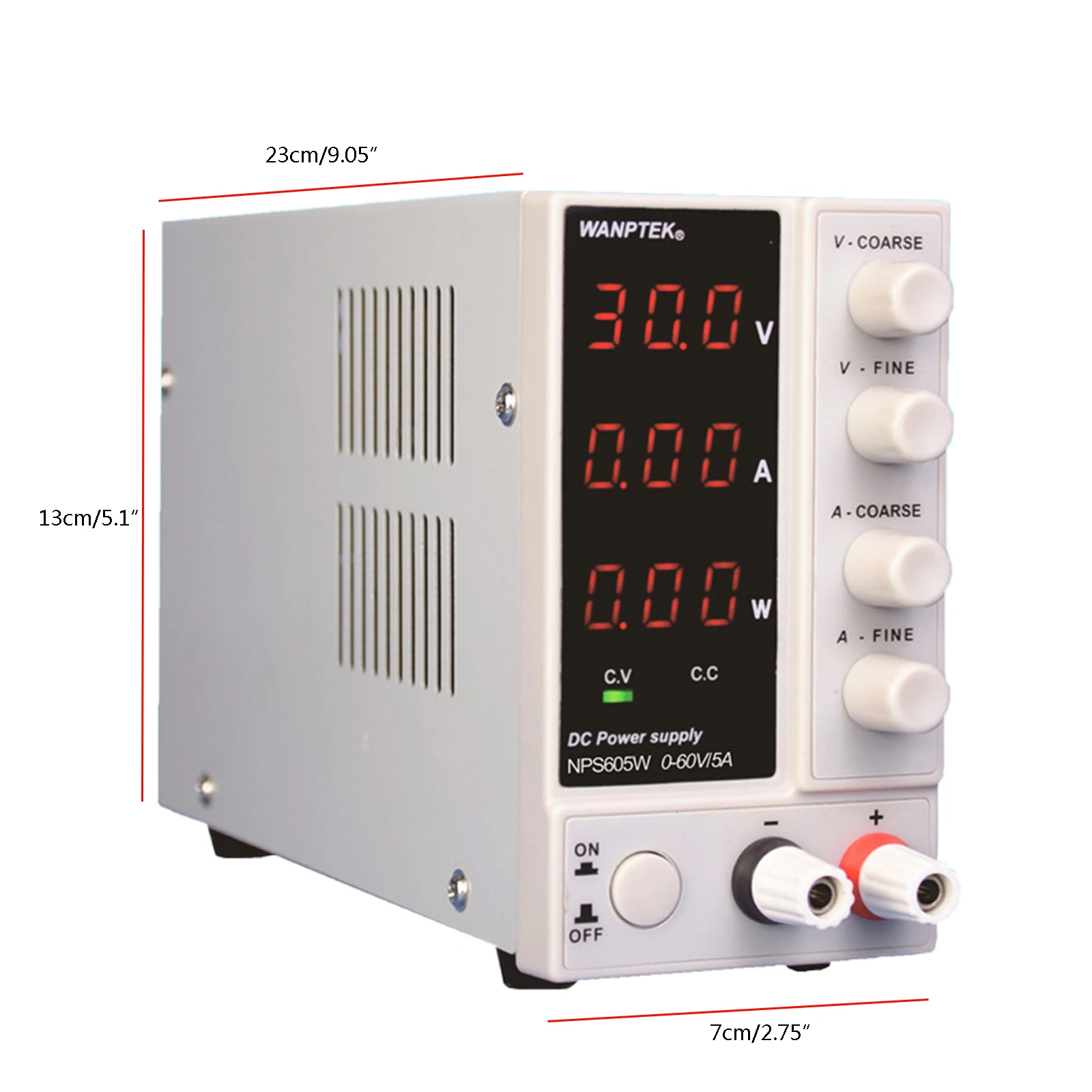

Product Size: 23*7*13cm/9.05*2.75*5.1in
Package Size: 29*18*10.5cm/11.42*7.09*4.13in
Gross Weight: 1.55kg/3.42lbs
Net Weight: 1.3kg/2.87lbs

Key Features

Made to Last: This product is made of high-quality materials with fine craftsmanship, which is sturdy and impact-resistant, ensuring a long service life.

Precise Adjustment: The output voltage and current can be controlled and adjusted, so you can adjust the output voltage according to the actual demand, which is suitable for supplying power to a wide range of equipment.

High-definition Display: The LED screen shows the voltage, current, and power, so you can directly see the machine's current use of the state and a variety of parameters, convenient for you to adjust the corresponding parameters through the convenient knobs.

High Safety: The built-in cooling fan and multiple heat-sink holes on the body help the product dissipate heat in time, improving the safety of use and extending its service life.

Low Noise Design: The product has low noise during operation, reducing sound interference and making it suitable for noise-sensitive application environments.

Lightweight and Compact: The product is small in size (9.05*2.75*5.1in) and light in weight (2.87lbs), which saves space on the workbench and also makes it easy for you to move around.

Effortless Cleaning: It has a smooth surface and a simple structure, so you only need to wipe the dust or residue with a towel (not included).

Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Switch Button: The one-touch switch design provides great convenience for your operation.

Anti-slip Feet: They can effectively prevent the product from tipping over and keep the product stable.

Application

This product is widely used in production line testing, maintenance of mobile phones, computers, and electrical appliances, product aging, plating, battery charging, laboratory, scientific research and teaching, and all other occasions where DC regulated power supply is needed.

Package List

1* DC Power Supply
1* Testing Cable
1* Power Cord

If you are interested in the product or have any questions, please feel free to contact us, we will reply to you within 24 hours.
