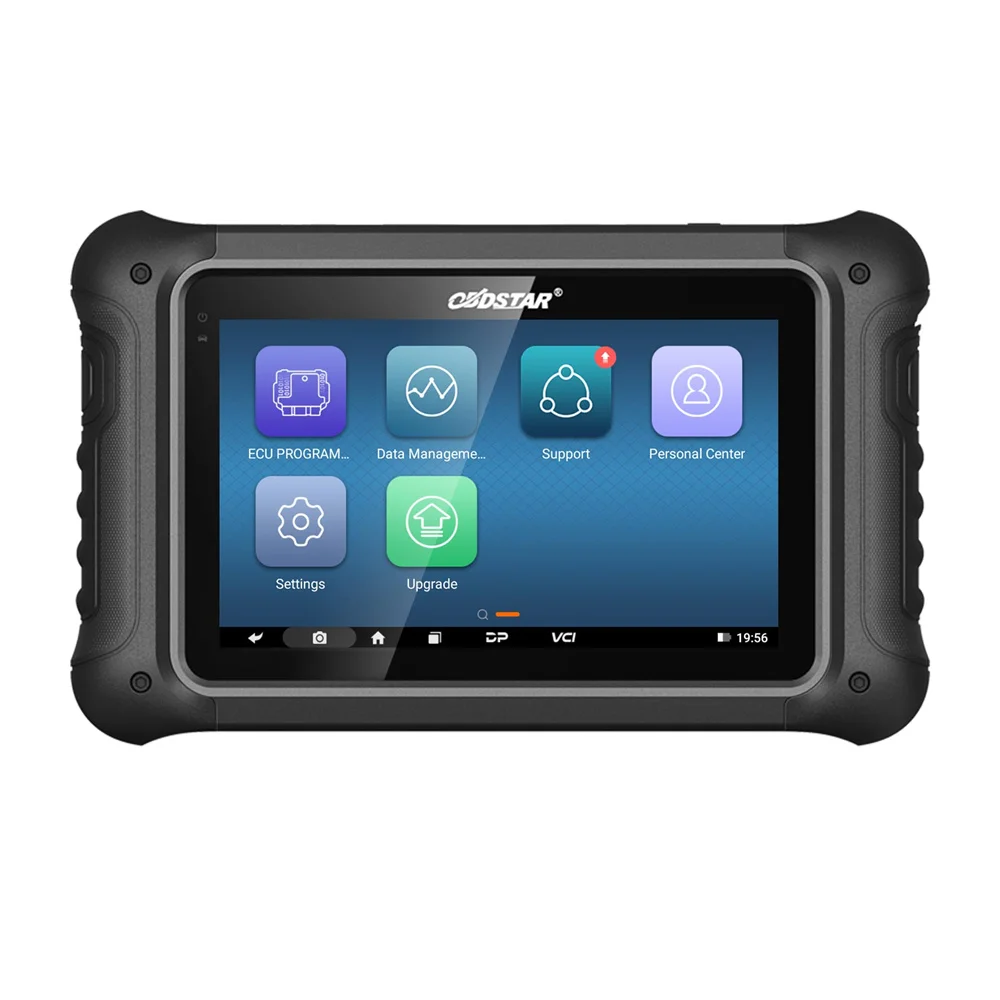

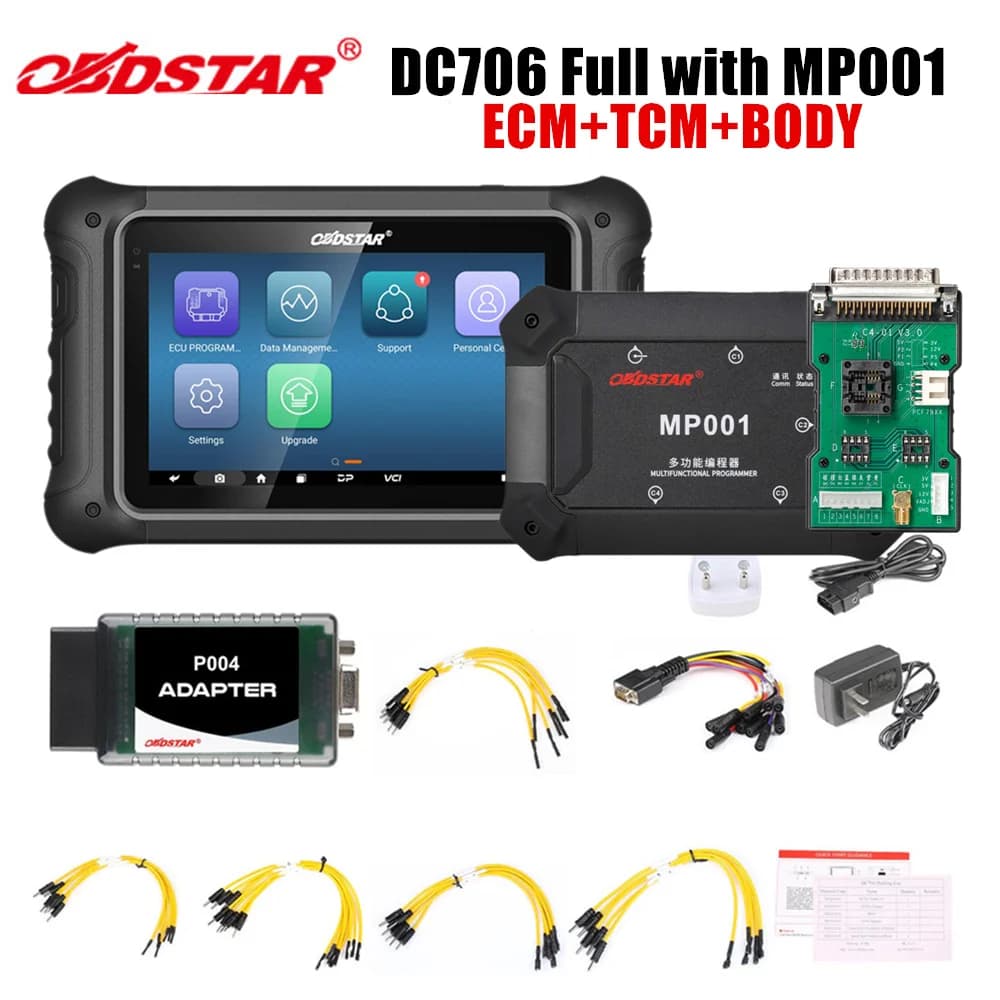

OBDSTAR DC706 ECU Tool with MP001 Set for Car and Motorcycle ECM/ TCM/ BODY ECU Clone

OBDSTAR DC706 ECU Tool with MP001 Set for Car and Motorcycle ECM/ TCM/ BODY ECU Clone

OBDSTAR DC706 ECU tool, with 1-year free upgrade, is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflasxh/Pflaxsh/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.

DC706 Function:

ECU Clone/ All by OBD or Bench

ECM clone for cars(for Bosxch, for Continental, for Delphi, for Denso, for Magneti Marelli, for Siemens...)

ECM clone for motorcycles(for Bosxch, for Delphi, for EFI...)

Supported ECU Manufacturers:

For ALPS

For Autoliv

For Bosch

For Continental

For Delphi

For Denso

For Johnson Controls

For Lear

For Magneti Marelli

For Siemens

For Temic

For Valeo

Supported Brands:

Car

For ASTON MARTIN

For BMW

For FAW

For FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)

For FORD/LINCOLN

For GM/OPEL

For HYUNDAI/KIA

For LAND ROVER/JAGUAR

For LUXGEN

For MASERATI

For MAZDA

For MITSUBISHI

For NISSAN

For OPEL

For PSA

For SMART

For SUBARU

For SUZUKI

For VOLVO

For VW/AUDI/SEAT/SKODA

Motorcycle:

For APRILIA

For BRP

For CFMOTO

For DERBI

For GILERA

For GUZZI

For PEUGEOT

For PIAGGIO

For QJBENELLI

For VESPA

Advanced Functions:

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...

2. Support 200+ ECM types(Partial functions require P003 adapter.)

3. Support dozens of TCM types

4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)

5. Support VW DQXXX (TCM) calibrate mileage

6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone

7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)

8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))

9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type

10. Support automatic identification

11. Strong help data files

12. All by OBD or Bench mode

OBDSTAR P003 KIT Functions:

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT

2. Bosch MED17.4.4 reading eeprom , PinCodeP003 KIT

3. Bosch EDC17C60 reading eeprom , PinCodeP003 KIT

4. Bosch MD1CS018 reading eeprom, PinCodeP003 KIT

5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value

6. Bosch ME17XX reading & writing eeprom, flash

7. T87A, 6HP reading & writing TCM eeprom, flash

OBDSTAR P003 KIT is required when you read and write 6HP, 9GF, 10GF, Simos etc ECUs on bench.

ECUs that requires P003 adapter:

For ALPINA BOSCH MEVD17.2.6 TC1797 (BENCH+P003)

For AUDI CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)

For AUDI CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)

For AUDI CONTINENTAL SIMOS8.6X TC1796 (BENCH+P003)

For BMW BOSCH MEVD17.2.6 TC1797 (BENCH+P003)

For FORD BOSCH MED17.0 TC1767 (BENCH+P003)

For FORD BOSCH MEDG17.0 TC1797 (BENCH+P003)

For GEELY BOSCH MED17.8.10 HW2 TC1728 (BENCH+P003)

For PORSCHE CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)

For SEAT CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)

For GREATWALL BOSCH MED17.8.10 HW2 TC1728 (BENCH+P003)

For VOLKSWAGEN(VW) CONTINENTAL SIMOS12.2 TC1797 (BENCH+P003)

For VOLKSWAGEN(VW) CONTINENTAL SIMOS8.5X TC1796 (BENCH+P003)

For HYUNDAI BOSCH ME17.9.11.1 TC1766 (BENCH+P003)

For VW/Audi/Skoda/Seat BOSCH MED17.5 TC1766 (BENCH+P003)

For KIA BOSCH ME17.9.11.1 TC1766 (BENCH+P003)

For Audi Bosch MED17.1.6 TC1797 (Bench +P003)

For Audi Bosch MED17.5.2 TC1767 (Bench +P003)

For Bentley Bosch MED17.1.6 TC1797 (Bench +P003)

For Porsche Bosch MED17.1.6 TC1797 (Bench +P003)

For Seat Bosch MED17.1.6 TC1797 (Bench +P003)

For Seat Bosch MED17.5.2 TC1767 (Bench +P003)

For Skoda Bosch MED17.5.2 TC1767 (Bench +P003)

For Skoda Bosch MED17.1.6 TC1797 (Bench +P003)

For VW Bosch MED17.5.2 TC1767 (Bench +P003)

For VW Bosch MED17.1.6 TC1797 (Bench +P003)

For Audi/VW/Seat Bosch MED17.5.1 TC1796 (Bench +P003)

For Fiat Magneti Merelli IAW 7GF Kline MPC5534+95640 (Bench +P003)

For Fiat/Lanica Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)

Ford Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)

For Hyundai/Kia Bosch ME17.9.11 TC7966 (Bench +P003)

For Jeep Magneti Merelli IAW 9GF CAN MPC5642+95640 (Bench +P003)

For Jeep/ Fiat/VW Magneti Merelli IAW 10GF CAN MPC5642+95640 (Bench +P003)

For Fiat Magneti Merelli IAW 7GF CAN MPC5534+95640 (Bench +P003)

For VW Magneti Merelli IAW 9GF CAN MPC5634+95320(Bench +P003)

OBDSTAR MP001 Introduction:

MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports data read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).

Software function

EEPROM/MCU reading and writing

Key flashing

Steering angle repair

Body computer data processing

Immo off

Pincode reading

Battery module repair

Instrument repair

and more functions are under development.

Features:

1. MP001 is compatible with P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.

2. MP001 can replace P003, P002 adapter as well.

Note:

MP001 has P003+, P003, P002 functions.

Different tablet device models require different configuration software.
