22.63x13.18inch Milling Machine Worktable,Milling XY Table,Milling Machine Table for Drilling,Tapping,Milling Grooves,Etc

Application

The milling machine worktable can be used for drilling, tapping, milling grooves, etc on the drilling tables, drill presses, milling machines, radial drilling machines, etc.

Specifications

Color: Green, Silver

Material: Cast Iron

Surface Treatment: Heat Treatment Process, Precision Grinding Process, Spray Paint, Quenching Process

X-axis Travel (Horizontal): 230mm /9.06inch

Y-axis Travel(Vertical): 110mm/4.33inch

Suitable Screw Type: 10T-shaped Screw

Mounting Holes Distance: 17.5*15cm/6.88*5.9inch

Gross Weight: 28.7kg/63.27lbs

Net Weight: 26.4kg/58.2lbs

Product Size (L*W): 57.5*33.5cm/22.63*13.18inch

Package Size: 54.5*32.5*13cm/21.45*12.79*5.11inch

Package Included

1*Milling Machine Worktable

4*T-shaped Screws

All Accessories for Assembly

Key Features

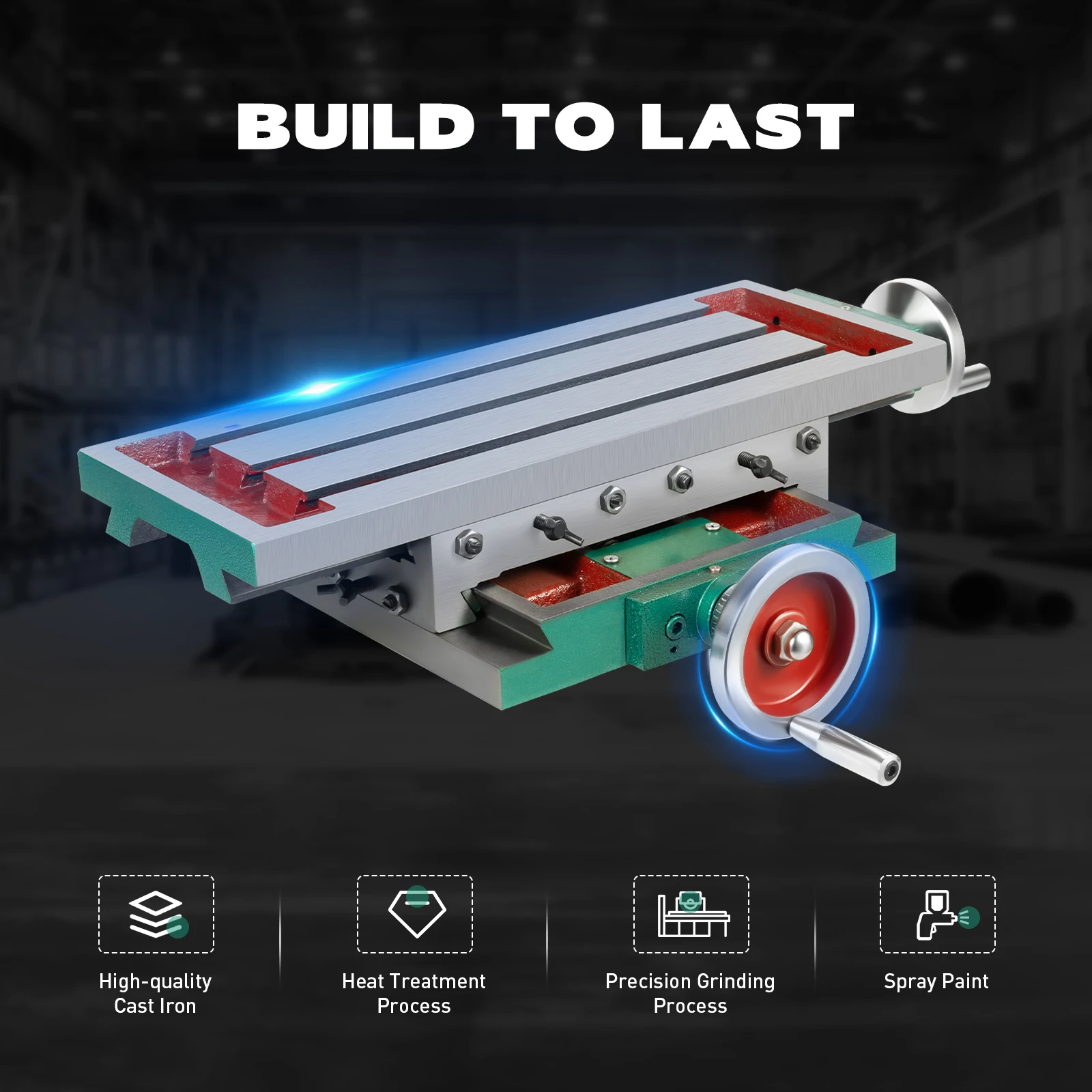

Build to Last:The cast iron combined with the heat treatment process, precision grinding process, and spray paint, offers wear prevention and a long-term service life.

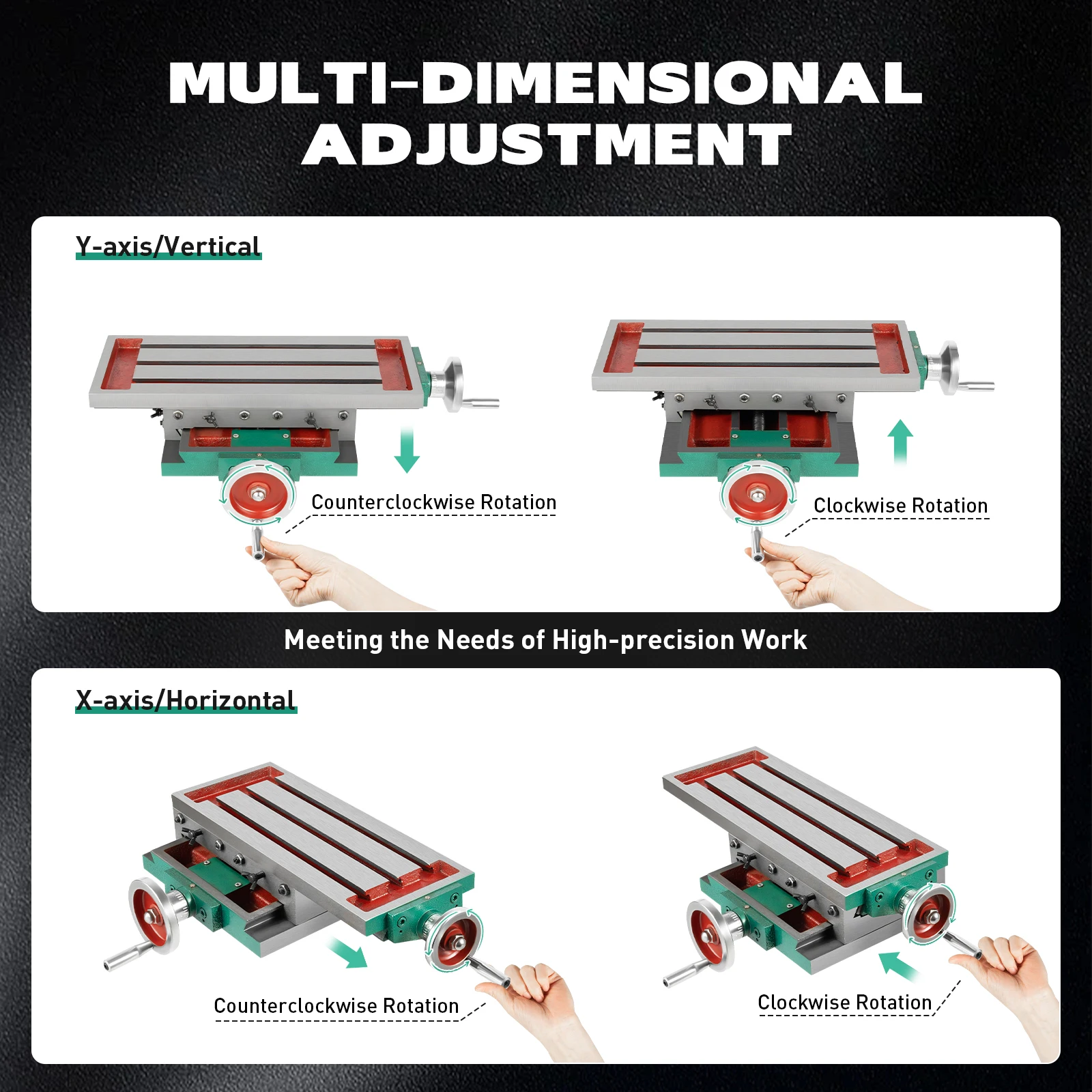

Multi-dimensional Adjustment Capability: The whole working platform can realize accurate position and independent or linked adjustment (X-axis/horizontal; Y-axis/vertical) by the two different handwheels, meeting the needs of high-precision work.

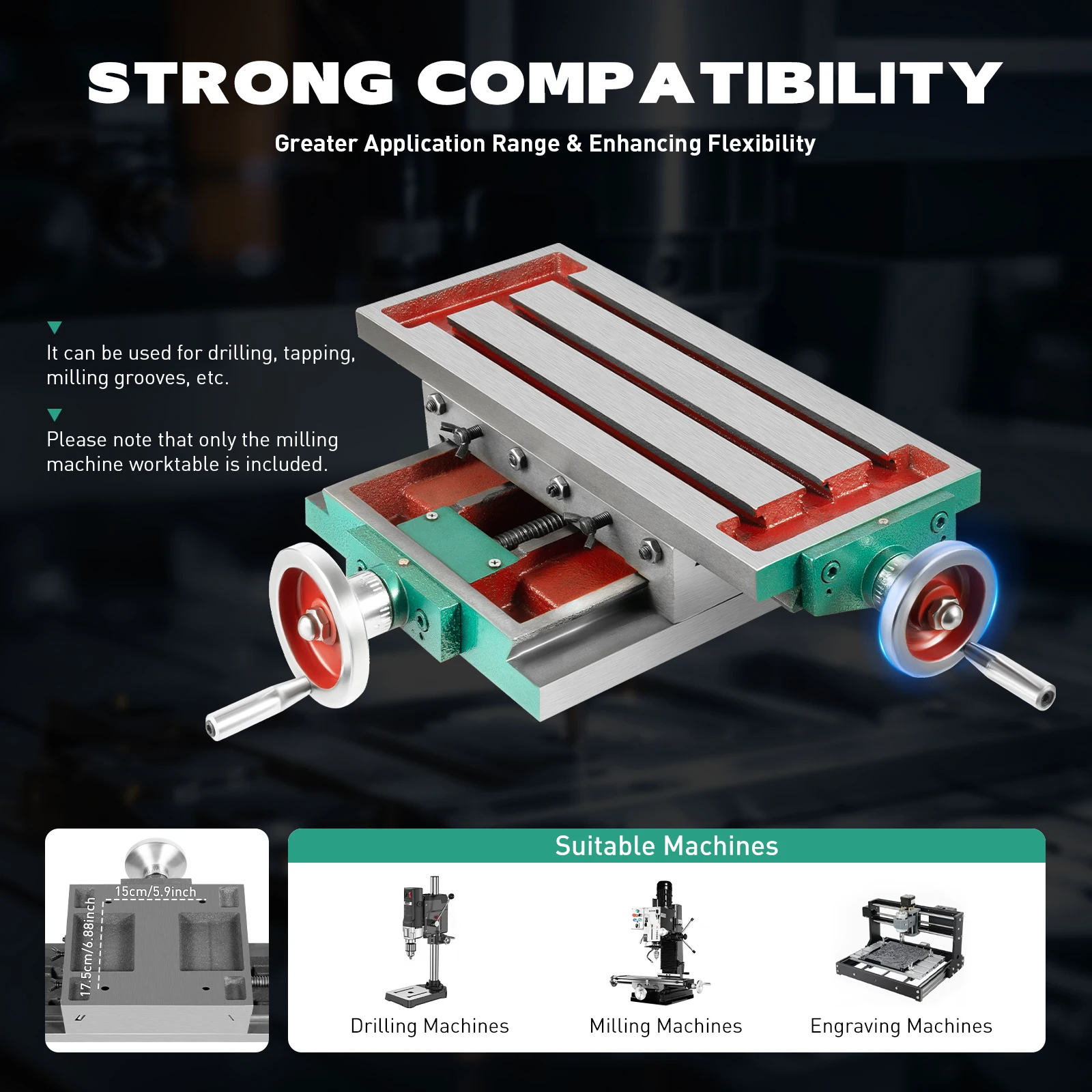

Strong Compatibility: It can be used with other mechanical equipment (such as drilling machines, milling machines, laser engraving machines, etc.) according to the distance of the mounting holes on the base, achieving a greater application range and enhancing flexibility.

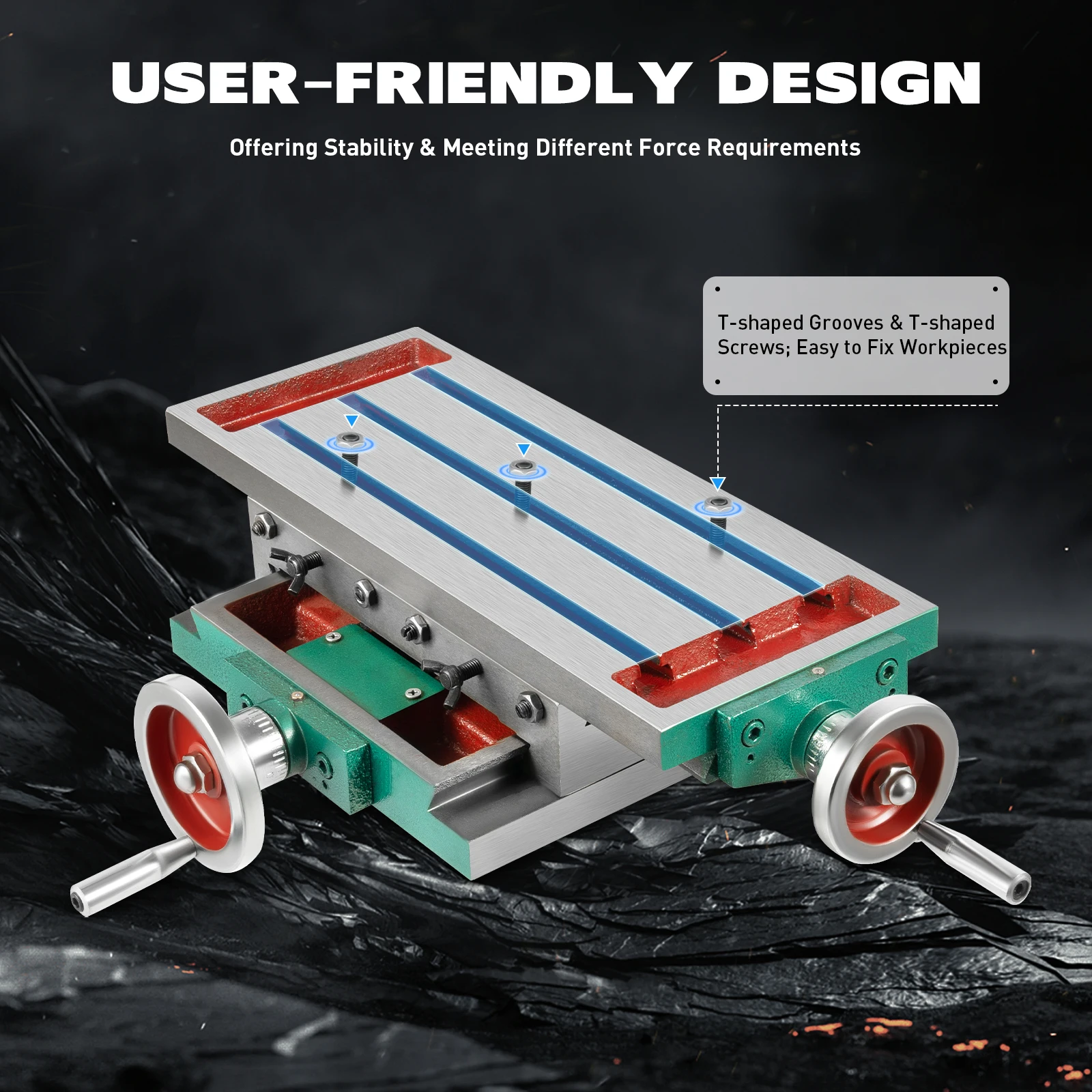

User-friendly Design: The workpieces can be fixed on the three T-shaped grooves by using T-shaped screws, offering stability and convenience and meeting different force requirements.

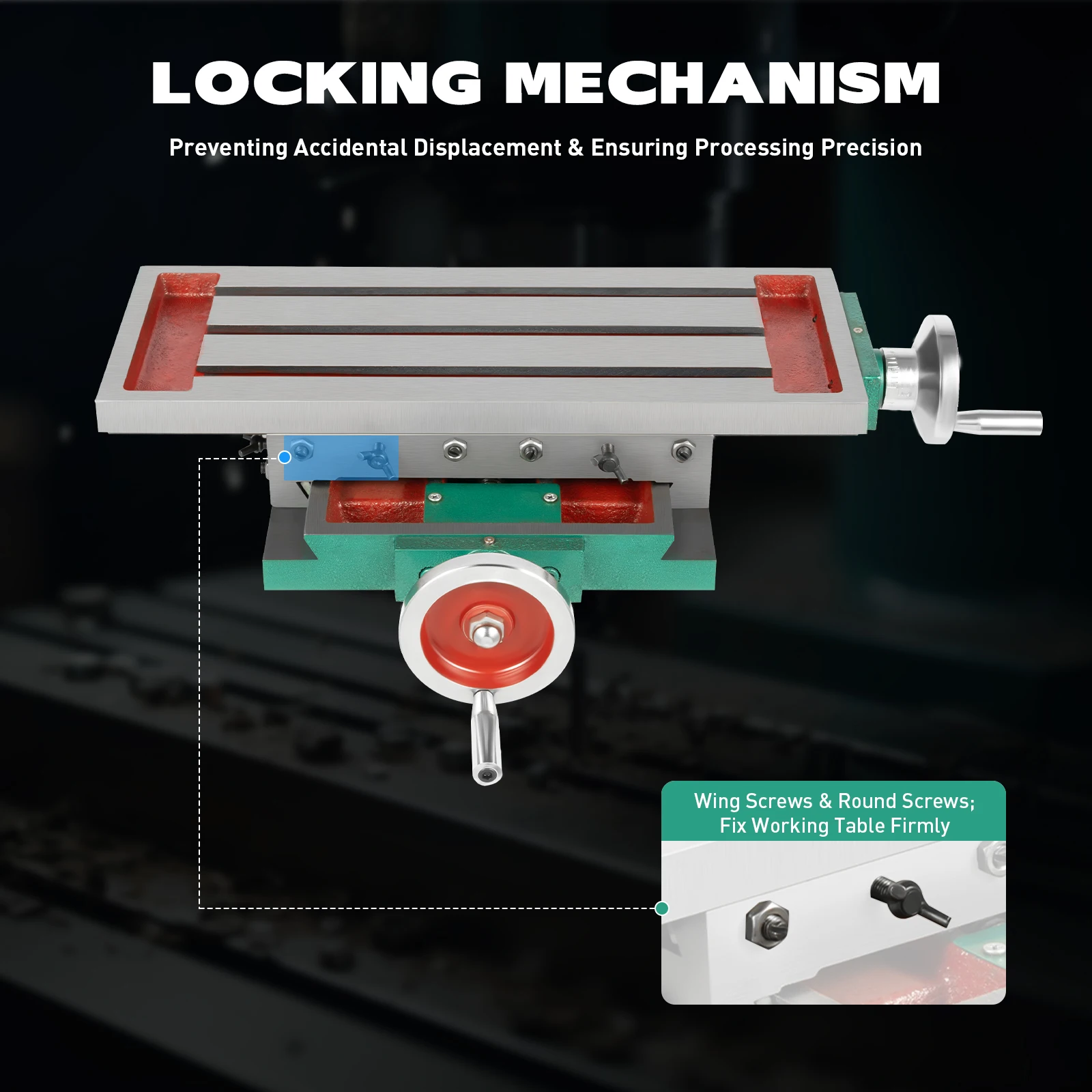

Locking Mechanism: The working table can be fixed by wing screws and round screws on the machine's side when adjusted to the desired position, preventing displacement due to external interference, and ensuring the precision of processing.

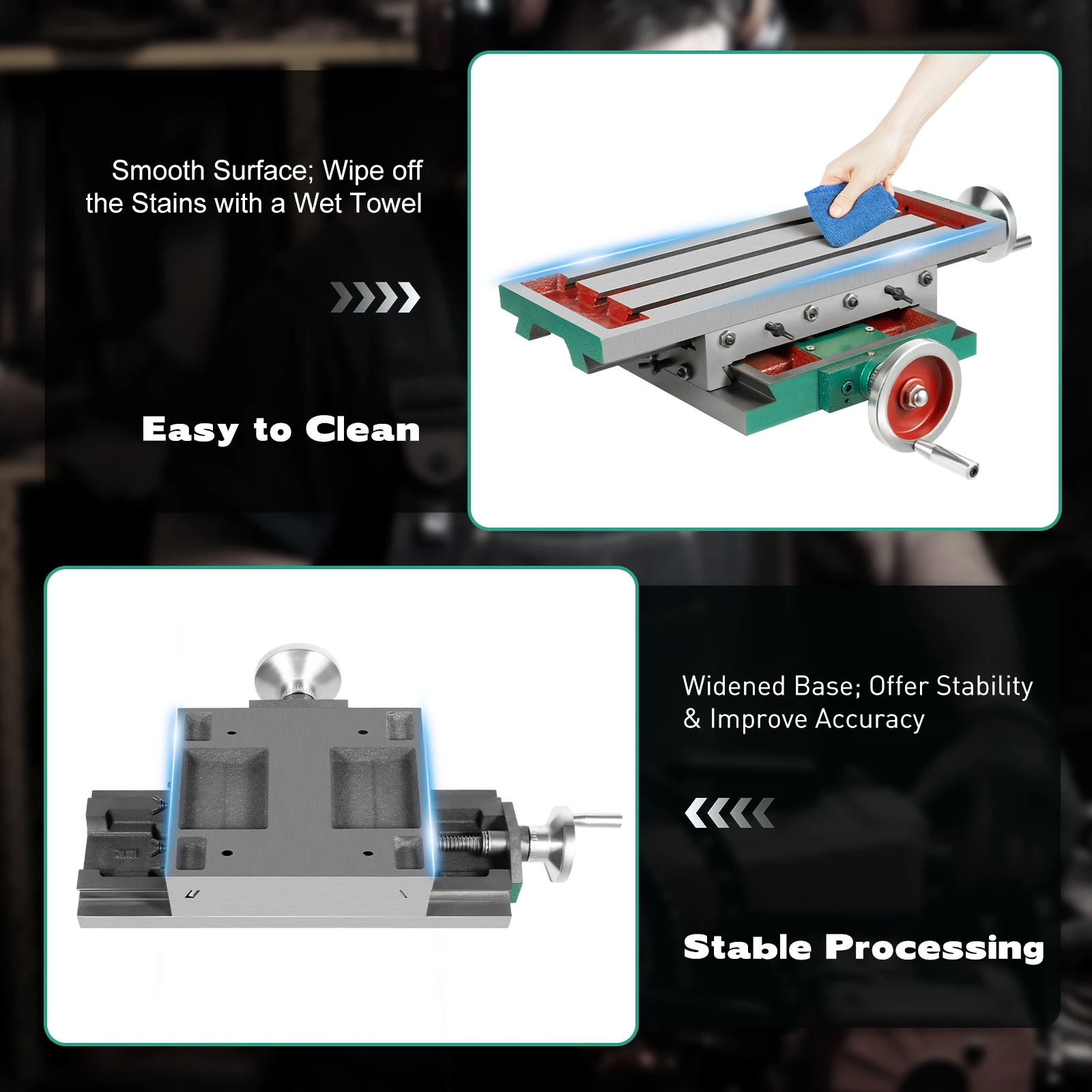

Easy to Clean: The smooth surface makes it simple to clean, when it's dirty, you can wipe off the stains with a wet towel.

Stable Processing: The widened base makes the whole operation more stable and uneasy to shake, improving processing accuracy effectively.

Protective Packaging: This product comes in a custom wood box that resists common compression and falls to prevent product damage in transit.

Details

Clear Scales: They are on the handwheels and can provide a detailed angle adjustment reference.

Oil Injection Hole: It is on the handwheel base and can be added to some lubrication before use, making it work smoothly.

Screw Rods: The thickened screw rods with a quenching process make them harder, more durable and sturdy.

Application
It can be used for drilling, tapping, milling grooves, etc on the drilling tables, drill presses, milling machines, radial drilling machines, etc.

Notes
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
