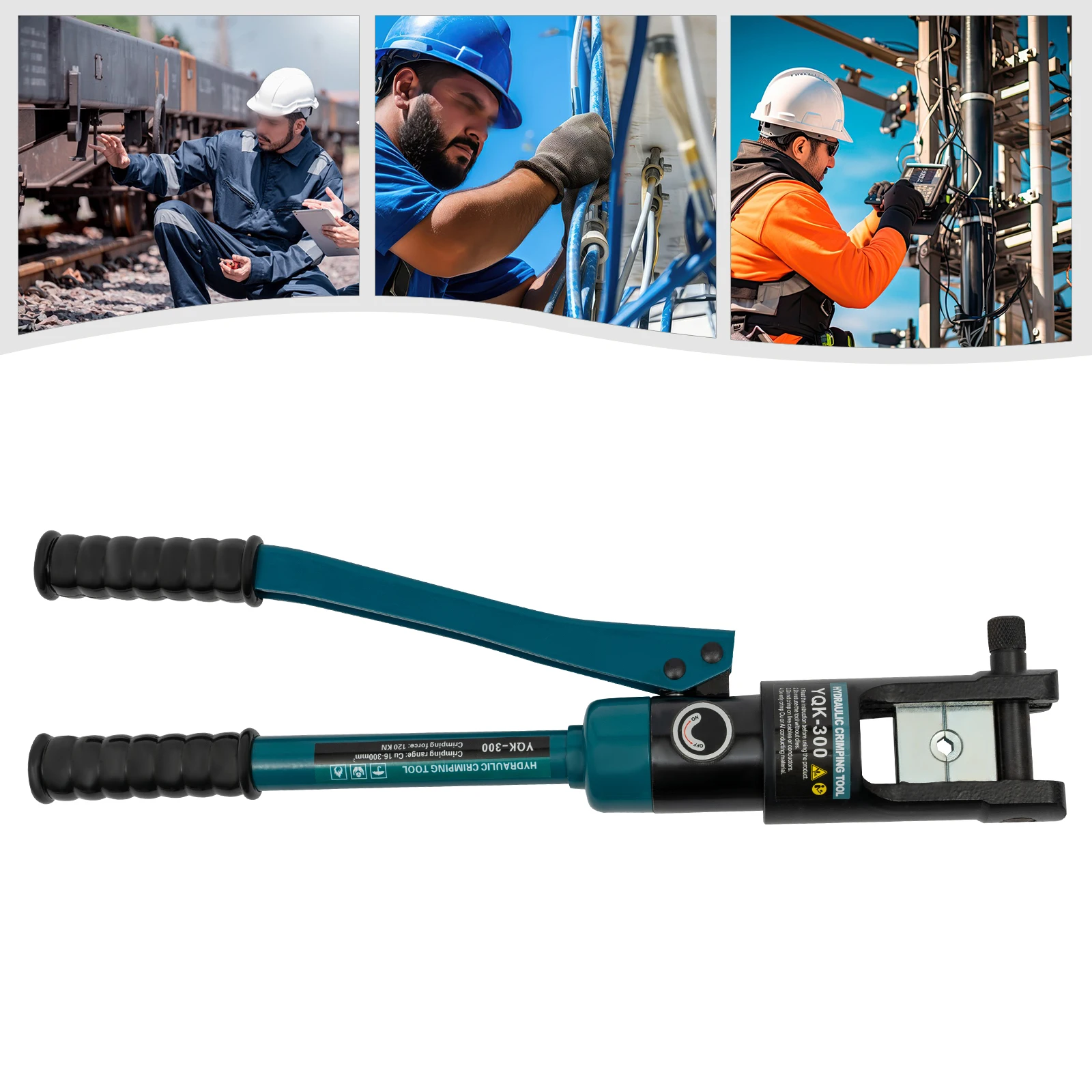

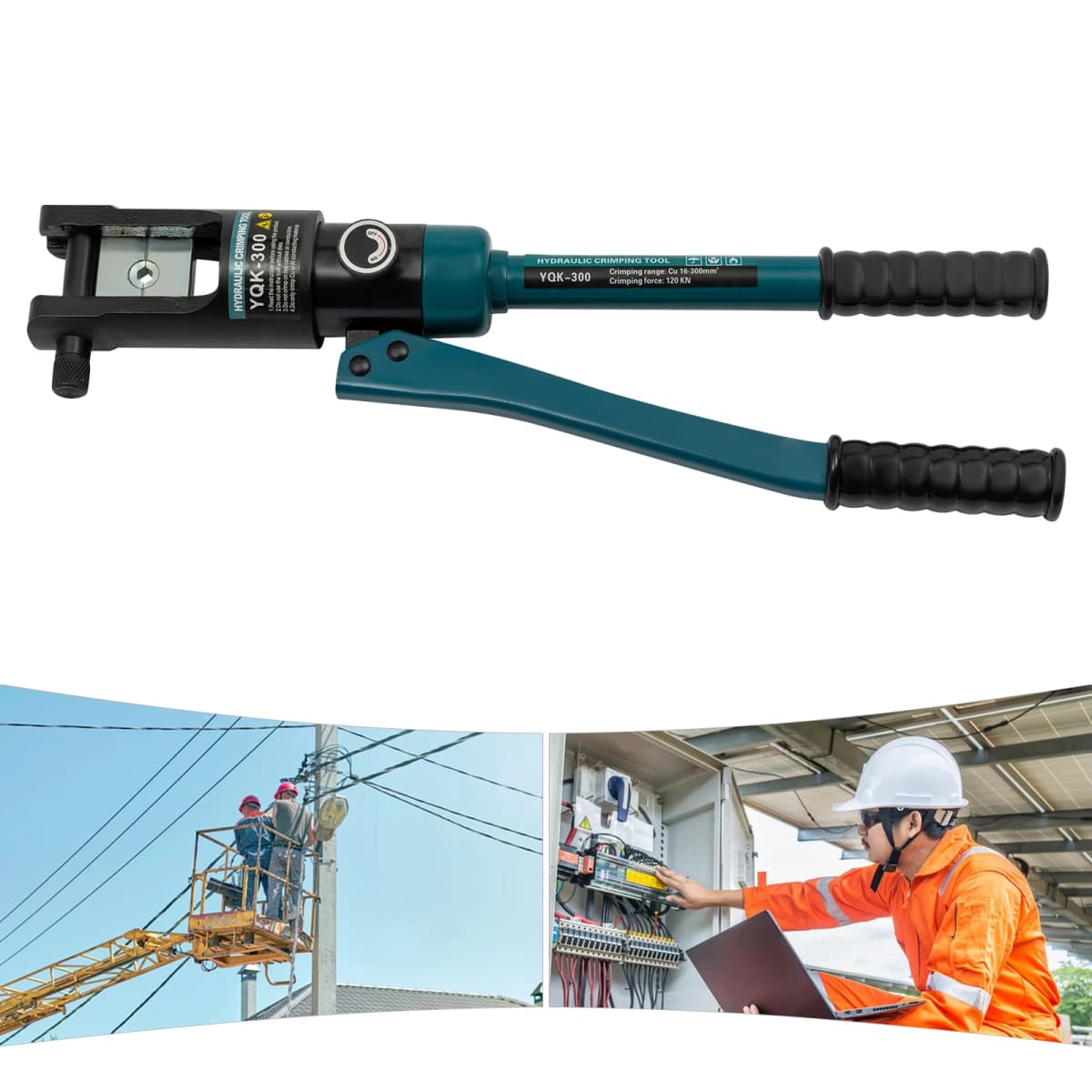

120KN Hydraulic Ppie Crimper Tube Ppies Crimp Crimping Range 16-300mm² for Aluminum Tubes, PEX Tubes

Description

You can easily crimp most pipes when you have a professional hydrauliccrimper. This hydrauliccrimper is simpler and more efficient to operate than the traditional crimper. It is made of high-quality materials and adopts exquisite workmanship, sturdy and durable. In addition, different dies are available to meet your different crimping needs. With large crimping force and excellent sealing performance, it will be a good helper for your work.

Key Features

Build to Last:It is made of high-quality cast iron, plastic, and rubber, and adopts polishing, electroplating, and spray molding processes, which can resist wear and rust. It can maintain its practicality and beauty without frequent replacement.

Multi-size Dies: It has 11 pairs of dies of different sizes (16/25/35/50/70/95/120/150/185/240/300mm²), and you can choose the right crimping dies for different wire ends to meet different requirements.

Great Sealing Performance:The sealing ring as well as the anti-leakage plunger can seal the cylinder well and reduce the occurrence of oil leakage.

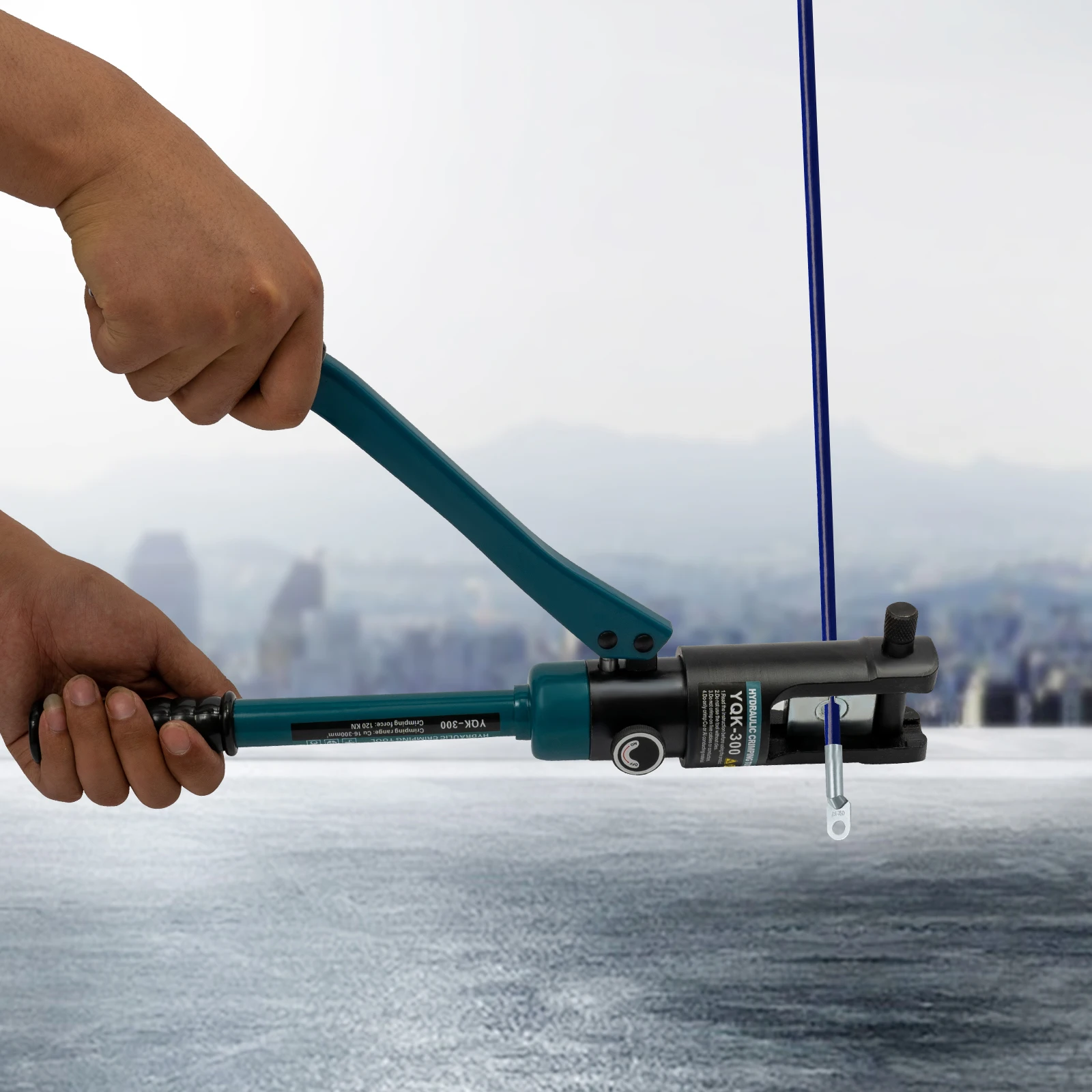

Powerful Function: It has a crimping force of 120KN to securely clamp and crimp items to hold them in place without falling off. The 360° rotatable headallows you to easily deal with different crimping angles.

Thoughtful Design: It is ergonomically designed, utilizes the principle of leverage, and has a high resilience spring, so it can save your effort and is easy to operate.

Easy to Maintain: With a simple structure and smooth surface, you can easily wipe away surface stains using a rag (not included).

Convenient to Carry:Its compact size (18.5*5.11in) and lightweight (gross weight: 12.57 lbs) make it easy to carry and store without taking up too much space. In addition, the toolbox can carry dies and the product, allowing you to change dies and use the product at any time.

Easy to Replace: The dies of this hydraulic crimper can be easily removed and replaced with another one that is convenient to use.

Ideal Gift: Its convenience and practical function make it an ideal gift for your friends, colleagues, and families for dealing with their home or outside crimping work.

Details

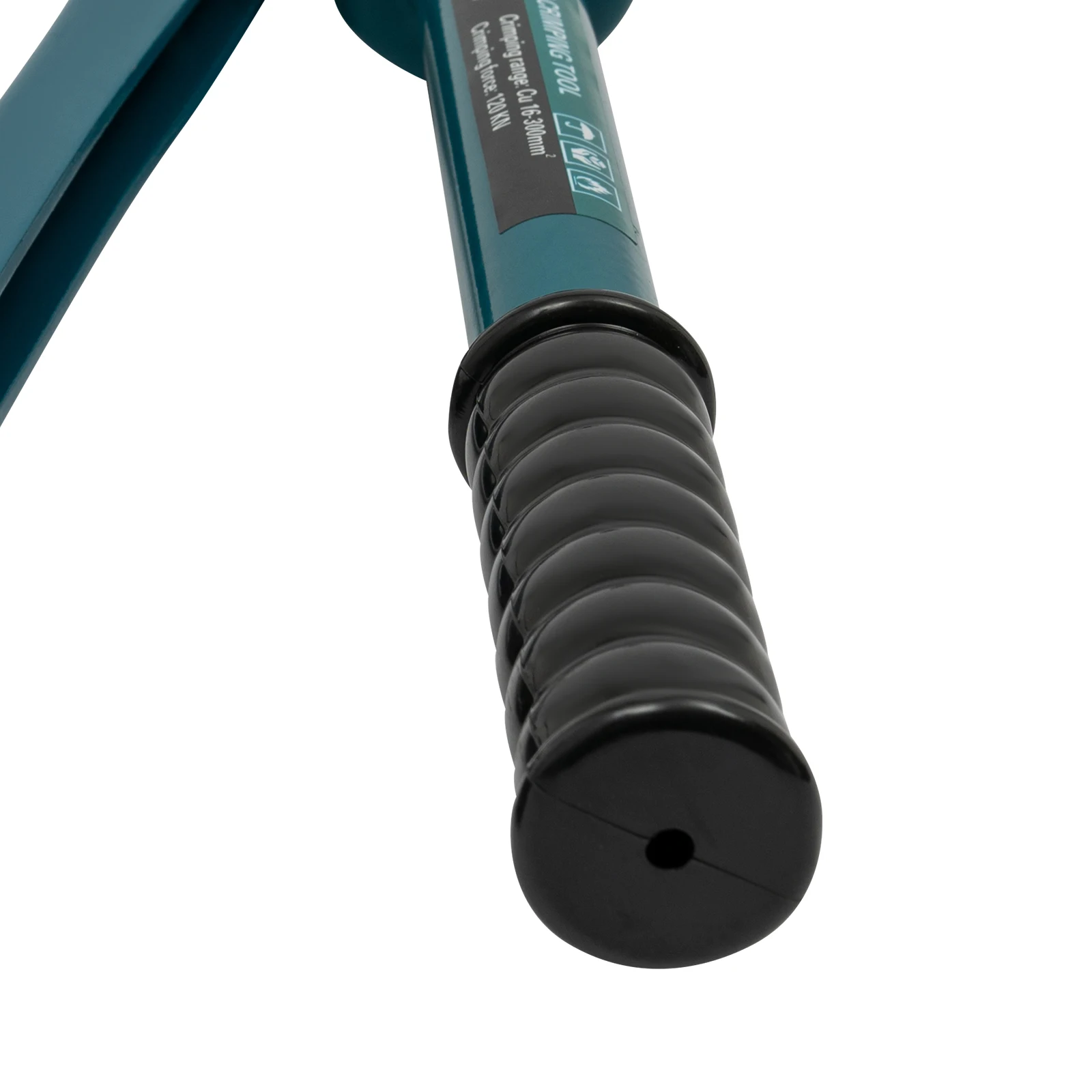

Ergonomic Handle: The non-slip rubber handle provides a comfortable and easy grip.

Hexagonal Crimping: It makes the crimping easier and tighter without falling off, achieving the ideal crimping effect.

Oil Return Switch: It is very convenient to tighten "ON" to start working and loosen "OFF" to release pressure after crimping

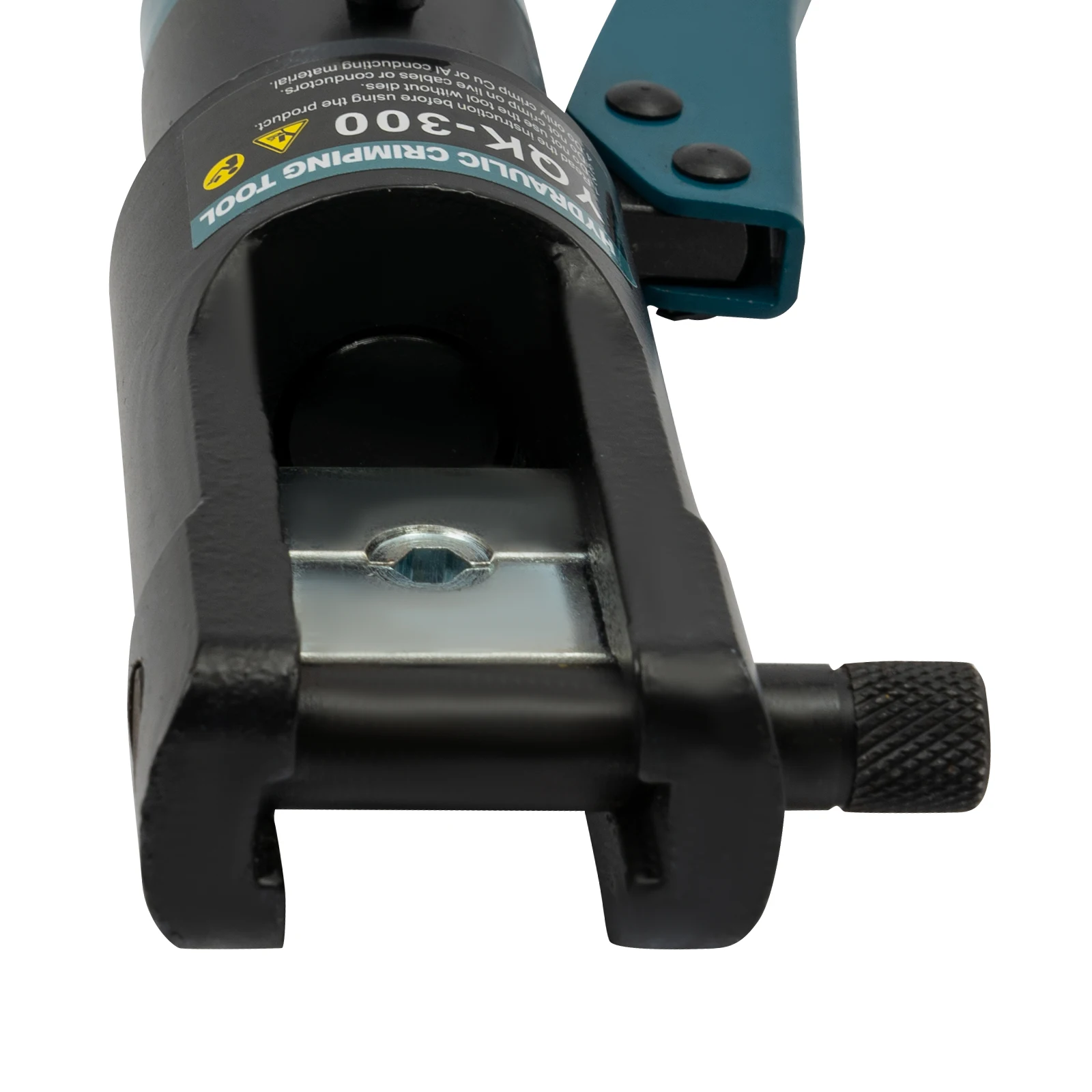

Latch: The latch of the jaw can be easily removed for die replacement. Moreover, it prevents the assembled dies from falling off.

Application

It is suitable for aluminum tubes, plastic tubes, PEX  tubes, multi-layer tubes, wire ends, bare terminals, and hexagonal crimping. It is suitable for electric power, transportation, construction, shipbuilding industry, metallurgy industry, petrochemical industry, agriculture, and other fields.

Specifications

Model: YQK-300

Material: Cast Iron, Plastic, Rubber

Process: Polishing, Electroplating, Spray Molding

Color: Green, Black

Crimping Form: Hexagonal Surrounding Crimping

Operation Type: Manual

Crimping Force: 120KN

Crimping Range: Cu 16-300mm²

Crimping Die Size: 16/25/35/50/70/95/120/150/185/240/300mm²

Stroke: 16mm/0.63in
Gross Weight: 5.7kg/12.57lbs
Handle Length: 32.5cm/12.79in

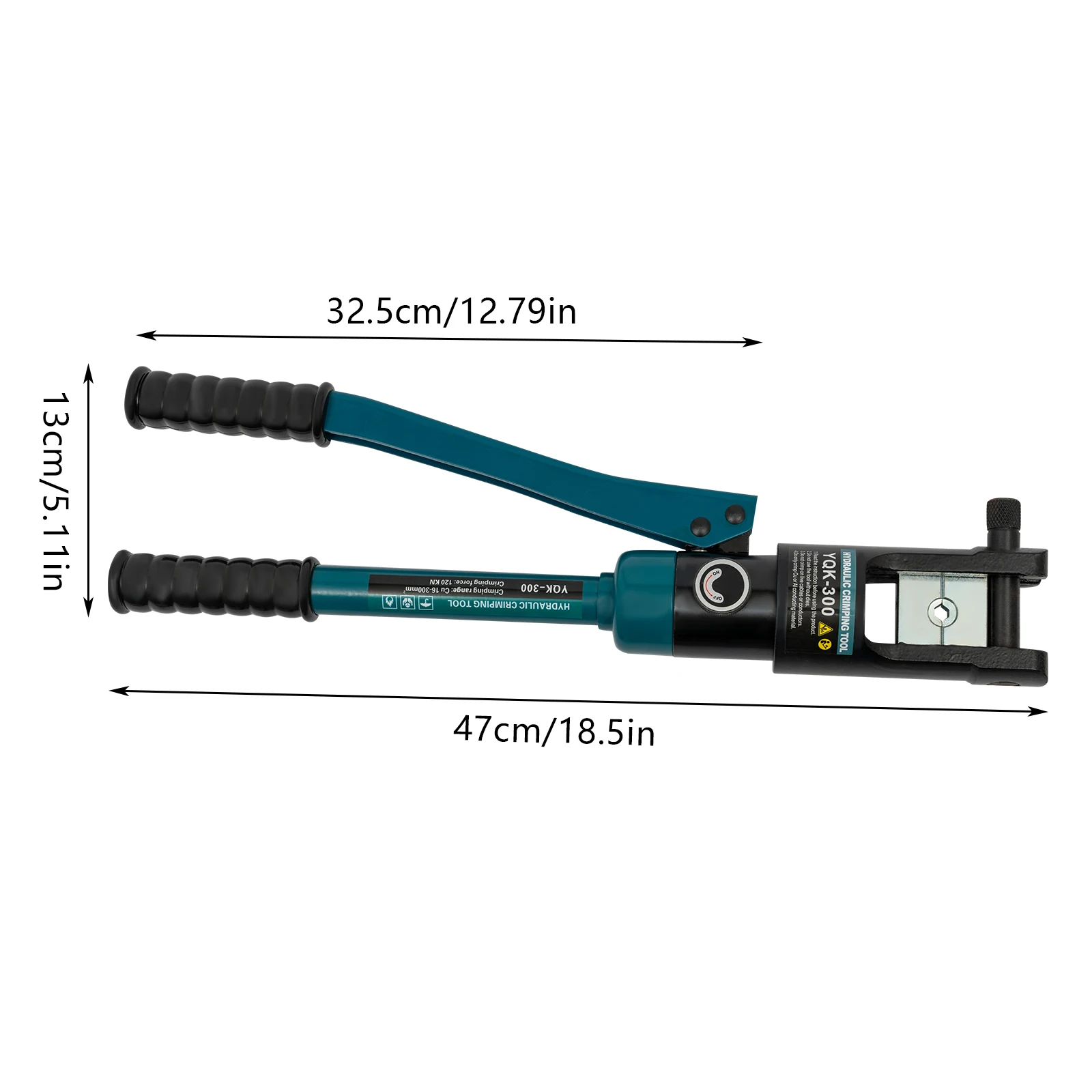

Overall Product Size(L*H): 47*13cm/18.5*5.11in
Package Size: 50*19*10cm/19.68*7.48*3.94in

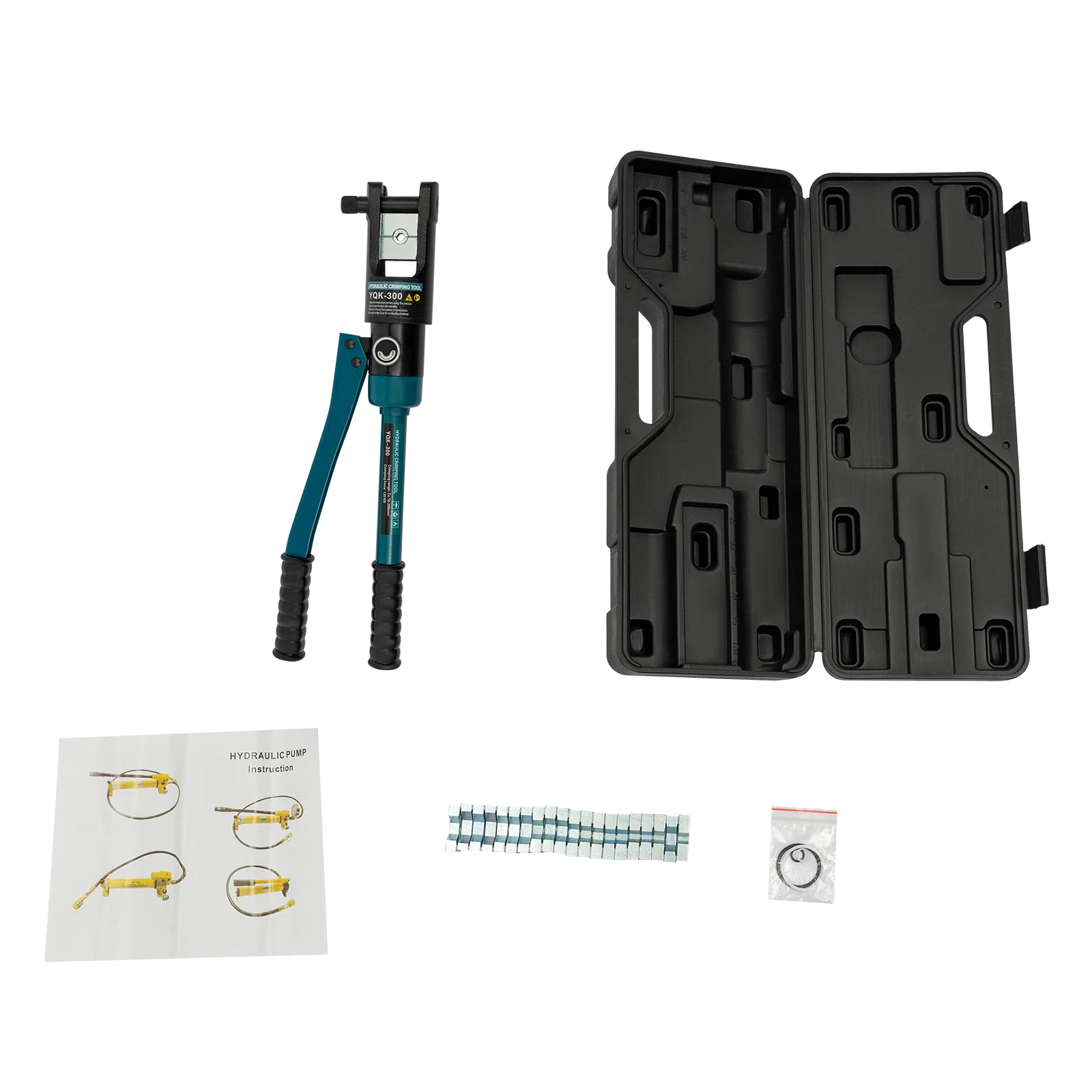

Package Included
1* Hydraulic Crimper
11 Pairs* Dies(One Pair Already Installed)
1* Toolbox

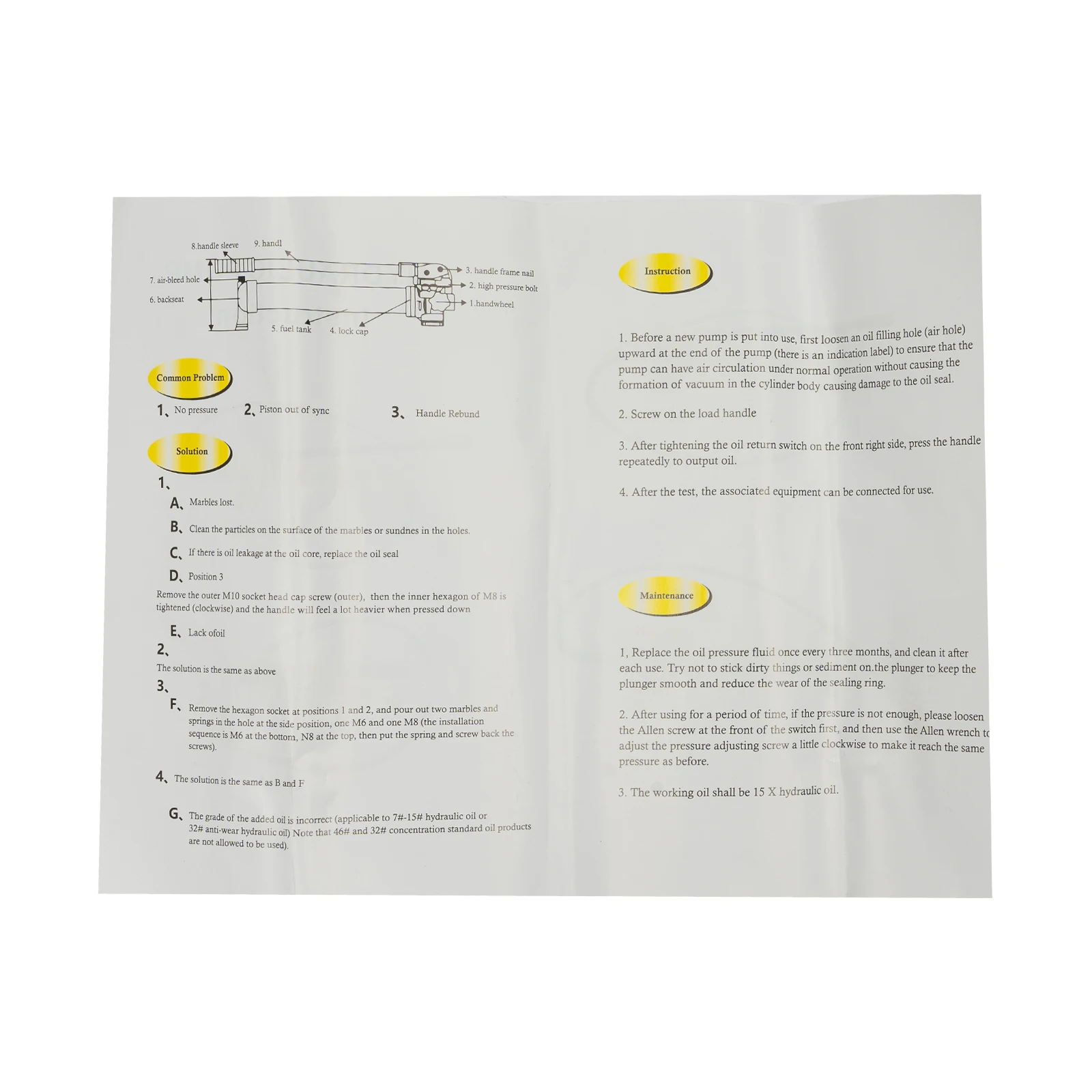

1* English Manual
All Accessories for Assembly

Notes
1.Please read the manual carefully before using the product and pay special attention to the safety matters therein.
2.Please note that this product does not have a safety valve, so constant pressure will result in overpressure.
3.Please do not use the tool without dies.
4.Please do not crimp on live cables or conductors.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
