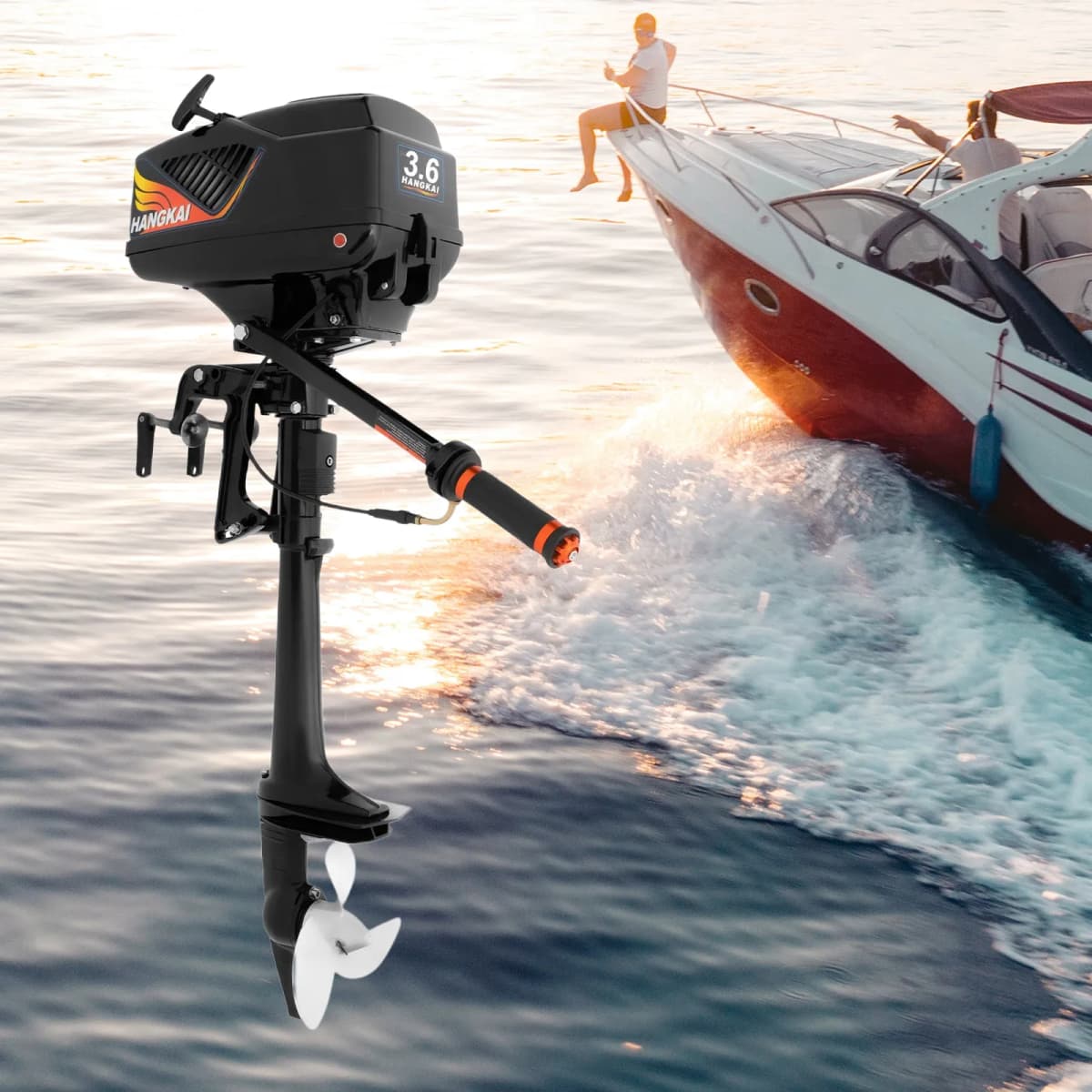

2-Stroke, 3.6 HP Outboard Motor Outboard Engine Manual Start 55cc Motor CDI for Rubber Boats, Inflatable Boats

Description

Have you encountered any difficulties in venturing into long-distance deep water? An outboard motor that can handle various complex water conditions can provide you with assistance! The powerful 3.6-horsepower two-stroke engine allows you to overcome obstacles in various environmental waters and quickly reach the places you need to go with excellent speed. With its companionship, you can fully enjoy the pleasure of sailing and become a reckless captain!

Key Features

Fast & Powerful: A 2-stroke engine with a maximum output of 2.6kW and 3.6hp, and a maximum speed of 5500rpm, provides you with unparalleled speed. The streamlined design of a 6.7'' three-blade propellercan reduce water resistance and provide stronger power during operation.

Selected Material: Lightweight and sturdy aluminum alloy, combined with spray painting technology, provides excellent corrosion resistance, wear resistance, heat resistance, shock resistance, deformation resistance, and other properties. You can use it with confidence in fresh water and salt water.

Easy to Operate: The throttle lever directly controls acceleration and steering. The step-less speed regulation allows you to easily adjust the running speed, combined with the clutch, bringing you a more comfortable and convenient user experience.

Low Noise: The large anechoic cover above can isolate most of the noise, making the sound of the machine running around 80 decibels, allowing you to hear other movements on the water and remain vigilant.

Lightweight & Fuel-efficient: As an outboard motor, it is relatively small(35.4*15*7.5in) and lightweight(21.4lbs), making it very suitable for small ships and people who frequently navigate short distances. An efficient carburetor burns fuel more fully, with a fuel consumption rate of about 0.3 gal/h not only saving fuel but also reducing expenses.

Safe & Reassuring: The reliable CDI ignition system can quickly and safely start the motor, and suspension tilt adjustment pins and anti-vortex plates reduce inclination and vortices, ensuring smooth operation. The combination of water-cooling and air-cooling is designed to maintain the optimal temperature, coupled with overheating protection, allowing you to continuously enjoy the fun of the navigation.

Complete Set: In addition to the outboard motor, our package also includes a fuel oil mixing bottle, a tool kit, etc., which can meet your usage needs at once.

Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit as much as possible.

Details

Locking Buckle: The locking buckle the anechoic cover allows you to easily open the casing to check the internal motor.

Tail Plate Clamping Bolt: It can firmly fix the outboard motor on your ship and is not easy to slide.

Flameout Button: It allows you to immediately stop the machine running and avoid danger in case of an emergency.

Cooling Water Outlet: You can determine whether the water pump is working properly by checking whether it is producing water, to promptly repair the engine if it may malfunction.

Application

It is suitable for rubber boats, inflatable boats, fishing boats, sailboats, yachts, canoes, kayaks, rubber boats, aluminum alloy boats, etc. with a stern height of 16.53 inches or less, assisting aquaculture, water transportation, net fishing, luring, outboard backup, outings, and river cleaning/maintenance.

Specifications

Material: Aluminum Alloy, Rubber

Color: Black

Surface Treatment: Spray Paint

Assembly Required: No

Number of Items: 1

Engine: 2-stroke 3.6hp

Displacement: 55cc

Gear Ratio: 2.08(27:13)

Number of Cylinders: 1

Max. Output: 2.6KW

Max. Speed: 4000-5500r/Min
Noise: About 80DB
Gear Positions: Clutch
Ignition System: CDI
Cooling System: Half Water-cooling, Half Air-cooling
Control System: Tiller Control
Starting System: Manual Start
Gasoline: No.92 Lead-free Gasoline
Fuel Type: Mixed Oil (Run-in Period: 25 Gasoline: 1 2-stroke Engine Oil; after Run-in Period: 50 Gasoline: 1 2-stroke Engine Oil)
Trim And Tilt System: Manual Tilt
Fuel Tank Capacity: 1.5L/0.4gal
Fuel Consumption Rate: About 1.1L/0.3gal/h
Propeller Diameter: 17cm/6.7in
Joystick Length: 41cm/16.14in
Handle Length: 14cm/5.5in
Fixed Screw Spacing: 12cm/4.7in
Adaptive Transom Plate Height: ≤42cm/16.53in
Gross Weight: 12.35kg/27.3lbs
Net Weight: 9.7kg/21.4lbs
Product Size: 90*38*18cm/35.4*15*7in
Package Size: 94*43*29cm/37*17*11.4in

Package Included
1*Outboard Motor
1*Tool Kit
1*Fuel Oil Mixing Bottle
1*Funnel
1*Spare Pull Rope
1*English Manual

Notes
1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Please measure the height of your boat before purchasing to ensure suitability for this product.
3.Please start the motor in the water. If the motor stops circulating water, please stop using it immediately and check the impeller of the water pump to see if the water outlet is blocked.
4.Please note that this product should use a mixture of two-stroke engine oil and 92 # unleaded gasoline. The running-in period of the new machine is 10 hours, during which the fuel ratio is 25L (6.6 gal) of gasoline to 1L (0.26 gal) of engine oil. After 10 hours, the ratio is 50 liters (13.21 gallons) of gasoline to 1 liter (0.26 gallons) of oil.
5.Please do not drive too fast during the running-in period. After the running-in period, the gear oil needs to be replaced, and the second replacement time is about 100 hours or 6 months later.
6.Please do not leave this product outside until the cooling water is completely used up. Otherwise, water will enter the cylinder through the exhaust port, leading to engine failure. After cruising in seawater or turbid water, please clean the outboard motor with fresh water and cool the water channel with fresh water. The engine should be stored in a dry and well-ventilated place, and avoid direct exposure to sunlight.
7.If not in use for a long time, please thoroughly clean the gasoline in the fuel tank.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
