4inch Max Board Height Drill Press Mortising Attachment 2.5inch Max Width Mortise Machine Kit 1/4-1/2inch Tenon Drills

Specification

Color: Black

Style: Modern

Shank Type: Round

Tool Flute Type: Straight

Assembly Required: Yes

Material: Gray Iron, 45# Steel, High-carbon Steel, Plastic, etc

Process: Heat Treatment, CNC Machining

Max. Height of the Board: 10cm/4inch

Max. Width of the Board: 6.5cm/2.5inch

Positioning Fixing Hole Diameter: 19mm/ 3/4inch

Applicable Drill Presses: 60mm/2.36inch, 58mm/2.28inch, 55mm/2.16inch, and 52.5mm/2.06inch

Tenon Drills: 6.35mm/ 1/4inch, 15.8mm/ 5/8inch, 9.5mm/ 3/8inch, and 12.7mm/ 1/2inch

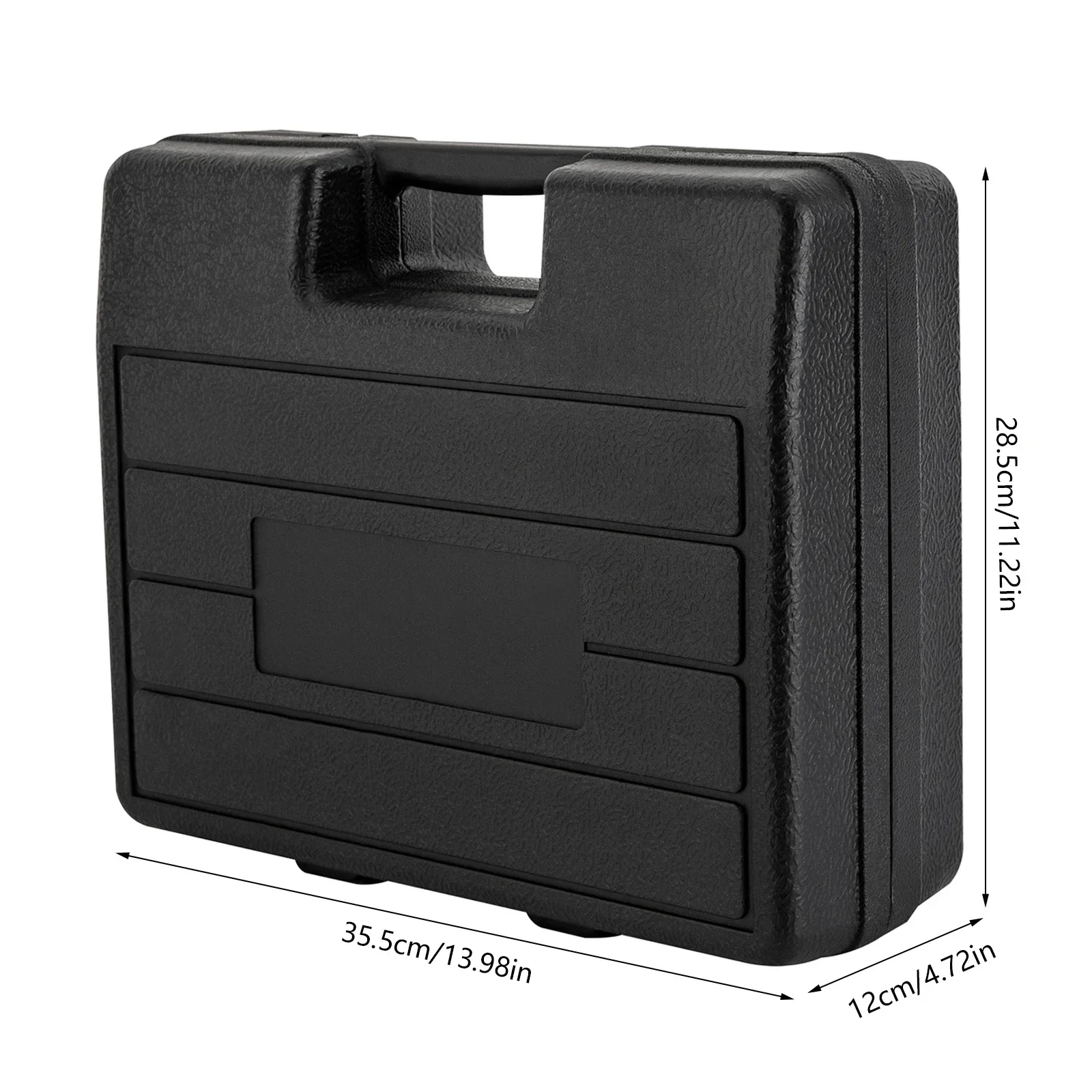

Product Size: 35.5*12*28.5cm/13.98*4.72*11.22inch

Package Size: 28*35*13cm/11.02*13.78*5.12inch

Net Weight: 5.2kg/11.46 lbs

Gross Weight: 4.5kg/9/9 lbs

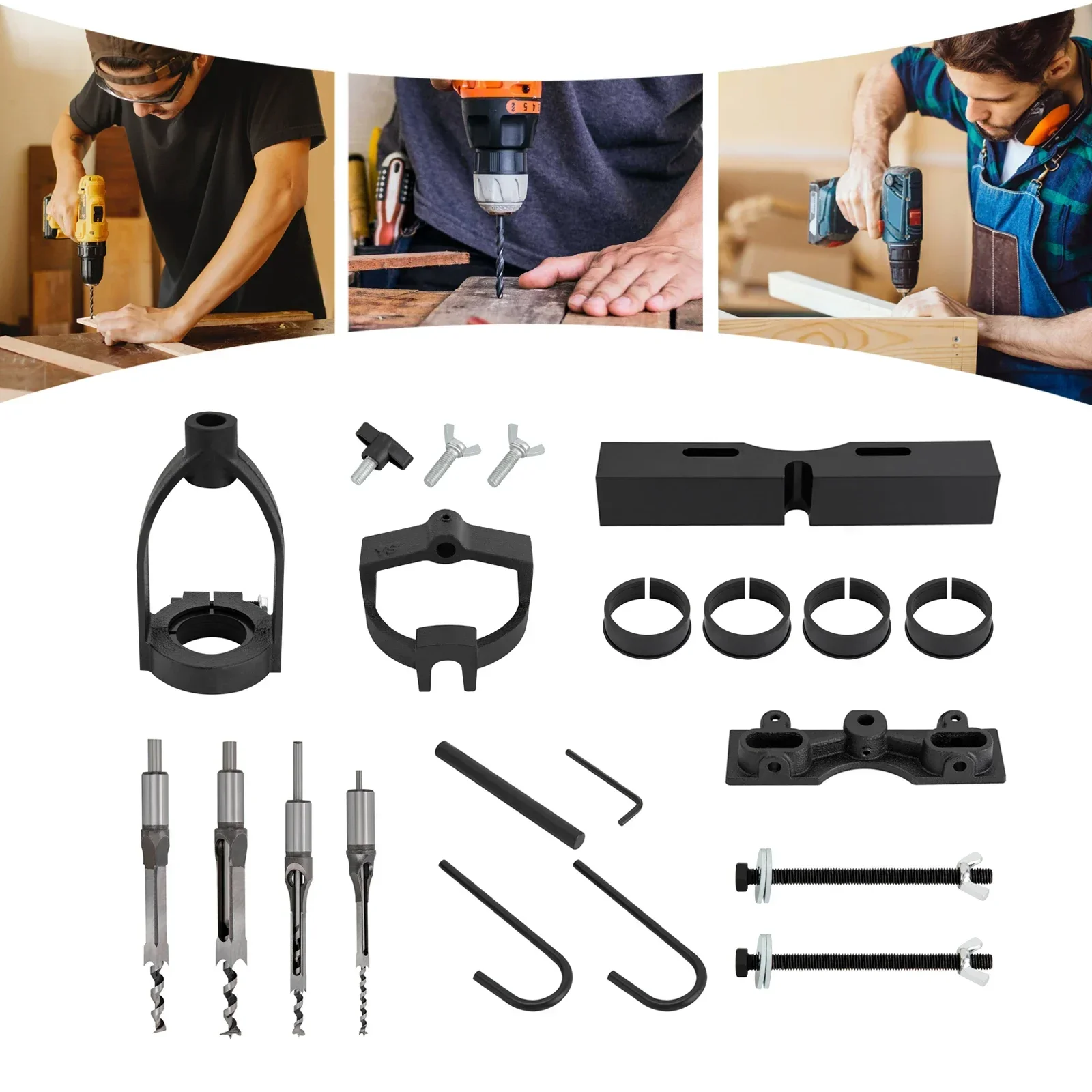

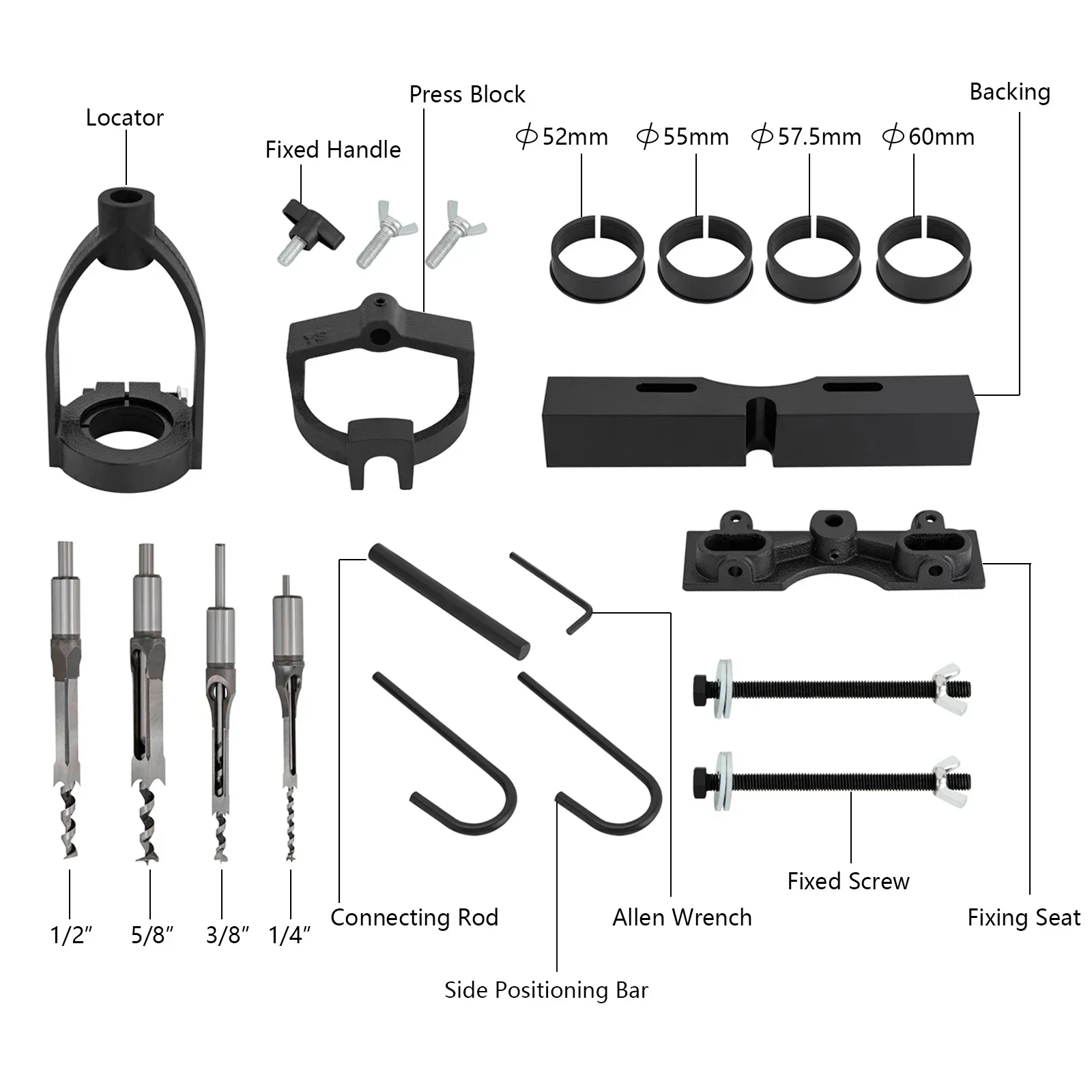

Package Included

1* Support Base

1* Fixed Seat

1* Locator

1* Press Block

2* Fixing Bolts

1* Connecting Rod

1* Fixed Handle

2* Wing Screws

2* Side Positioning Bars

4* Tenon Drills

4* Drill Sleeves

1* Allen Key

1* Storage Case

Description

This drill-press mortising attachment kit is an effective and cost-saving tool for cutting circles, squares, and special squares wooden mortises. Made of various hard materials with exquisite workmanship, this kit is strong and durable. With professional accessories and gear-driven and long-handle designs, you can use this kit easily to achieve efficient and accurate working.

Key Features

Tough and Durable: The components inside this kit are made of high-quality grey iron, 45 steel, high-carbon steel, plastic, etc. to ensure more toughness, making this kit not easy to rust, wear, and deform under proper use.

High Accuracy: The surface of these tools is processed with precise CNC machining to reduce the error in use and this kit can be firmly installed on the bench drill without movement, allowing for more accurate positioning and cutting.

Excellent Performance: Premium high-carbon steel tenon drills with heat treatment are designed for drilling equipment and have high strength, long core, and high concentricity, and the unique topspin chip removal design ensures that the drills will not be clogged with wood chips, making cutting materials quickly and stably.

Cost-saving&Labor-saving: The gear-driven and long-handle designs can reduce your labor intensity, enable people to easily and efficiently complete each cutting without hand fatigue, and reduce construction costs in the construction, installation, renovation, and decoration industries.

Powerful Function: This kit can convert column drills into lightweight mortise machines, providing a simple and convenient way to easily create the desired mortise on wood, saving time and effort.

Professional Accessories: The four commonly used drills, each measuring 1/4", 5/8", 3/8", and 1/2", help you meet your different working needs. The 4 drill sleeves with different diameters can adapt to bench drills with 2.36", 2.28", 2.16", and 2.08" in diameter. And other practical tools such as the support base, fixed seat, locator, press block, connecting rod, side positioning bar, and fixed screws allow for convenient and simple operation.

Enjoy Convenience Instantly: The 11.46 lbs lightweight and the storage case with groove and handle designs allow you to carry and store this kit with less effort while keeping tools neatly organized after each use.

Easy to Assemble&Use: With practical accessories and a detailed English manual, you can assemble and start to use this kit with less effort.

Easy to Clean: Because of the smooth surface and simple structure, you can wipe the dirt from this kit with a cloth.

Application

It can cut wooden mortises such as circles, squares, and special squares, and can also be used for circular grooves, internal grinding, and metal drilling. It is suitable for window sashes, cabinet furniture factories, model stores, construction, woodworking DIY, decoration industries, and other wood factories. It applies to compression boards, plastic, density board, sandalwood, pine, and other less hard materials less than 4" in length and 2.5" in width.

Notes

1.This product is used with a bench drill(not included) and has size requirements for the bench drill used.

2.This product has a requirement for the distance between the drill chuck and the table(at least 11.8") when in use. The diameter of the clamping part of the square hole drill used in this product is also required.

3.The chisels are too sharp, please pay attention to safety when them taking out.

4.Please use only the correct combination of bit and chisel. Both of these tools must be sharp, if either one is dull, there will be excessive friction with consequent heat, damaging the pints.

5.For best results, the spindle speed should be between 650 and 1800 RPM. Please use the slower speed for larger bits and chisels and when mortising harder woods. Please use the faster speed for smaller bits and chisels and when mortising softer woods.

6.You can contact us to send you an electronic English manual. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
