Max 5800W Electric Wall Groove Cutting Machine Chaser Concrete Cutter 5800W, with High-Hardness Diamond Blades

Description

This saw blade slotting cutter has a powerful brushed copper motor and sturdy carbon steel protection cover, greatly improved slotting speed, and secured operator's safety. ABS slip-proof handles give you a comfortable and steady slotting experience. 5.51 inches deep cutting and rotatable protection cover allow you to do a clean job even if it is a straight angle slotting. Its water dust removal system effectively cleans and cools the blade during working, and greatly extends its service life.

Key Features

Excellent Performance: The machine is equipped with a 3500W all-copper motor up to 5800W (in a short period) with a high speed of 3800rpm, providing powerful slotting power. In addition, it is equipped with reinforced high-hardness diamond blades, which are heat-resistant, sharp, and durable, and can easily cut hard objects.

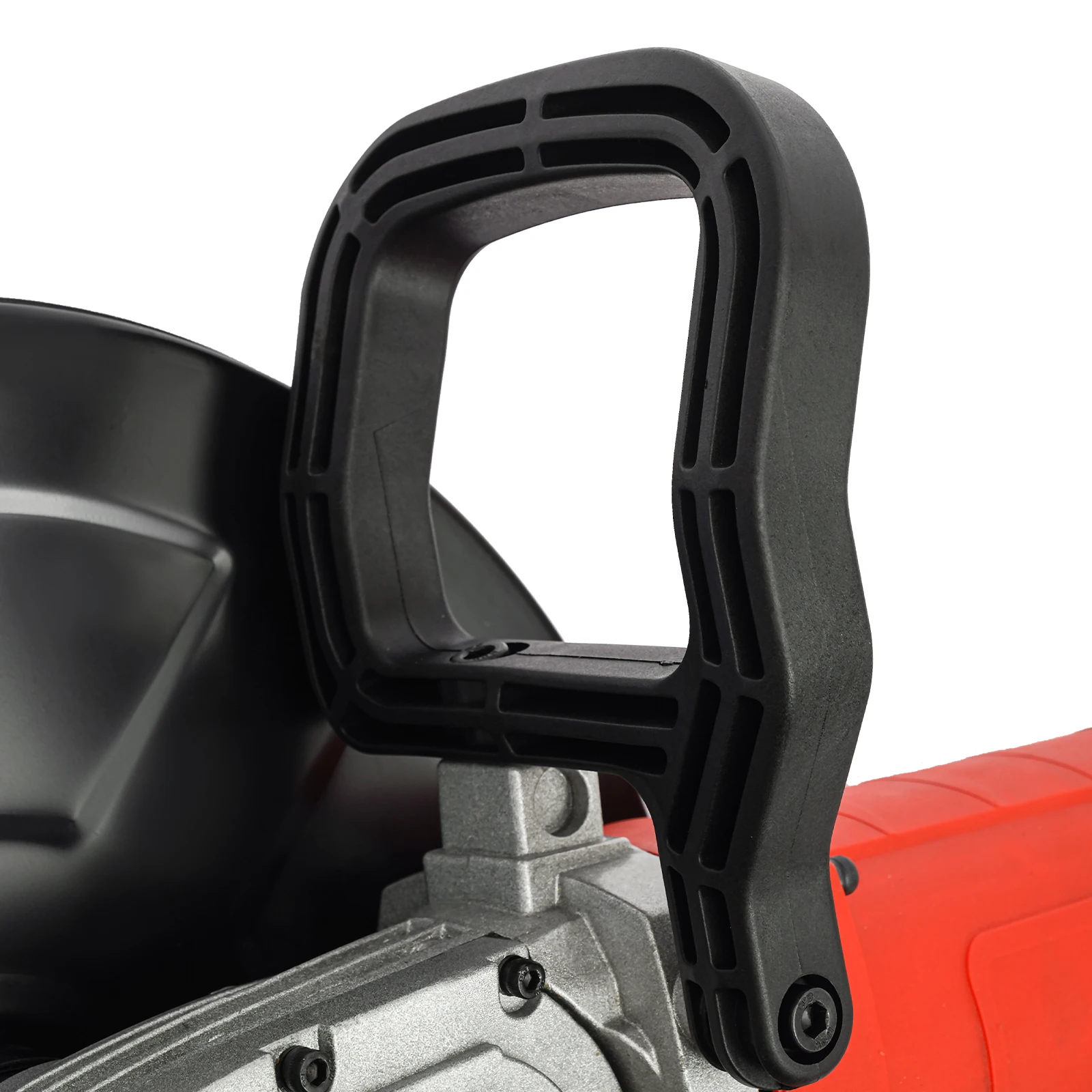

Ergonomic Design: The front auxiliary handle and the rear main handle with optimized weight distribution give you better control while cutting, allowing you to find the most comfortable angle for labor-saving operation and meeting different work requirements without scraping your hands when slotting into the corners.

Robust and Durable: It is made of high-quality carbon steel and ABS materials, which are solid, wear-resistant, impact resistant, and rustproof, ensuring stable power transmission and long service life.

Easily Corner Grooving: With an adjustable protection cover, it can be used for 90-degree grooving with one straight and easy cutting. With the powerful and sharp blade, it can easily make a one-time groove anywhere on the wall without secondary processing!

Efficient Heat Dissipation: The grille cooling vents are designed near the handle, which can quickly dissipate heat and prolong the service life of the machine.

Adjustable Grooving Depth: It can accommodate a blade with a diameter of 13.77 inches, the depth can be adjusted by changing the size of blades and moving baseboards to a maximum cutting depth of 5.51 inches. You can adjust it as needed to get a more satisfactory slotting result.

Dust-free Cutting: The water pump with a hose with a length of 16.4ft can supply water quickly to reduce dust splashing during cutting, improve cutting efficiency, and protect your health by lowering the temperature of the saw blade while prolonging its service life.

Details

External Carbon Brush: You can replace carbon brushes conveniently without dismantling the machine.

Long Power Cord: It is equipped with a 9.5ft long power cord, providing you with a more flexible range of usable space.

Test Button: Designed for manual testing, it enables you to check whether the machine is working properly or not.

Trigger Design: The one-touch start button makes it easy for you to quickly operate the machine.

Specifications

Model: Wall Saw
Material: Diamond, ABS, Carbon Steel
Motor Type: Pure Copper Brush Motor
Power Source: Corded Electric
Dust Removal Method: Water
Plug Type: EU Standard
Product Type: Circular Saw
Voltage: 220V
Rated Power: 3500W
Current: 16A
Maximum Load Power: 5800W(In a Short Period)
Maximum Speed: 3800RPM
Slotting Speed: 0.5m/1.64ft/min
Water Tube Length: 5m/16.4ft
Power Cord Length: 2.9m/9.5ft
Saw Blade Diameter: 350mm/13.77inch
Saw Blade Bore Diameter: 25.4mm/1inch
Saw Blade Thickness: 3mm/0.11inch
Cutting Depth: 85-140mm/3.34-5.51inch
Number of Saw Blade Teeth: 24
Product Size: 57x36x21.5cm/22.5x14.2x8.5inch
Packaging Size: 57x36x21.5cm/22.5x14.2x8.5inch
Gross Weight: 12kg/26.45lbs

Package Included

1* Electric Slotting Machine
1* English Operating Instruction
All Needed Accessories

Notes

1.Please do tests before each use.
2.Please be sure to install a protective cover and wear goggles(not included) when using the product.
3.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
