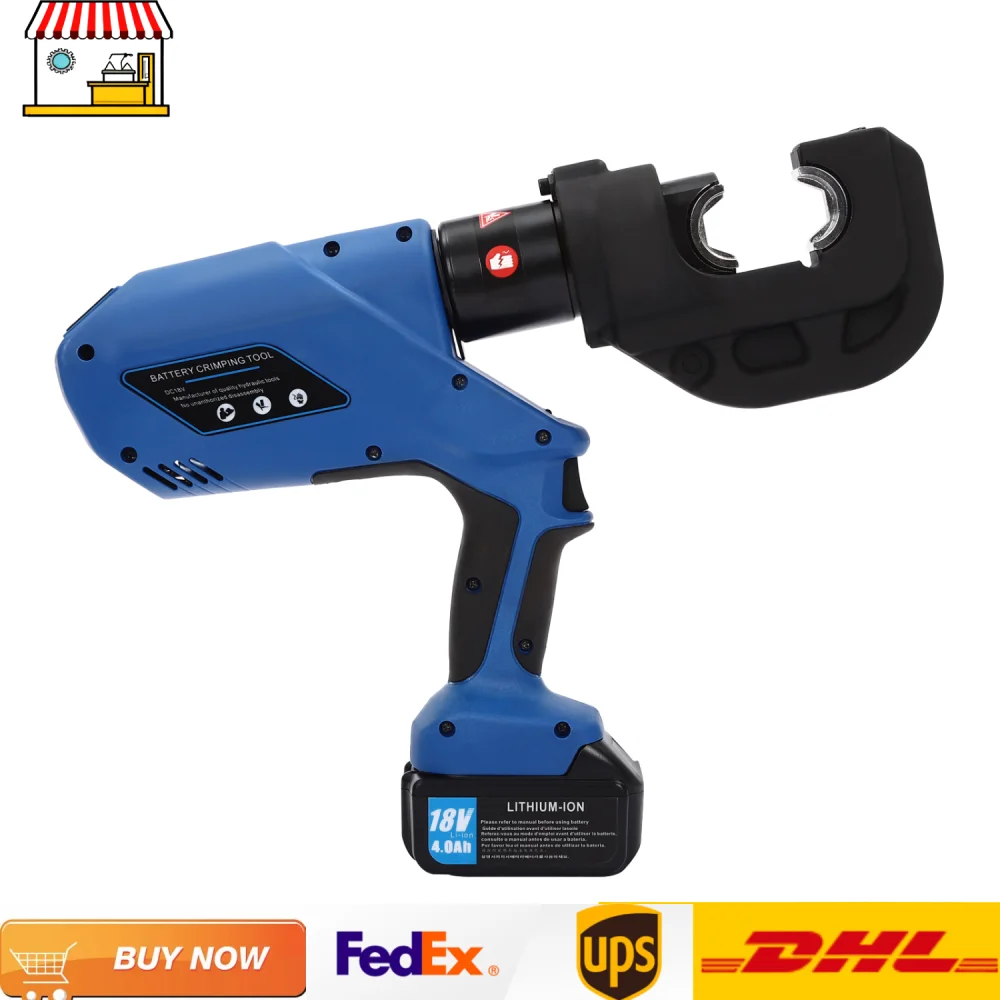

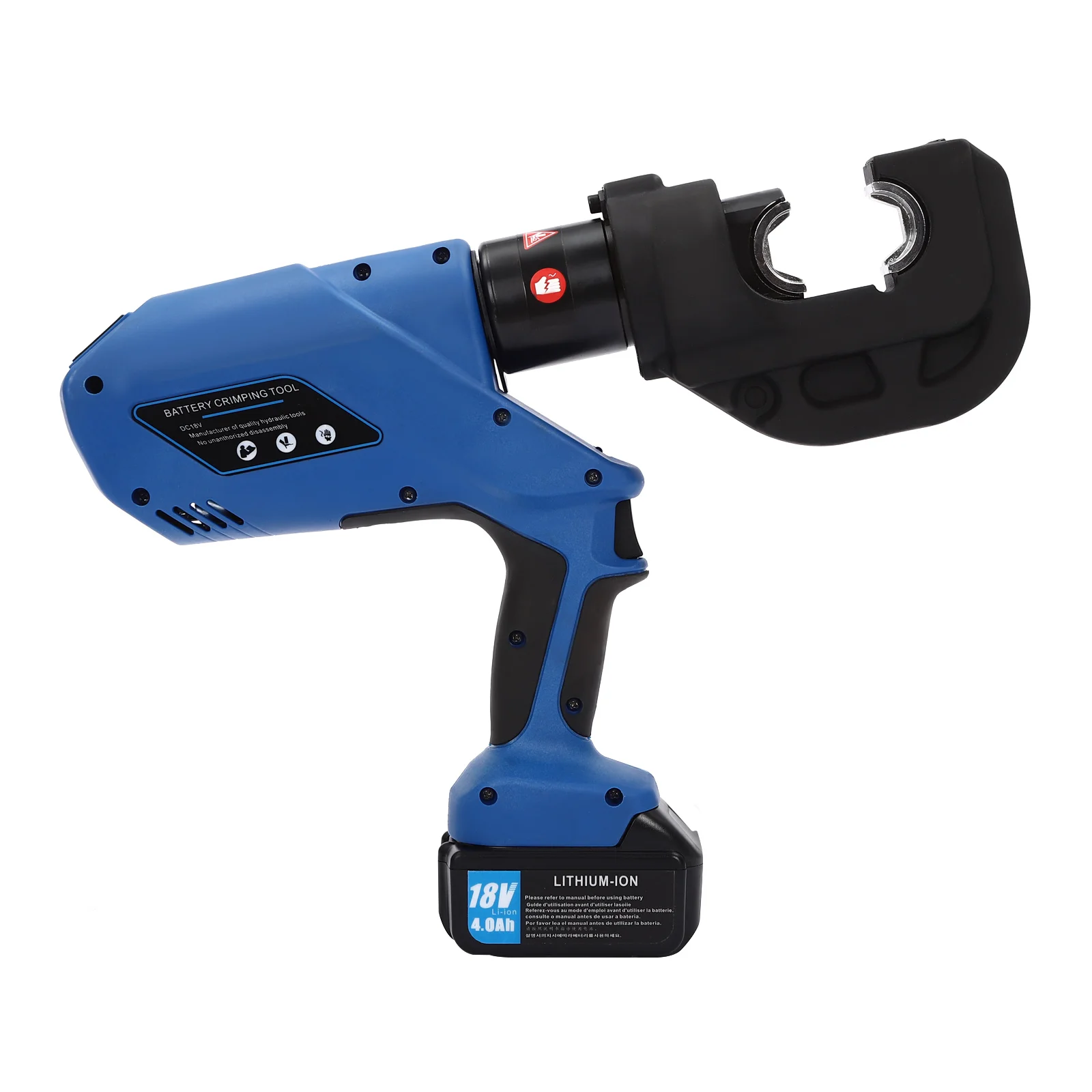

EZ-400 Rechargeable Hydraulic Crimping Pliers with 1 Battery 1 Charger 18V Electric Hydraulic Crimping Charging Crimping Tool

EZ-400 Rechargeable Hydraulic Crimping Pliers with 1 Battery 1 Charger 18V Electric Hydraulic Crimping Charging Crimping Tool

Application

It can be used in the electric power industry, telecommunication industry, construction industry, automobile manufacturing industry, and other fields.

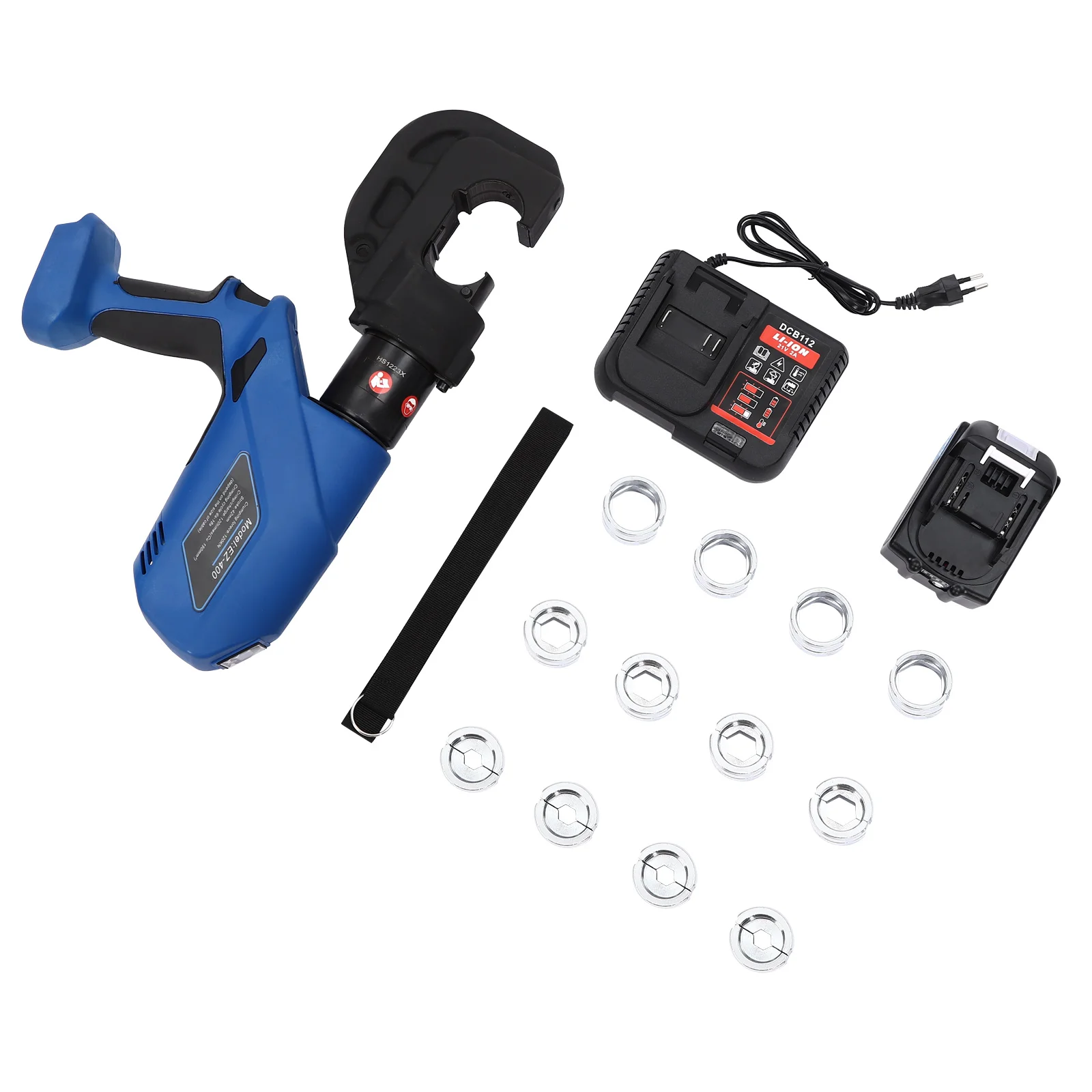

Package Included

1*Electro-Hydraulic Crimping Tool

12*Dies

1*Battery

1*Battery Charger

1*Strap

1*Tool Box

Key Features

Efficient Crimping: 120KN crimping force, precisely designed dies and double-action hydraulic design allow the product to precisely

crimp the cable with a crimping cycle of 10-20s(depending on the cable diameter) each time, which saves you great effort and time.

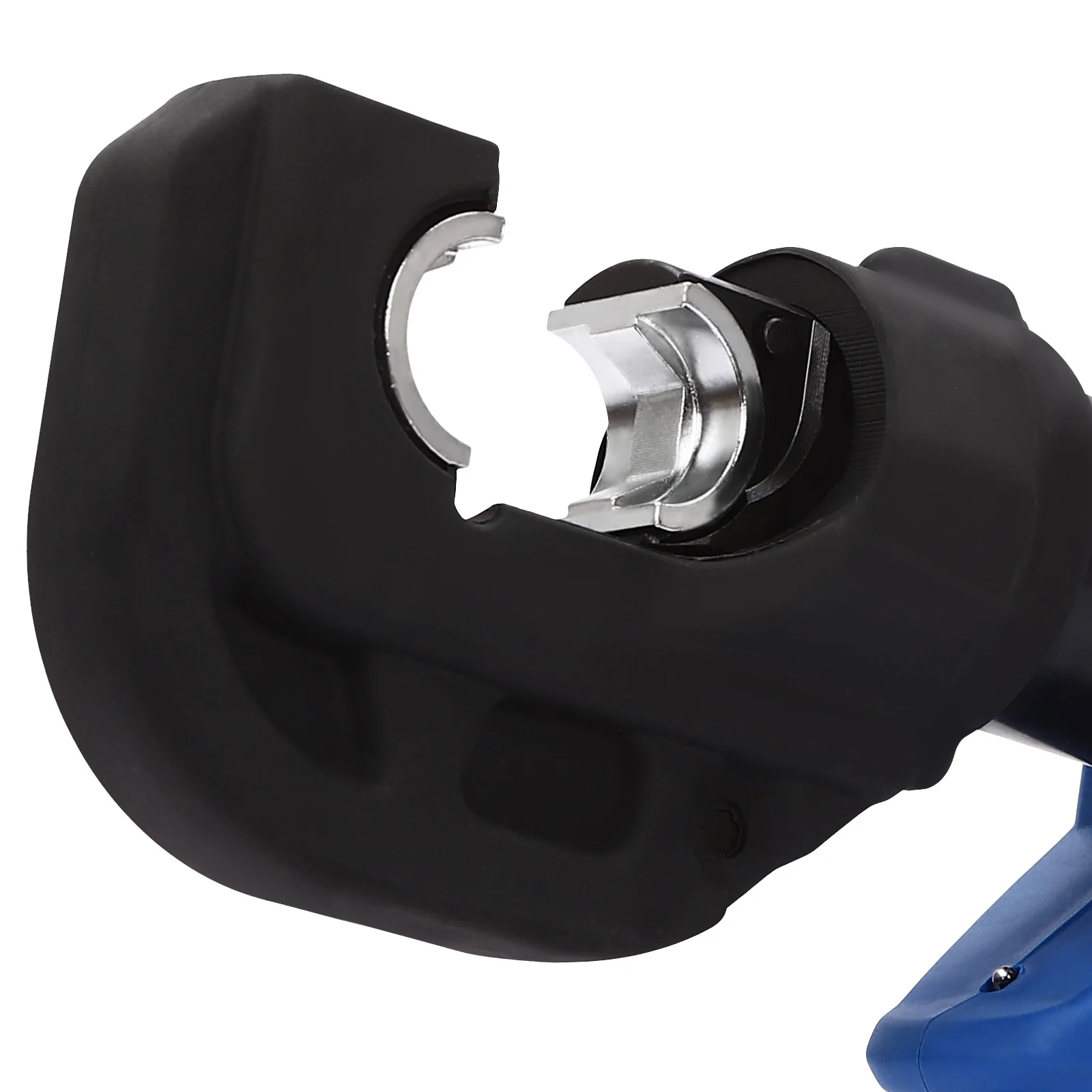

Wide Compatability: The dies with 12 specifications(16-400mm²) and the 360° rotatable head can meet your various demands of crimping different sizes of cables at different angles.

Rechargeable Battery Powered: The product comes with an 18V 4A rechargeable lithium battery, which can support about 120 times (150mm² copper wire) after each full charge, which is convenient and durable to meet your long-time working needs.

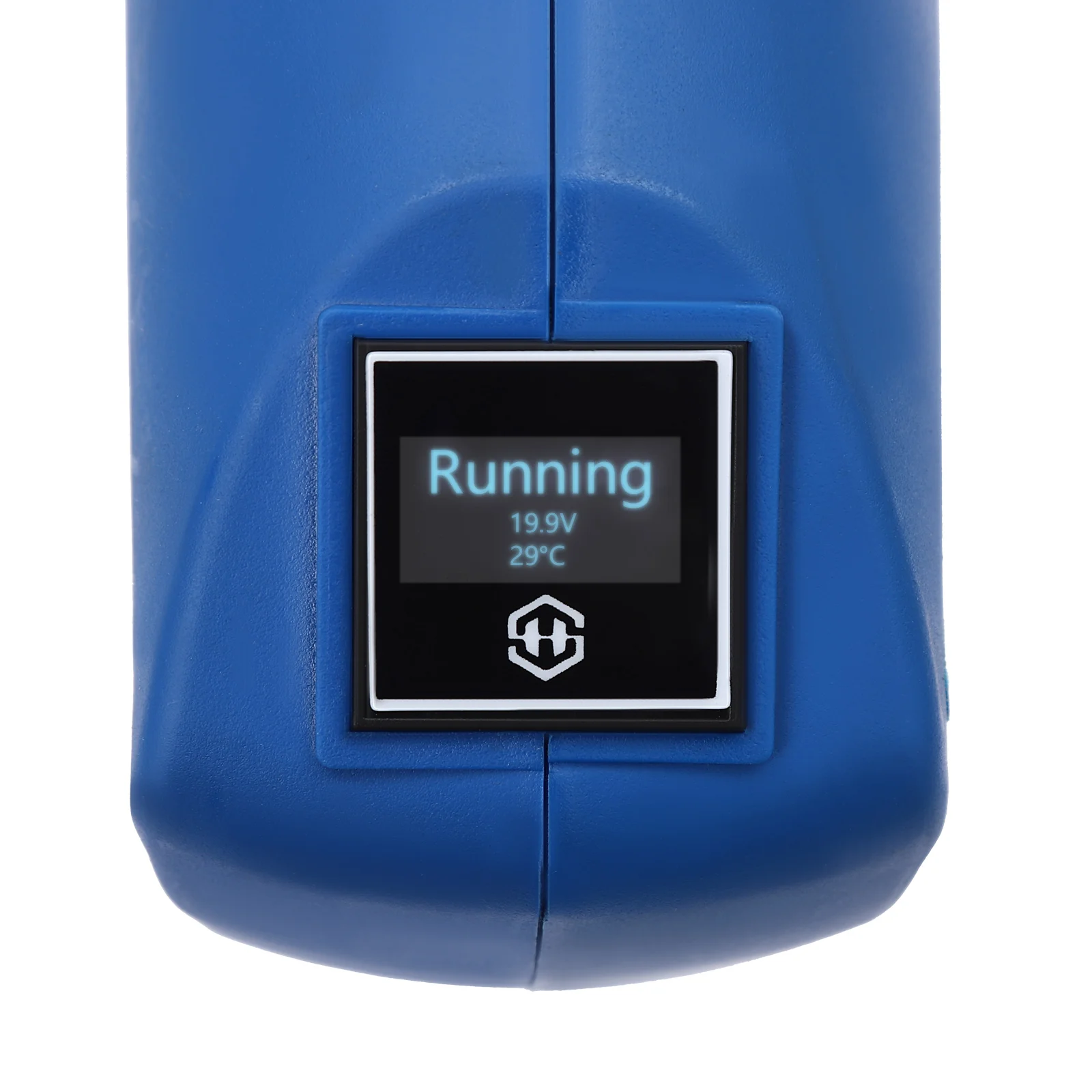

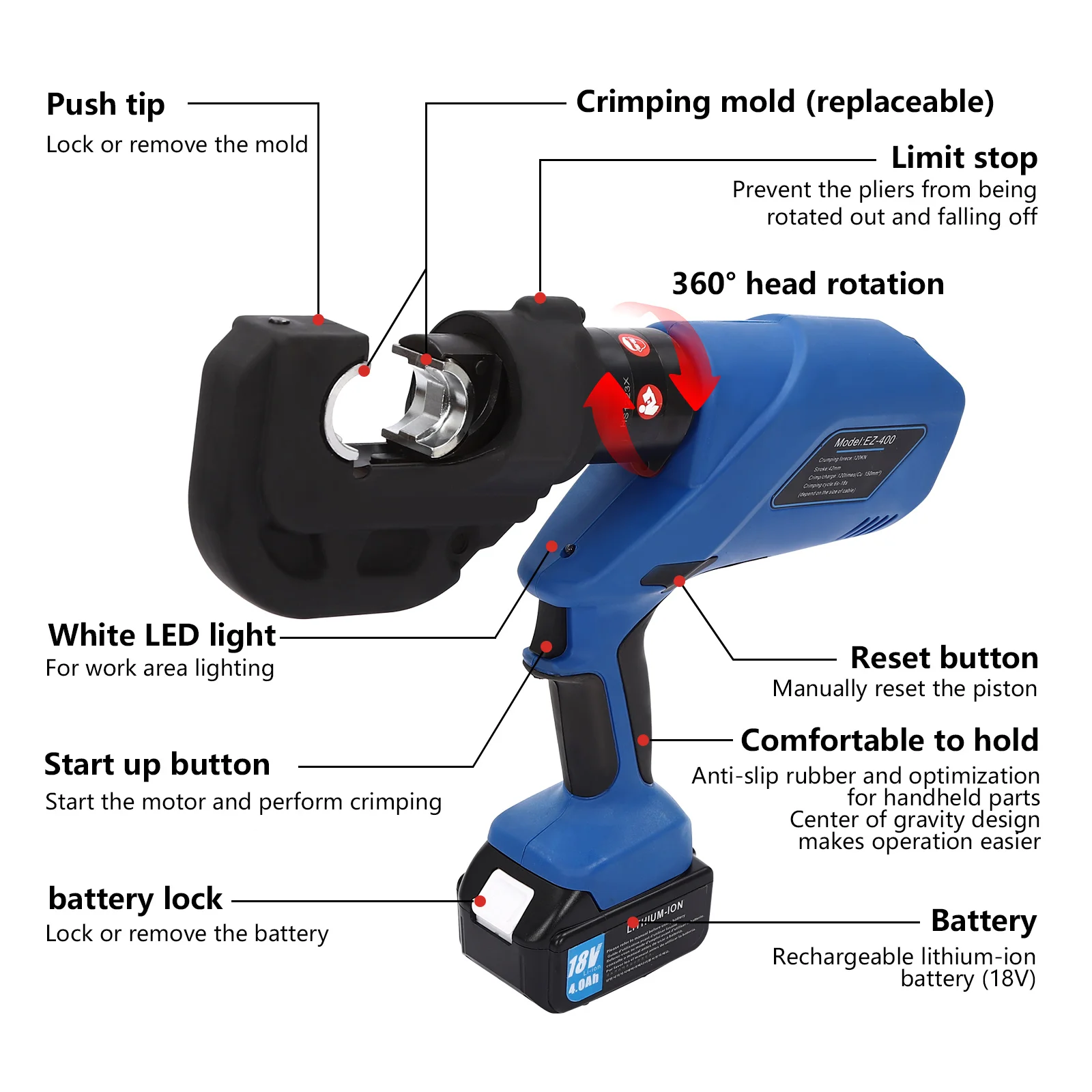

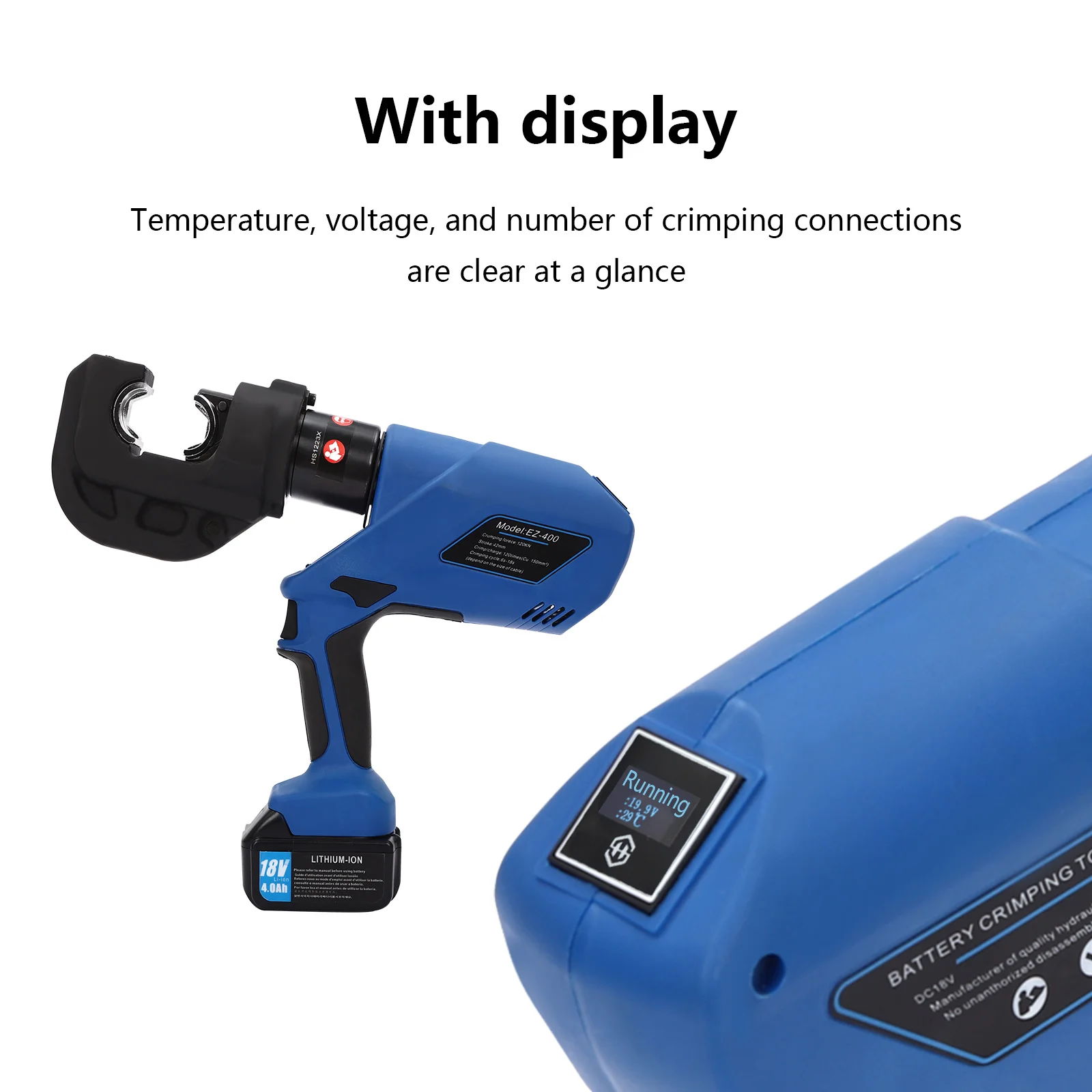

User-friendly Design: The display screen can show you the temperature, voltage, and number of crimps and give you a clear picture of the

crimping work. The push tip helps lock and remove the die conveniently. The limit stop can prevent the plier head from being rotated out and falling off.

Safe to Use: The product comes with an automatic power-off function, which will automatically cut the power off after the product is not in use to avoid damage. It also has a built-in safety valve and some heat-sink holes to ensure the safety of use.

Simple Operation: You simply replace the appropriate crimping mold, install the battery, and press the start button to begin crimping the cable. The reset button allows you to manually reset the piston.

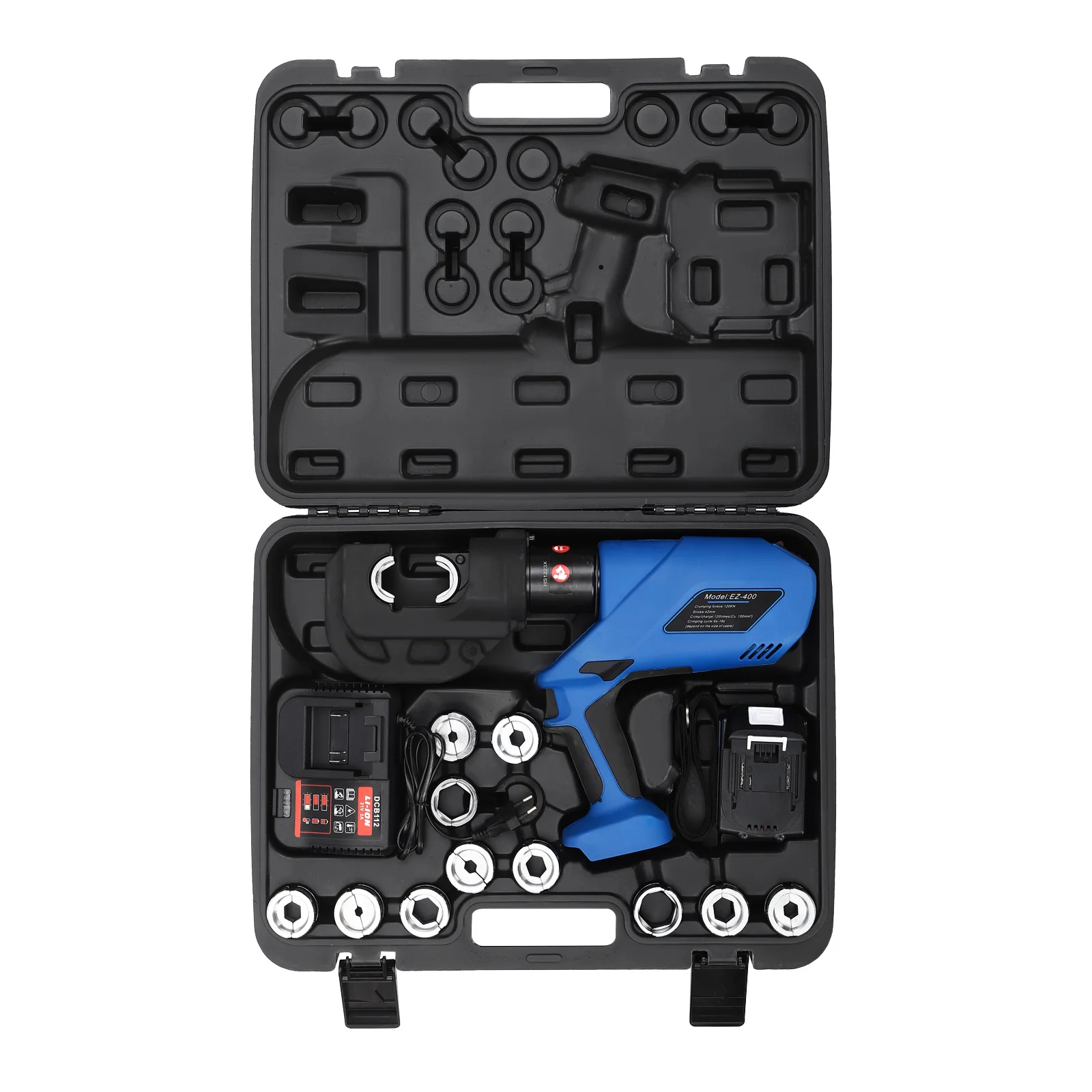

Easy to Carry: The carrying case and the strap allow you to easily carry the product and its accessories to your workplace.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as

soon as possible.

Description

This rechargeable hydraulic crimping plier made of high-quality materials is sturdy and durable. It comes with 120KN crimping force, 12 dies, and a high-capacity rechargeable battery to make your crimping work faster and more efficient. In addition, the ergonomic handle is comfortable to grip and easy to operate with one hand. Our product is sure to be the ideal choice for your crimping job!

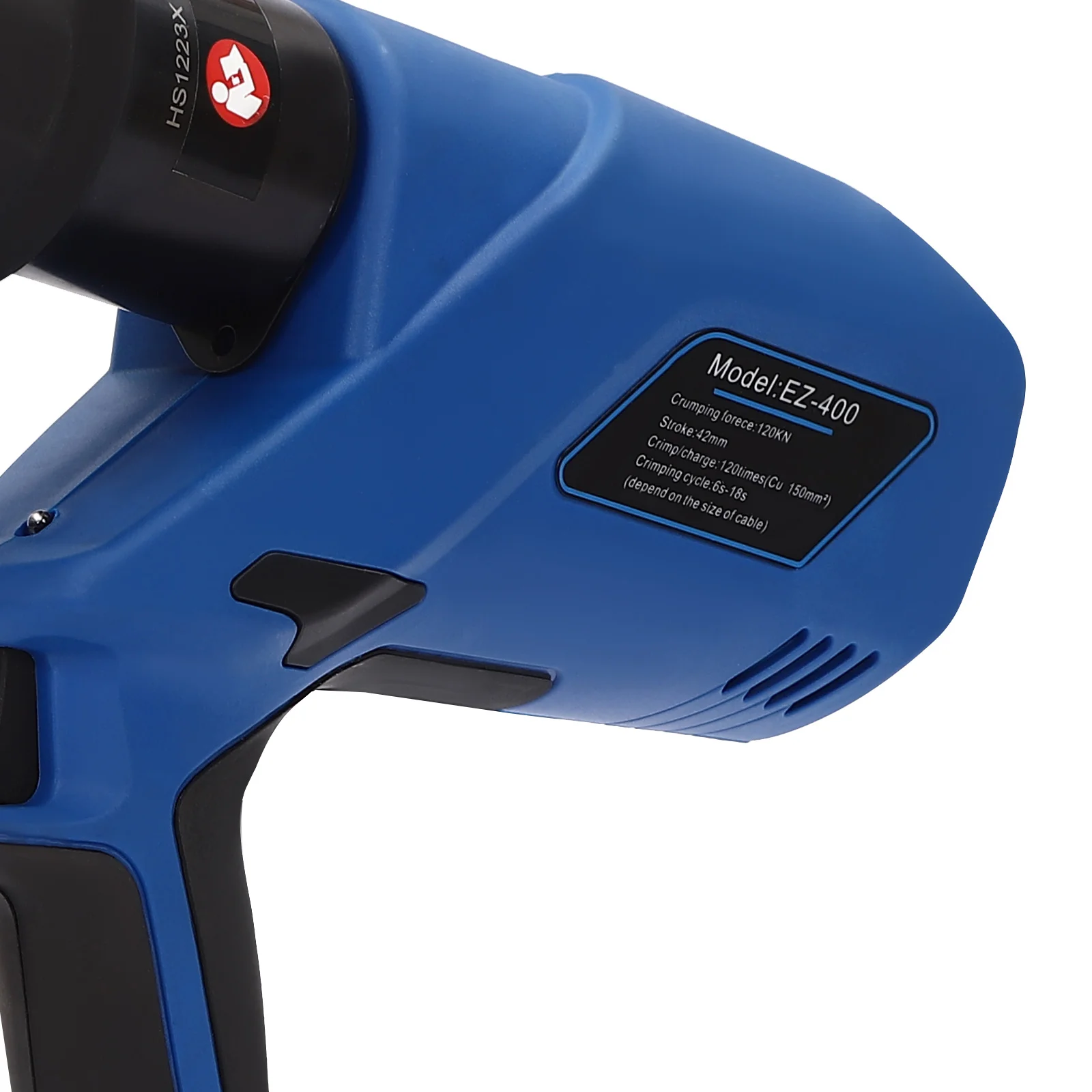

Specifications

Color: Blue

Style: Modern

Material: PVC

Voltage: 18V

Battery: 18V 4.0Ah Lithium Battery

Plug Type: EU Standard

Charging Time: About 2 Hours

Crimping Force: 120KN

Crimping Range: 16-400mm²

Stroke: 42mm/1.65inch

Crimp/Charge: About 120 Times(Copper Wire 150mm²)

Crimping Cycle: 10-20s(Depending on the Cable Diameter)

Crimping Die Specifications: 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm²,

185mm², 240mm², 300mm², 400mm²

Packaging Size: 65*48.5*18cm/25.59*19*7.08inch

Gross Weight: 15kg/33lbs

Details

Ergonomic Handle: The comfortable non-slip handle allows you to grip the product firmly during crimping, making long hours of crimping work more stable and easier.

LED Light: It provides you with illumination and allows you to make a smooth crimp in poor visibility or dim lighting

conditions.

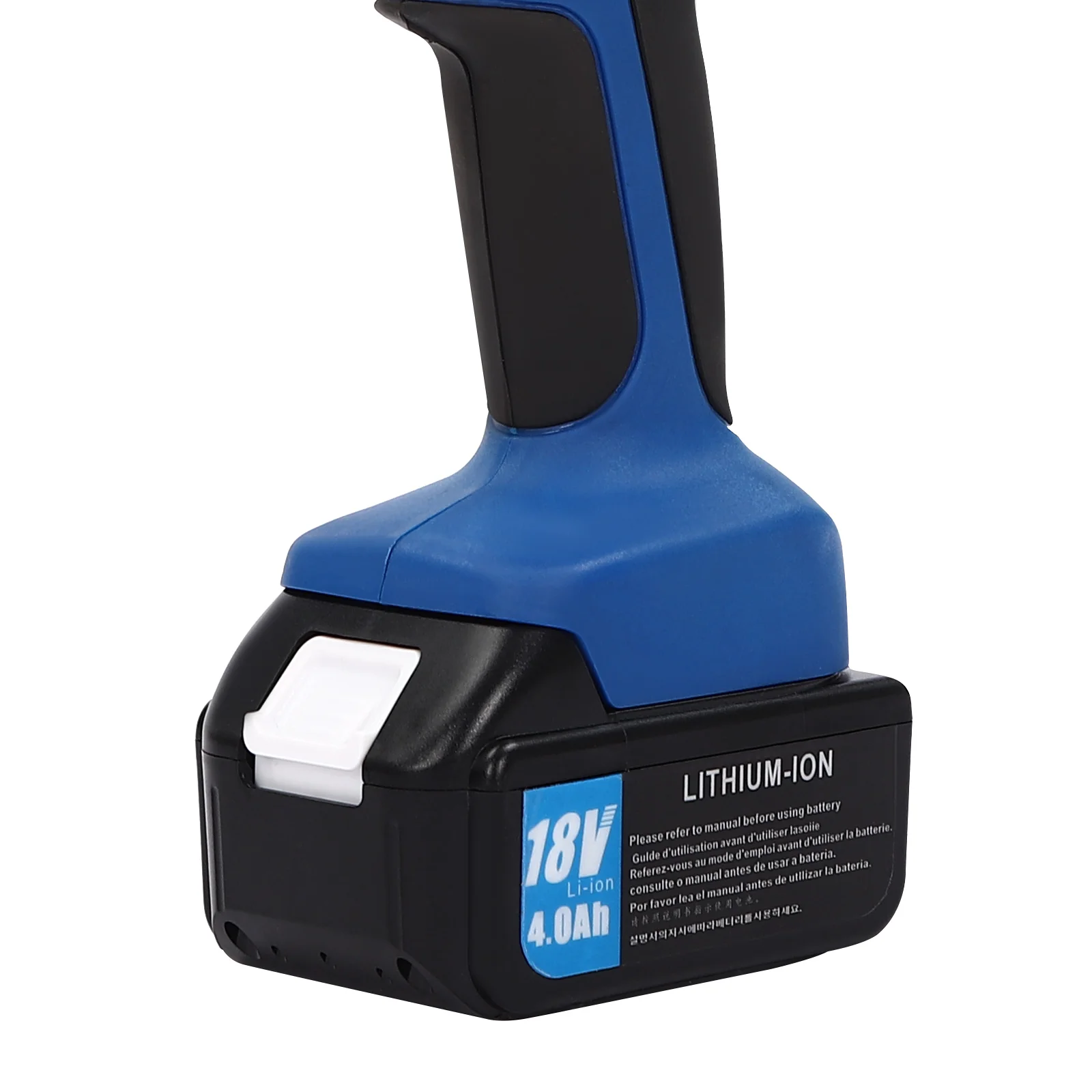

Battery Lock: With it, the battery can be easily locked and quickly removed.

Notes

1.Please check the size carefully before ordering. Please note that this product can not crimp continuously.

2.Please read the product label carefully before use.

3.It is strictly prohibited to crimp without a crimping die to avoid damage to the clamp head.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
