PowMr 100A Solar Charge Controller MPPT Intelligent Regulator for 12V 24V 36V 48V Solar Battery Bank 160V Panel Can parall 12PC

Advantage:

1. Ship from European warehouse, delivery within 3-7 days.

2. No need to pay VAT.

Unsupported delivery areas:

1. Spanish island region. The postal code starts with "35" and "38".

2. Remote areas in France and areas with transport restrictions.

PowerMr 100A Solar Charge Controller MPPT intelligent Regulator for 12V 24V 36V 48V Solar Battery Bank 160V Can Paralle panel 12PC

Introduction:

POW-M100-PRO solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed, dedicated to the solar system, the charge controller conversion efficiency up to 97%.

Feature:

* MPPT 100A solar charge controller.

* Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 97%.

* Supports Up to 12 Units in Parallel.

* With free temperature probe.

* Built-in DSP controller with high performance.

* Automatic switch for 12V/24V/36V/48V battery bank.

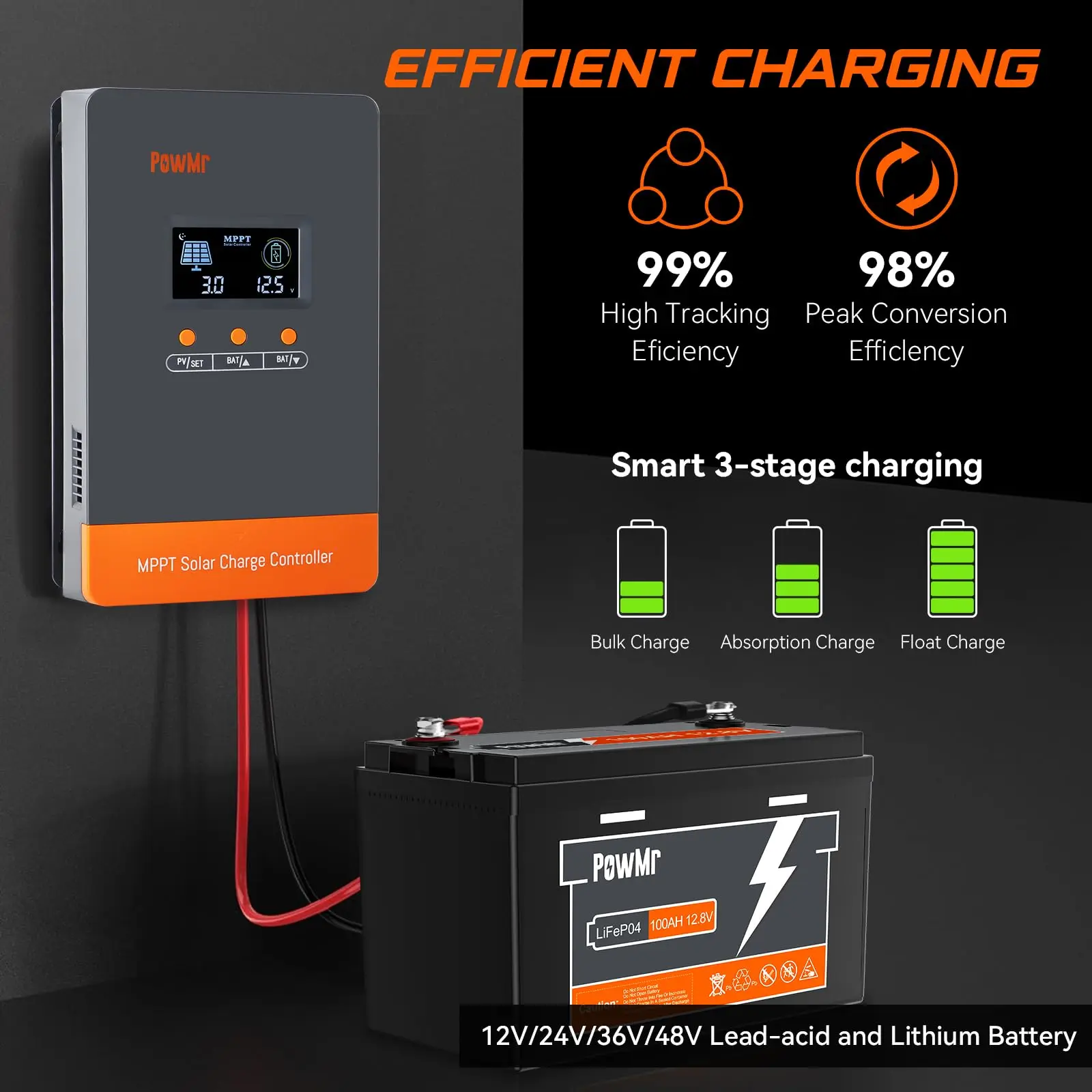

* 3-stage charging optimizes battery performance.

* Overcharge protection, Input PV polarity reverse protection, output limited current protection.

* Over-temperature protection.

* Troubleshooting promotion function.

* Built-in cooling fan for forced heat dissipation, offering overall device operational efficiency.

* Easy to be molted.

Specification:

Model

POW-M100-PRO


Solar Output Specification

Max. Solar Array Open-Circuit Voltage

160V

Maximum Output Power

For 12V System

960W

For 24V System

1920W

For 36V System

2880W

For 48V System

3840W

Battery Charding Specification

Charging Technology

MPPT

Charging Algorithm

3 Internships

Charging Algorithm

12V/24V/36V/48V

Battery Voltage Range

9~60V

Rated Charging Current

100A

Maximum Efficiency

≤98%

MPPT Efficiency

>99%

Temperature Compensation

-3mV/°C/2V(default)

Self-Consumption

44mA/12V; 26mA/24V; 18mA/36V; 12mA/48V

Environment Specification

Operating Temperature Range

-35 °C ~ + 45 °C

Humidity Range

≤ 95%,Non-condensing

Altitude

<3000m

General Specification

Protection Level

IP32

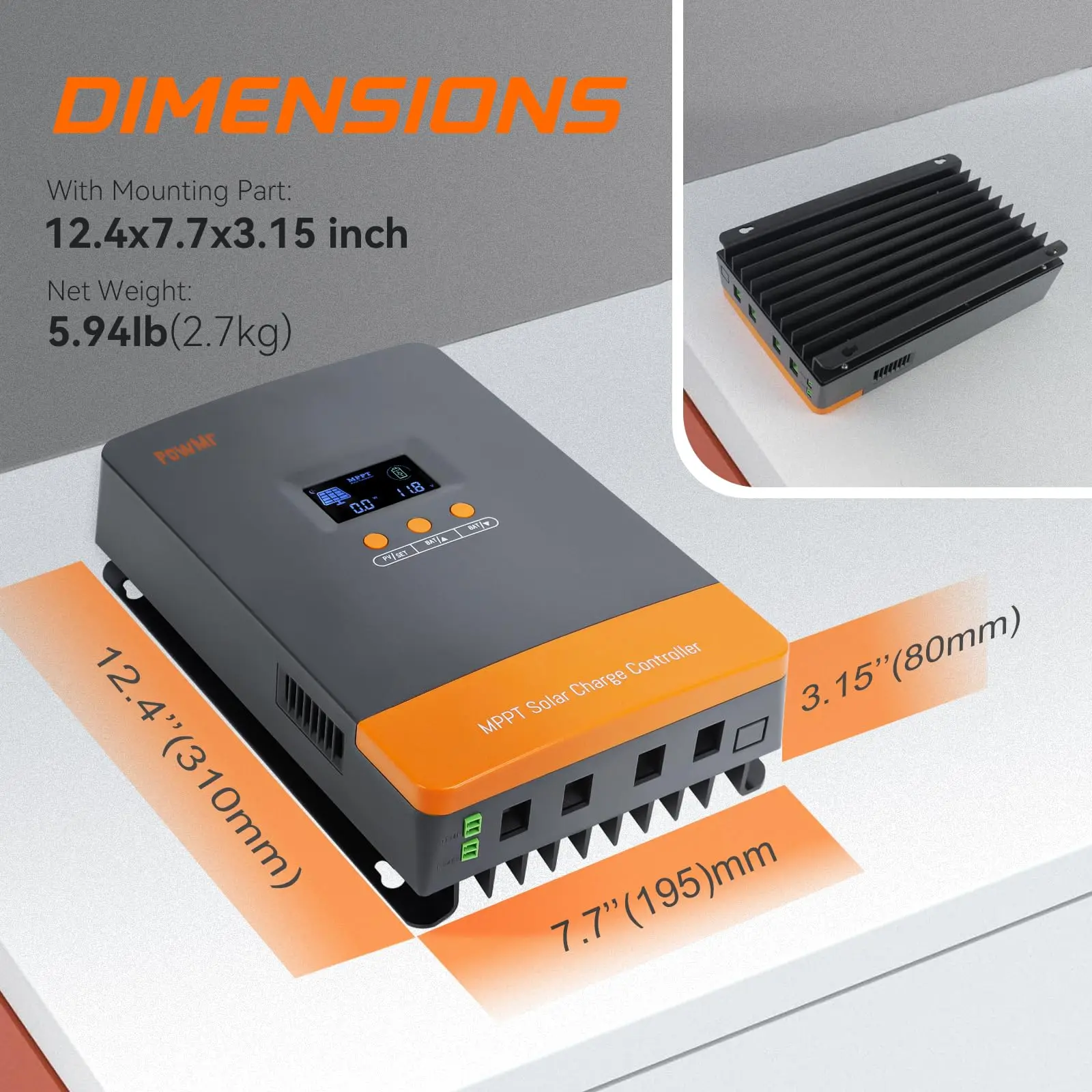

Dimensions

315x195x80mm

Net Weight

2.7kg

Product Overview:
