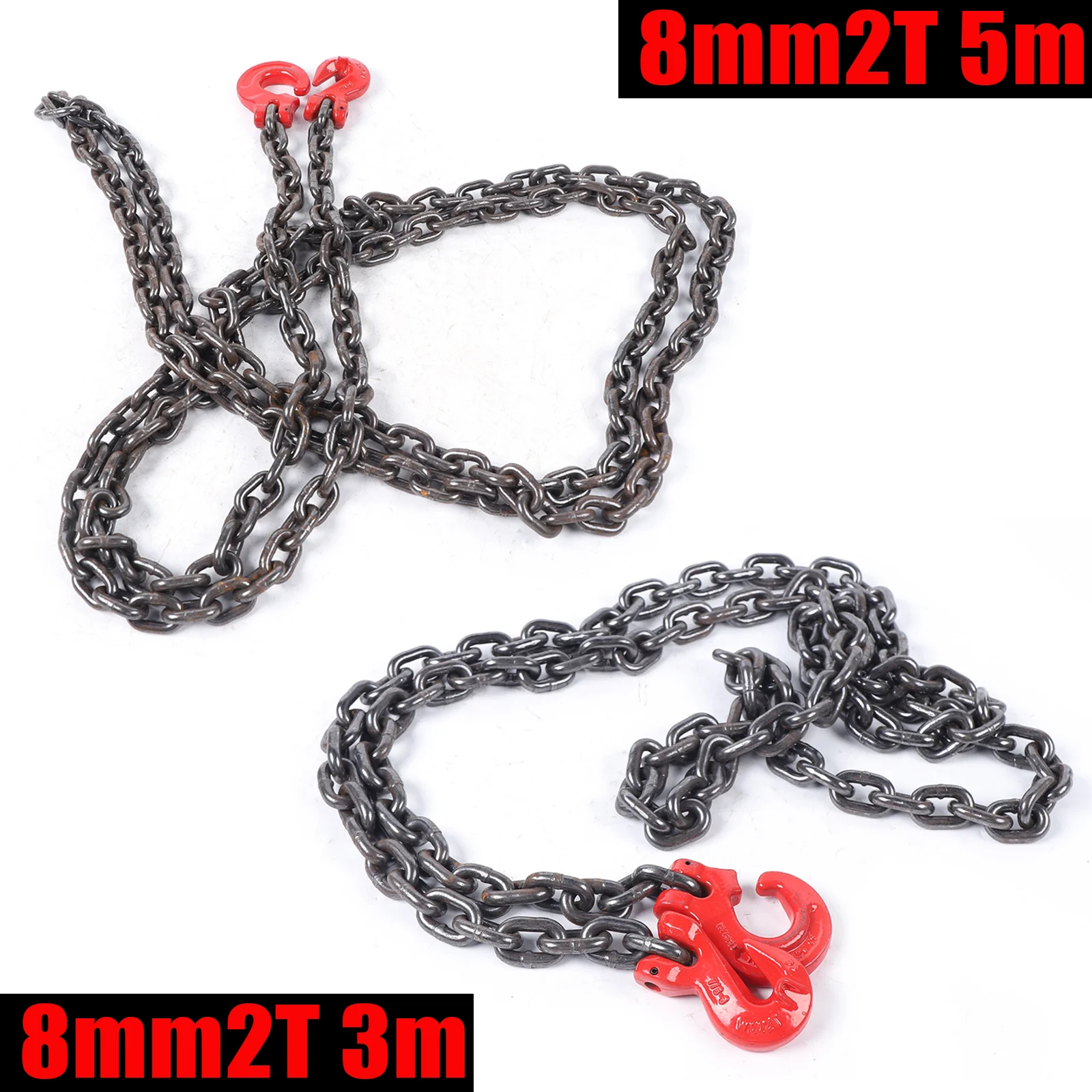

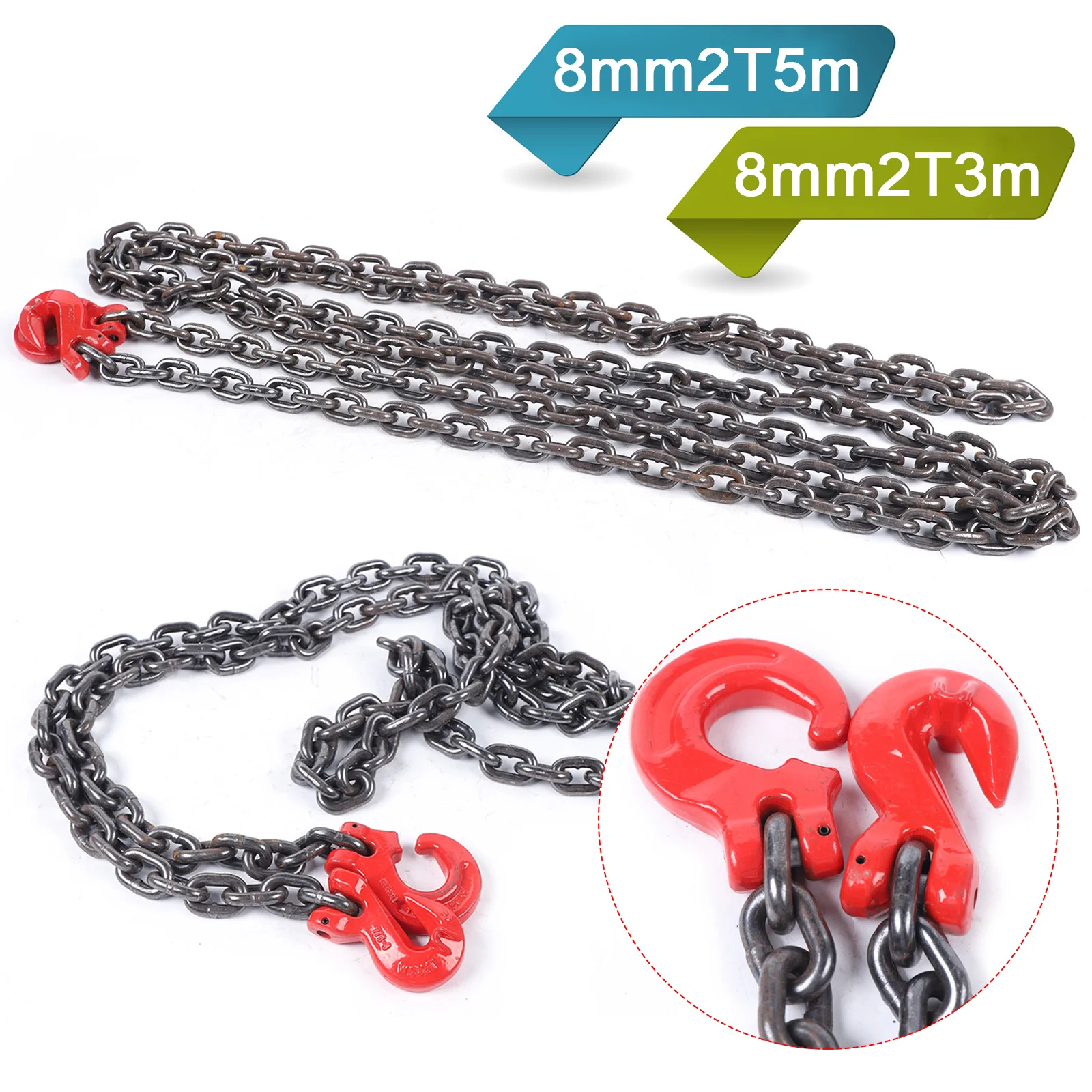

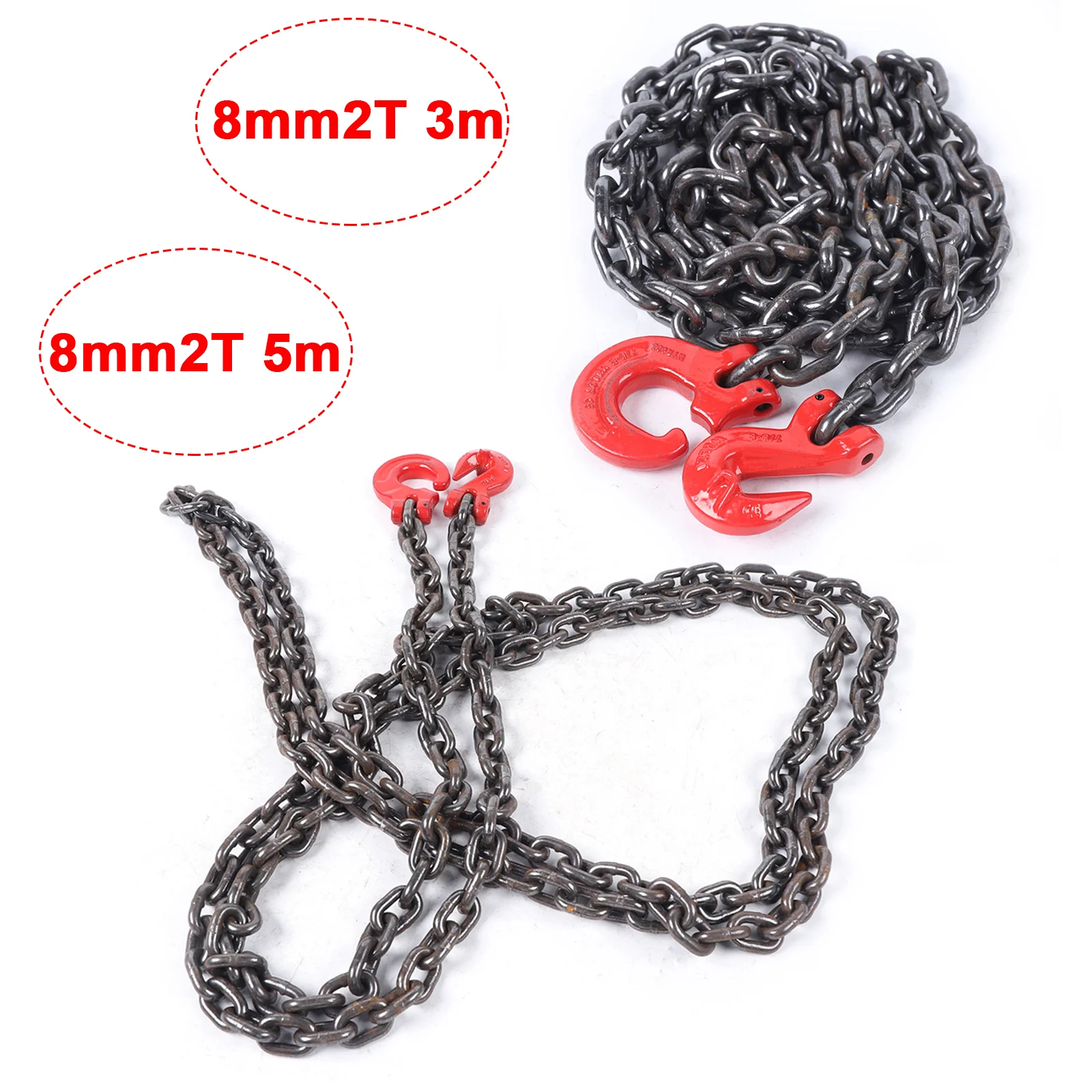

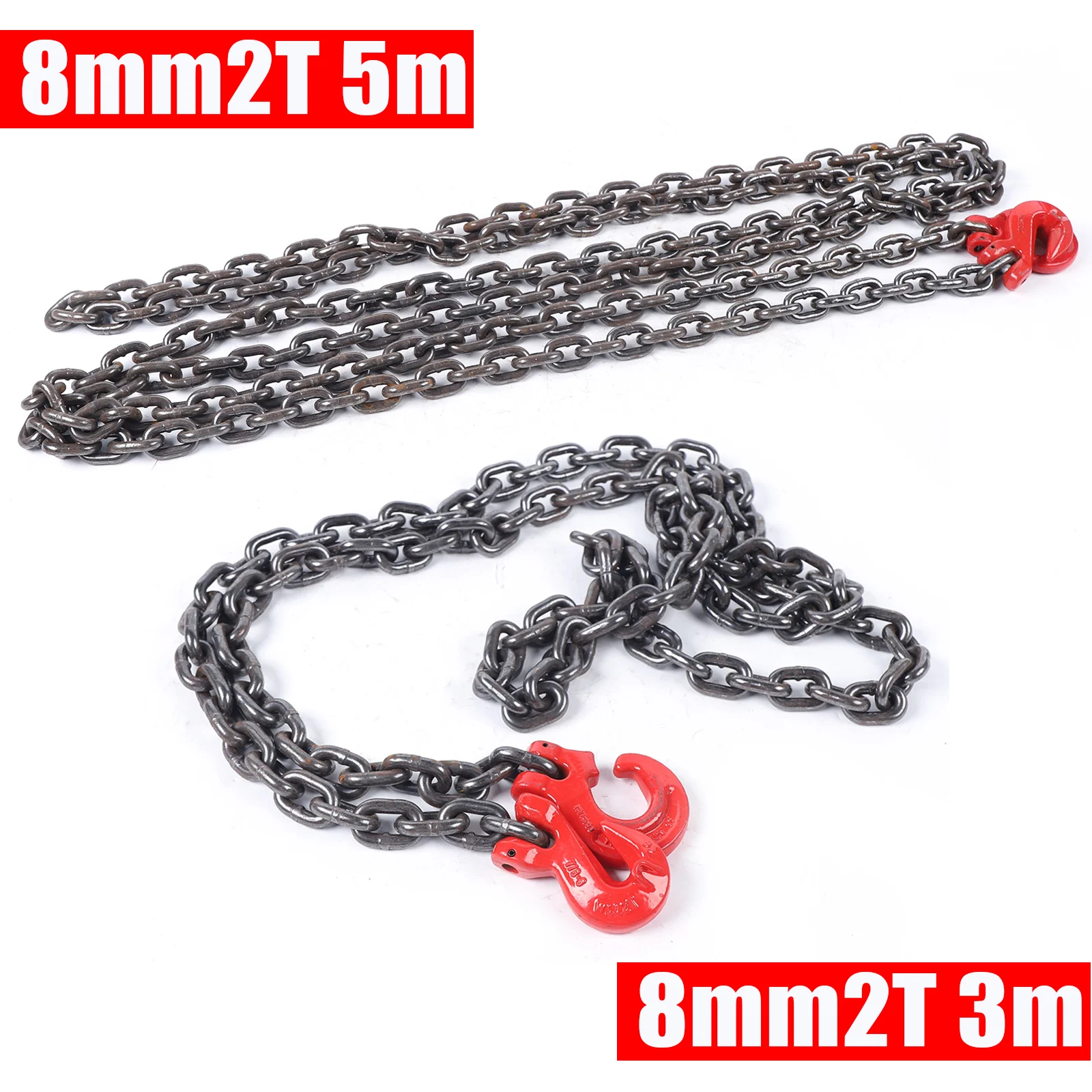

3M/5M 1-Strand Chain Hangers Chain 8mm Chain Sling Lifting Tool 2T Convenient Lifting Tool for Mining Machinery Ports Building

Specifications:

Material: 20Mn2 Alloy steel

Chain root: 1

Chain thickness: 8 mm

Diameters of chain: 8mm

Working length:3M/5M

End fitting: Fork head hook with forging trap

Payload2T

Advantage: Wear-resistant, anti-high temperature, corrosion-resistance, and low elongation

Using range: Mining, machinery, ports, building, etc.

Package Content

1 X1 Leg Chain Slings

Product Description:

Chain sling is a convenient lifting tool, formed with lifting ring and other Accessories. It can be used as one leg choker chain sling when the hook is inside the link, but the working load will be reduced 20%. The ratio between usage load and breaking load is 1:2. The four legs lifting chain sling is made of metal link, according to its shape, they are divided into two kinds: welding and assembly. The material is superior alloy steel. The outstanding character is wear-resisting, high temperature resistant, low ductility, will not extend when stressed, long service life, easy to bend, be suitable for large occasions where frequently use. With the character flexible and many links, a variety of combination form can improve work efficiency, reduce cost, etc.

Application:

It is widely used in steel factories, steel pipe factories and petrol pipe installing companies and other enterprises.

Check hooks before using:

1. The WLL should be clearly marked.

2. The safety catch should be in place and functioning correctly.

3. The hook should be checked for any distortion, cracking and excessive wear or corrosion.The wear on the bearing surface of the hook should not exceed 8% of the nominal dimension.

4. Check that the opening of the hook is within the manufacturers parameters. If the hook is opened excessively it is a sign that it has been point loaded or overloaded.

5. Moving parts such as release cams should be checked for free movement.

6. If the hook is a ball bearing swivel hook check that the hook is swivelling freely and that the bearing is not making any unusual noises. Unusual noises are often a sign of bearing fatigue or bearing failure.

7. If the hook has a threaded machined shank ensure that the thread is in good order and that the nut is turning freely on the thread

Usage of chain:

1.Must be used in the range of its rated loading;

2.Chain in a distorted, reversed and entangled state are not permitted to use;

3.Objects must hang on the central of the hook, the edge of the hook shall not be hung in. The heavy objects should not be hung in hook for a long time;

4.If one of the following things appears, chain slings should be stopped using immediately:

A. Diameter damaged 10% of the original;

B. Chain appears cracks, bending, distorting or surface damage ( phenomenon );

C. Chain’s permanent elongation exceed 5% of the original length.

According to the provisions of the safe operation, in addition to routine inspection, there must be a professional personal check every certain period of time. Test results should be recorded. Depending on the specific use of rigging, inspection interval can be adjusted. The following situations can lead to increased rope, such as frequent use, increased wear, high temperature impact, corrosion and other factors damage. Users should regularly check the ropes of visual damage, including hidden in stains under injury that could threaten the safe use of rigging.

Attention:

When lifting heavy objects, it will harm to the users when they are underneath and near the objects. It is our obligation to inform the users of this risk, especially when the rated load is greater than the hanging rigging. For the sake of safty, the users had better have perfect training measures.
