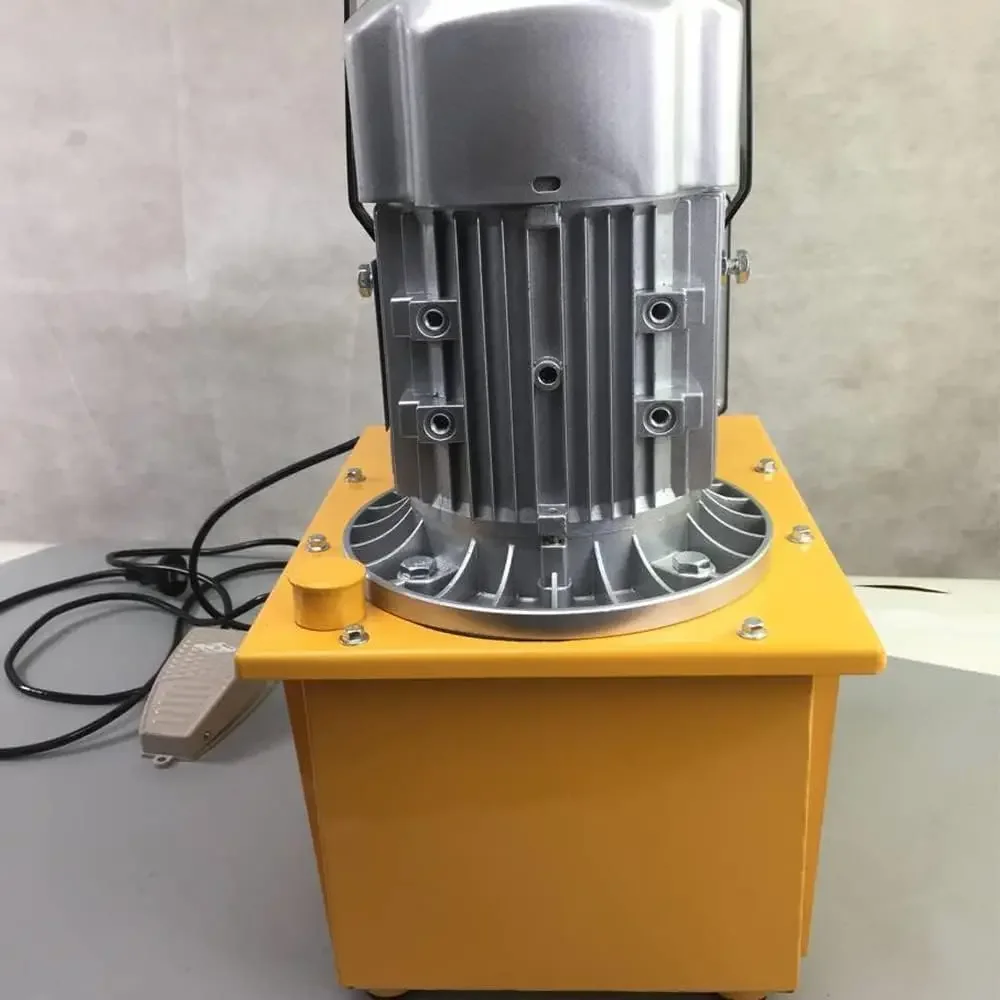

BYMAOCAR Hydraulic Unit, 20 V 700 Bar 7L Electric Hydraulic Pump, 750 W Hydraulic Pump + Pedal Valve Hydraulic Pum

Application:

1. The pump can be used for a variety of hydraulic devices.
2. If the pump is equipped with other hydraulic tools, you can perform various tasks, e.g. B. Lifting, pressing, bending, straightening, cutting, assembly and disassembly. Reduce manual work and maximise work efficiency.
3. Punching Machine, Bending Machine, Jack Split Hydraulic Products
4. Working mode: pedal solenoid valve control
Specifications:
Input voltage: AC 220 V 50 Hz.
Flow rate: 0.6 L/min (~ 7 Mpa) - 5 L/min (~ 7 Mpa).
Working pressure: 290 psi - 10152 psi {2 Mpa - 70 Mpa (700 bar)}
Oil capacity: 7 litres.
Motor power: 750 W.
Motor speed: 1400 rpm.
Machine size: 360 x 280 x 440 mm (14.2 x 11 x 17.3 inches).
N.w. : 28 kg.
Instruction manual:
1. Connect the oil line to the electric pump.
2. Fill fine hydraulic oil under 32 into the oil tank.
3. Plug in the cable and turn it on.
4. Press the pedal start button and the motor works.
5. After work, press the pedal reset button to reset, and the motor does not work.
6. The red light of the solenoid valve lights up and the process is complete.
Box contents:
1 x electrically powered hydraulic pump.

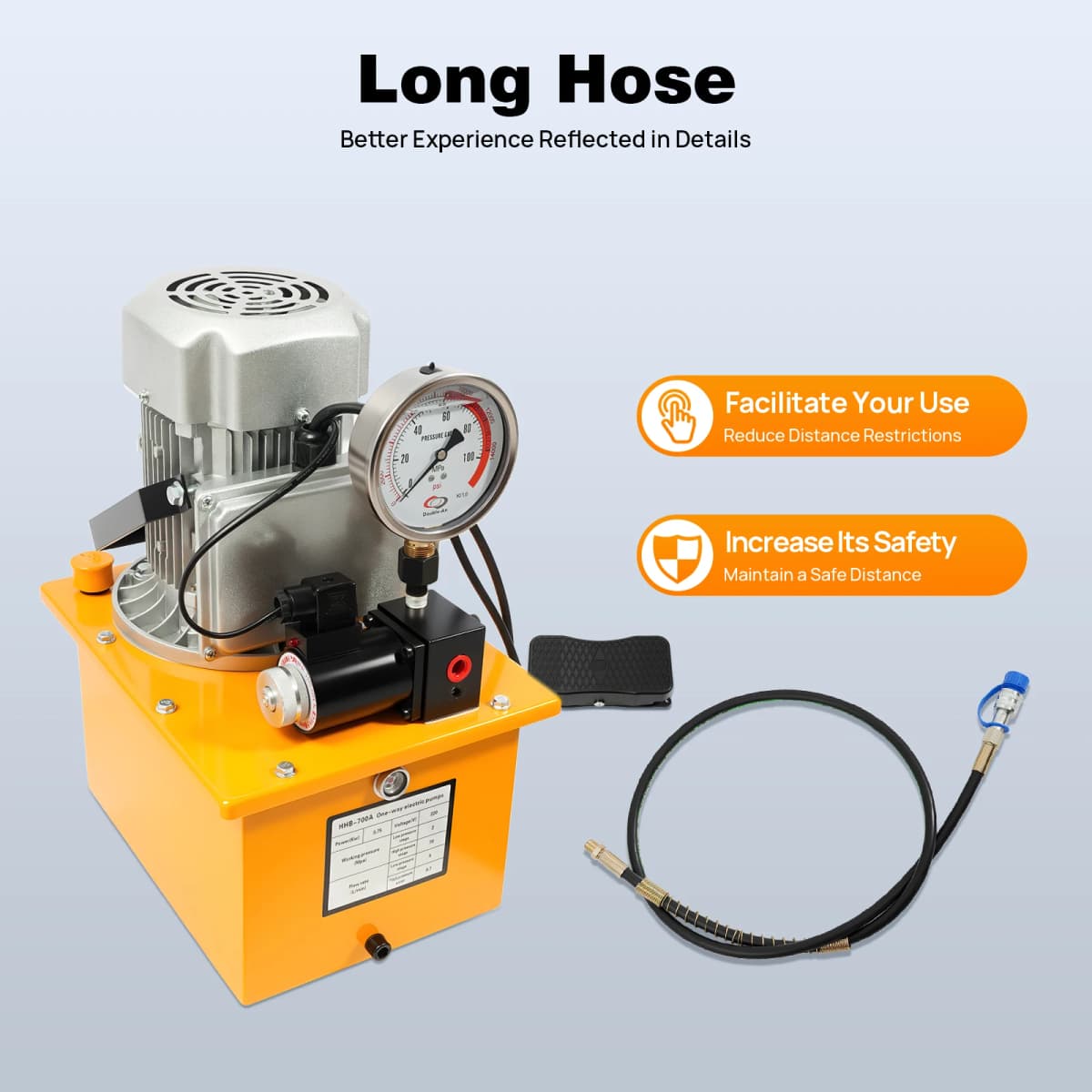

1 x oil hose (1.8 m).
1 x quick coupling
