SCULPFUN Laser Rotary Roller Laser Engraver Y-axis Rotary Roller 360° Rotating for 6-150mm Different Engraving Diameter for Las

Descriptions for TYPE2 and TYPE3 are at the bottom; please scroll down the page.

Features:

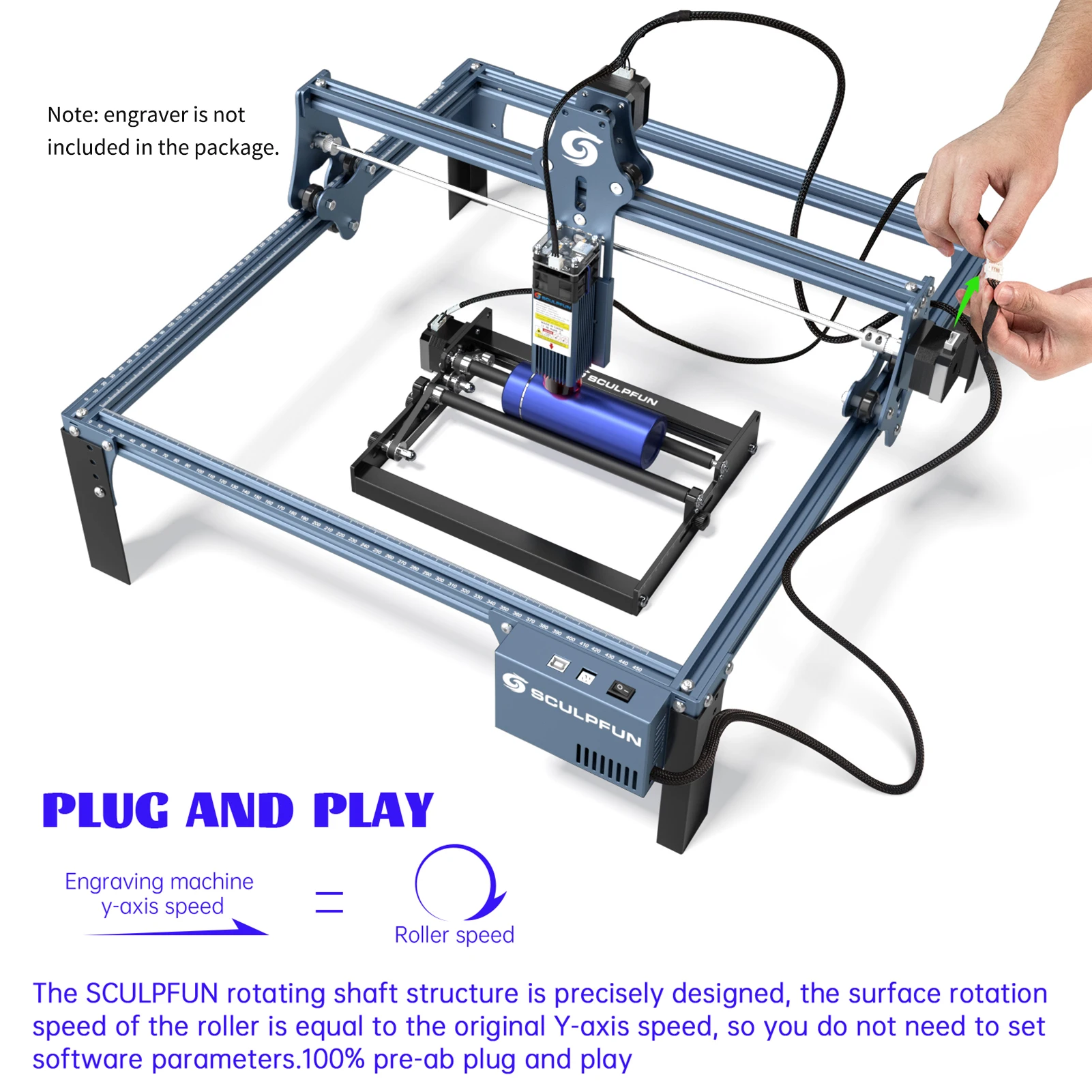

Pre-assembled for Plug&Play:The machine is 100% installed in the package, equipped with an adapter cable, and only needs to be connected to the Y-axis  wiring of the laser engraving machine to engrave Cylindrical objects, such as pens, water bottle, etc.

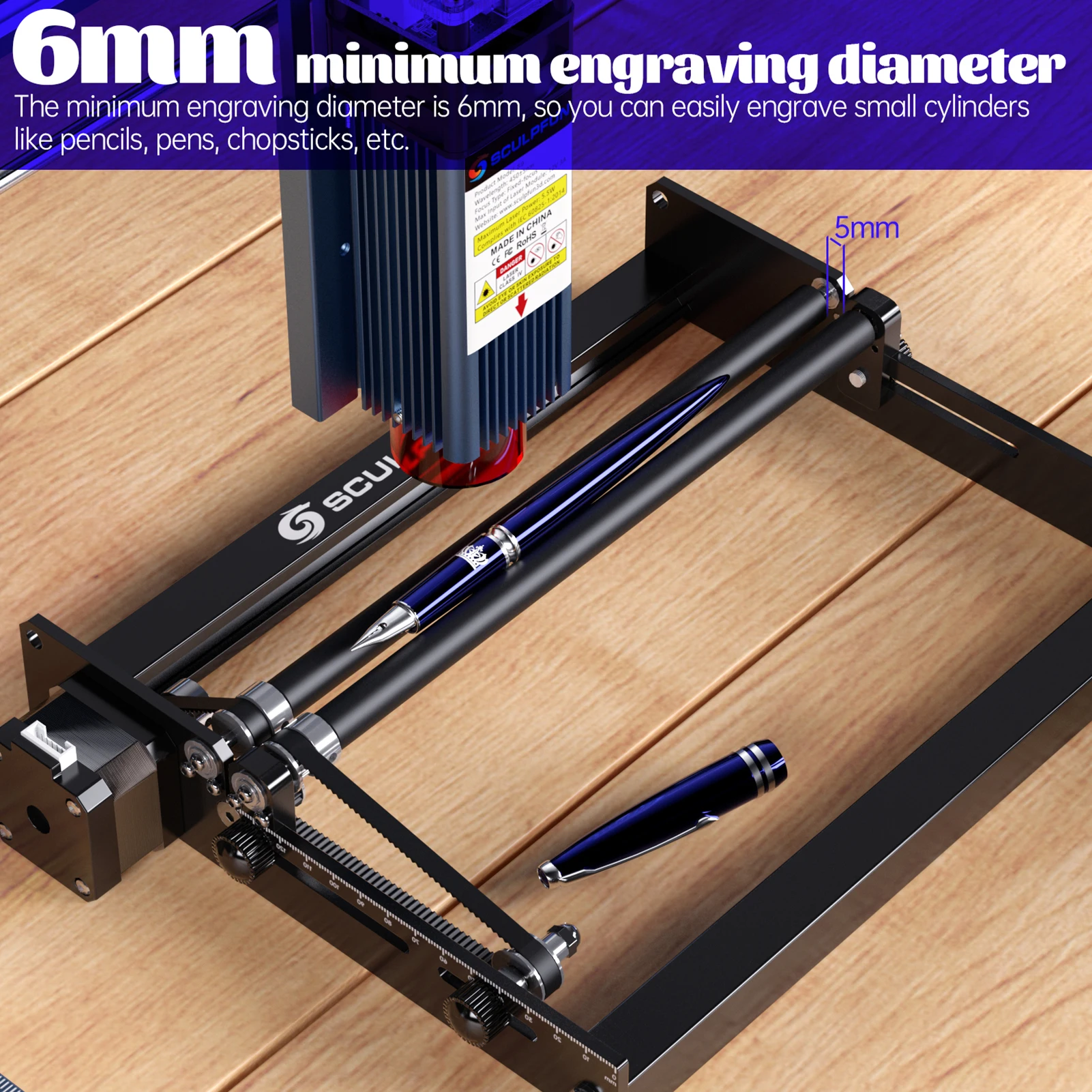

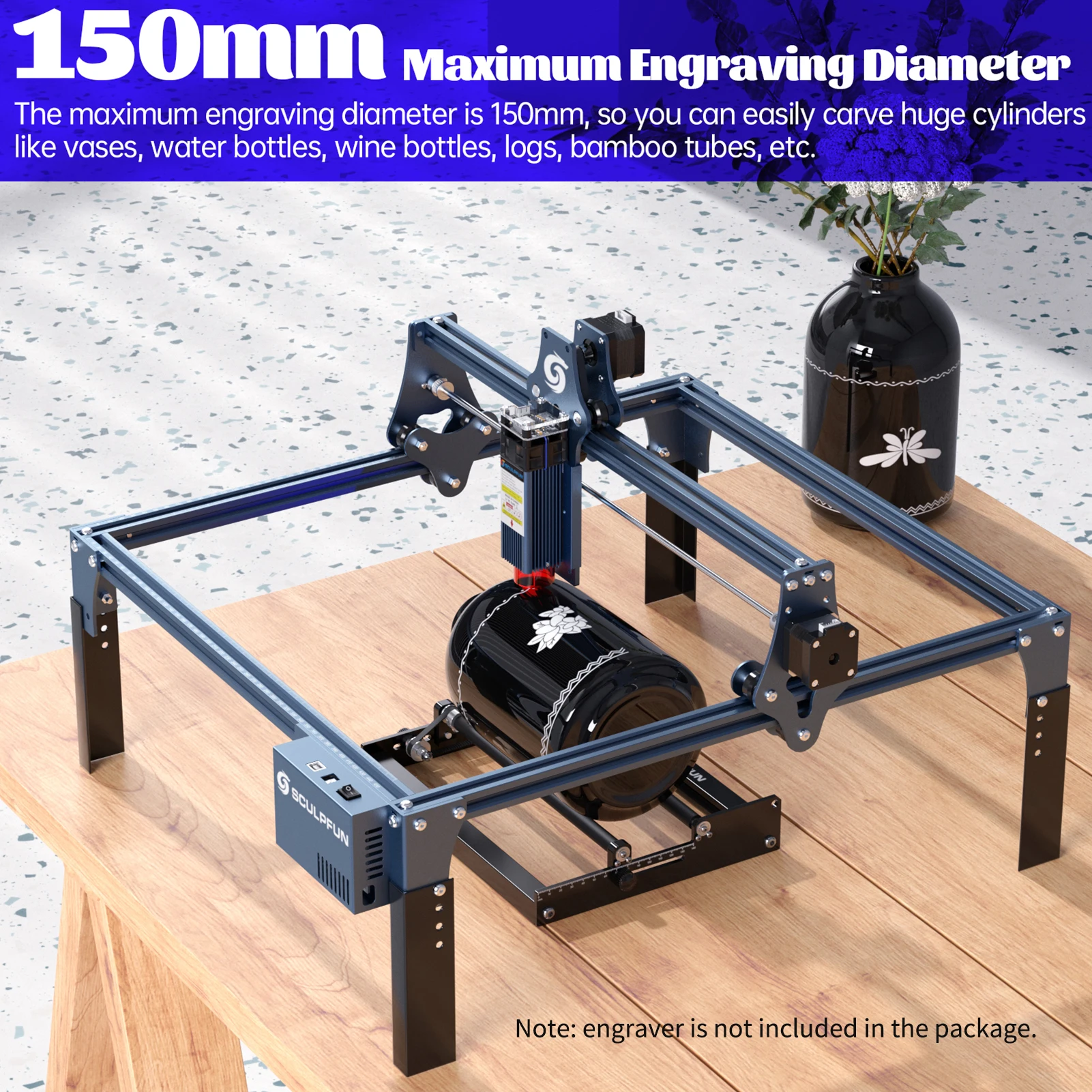

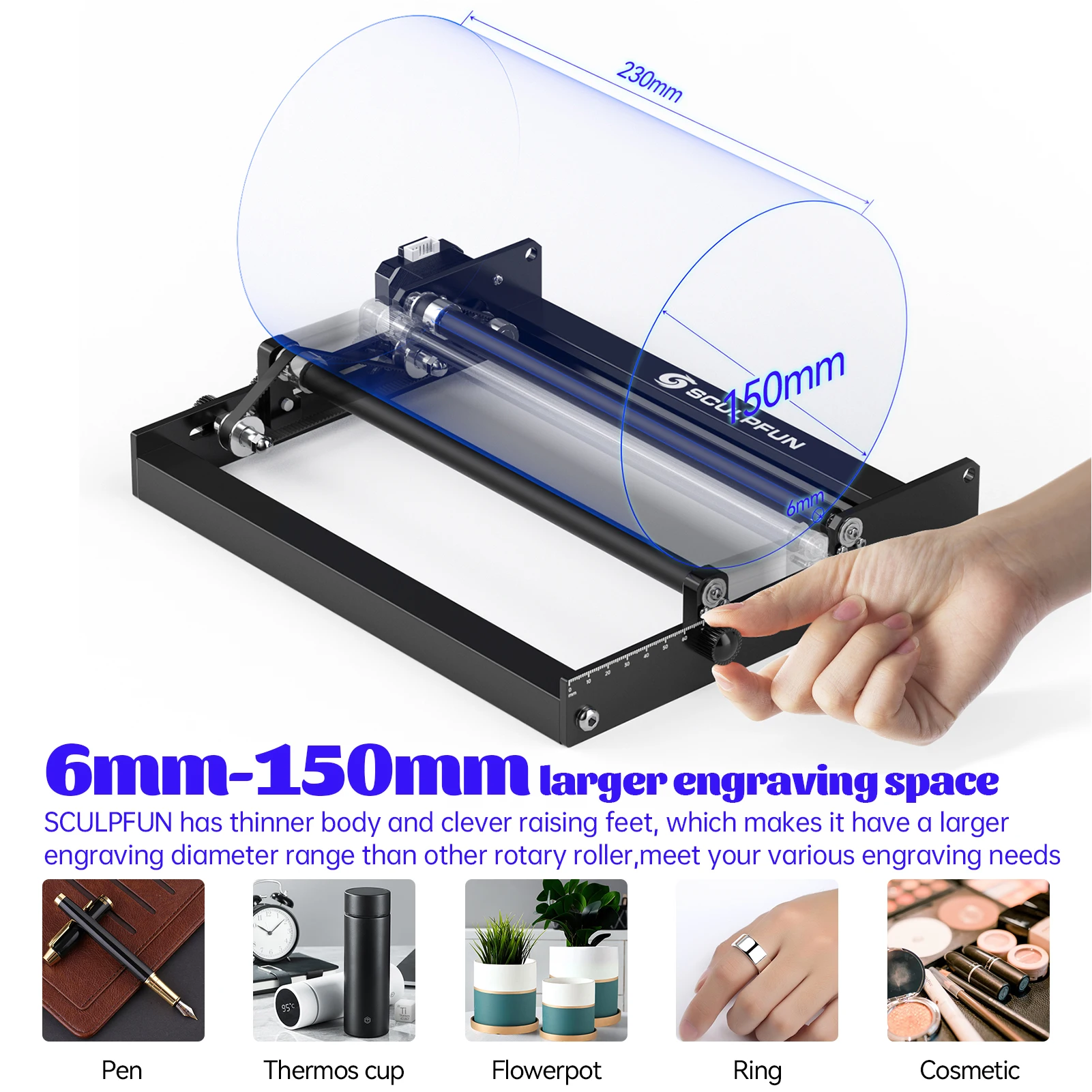

Large Engraving Space & 4 Raising Feet:SCULPFUN roller base design is lower and stable, and equipped with 4 sturdy metal raising feet, so that it has a larger engraving diameter of 6-150mm, which can meet more engravings need. Metal feet are more solid than plastic feet, and the machine is more stable when engraving.

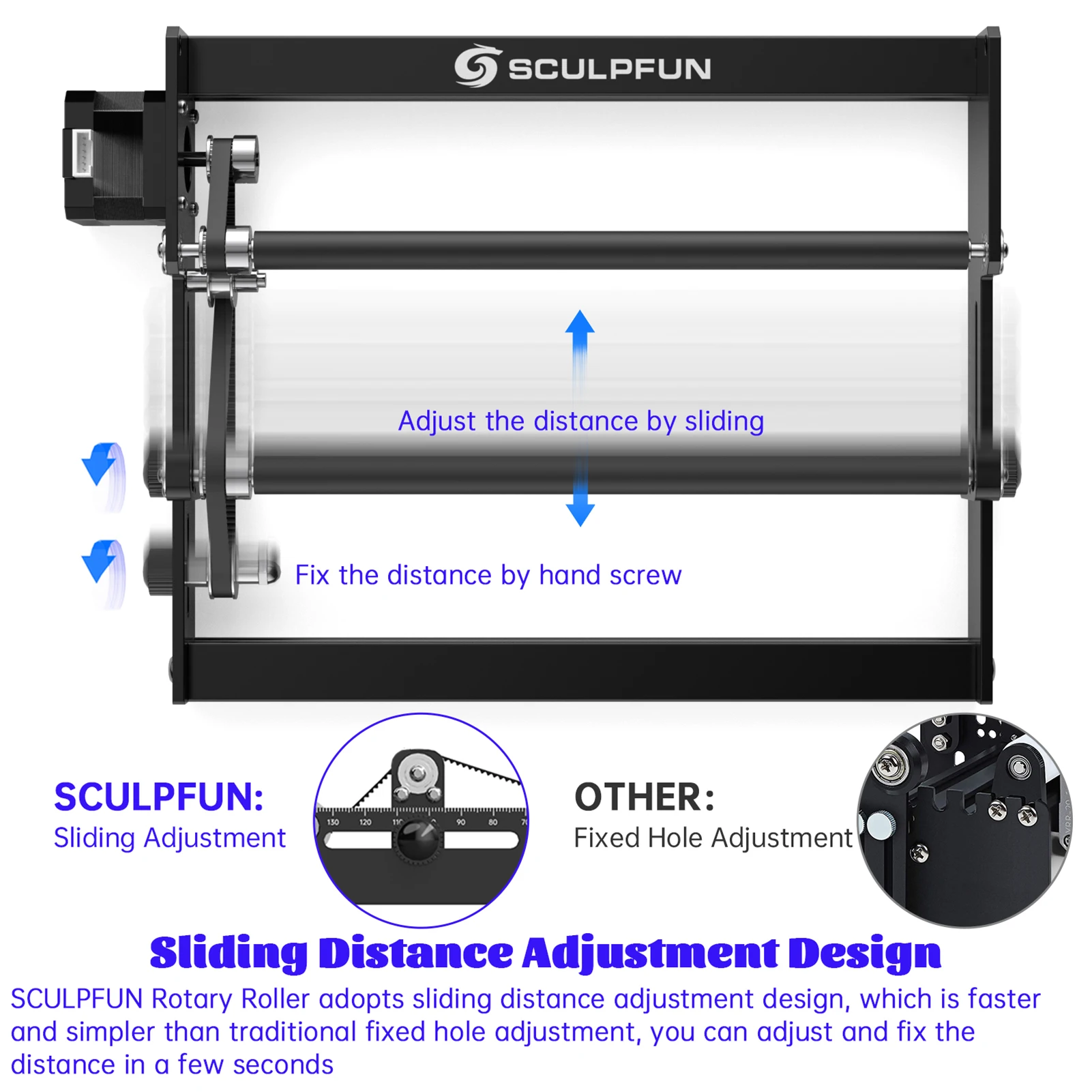

Sliding Space Adjustment:Adjusts the size of the space between the 2 rubber rollers by sliding, and fixes the roller by hand screw, which is simpler and faster than the traditional multi-stage fixing hole adjustment.

100% Scale High-precision Engraving:Our roller adopts high friction 70A rubber shaft to prevent slipping, and the linear speed of the rotating surface has been precisely calculated. Directly plug in the engraving machine cable to engrave the image in 100% scale. Does not enlarge or reduce the image.

Wide Compatibility:The roller is suitable for multiple engraving software such as lightburn or laserGRBL, and it can be used directly, no need to set parameters in software. In addition, it can be applied to 95% of the engraving machines on the market such as SCULPFUN, NEJE, Ortur, ATOMSTACK, etc.

Specification:

Model: SCULPFUN Rotary Roller

Product Size: 27x22x5cm

Packaging Size: 34*25*9cm/13.3*9.8*3.5in

Packaging Weight: 1.5KG/52.9oz

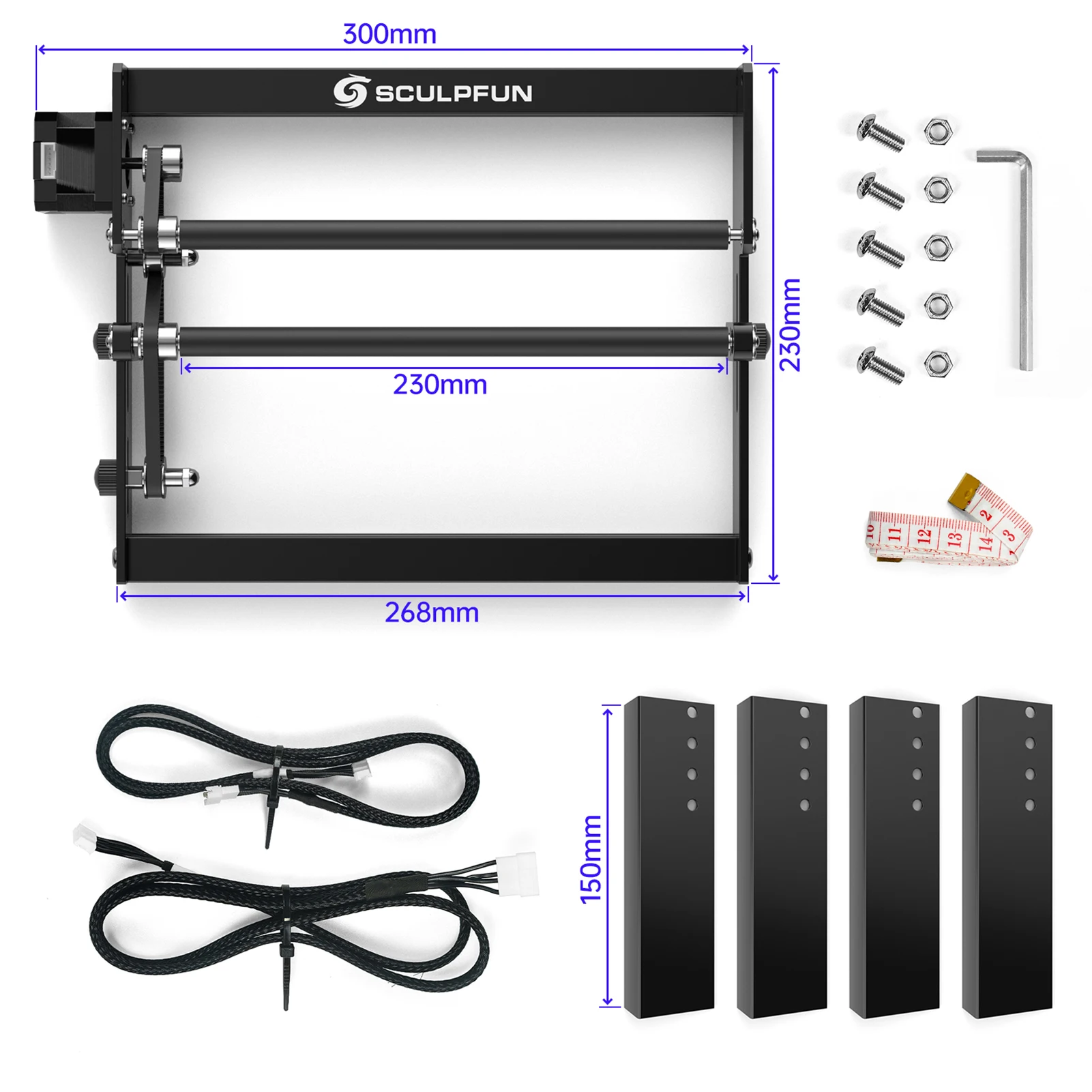

Packing List:

1× Roller Device

1× A Type Wiring

1× B Type Wiring

4× Raise Feet

1× Screw Bag

1× Soft Ruler

1× User Manual

TYPE2

Features:

Multifunctional Adjustable Jaws - Comes with 3 types of jaw. Clamp for the outside is suitable for cylindrical objects with a diameter of 1-110mm, such as: cans, thermos pots. Prop up for the inner side is suitable for cylindrical objects with diameter 25-75mm, such as: red wine cups. Hex stud is suitable for spheres with a diameter of 10-130mm or rings, bracelets and other circular objects with a diameter of 15-100mm.

No Assembly Required - It's ready to use right out of the box, a quick start by simply connecting it to your machine.

One-handed Clamping of Engraved Items - The set screws help stabilize the rotary chuck, making it easy to clamp engravings with one hand without requiring multiple operators.

Adjustable Rotary Chuck - The rotary chuck enables 360° of rotating engraving. It can be adjusted to fit large, tiny objects with the hex stud and jaws.

Wide Compatibility - Creality Rotary Kit Pro is suitable for 95% of the laser engravers on the market, including Creality, XTOOL, ORTUR, Sculpfun, Genmitsu, LONGER, ATOMSTACK, Twotrees, ATEZR, etc.

Specification:

For: Creality laser engravers and cutters, and other machine

Clamp from the outside: Suitable for cylindrical objects with a diameter of 1-110mm, such as: cans, thermos pots.

Prop up from the inner side: Suitable for cylindrical objects with diameter 25-75mm, such as: red wine cups.

​Hex Stud: Suitable for spheres with a diameter of 10-130mm or rings, bracelets and other circular objects with a diameter of 15-100mm.
​
Package Size: 390x130x135mm/15.3x5.1x5.3in
​Package Weight: 2.5kg/5.5lb
​
​Packing List:
​1 x Creality Rotary Kit Pro Kit

TYPE3

Features:
​▶ Portable Laser Machine: DJ6 laser machine weight only 1.036kg, much lighter than other engraver, easy to carry to Office, home and studio etc.
​▶ Compact But Powerful: Equipped with 3000mW laser head module, 0.05mm laser precision. DJ6 has faster and stronger engraving efficiency.
​▶ Various Material to Crave: The laser engraving machine can sculpture your desired picture&logo on various materials. It is able to engrave on papers, Kraft papers, woods, ceramics, leathers, bamboos, etc.
​▶ Easy to Connect: Compatible with Win7/Win8/Win10/ WIN11/MAC/IOS/Android system. And support multiple format such as JPG, SVG, PNG, DWG, BMP.
​▶ Print Anytime Anywhere: Free to connect with mobile device to edit on the APP and print, no need of computer, easily to DIY with this coolest small marking machine.
​
​Specification:
​Model: DJ6
​Product Size: 16.5x16.6x16.5cm/6.5x6.5x6.5in
​Product Weight: 1.036kg
​Material: ABS+Aluminum Alloy
​Control Method: PWM
​Carving Speed: 100mm/s
​Support system: Win7/Win8/Win10/ WIN11/MAC/IOS/Android
​Applicable materials: Paper/wood/stone/leather/Fabric
​Interface Specifications: Power Port: DC05, Data Port: USB type B
​Wavelength: 450nm
​Engraving area: 80x80mm
​Input power: 24W
​Laser head power: 3W
​Image format: JPEG/BMP/TIF/GIF
​Resolution: 0.05mm
​Machine Power supply: Voltage 12V 9A
​Best Focus Range: 30~50mm
​Maximum Focus: 100mm
​Application software: Computer operating engraving software
​Package Weight: 1943g/4.2lb
​Package Size: 25x25x20cm/9.8x9.8x7.8in
​
​Note:
​1. Please download the APP by scanning the QR code in the user manual or search "Engraver" in APP Store(iOS) or Play(Android)
​2. You can download the driver via https://drive..com/file/d/1lrJ8ls0rppjDldI9mOKns81G7g8rUFAn/view?usp=sharing
​
​Packing List:
​1 x DJ6 Engraver Kit
​4 x Raised Columns
​1 x Goggles
