BSIDE 10MHz Bandwidth Handheld Oscilloscope 3.2 Inch Color Screen Real-Time Waveform Display Home Repair For School Labs

BSIDE 10MHz Bandwidth Handheld Oscilloscope 3.2 Inch Color Screen Real-Time Waveform Display Home Repair For School Labs

BSIDE OT3 is a portable electronic measuring instrument, which is mainly used for real-time observation and analysis of electrical signal characteristics such as voltage waveform, signal frequency, amplitude and so on in circuits. It integrates the core functions of a traditional benchtop oscilloscope into a compact handheld device with a 3.2-inch LCD display, operating buttons, or rotary knobs, suitable for field commissioning, outdoor work, mobile inspection, and other scenarios.

Waveform display: Captures and displays time-dependent waveforms (e.g., sine waves, square waves, etc.) of voltage changes in real time.
Parameter measurement: Automatically measure key signal parameters such as frequency, period, average value, duty cycle, etc.
Data storage and analysis: Waveform storage and basic analysis functions are supported
Interface Expansion: Support USB interface for easy data transfer.

Wide applicability to scenarios and covers the needs of multiple fields

Electronics Engineer: Debug circuit boards, check signal integrity, and troubleshoot circuit faults on site.
Appliance maintenance: detect the control signals of air conditioners, refrigerators and other electrical appliances, and locate the damage points of components.
Education and research: student experiments and classroom demonstrations to help understand signal principles (e.g., analog circuits, digital circuit teaching).

Specification:

Screen size: 3.2 inches

Bandwidth: 10MHz

Real-time scan rate: 48MSa/s

Input impedance: 1MΩ

Maximum input voltage: ×1 range±40V, ×10 range±400V (DC+AC peak)

Horizontal seconds range: 100ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

Trigger mode: automatic/normal/one-time

Coupling mode: AC/DC

USB charging: 5V/1A

Power supply: 1200mA

Size: 13x6.3x2.3cm.

Weight: 143g.

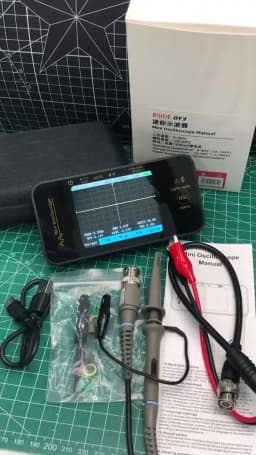

Package includes:

1* OT3 oscilloscope.

1* Crocodile Clip Probe.

1* Oscilloscope Probe(Optional).

1* Quality EVA bag.

1* Charging cable.

1* Certificate of Conformity (12 months).

1* User Manual.

1* Color box.
