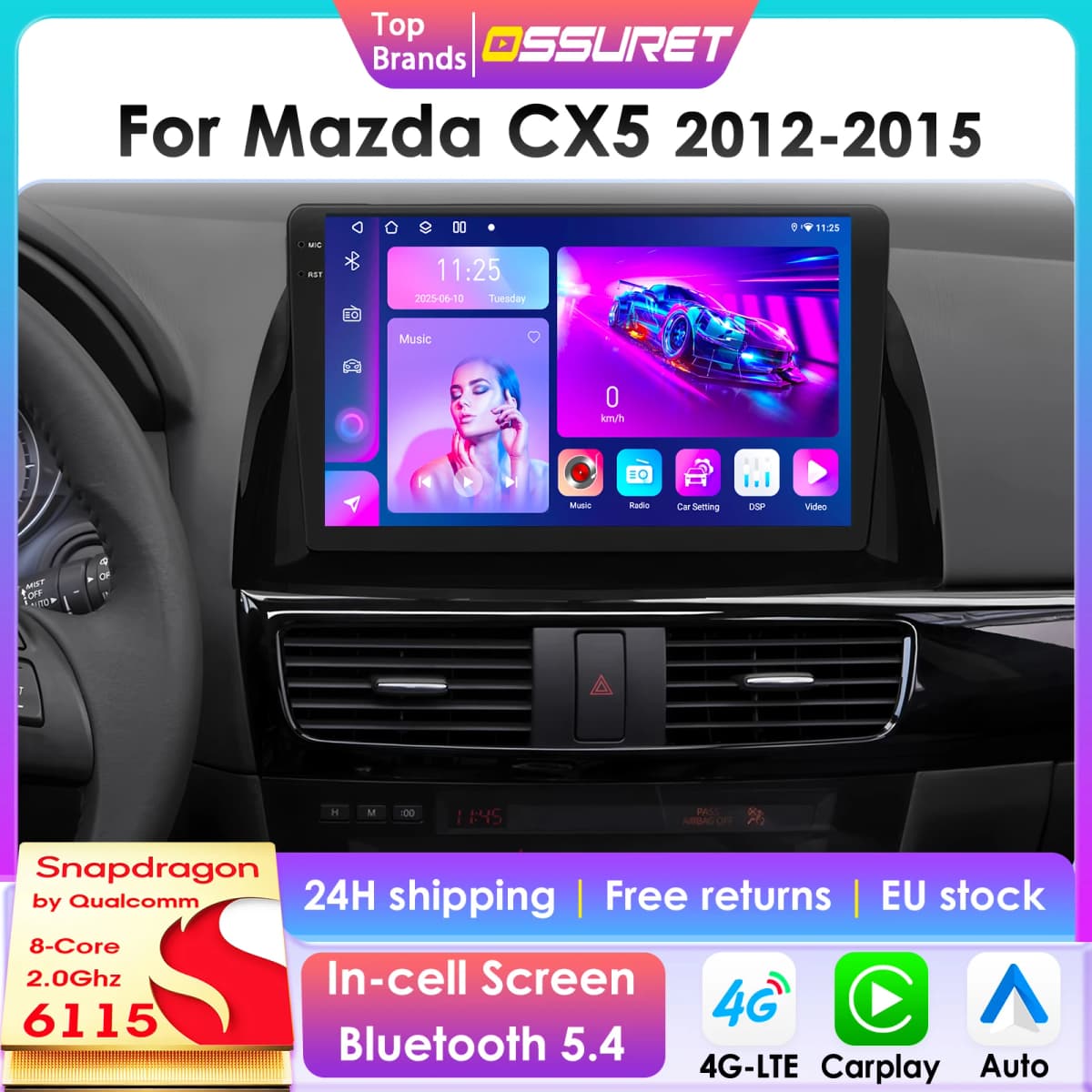

360Camera 2Din Android 13 Car Radio For Mazda CX5 CX-5 CX 5 2012-2015 Car Multimedia GPS 4G Carplay Intelligent Screen autoradio

Applicable Models & Years

For Mazda CX 5 CX5 CX-5 2012 2013 2014 2015

Note: Compatible list just for your reference ,please confirm shape & size of certer console before bidding.

>Impotant Notice as follows:

① All products have been passed strict quality test before shipment, make sure high quality;

② Please write your full name and correct address with zip code when you order.

③ Please check your original car radio size and appearance & its compatible list with the Notice details before make a order bid to avoid mistake; if needs other adapter for installed which needs to order separately except the description accessories picture shows.

④ our item not includes installation instructions except the rear camera instruction file, but you can contact us on order chat if needs helps for installation;

⑤ Professional installation is necessary,the car maintenance store is the best choice for you;

Basic functions: Android 13/14 + 10.1inch Display Screen +8Core Snapdragon 6115 2.0GHZ(4 Core 1.2GHZ )+ DDR3 1GB Flash (2GB/3GB/4GB/6GB/8GB optional) + 16 GB Memory (32GB/64GB/128GB optional) + WIFI (4G Network optional)+ Mirror link+ Steering Wheel Control + RDS+DSP(optional)

----->Special functions:

1) Plug and Play: Radio' power cable is pin to pin, easy to install;

2) Builtin Carplay/ Android Auto: P2-CP/P3-CP/W1/QS1/QS4/QS6/QS8 version supporting, just use your phone cable connect it, stable and easy to use;

----->Optional accessories:

1) AI Voice Control: just say the command word control the radio without hands, make drive more safe;

2) ADAS DVR Camera, Tire Pressure Monitoring, OBD2, External Microphone, RCA cable;

3) If the Car Original Wire connectors is special(not the same as our accessories Pin) which needs to order separately adapter for install.

This list shows the QS series Model ,The other item picture not show on this description list ,but you can check the details on follow first picture shwos its functions ,Please choose the model you need before bidding

High quality and pure sound

A continuously evolving car multimedia player.This time,sound and picture quality take precedence.

Car Model: This unit will fit the following car model

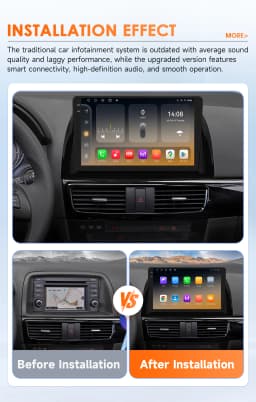

Before installation VS After installation

Why choose US?

1.Android 14:Google GMS Certification and past CTS

2.Snapdragon 6115:Qualcomm Snapdragon 6115 CPU Octa Core*2.0Ghz ,11nm process,Incell screen

3.Premium sound quality:①3*NE5532 for audio op amp. ②TDA7851 amplifier up to 4*50W output. ③Support DSD and other lossless format decoding, 5.1 RCA out, up to 5V RMS without distortion.

4.Radio IC: High-precision NXP TEF6686 Radio IC.

5.Bluetooth 5.4：New generation of Bluetooth 5.4, with more than 8 times higher performance.

6.Voice assistant: Voice-activated high-precision recognition,supports multiple languages.

7.Smart-linked: Wireless Apple Carplay and Wired/Wireless Android auto.

8.CloudSIM Pre-installed: Get 10GB of free data in the first month!

9.WIFI 6: Support 2.4G WiFi and 5.0G WiFi.

10.Easy to install 360 panoramic camera

 Snapdragon 6115 By Qualcomm

Super performance release, easy to deal with daily needs. 11nm FinFET process.CPU Core Architecture: lt adopts the Kryo 260 CPU, which is composed of 4 large A73 cores and 4 small A53 cores.

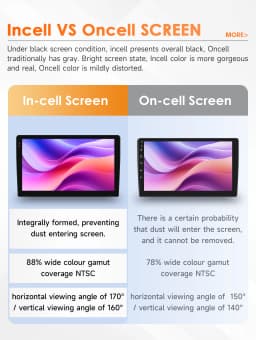

 lncell VS Oncell Srceen Under black screen condition, incell presents overall black,Oncell traditionally has gray. Bright screen state, Incell color is more gorgeous and real, Oncell color is mildly distorted.

 Powerful Audio Chips

We have hired professional sound engineers to optimise and adjust the audio parameters of our products, ensuring that the audio performance is no less impressive than most original car audio systems.

 DSP AKM AK7738

Please note: Our QS6-QS8 series are using this DSP chip, refer to the configuration table for other configurations.

 32 BAND EQ

32 Band EQ,Support multiple storage and import of custom EQ settings.From the bass of 20HZ to the treble range of 20KHZ, there are a total of 32 adjustment levers, which means that more detailed parameter adjustments can be made to the sound.

5.1 Channel Settings

 HPF LPF Settings

lt supports the functions of HPF and LPF, allowing you to set the sound signal filtering for each channel,making the sound output of your car horn purer and smoother and reducing the noise.

 Dynamic Digital Bass

lt supports the Dynamic Digital Bass function,allowing for the enhancement of the bass part in the audio. Digital signal processing technology is used to dynamically adjust and optimize the bass. It can automatically boost or regulate the intensity and expressiveness of the bass according to the content of the audio signal and the volume level,making the bass fuller and more powerful, while maintaining the clarity and balance of the sound.

 Horn Delay Settings

Our product allows you to control when the car's four speakers emit sound,creating a surround sound experience that makes you feel like you're in a concert hall.This advanced audio feature provides a more immersive listening experience.

 Amplifier IC

We use the TDA7851 power amplifier chip, which enables the maximum output power of our product to reach 4*50W, with the total harmonic distortion (THD) as low as 0.01% and the typical signal-to-noise ratioreaching 98dB.Our player support DSD and other lossless format decoding,All of these allow you to have an ultimate HiFi auditory experience in the car.

 Optical/Coaxial

Please note: Our QS6-QS8 series are equipped with fiber optic and coaxial capabilities,see configuration table for additional configurations.

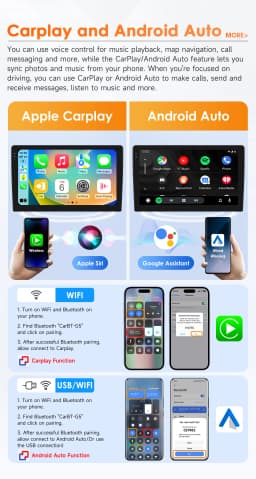

 Carplay and Android Auto

You can use voice control for music playback,map navigation, call messaging and more, while the CarPlay/Android Auto feature lets you sync photos and music from your phone. When you're focused on driving,you can use CarPlay or Android Auto to make calls, send and receive messages, listen to music and more.

Professinal Radio Chip

This time, we have chosen the NXP TEF6686 radio chip. This radio chipis widely used in front-mounted car radios,providing users with a stable and clear radio listening experience.

Please note: Our QS6-QS8 series are using this TEF6686 chip, refer to the configuration table for other configurations.

Radio Signal

After being debugged by our professional engineers, the noise-limited sensitivity (-30dB) value of our player has reached -5dBμV, It enables you to stably receive broadcast signals in various complex electromagnetic environments, and you can obtain clear radio reception even in places with weak signals.

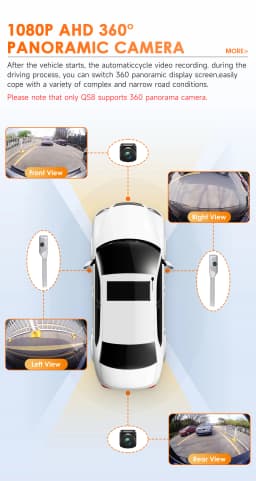

1080P AHD 360° Panoramic Camera

After the vehicle starts, the automaticcycle video recording. during the driving process, you can switch 360 panoramic display screen,easily cope with a variety of complex and narrow road conditions.

Please note that only QS8 supports 360 panorama camera.

Loop Video Recording

Video recording in segments,no missing minutes and seconds, when the video is full automatically overwrite the first segment, do not have to worry about the lack of memory.

Please note that only QS8 supports 360 panorama camera.

Easy to install the 360-degree panoramic driving image

Our 360 panoramic camera has auto-calibration function, you can setthe parameters directly on the machine without calibration paper and other tools.The dual left and right cameras are more portable than traditional camera installations,and there is no need to drill holes or remove door panels during installation.

Please note that only QS8 supports 360 panorama camera.

Day and Night Model UI

Our products utilize a true day/night mode that switches between all main screens and sub-screens.This keeps our screens from being blinding at night and bright enough on sunny days.

Multiple Theme UI

A variety of different styles of main inierface Ul to choose from.

Gesture touch function

After the switch is turned on,the following gesture functions will be supported.You can perform shortcut operations to return to the main menu, volume adjustment.

Al Voice Control Pro

Supports 9 voices,United States English，Arabic, German，Spanish,Mexican Spanish,French French,Italian Italian,Brazilian Portuguese,Portuguese Portuguese.

Note: This feature requires the purchase of an additional activation code.

Pro edidtion

With an internet connection,our voice version supports online music,online navigation，YouTube playback and more!

Online Radio

With an internet data connection，you can listen to online channels with no noise interferencecompared to traditional radio,allowing your journeyto enjoy the ultimate listening experience.

Note: This feature requires the purchase of an additional activation code.

Network connection

① Support 2.4G & 5G WifiWhen it comes to lnternet access,most Android car stereos offer only one option: WiFi hotspot,and only at 2.4 GHz, a frequency band that is congested due to its wide use(including by electronic appliances). Not so with ours, which is equipped with 5 GHz WiFi to ensure optimal internet connectivity at all times!

② Bluetooth tethering for saving power：For running weather widget or streaming music, a relatively low bandwidth, e.g. 200 kb/s, is enough. Switch to Bluetooth tethering,as it has the advantage of consuming less power than hotspot.

③ USB Network Tethering(An exclusivity feature)

4G SIM card network

Please enter the SIM card before turnon the device. include the 4G card slot,and the 4G antenna !

Note: QS1 does not support 4G functionality.

You can also choose our Cloud Card service,which eliminates the need to buy a separate SIM card and gives you 10GB of free traffic for the first month of use.

Bluetooth 5.4

Stable and efficient transmission power, lower power consumption of wireless audio,optimized decoding algorithms, so that the car music and cell phone calls more clearly.

GPS navigation

Our product support the Google Map,Herewego,lGO, Sygic, Yandex.lf you want to use the online map, you need to connect the player to internet via WiFi or 4G LTE.you can also download the map for your local in the map APK,so that you can use the offline map.

Supports 3 USB ports

You can use USB flash drive,DVR,DAB+，TPMS,at the same time,three of them.(maximum 2TB compatibility)

Steering Wheel Control

Compatible with most steering wheel controls.Easily switch songs,channels and adjust the volume, answer phone calls, providing you with a safe and more enjoyable journey.

 Coolong Fan

You can control the fan automatically or manually. In automatic mode,when the CPU temperature is above 50℃, the system will start the fan adjustment by itself,and when the temperature is below 50°, the system will turn off the fan automatically.

 Rear View System and 1080P

The reversing camera system that supports up to 1920*1080 pixel display eliminates some blind spots on the screen,allowing the driver to see hazards such as pets,playing children or mailboxes while backing up. You can adjust the reversing track up and down.

You can click on the image below to buy the rear camera

Clear Imaging

Adoption of high-efficiency sensors,the imaging effect is clear and transparent,details can be seen at a glance.

 ADAS DVR AHD 1080P

Support video loop recording,The camera will automatically overwritten the oldest videos when card is full except locked emergency videos.

You can click on the image below to buy the DVR

Remote Monitoring

1.Vehicle tracking:The track information feature allows you to view the vehicle's track at aspecific time on your phone2.Parking location:The Parking Locator feature allows you to view the location of your vehicle, making it easy to find your vehicle quickly.You can also set up an electronic fence for your vehicle,which sends an alert to your cell phone when your vehicle leaves the range of the electronic fence.

3.Al security:The security feature allows you to see what's going on in the vicinity of your vehicle.You can also take photos of the vehicle scene via the DVR when the unit is turned on.

Please note: This feature requires the purchase of a 1080P version of DVR and a host computer with 4G version.

Split Screen

You can according to personal preferences and practical needs,you can left navigation,right music, not only to meet the needs of driving navigation, but also take into account the entertainment and leisure experience, to provide a variety of applications for you to choose.

TPMS Function

Low tire pressure can easily lead to flat tires, poor tire grip and rear-endaccidents. Four-wheel air pressure imbalance will cause steering wheelshaking,poor driving experience and increased fuel consumption.

You can click on the image below to buy

DAB+BOX

Inputting digital radio programs and touch operation are supported.You can search and change programs using the touch screen of this radio,and this radio can also power a connected DAB+ BOX.

You can click on the image below to buy

OBD BOX

When your vehicle breaks down,the OBD interface can help you quickly locate the cause of your vehicle's malfunction.

You can click on the image below to buy

Product Size

Connector Pin Pictures

Before purchasing,please make sure the original interface is the same as the picture.

(Notice: if the connector pin to install with the car wires' cable is not the same as them which needs to contact the after-sale service to order special wire for installing)

Package List
