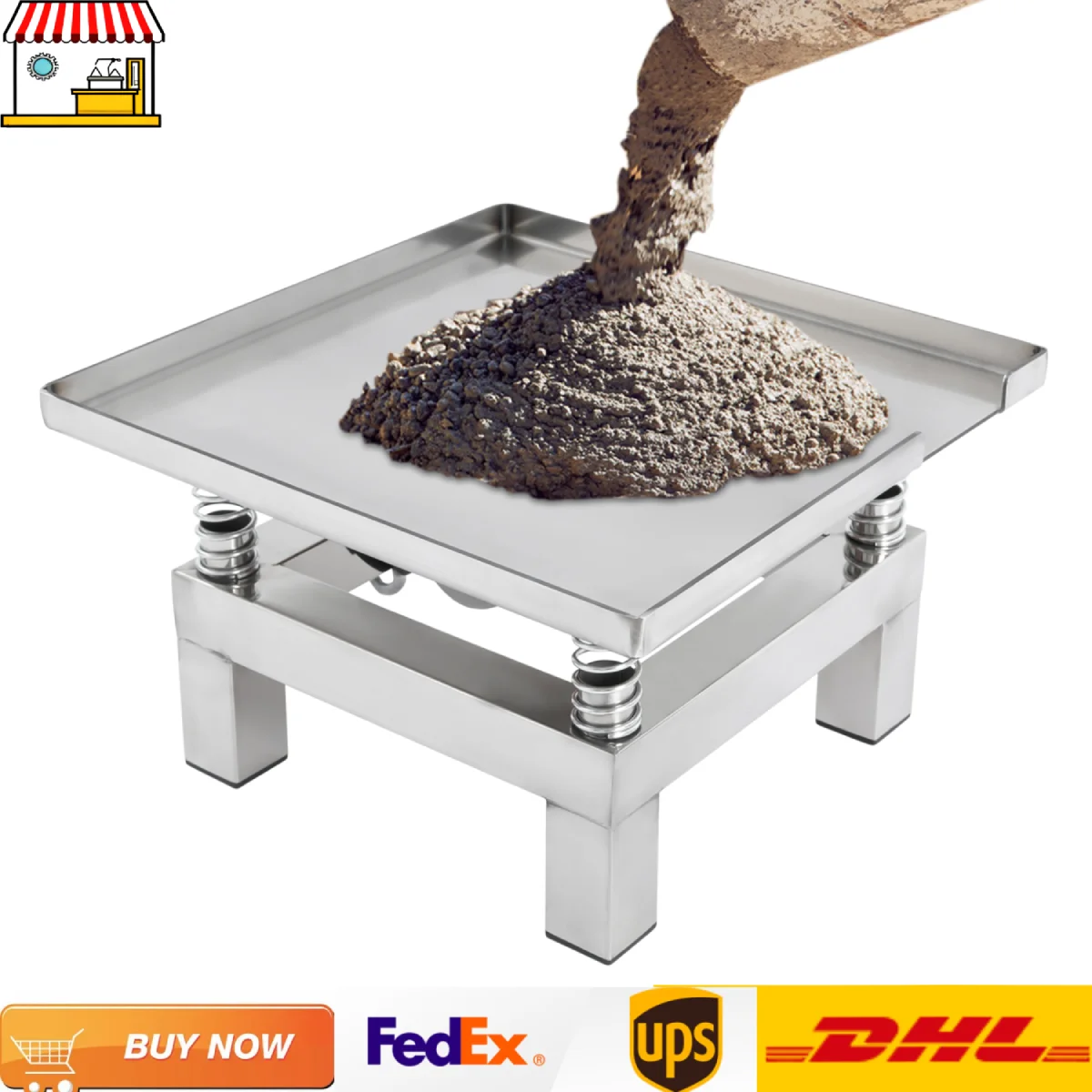

13.8*13.8in Electric Concrete Vibrating Platform Table| 10kg Load Vibration Test Bench

13.8*13.8in Electric Concrete Vibrating Platform Table| 10kg Load Vibration Test Bench

Application

It can be used for mold vibration molding, increasing the firmness of concrete, shaking the settling liquid, mold filling, durability test experiments and so on.

Specification

Material: Stainless Steel

Motor Type: All-copper Wire Motor

Color: Silver

Shape: Rectangular

Mount Type: Tabletop Mount, Countertop

Assembly Required: No

Number of Springs: 4

Power: 50W

Plug Type: EU/US Standard

Power Source: Corded

Input: 220V/110V

Maximum Load: About 10kg/22.05lbs

Vibration Frequency: 3000-3600 rpm

Amplitude: 1-2mm/0.04-0.08in

Baffle Height: 2.5cm/0.98in

Product Size: 35*35*22cm/13.78*13.78*8.66 in

Package Size: 38*38*25cm/14.96*14.96*9.84in

Net Weight: 6.5kg/14.33 lbs

Gross Weight: 8kg/17.64 lbs

Key Features

Durable and Sturdy: The main structure is made of high-quality stainless steel, which is not easy to rust, corrosion, and deformation, to ensure stability and durability under long-term use.

Large Capacity: The sturdy structure and four load-bearing springs allow it to hold more concrete at one time (about 22.05 lbs), which effectively reduces your working time and the number of operations.

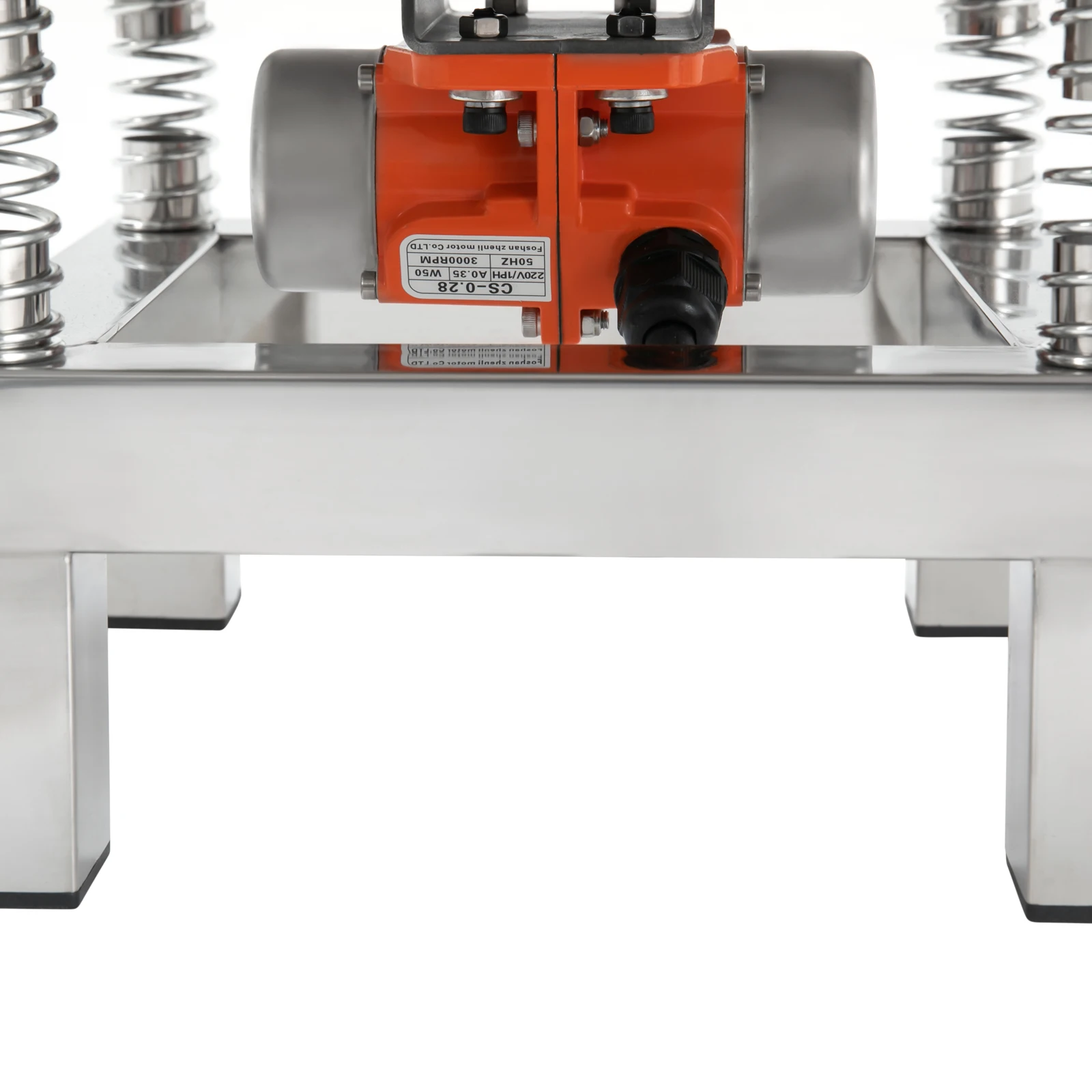

High-efficiency Vibration: Driven by a high-performance all-copper-wire motor, it can provide stable and powerful vibration (3000-3600rpm), accelerating the concrete compacting process, reducing air bubbles, and improving the quality of products.

Easy to Clean: The platform surface is smooth and seamless, which is easy to clean quickly to avoid concrete residue and keep the working environment neat and hygienic.

Easy to Operate: The product has a simple structure and does not require complex operating procedures, so even newcomers can get started quickly.

Ease of Movement: Compact size (13.78*13.78*8.66in) makes it easy to move around the lab or construction site, providing high flexibility of use.

Ready to Use: The integrated design makes it easy for you to plug it in and use it as soon as you get it, so you don't have to do any additional installation.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Description

With its compact dimensions, high performance, and reliability, this concrete vibrating table is highly sought after in the field of construction materials testing and is particularly suitable for making concrete test blocks where accuracy is required, such as strength test specimens. Its precise vibration frequency and even distribution of vibration forces ensure that air bubbles are effectively removed from the concrete mixture, thus improving the density and strength of the finished product.

Package Included

1* Concrete Vibrating Table

Details

Raised Baffle: 0.98in baffle prevents spills and leaks during concrete vibration.

High-quality Springs: They help to remove air bubbles inside the concrete faster and improve the compactness and uniformity of the concrete.

Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and better care for your skin when installing and cleaning it.

Notes

1.Please check the style and size before purchasing.

2.Please do not put it on tiles or slippery floors. To ensure better use, you can prepare silicone pads(not included) under it or put it on a tabletop with better friction.

3.It's normal to work hot, please do not put it to work in a very hot place.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
