0-120V 0-3A 360W Adjustable DC Laboratory Power Supply AC Transformer Power Supply Laboratory Power Supply DC power supply

The series of switching power supplies for measuring instrument have ruled out the inconvenience of big volume and heavyweight of a traditional power supply possess.

Specifications：

Model: NPS1203W

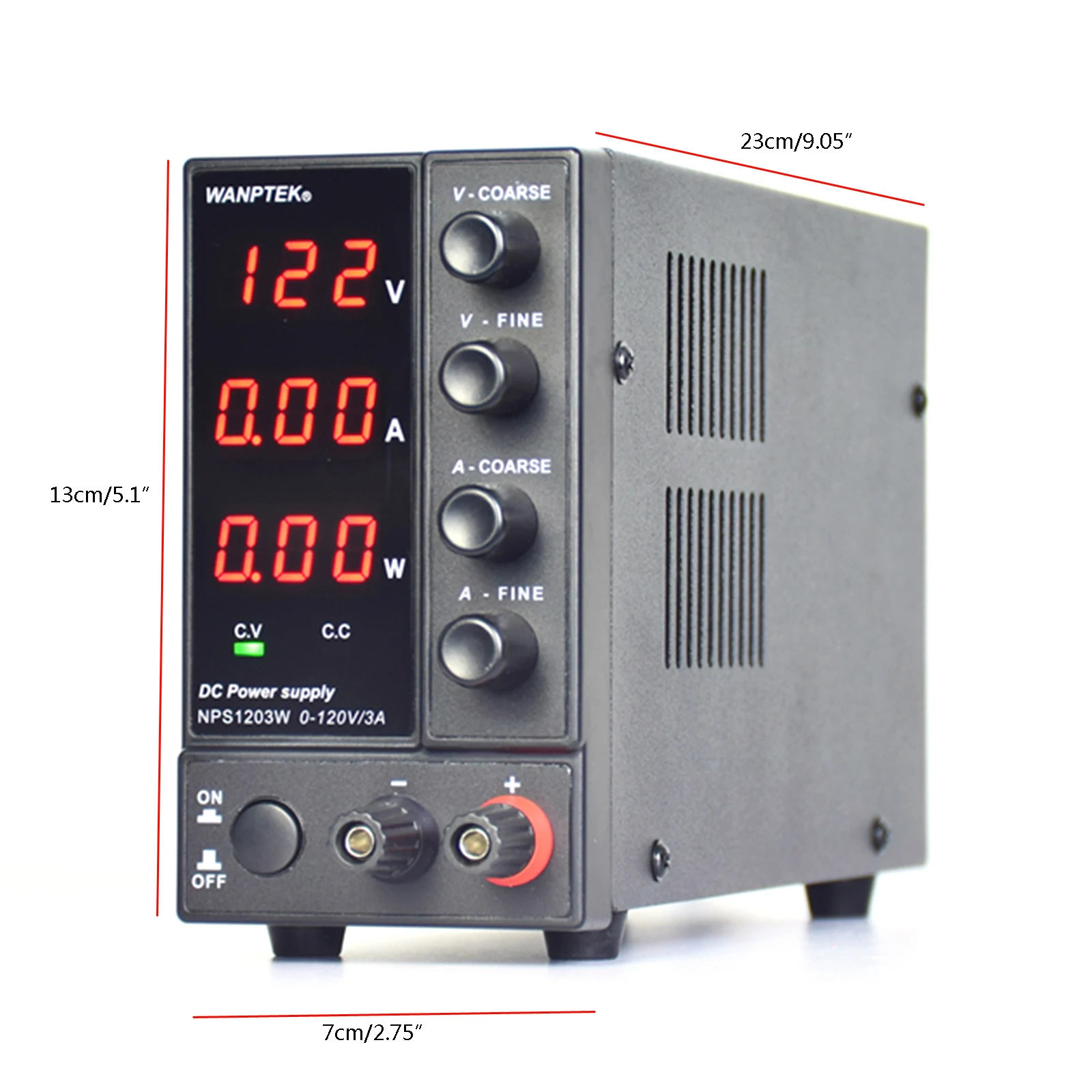

Product size: 23*7*13cm/9.05*2.75*5.1”
Net weight: 1.3kg
Input power：AC 220V, 50Hz
Output voltage: 0-120V
Output current: 0-3A
Output power: 360W
working temperature：0 ℃ - 40 ℃; relative humidity: < 80% RH
Storage temperature：-10 ℃ ~ 70 ℃; relative humidity: < 70% RH

Constant Voltage Operation:
Voltage stability：0.1% ± 3MV
Load stability: 0.2% ± 3MV
Ripple voltage: ≤ 0.5% Vp-p
Continuously adjustable from 0 to rated voltage

Constant Current Operation:

Current stability: 0.1% ± 3mA
Ripple current: ≤ 0.5% Vp-p
Recovery time: ≤ 500 μ s
Temperature coefficient: ≤ 100ppm / ℃
0 to rated current continuously adjustable
Head display :
Three window digital tube display: voltage, current, power
Display accuracy: 0.5% + 3 words
Display staging rate: voltage 0.1V, current 0.01A, power 0.1w/1w
product size: 70 (W) x 130 (H) x 230 (L) mm
Package size: 110 (W) x 170 (H) x 290 (L) mm
N.W: 1.3KG
G.W: 1.6kg

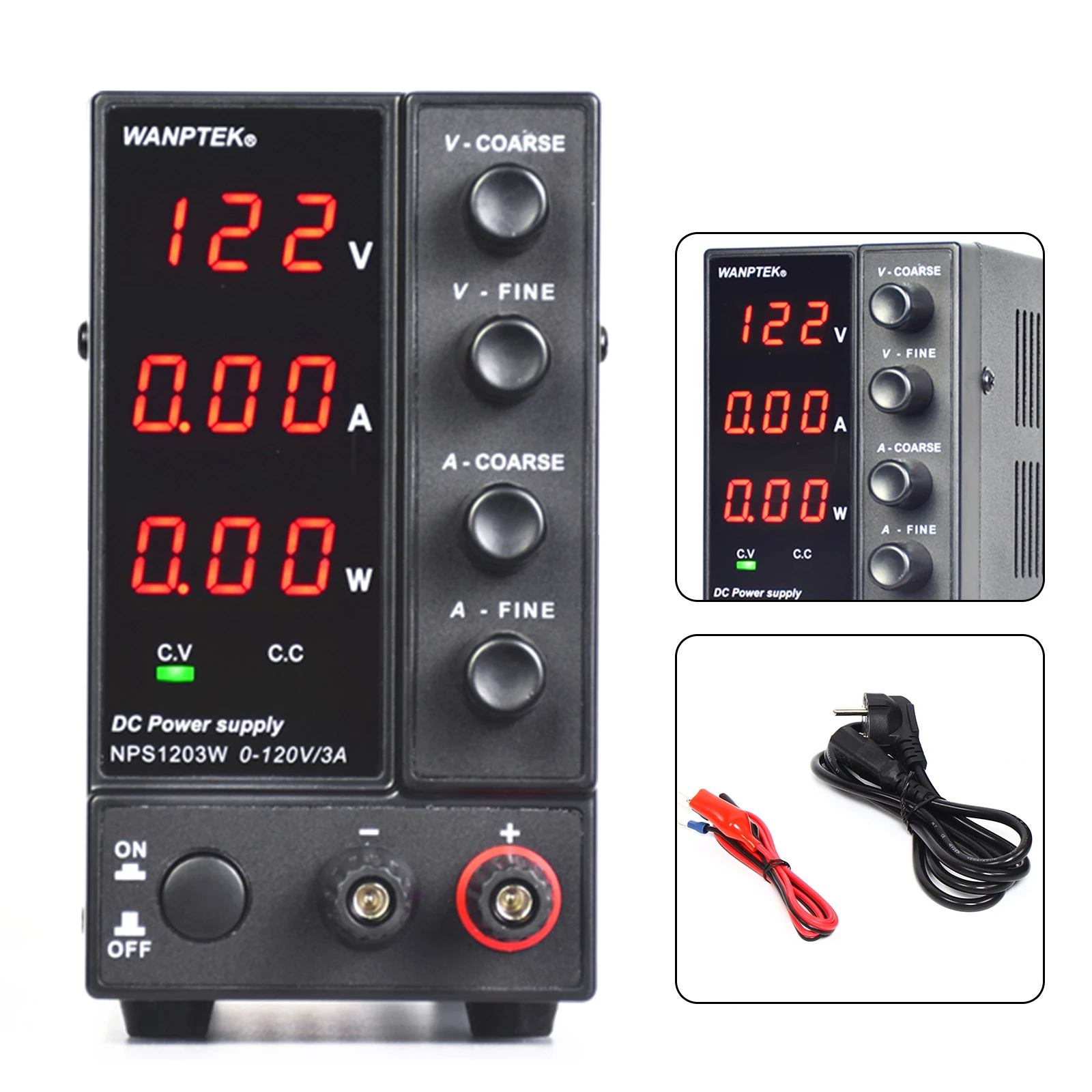

Packing List
1 x DC power supply
1 x power cord
1 x output line
1 x operation manual
