MB Star SD Connect C4 Best quality MB STAR C4 PLUS DOIP Upgrade Firmware Diagnostic Tool DOIP Function

This link is only sale Hardware configuration,it does not included program software ,need buyer yourself have software .

Full Chip Upgrade Firmware SD C4 DOIP PLUS Multiplexer MB STAR C4 SD Connect For Mercedes-Benz Heat Sink on CPU Better Built PCB

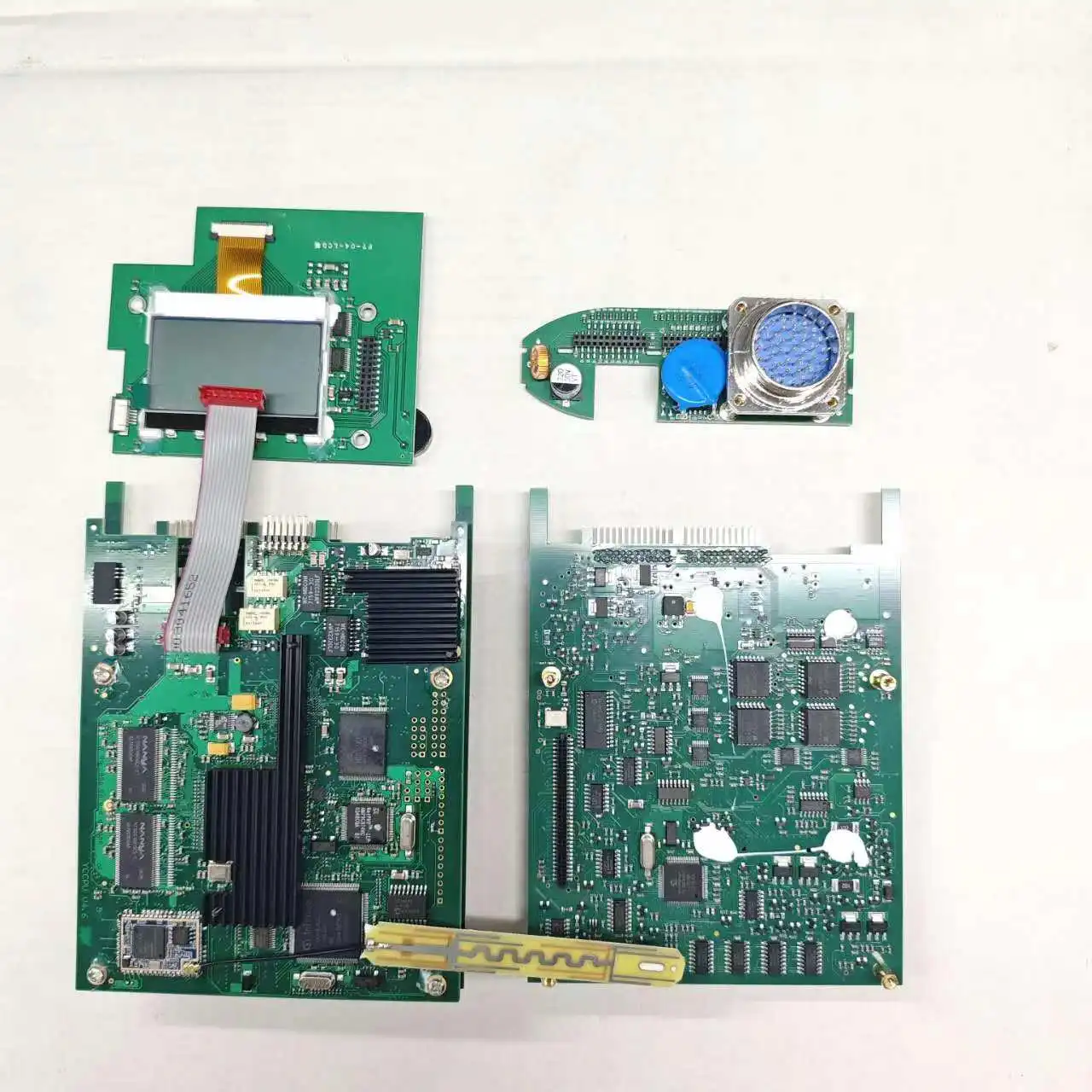

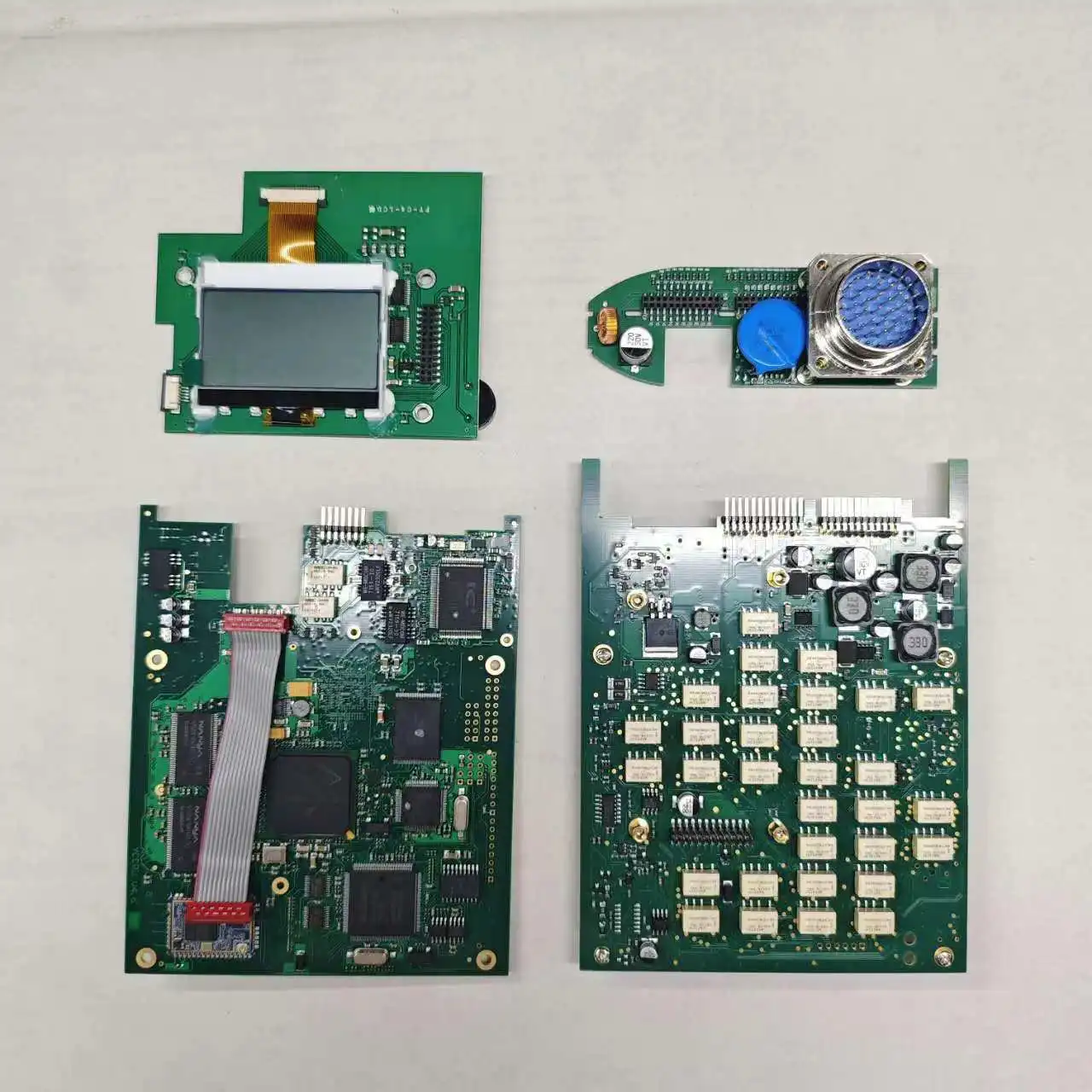

Doip PLUS Real PCB Board Display:

Our hardware PCB board advantage:

It has heat sink on CPU’s inside, so do not overheat .Because others often MCU die and than multiplexer is dead

Also our PCB Board overall better build quality.

How to Set up SD C4 WIFI:

Our NEW SD C4 has modified the WIFI connection, so the MAC code displayed "------"on the LCD screen is NORMAL.

The connection is wireless, and if the IP is automatic, the new WIFI configuration connection is simple and convenient.

It is connected to WIFI on like Smart phone the same way. When WIFI on his computer finds the device signal name XC4-PLUS-XXXX, click on the connection and enter the password 123456789 .

We have clearly video for reference ,if buyer need please feel free to contact us .Thank you .

If your LAN cable is connected to a computer, change the fixed IP address of your computer's LAN gateway to 172.29.127.118

Because the old C4 ROAD24 wireless cannot connect to the WIn10 system, so it cannot be configured wirelessly according to ROAD24 .

So some buyer said can not connect WIFI,please check from your side ,if you still set up Wiress via old ways ROAD24 which no suit for New SD C4 any more .

Some buyer still feedback no find WIFI ,please check if you set up correctly.

DO NOT plug the device into an Ethernet cable, as it will not display WIFI on Computer if you plug it in.

If you can't find WIFI on your computer, you can use your mobile phone's WiFi to search

Remember, the device CANNOT be plugged in with a network cable. If a network cable is plugged in, the wireless WIFI of C4 will be turned off.

Upgrade Hardware No need Dry Batttery,if shows pm pic test 8,it is changed which is wrong method.

So if you changed 2 above,self-test will shows "8 and 8".

PC Reuqirement: WIN 7 and WIN 10

DO NOT Supports WIN XP any more which is too old for New SD C4 Wireless.

Please Note for Buyer Porgram :

We sale this link hardware is SD C4 ,buyer need use correct prorgam for SD C4. If you used C3 program to our C4 ,it WON'T WORK normally.

Because software for C3 CANNOT connect to C4 due to different interfaces and software configurations.

Old C3 is a serial port connection, your computer must have serial hardware and outdated software, But our C4 is connected via Ethernet cable, so the program software is different and cannot be used simultaneously.

If you use correct C4 prorgam,the software is OK, it should display like this:

SD C4 DOIP PLUS Features:

1. It has added DOIP function on the board , which can supports latest for Mercedes Benz cars and improve WIFI connection Speed (just like connecting to a wireless Smart phone).

2. Firmware updates do not require the installation of a dry battery any more

3. Easy to set up WIFI,after connecting to the wireless, the IP is automatic and NO NEED changed to fixed IP any more.

4. Without connecting the network cable, the computer can wirelessly search for XC4-PLUS-XXXX. Enter the password 123456789 .

SD C4 Hardware Function:

1. The new SDconnect C4 is able to work for DoIP. It's the only C4 that supports ethernet communication (DoIP). Tested no issues on new MB car with doip.

2. Wireless connection is stable. C4 is connected automatically to WLAN for diagnostic tests.

3. remote help is available.

4. Good Quality, It's waterproof, shockproof and tamper proof.

5. Support both 12V Cars and 24V Trucks.

MB SD Connect Compact 4 supports reading & erasing trouble code,reading the real-time data of sensor and actuator, coding and programming. MB SD Connect Compact 4 supports wireless diagnose, support K-line,CAN BUS and UDS protocol, ,fit all computers,with multi-language.

Best quality MB STAR C4 PLUS DOIP FUNCTION Diagnostic Tool with DOIP Function ((Only Main Unit)

OS:  2.3.20130523

CSD: 2.11.20150601

Serial number: 101044

MB SD Connect C4:

1. Support mb Cars After Year 2000

2. The quality is the best and it can work stable.

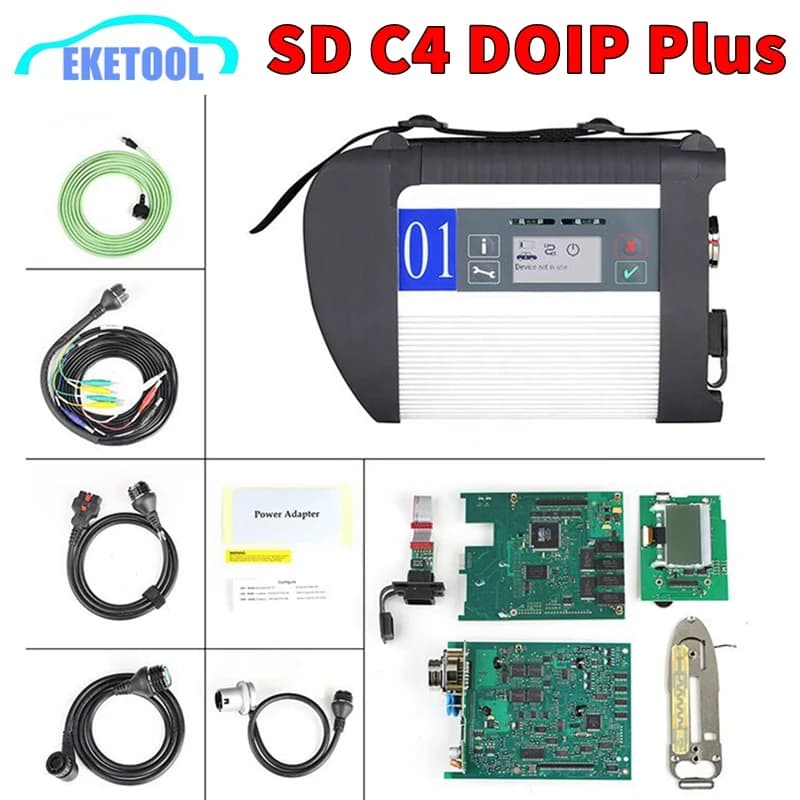

MB Star SD Connect C4 Wire Connection Picture

New MB Compact 4 Features

1. New MB SD Connect Compact 4 Star Diagnosis support wireless diagnose;

2. New MB SD Connect Compact 4 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;

3. Multiplexer now use Lan cable to connect

4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;

5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;

MB SD Connect Compact 4 Supported Vehicle List:

MB SD C4 Support mb Cars After Year 2000

Passenger Car Support List:

A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126),

E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),  SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197),

M(166),  M(164),  M(163),  G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),

CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),  M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Support List:

MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Support List:

Actros963/4,  Actros2,3,  AtegoIII,  AtegoII,  AxorII,  Eonic,  Zetros,  Actros,  Atego Light,  Atego Heavey,  HPN M96,  Atron,  HPN M2000,  SKL,  FSK,  Further model series

Unimog Support List:

U20,  UGN,  UHN

Bus Support List:

TRAVEGO,  INTOURO,  INTEGRO,  CITARO,  CAPACITY,  CITO,  TOURISMO,  O350/O403, CONECTO,  O404,  O405-O408,

Minibus,  OC500,  TOURO,  TOURINO,  MBC,  MULITEGO,  O500,  O500/OH,  OH,  OH368,  OF,  OF384,  LO,  O400,

FURTHER MODEL SERIES

Super Sports Car Support List:

SLR(199)

Availability:

1.Faulty components are replaced in the 1-year service life

2.In certain cases , complete systems are replaced
