AtomStack A40 Pro V2 Laser Engraver 40W Professional Grade Laser Engraving and Cutting Machine Linear Slide Rail for Thick Wood

Features:

Eye Protection with Magnetic Filter Shield: The AtomStack A40ProV2 features a panoramic magnetic filter shield that protects your eyes by filtering out 97% of strong laser light. This innovative design eliminates the need for protective goggles, saving you money and enhancing convenience. The magnetic attachment makes cleaning and maintenance effortless.

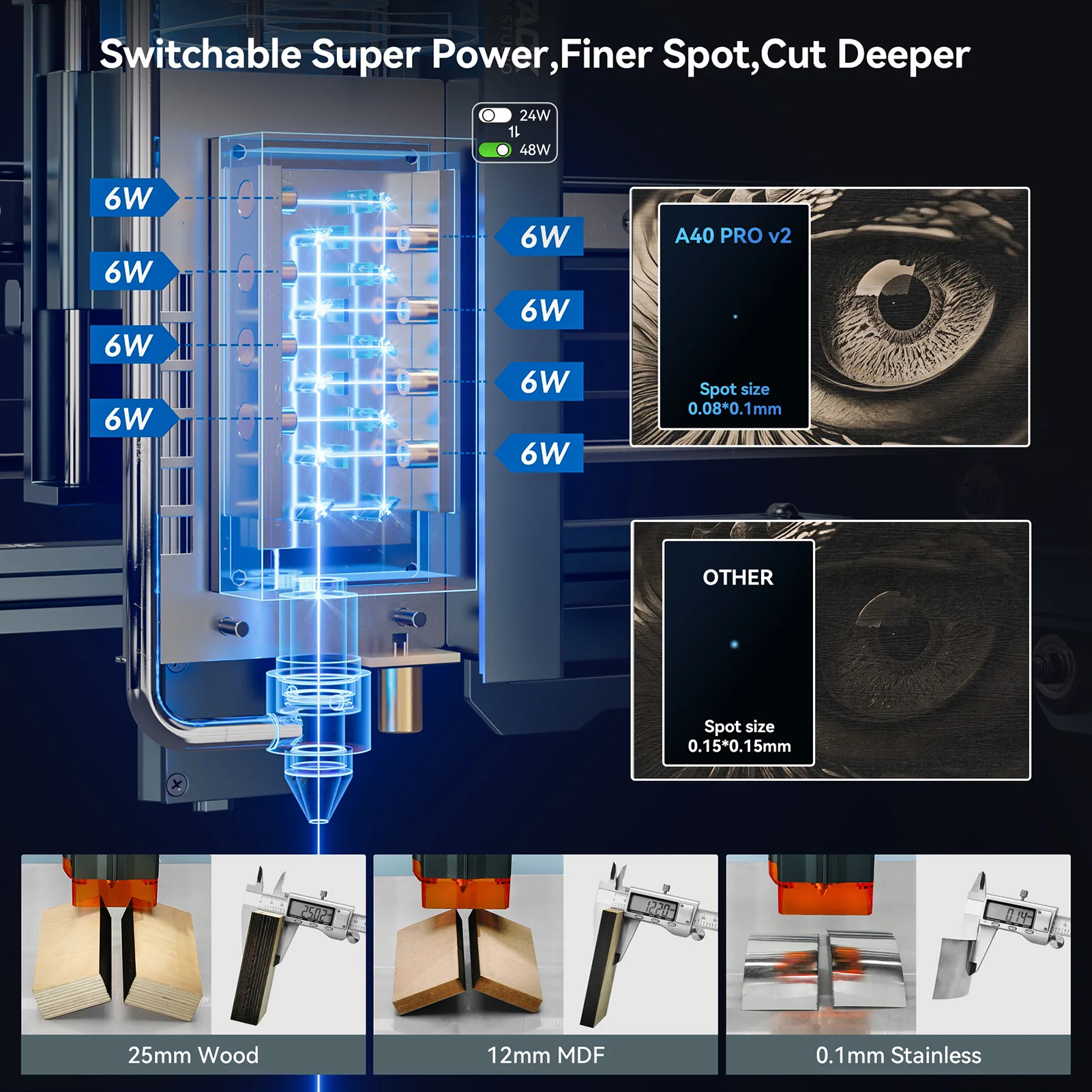

Powerful Cutting Capability: Equipped with a state-of-the-art 40W laser module using an advanced coupling technology of 8pcs 6W lasers, the A40ProV2 delivers peak power up to 48W. It effortlessly cuts through materials like 20mm lime wood, 25mm pine and poplar wood, and 12mm MDF boards. Plus, it can cut through 0.1mm stainless steel sheets in one pass.

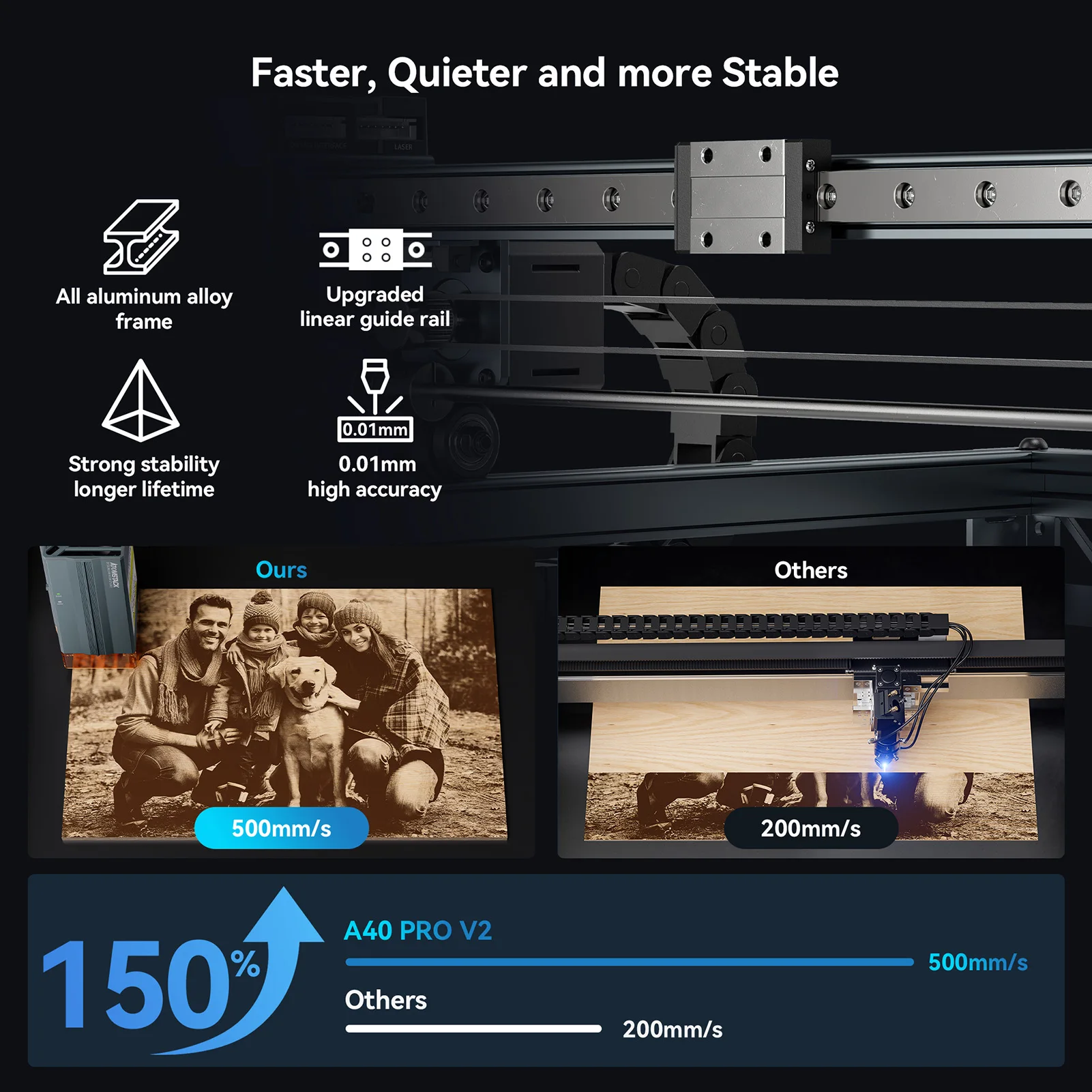

High-Efficiency & Accuracy Engraving: Thanks to its upgraded linear guide structure and control motherboard, the A40ProV2 operates at an impressive speed of 400mm/s. This model boasts ultra-fine laser focus areas measuring just 0.1x0.1mm, enabling precise cutting of thick woods and metals such as mirror-polished stainless steel, ceramics, and glass.

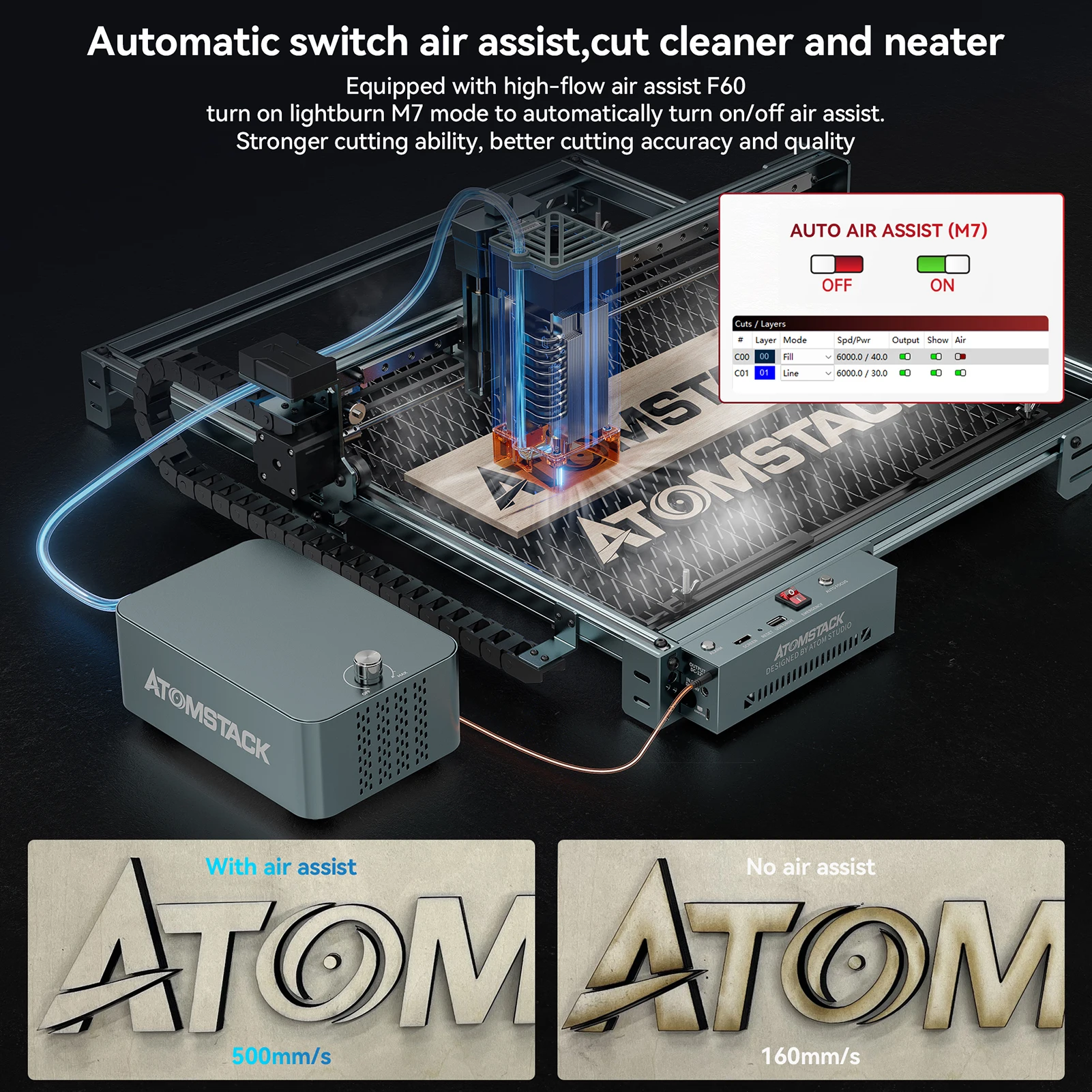

Smart Mode Switching and Automation Features: The A40ProV2 includes intelligent functionality with a physical button for switching between 20W (engraving) and 40W (cutting) modes. Furthermore, it comes with automatic air-assistance kits and one-touch auto-focus capabilities, enhancing both safety and precision while simplifying operations via the second-generation AtomStack app and LightBurn compatibility.

Robust and Quick-Install Structure: Constructed with full aluminum anodized materials, this upgraded model ensures durability and precision in every carving task. Its quick-installation design allows setup within 10-20 minutes, making it easy to assemble even for beginners.

Large Working Area & Wide Compatibility: With a generous carving area of 395x385mm, the A40ProV2 accommodates a wide range of projects. Compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10, and also supports MAC system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF, etc.

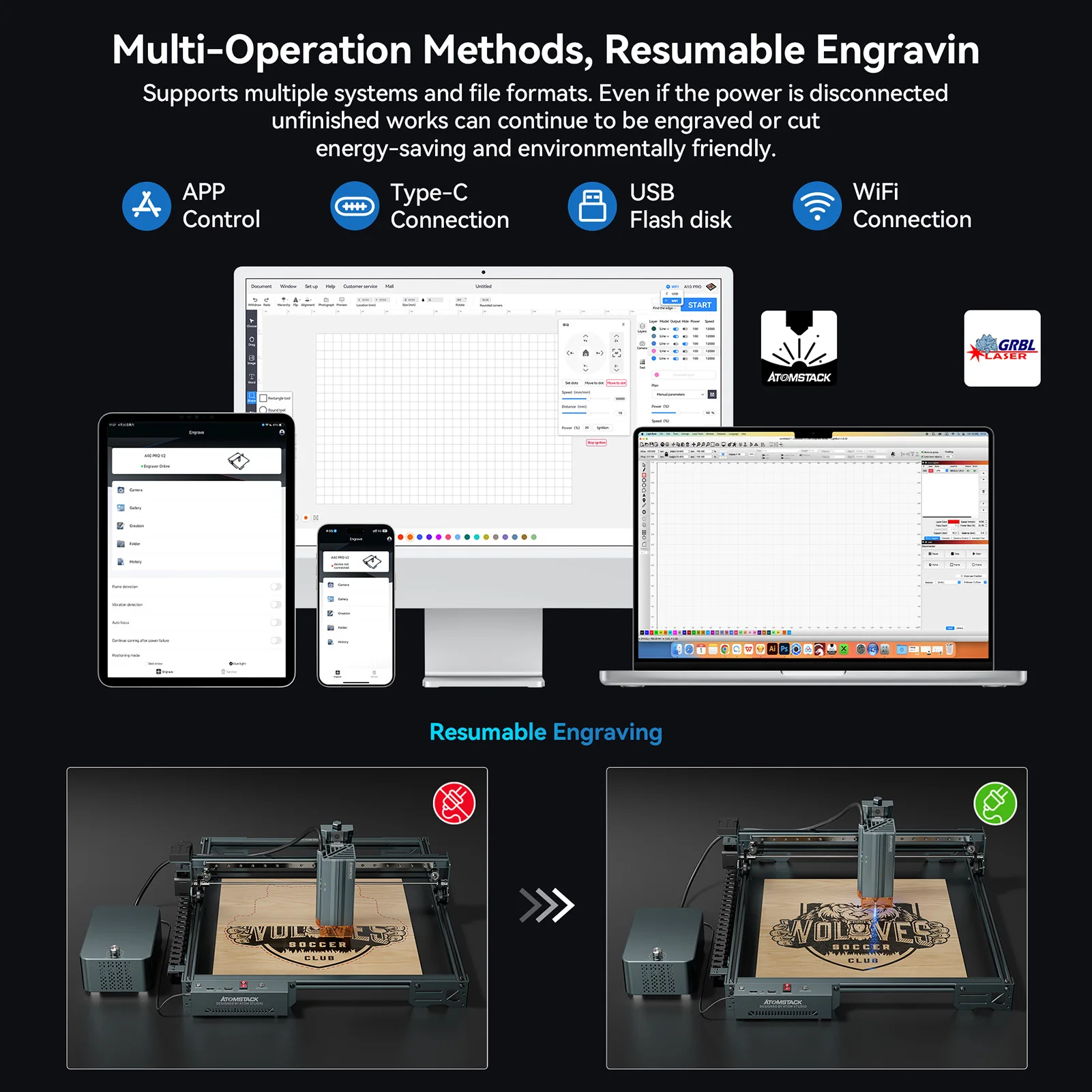

New APP Control: A40 PRO V2 is compatible with the second-generation atomstack APP, which provides a better operating experience, supports more control functions, and realizes offline engraving. You can perform engraving work anytime and anywhere without being restricted by the computer; it can also realize the power-off resume engraving function (the relative position of the engraving machine and the work object needs to remain unchanged)

Specification:

Product model: ATOMSTACK A40 PRO V2

Engraving size: 395*385mm

Engraving/cutting materials

Engraving materials: wood, bamboo, cardboard, plastic, leather, PCB, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramic, cotton cloth, stone slab;

Cutting materials: cardboard, non-woven fabric, wood board, acrylic, some thin plastic boards, sponge;

Total Power: 210W

Laser Power: 180W (in cutting mode)

Laser Output Power: 40-48W

Laser Wavelength: 455±5nm

Engraving Precision: 0.01mm

Focusing Method: Fixed-focus laser, no need for manual focusing

Limit Switches: 2 (1 on X-axis, 1 on Y-axis)

Laser Protection Shield: The laser has a protective shield that safeguards the user's eyes, eliminating the need for additional safety glasses. It also prevents pets from interacting with the laser spot.

Operating Software: LaserGRBL, LightBurn, supports Win XP / Win 7 / Win 8 / XP / Win 10

Supported File Formats: NC, BMP, JPG, PNG, DXF

Data Transmission Method: USB connection

Power Supply:  50/60HZ, Output: 24V 9A

Product Size: 574.75 x 640 x 166.6mm

Product Weight: 9700g

Note:

● When operating the laser engraving machine, please install the laser protection cover; if it is not installed, you need to wear goggles.

● Do not touch the laser with your hands, otherwise it may burn your hands.

● Please avoid strong impact on the machine.

● Children under 14 years old are prohibited from using this product, and children over 14 years old need adult supervision.

● The laser cannot be applied directly to any mirror-reflective object, which may cause harm to the operator or burn the laser.

Packing List:

1 x A40 PRO V2 Laser Engraver Kit
