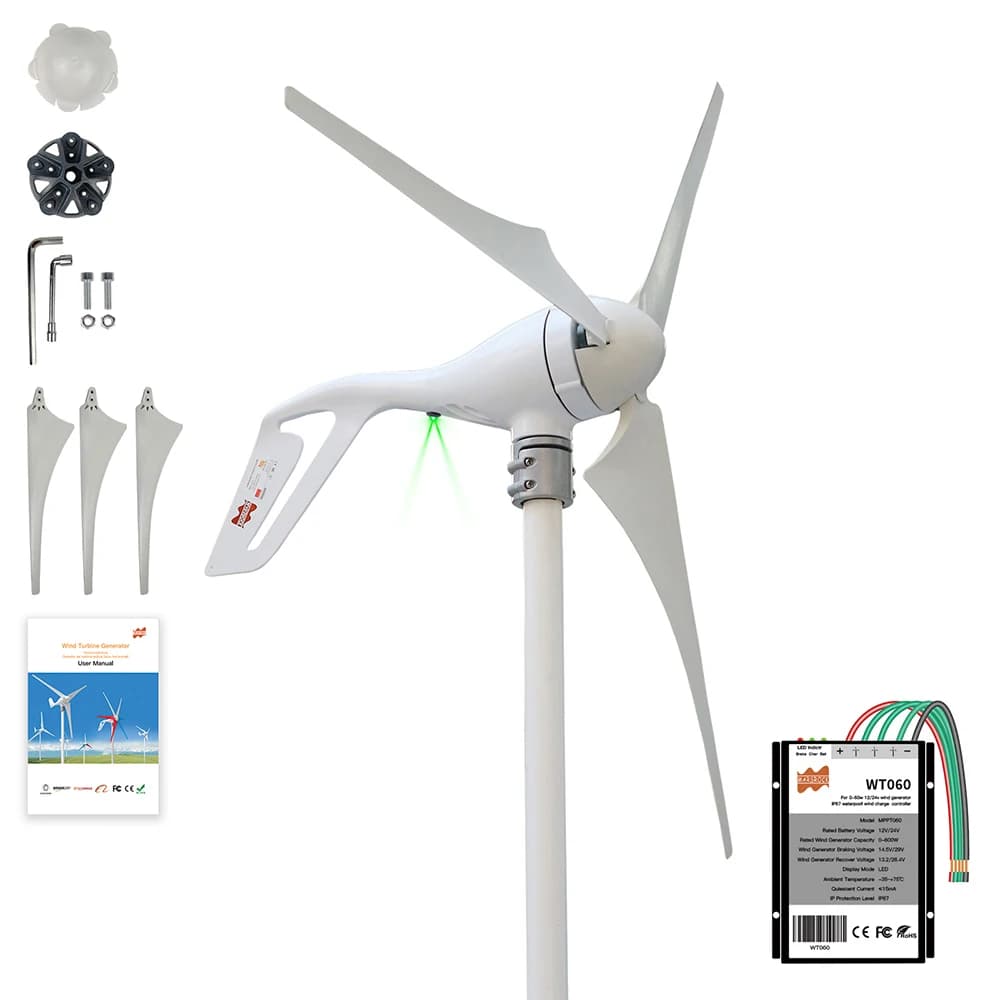

400W 12V 24V Horizontal Wind Turbine Generator Wind Turbine Generator With LED Indicator Controller Small Mini Windmill Turbine

Related Product

Special note

1)This product does not include the wind turbine tower pole;

2)Free WT060 controller workable for all type batteries;

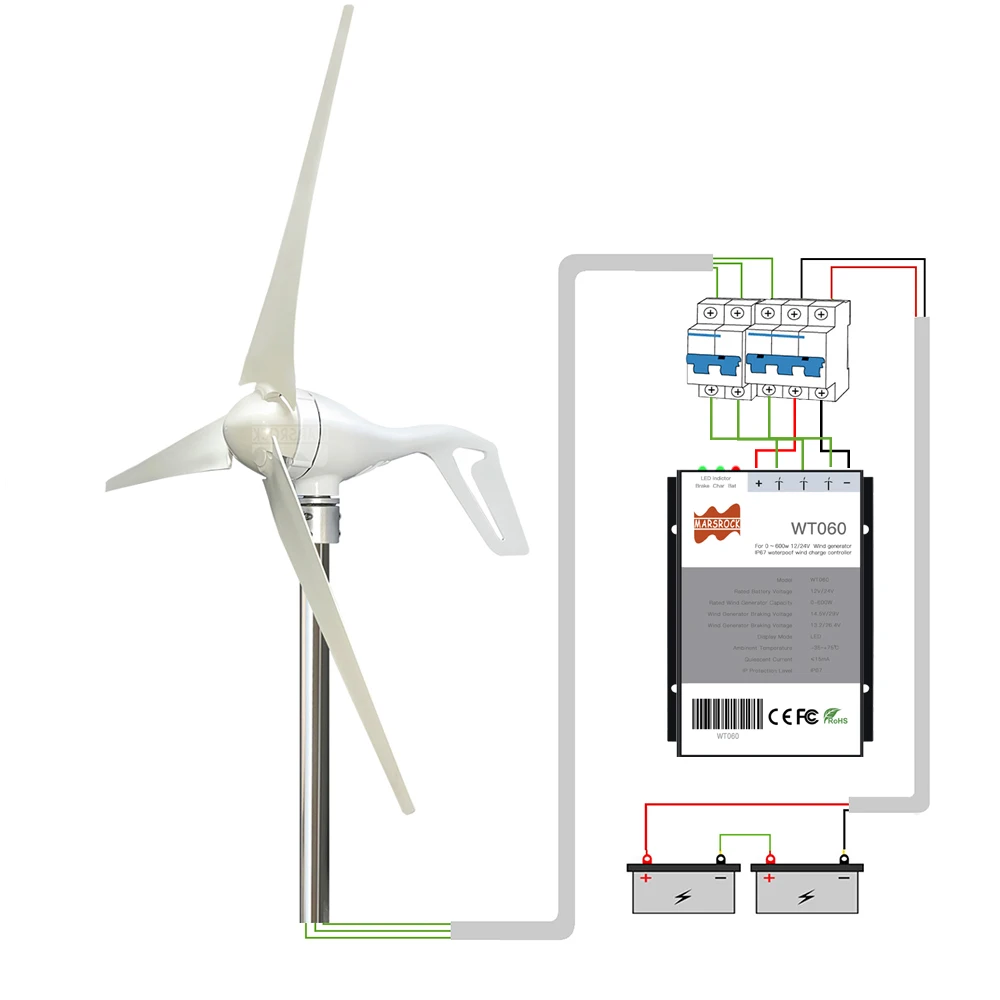

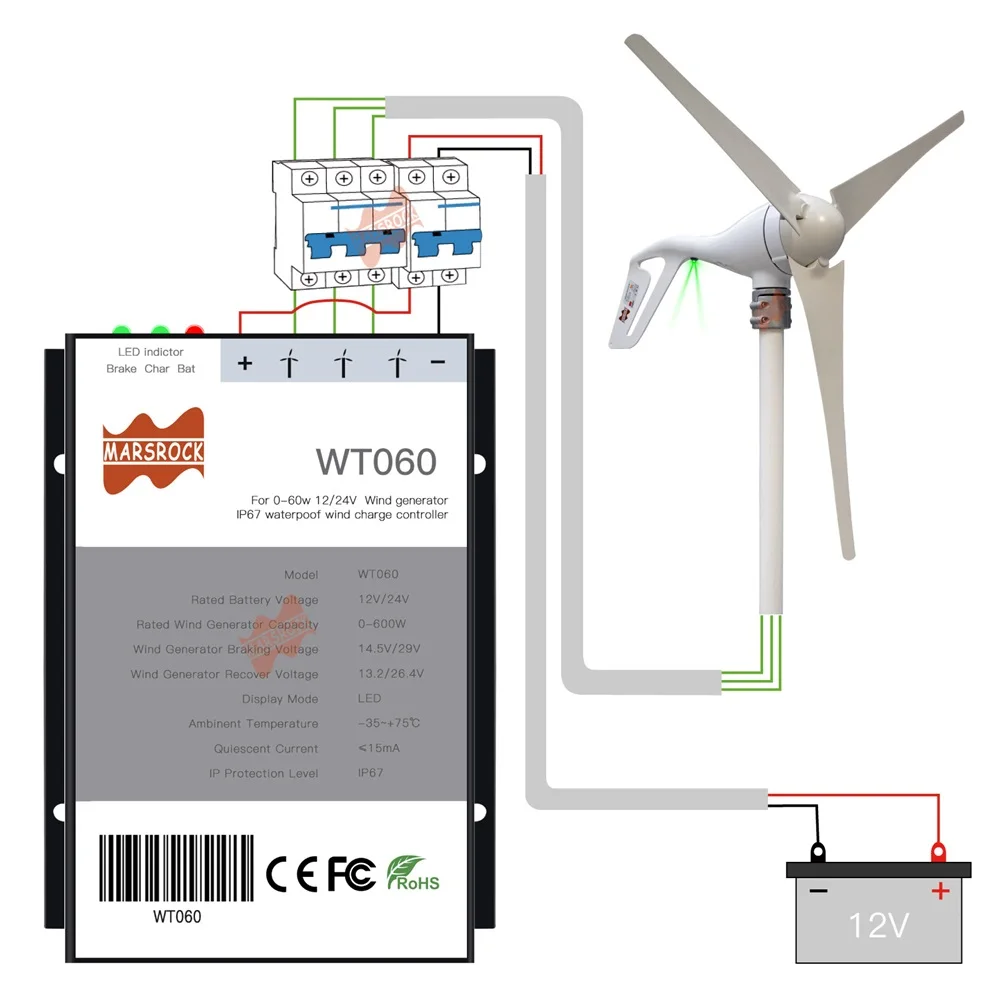

3)It is necessary to install 3P air switch and SPD between wind and controller, and it is necessary to install an air switch between the controller and the battery;

4)In order to better prolong battery life, please install a battery equalizer between 24V batteries.

5)This is an economical and classic design product. In order to obtain a more stable charging effect, please design and install a wind-solar hybrid power generation system.

Description

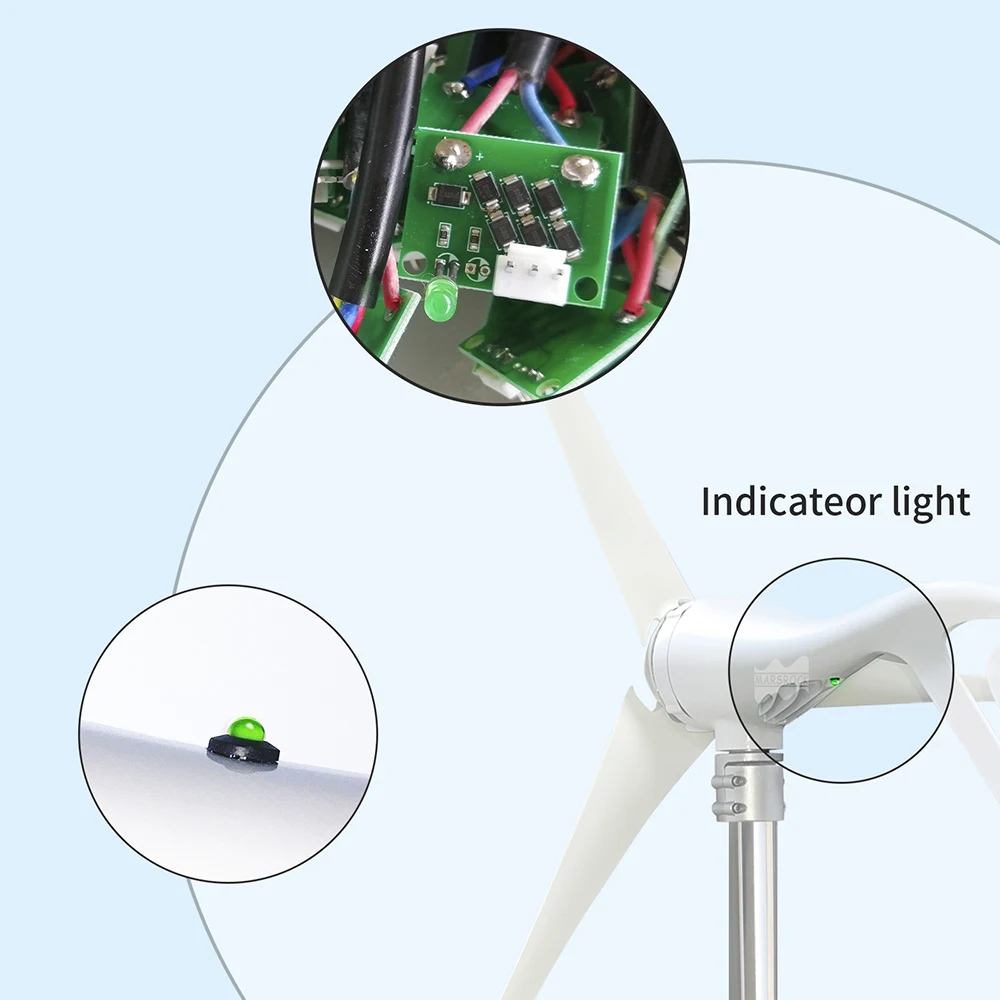

1.Unique charging indicator design, whether the output current is clear at a glance;

2.Low speed starting up2 meter/s which improves power efficiency; high wind energy utilization; beautiful appearance; low vibration;

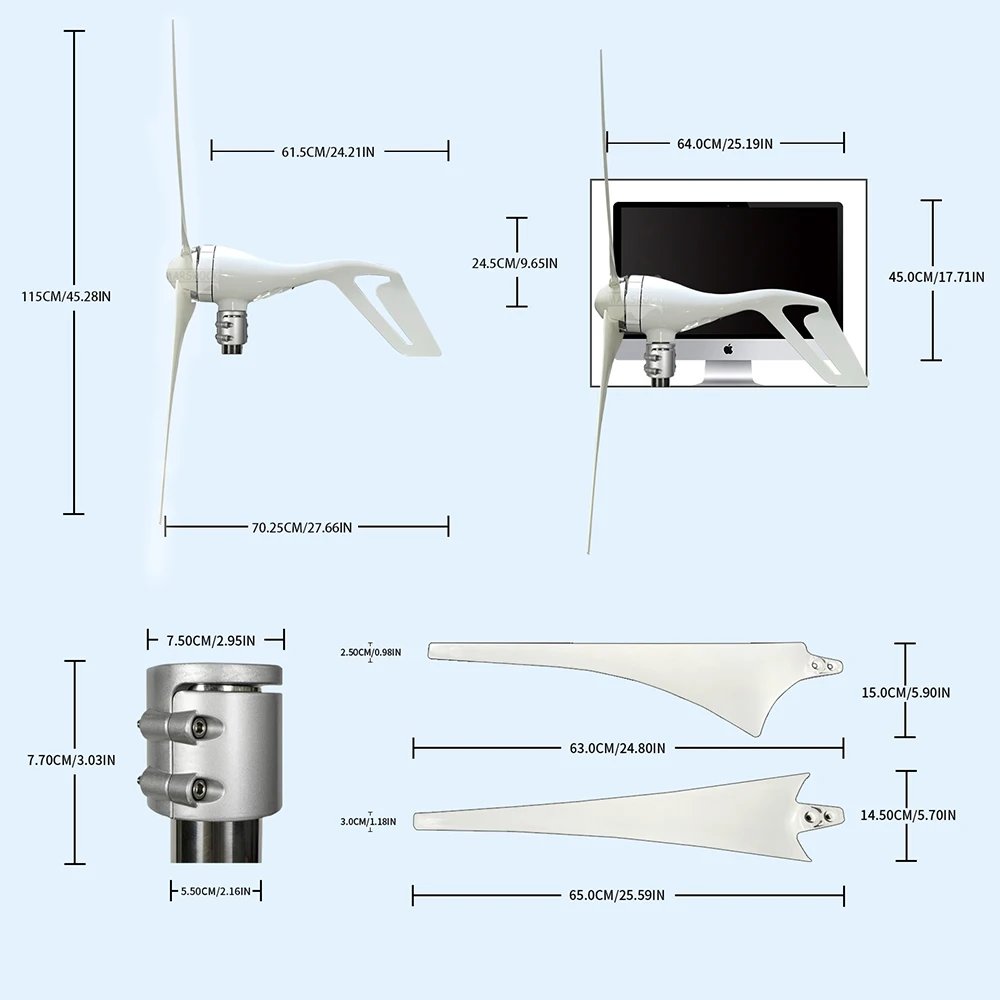

3.High-toughness FRP blades 63CM length with the unique delta wing flow linear blade design is more conducive to capturing wind and wind direction, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output;

4.High-precision NSK bearings, unique generator automatic spot welding technology of magnetic steel and pure copper winding, magnets made of high-purity rare earths ensure high-efficiency and long-life generator quality;

5.Spend a price can Flexible choice to install a 3-blade or 5-blade wind turbine, At the same time, the hub and hood required for the 3 and 5 blades are presented.

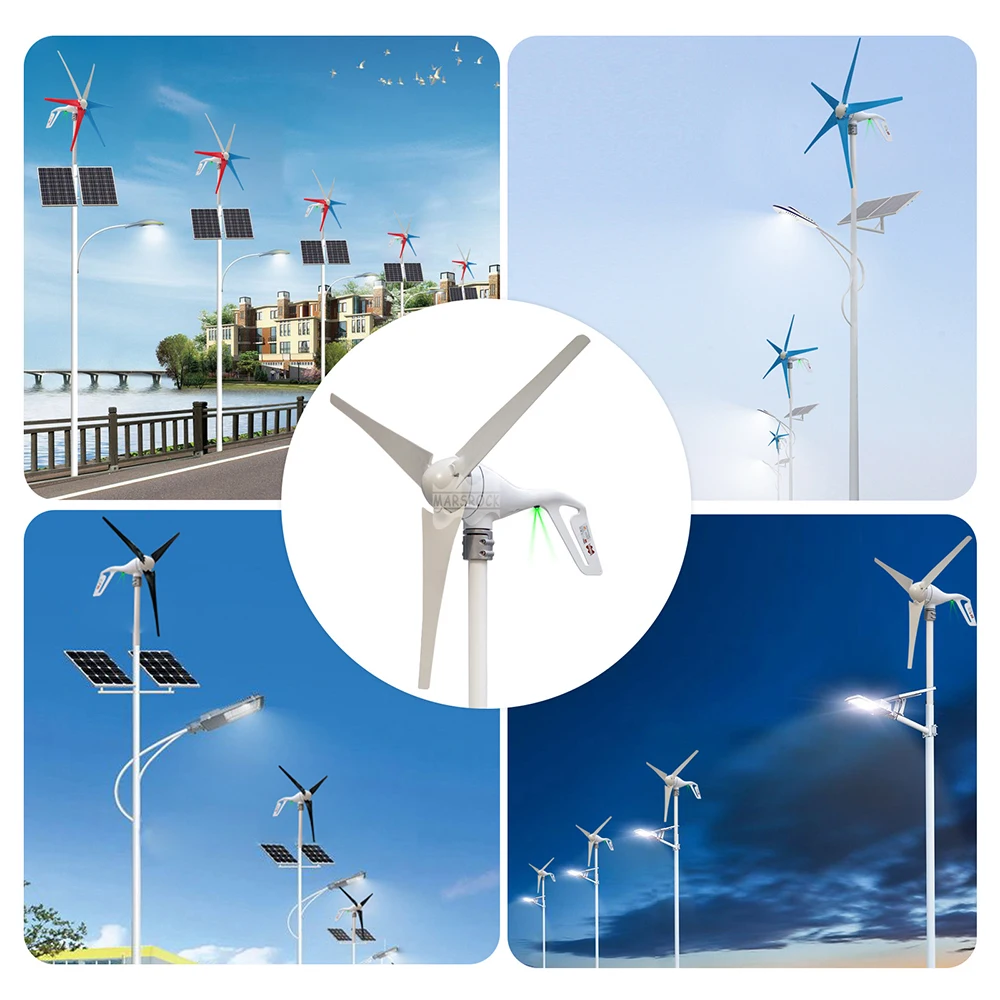

Application

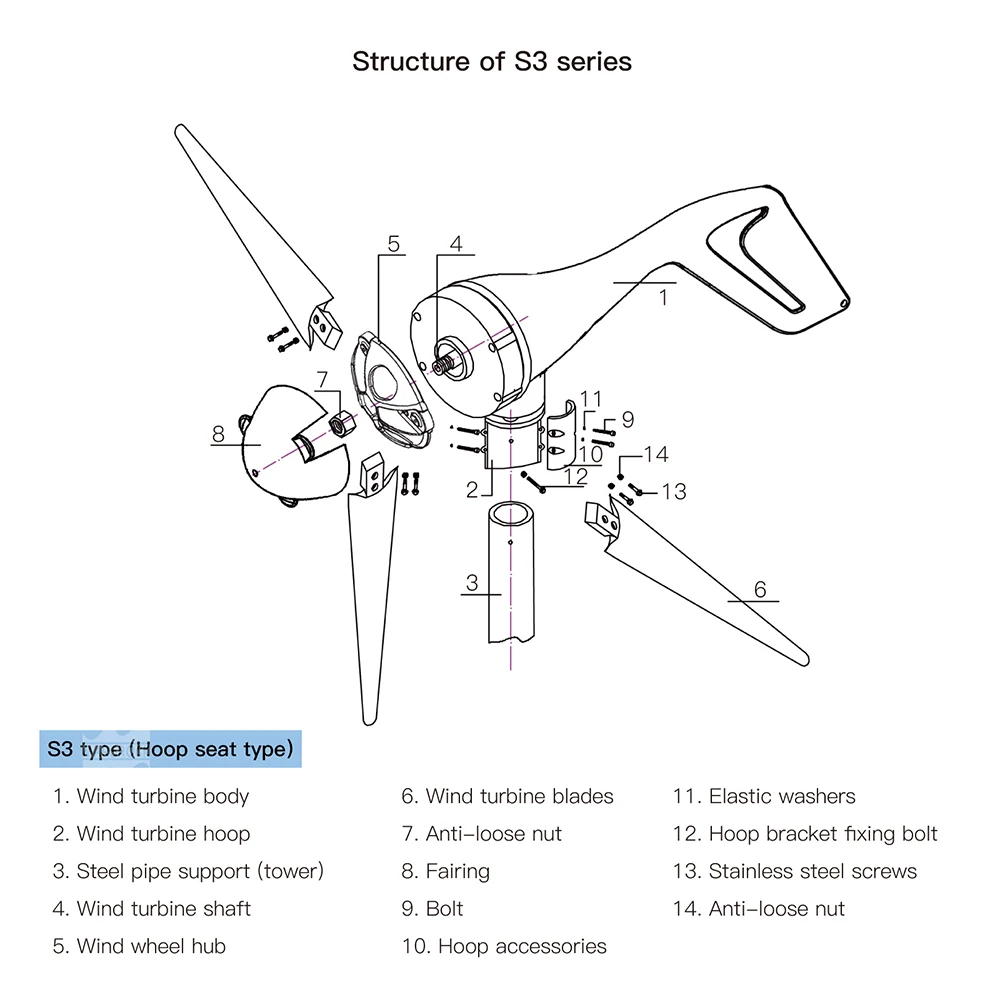

Detail Structure Images

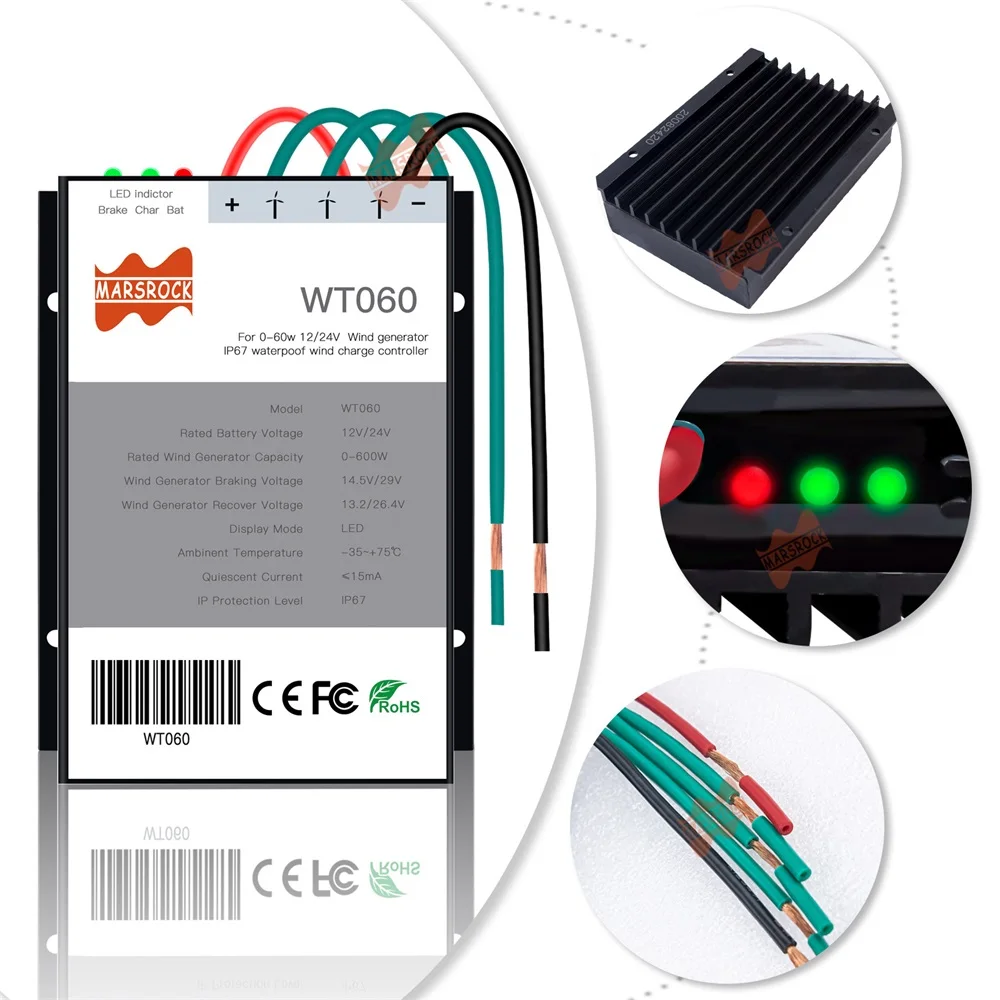

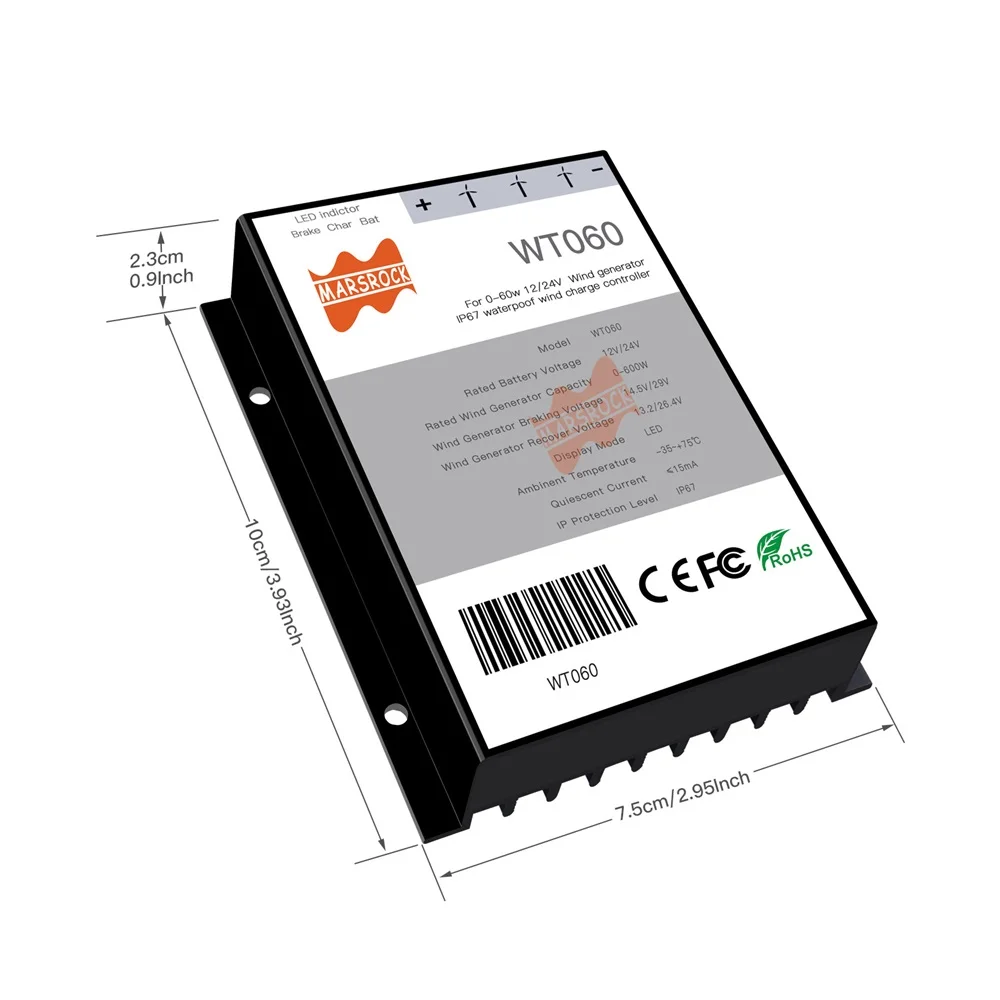

With Indicator Controller

This controller can control wind turbines to charge the battery automatically. When the battery is fully charged, brake can be controlled automatically by the interior circuit. When the battery voltage drops to restore voltage level, wind turbine can automatically recover to the battery charging, so as to protect the wind turbine and the battery.

Maximum Current:50A

Service for: Sealed( Lead-Acid), GEL battery

Voltage:AC-DC

Battery voltage:12V/24V DC(Auto identify)

Suitable for:0-600W wind turbine

Brakes start voltage:15V(12V Battery); 30V(24V battery)

Waterproof:IP67

Approved:CE,ROHS, FCC, ISO9001

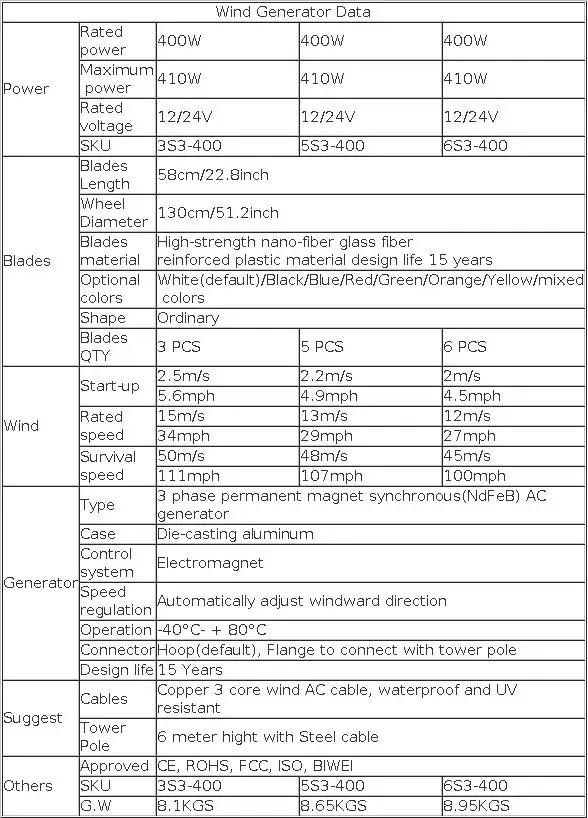

Parameter

Professional Certification

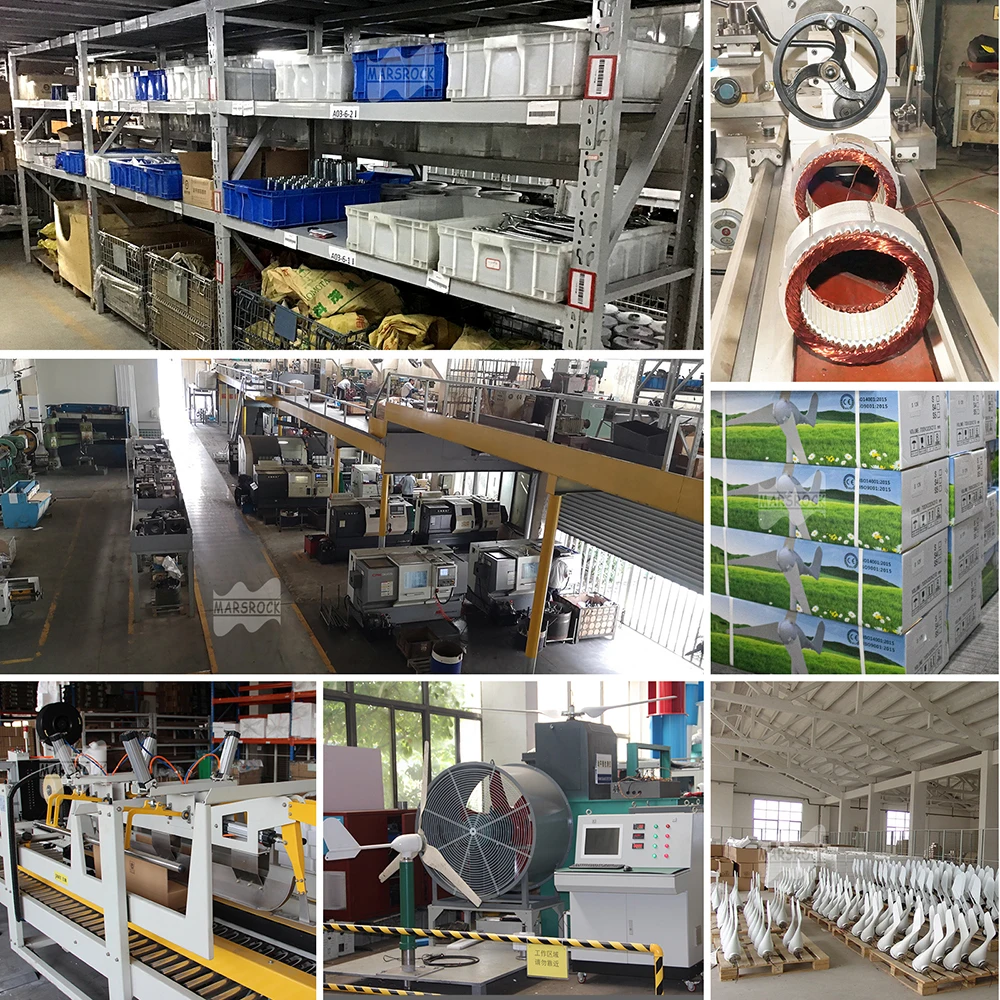

Our Factory
