370W 220V Stainless Steel Deep Well Water Pump Tube Pump Submersible Pump 2 Inch Sand Compatible Garden Pump

Our deep well water pump is made of high-class material that can withstand high pressure and have long-term stable operation in harsh environments. It can provide a continuous and stable output of high head water. Equipped with a high-efficiency motor, it realizes low energy consumption and high-efficiency power conversion. It is designed to meet the diversified needs of various types of deep well water extraction, agricultural irrigation, industrial water supply, and fire-fighting water supply.

Key Features

Rugged and Durable: This product is made of 304 stainless steel, which is rustproof and corrosion-resistant, not easy to crack or age, and can be used safely for a long time.

Excellent Performance: The 0.37KW motor can generate a flow rate of 264.2 gallons/h and provides a maximum head of 180.45ft, helping you quickly lift groundwater to the surface or higher and easily complete irrigation or water storage work.

Good Adaptability: High-class material and sturdy structure ensure a maximum diving depth of 114.83 feet, which can be used in various water bodies such as streams, deep wells, lakes, etc.

Safety Protection: The high-efficiency sealed motor has a built-in thermal protection device, which can automatically stop the pump in case of jamming, overloading, and other abnormal operations. In addition, there is a check valve designed to prevent water from backing up from the piping back into the pump, thus protecting the pump from damage.

Compact Size: The 2.04-inch pump body diameter and 27.16-inch pump height will not take up too much space, making it easy to install vertically in limited space.

Low Noise Operation: The high-class motor enables this product to operate at a low noise level of 0-30dB, providing you with a quiet working environment.

Easy to Use: It has a built-in starter box and does not require an external control box, making it convenient for you to pump water more quickly and efficiently.

Easy to Clean: The 304 stainless steel surface is not easy to leave stains, so it is convenient for you to clean it.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Stainless Steel Filter: The built-in stainless steel filter can filter the impurities in the transported liquid, ensuring clean water and greatly extending the life of the pump.

Fixed Rotor: It is made of steel strips with high silicon content and high dimensional accuracy, which can greatly extend the service life of the pump.

Long Power Cord: This 2-wire pump with 3 wires (2 wires + ground wire) has a long power cord, which reduces usage limitations and provides more flexible usage scenarios.

Application

It is suitable for pumping groundwater from deep wells and can also be used in rivers, reservoirs, canals, and other water-lifting projects. It is mainly used for irrigation of farmland and water for humans and livestock in mountainous areas, and can also be used for drainage of cities, factories, railroads, and mines.

Specification

Power Source: Corded Electric
Plug Type: EU Standard
Assembly Required: No
Material: 304 Stainless Steel
Color: Silver
Voltage: 220 V/50 HZ
Rated Power: 0.37KW
Rated Flow: 1 m³/ 264.2 gallons/h
Maximum Flow Rate: 1000 L/264.2 gallons/h
Rated Head: 50m/164.04ft
Maximum Head: 55m/180.45ft
Maximum Water Depth: 35m/114.83ft
Power Cord Length: 15 m/49.21ft
Outlet Size: 19.04mm/0.75in

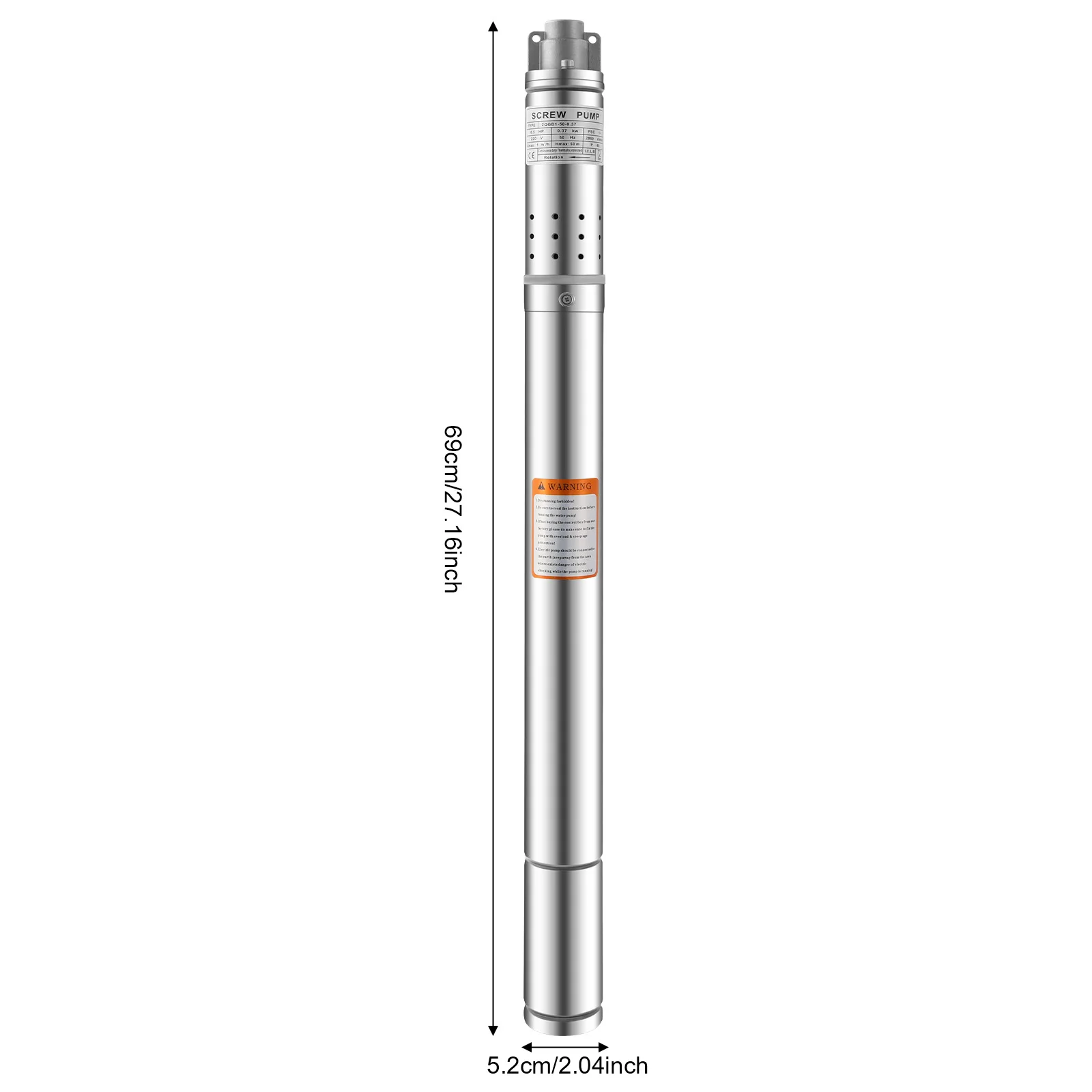

Pump Diameter: 5.2cm/2.04 in
Pump Length: 69cm/27.16in
Operating Water Pressure: Maximum 5bar/72.5PSI
Noise: 0-30dB
Waterproof Rating: IP65
Ph Value of Conveying Medium: 6.5-8
Installation Type: Vertical Installation
Gross Weight: 6.2kg/13.67lbs
Package Size: 68*12*6.5cm/26.77*4.72*2.56

Package Included

1* Deep Water Pump

Notes

1.Please check the style and size before purchasing.
2.Please ensure that the minimum diameter of the wellhead is greater than 2.17in for the pump to function properly.
3.It is a submersible pump and should not be operated for extended periods of time without water and must be completely submerged.
4.It must not be used beyond the maximum head.
5.Please note that for newly drilled wells with excessive particulate deposits, we recommend that you add a layer of gauze (not included) in front of the filter screen inlet.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
