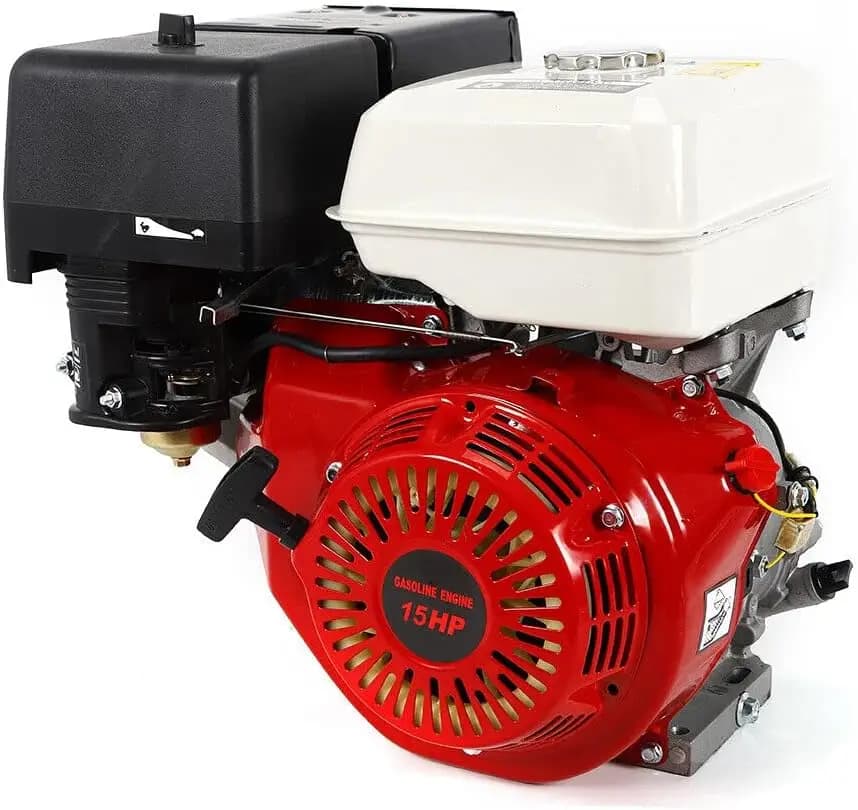

15 HP Petrol Engine, 4 Stroke 420CC 9.7 KW Single Cylinder Heavy Duty Engine, Stand-Up Kart Engine, Industrial Engine

15 HP Petrol Engine, 4 Stroke 420CC 9.7 KW Single Cylinder Heavy Duty Engine, Stand-Up Kart Engine, Industrial Engine

About this item
Strong performance: the power of the motor is up to 9700 W and the rated speed up to 3600 rpm, which provide strong power for machine operation and help you do your work quickly and efficiently.
Low fuel consumption: the engine is equipped with a high-precision carburettor, which can reduce fuel consumption (≤374 g/kw.h) and costs.
Low oil alarm: when the oil level is low, the machine automatically stops operation. So you can avoid the engine suddenly stopping while you work.
Durable operation: Equipped with a large fuel tank (1.72 gal), this engine can work for a long time. It ensures reliable performance without frequent refills.
Efficient cooling system: Equipped with forced air cooling system and ventilated heat sink, the engine can stay cool, which ensures high reliability and durability.

Specifications:
Model: 190F.
Petrol engine type: 4-stroke OHV single cylinder.
Rated power: 9 kW / 3600 rpm.
Maximum power: 15 HP at 3600 rpm.
Fuel consumption: 374 g/kWh.
Bore diameter x stroke: 90 x 66 mm.
Ignition type: TCI no contact transistorized.
Start type: recoil start
Charging coil: 3 Amp
Fuel tank capacity: 1.72 Gal.
Shaft type: feather - straight
Shaft diameter: 25 mm keyway
Engine cooling type: forced air cooling.
Fuel tank capacity: 6.5 litres.
Oil capacity: 1.1 litres.
Displacement: 420CC
Box size: 56 x 42 x 48 cm.
Net weight: 30.5 kg.

Note: This petrol engine is a manual return start, not an electric start.
