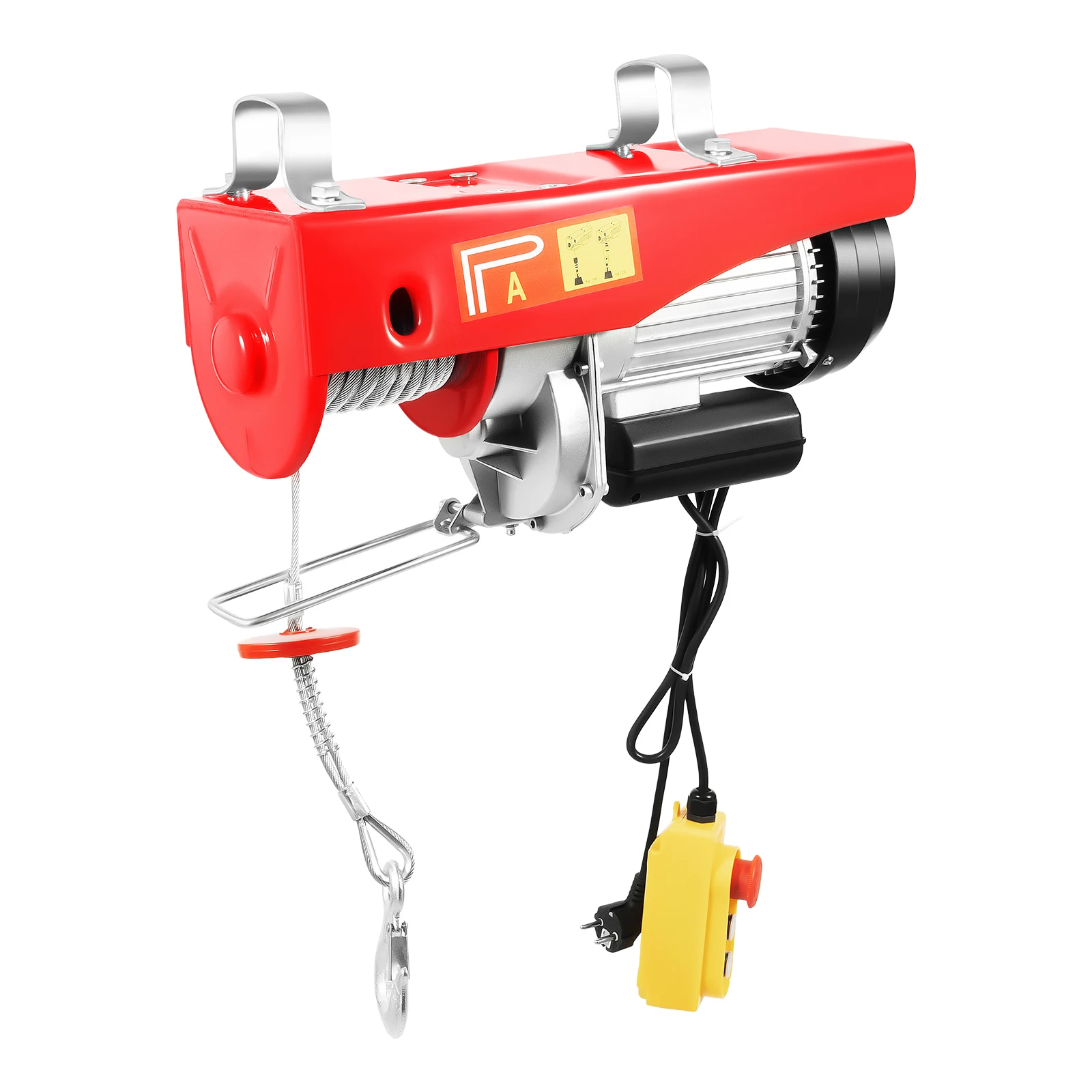

800/1000kg Corded Lifting Electric Hoist Lifting Miniature Trailer Copper Motor Automatic Braking Function

800KG

Specification
Model: PA800
Color: Red
Style: Modern
Material: Alloy Steel, Copper, Aluminum
Process: Baking Paint, Plastic Spraying
Assembly Required: Yes
Motor Type: Pure Copper
Power Source: Corded Electric
Plug Type: EU Standard
Voltage: 220-230V
Power: About 1350-1450W
Protection Grade: IP40
Insulation Class: B
Lifting Capacity: 400kg/ 881.85 lbs ( Single Rope), 800kg/ 1763.7 lbs ( Double Rope)
Lifting Speed: 10m/ 32.81ft /min
Lifting Height: 10m/ 32.81 ft
Remote Control Cord Length: 1m/ 3.28ft

1000KG

Specification
Power Cord Length: 1m/3.28ft
Color: Red, Silver
Item Shape: Cylinder

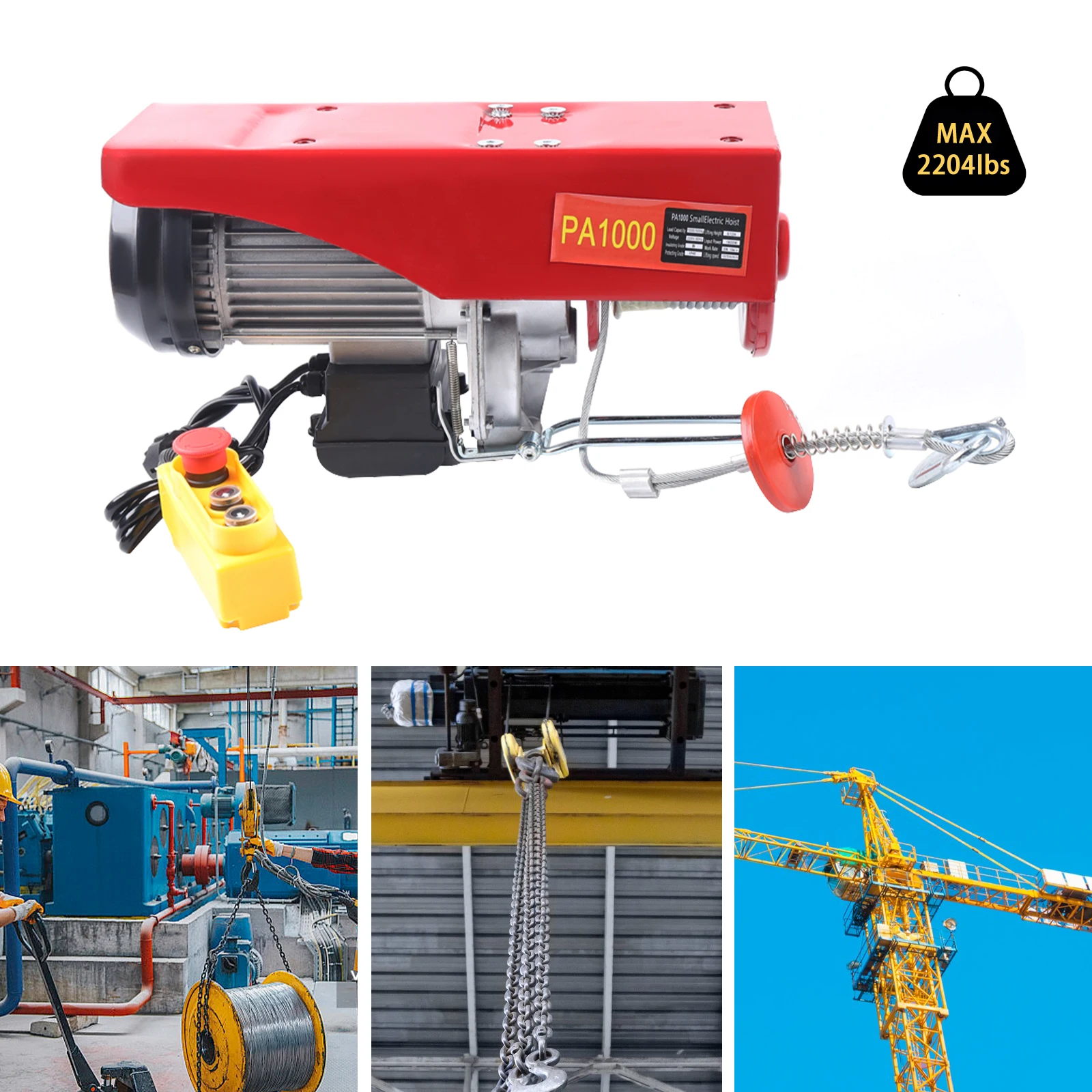

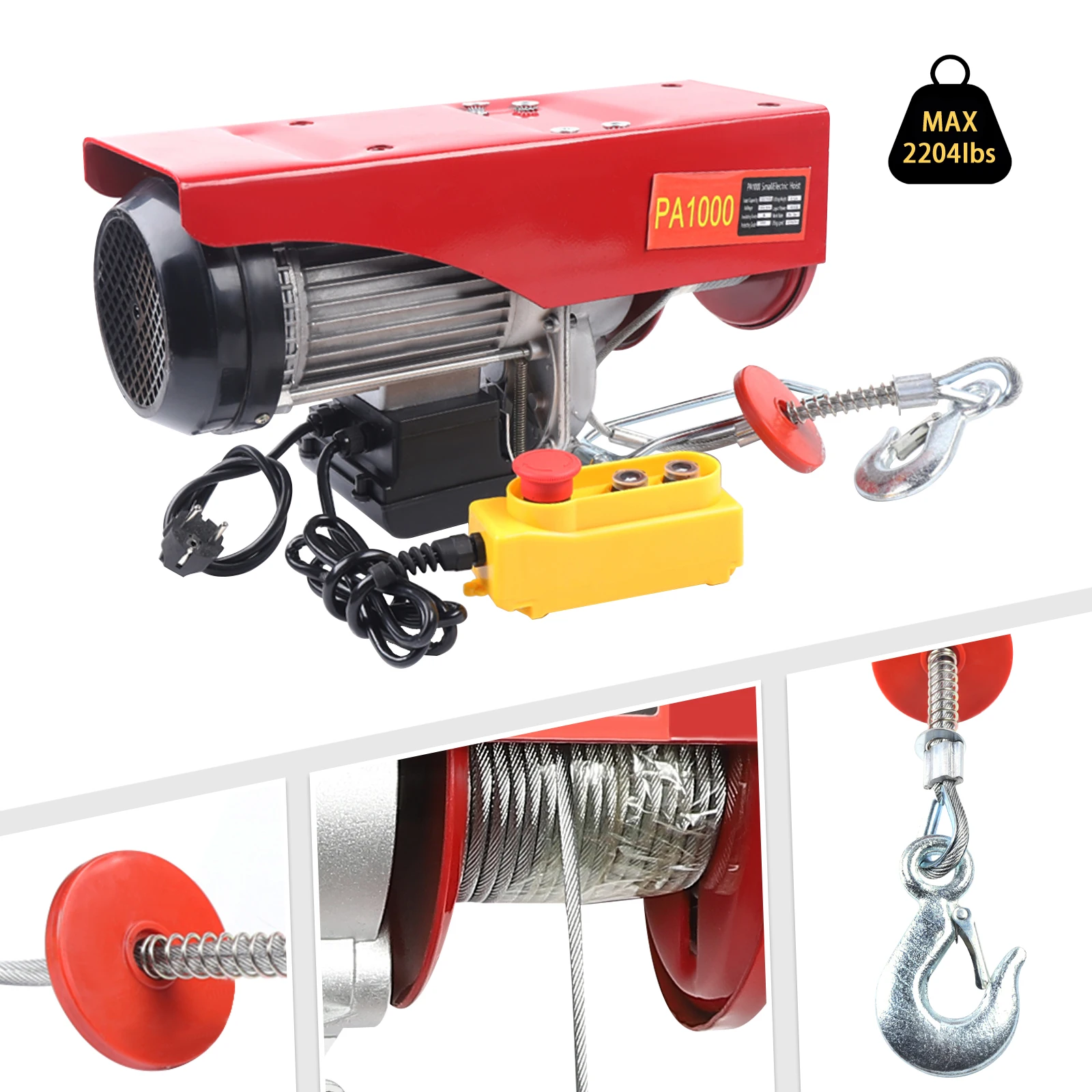

Model: PA1000 * 12 M
Assembly Required: Yes
Motor: 100% Pure Copper
Material: Iron, Aluminum
Lifting Mechanism: Electrical
Product Type: Load Bed Structure
Protecting Grade: IP40
Voltage: 220V
Power: 1600W
Frequency: 50Hz
Mating Capacitor: 60μF
Wire Rope Length: 12 m/39.37 ft
Wire Rope Diameter: 6mm/0.24in
Single Rope Lifting Height: 12 m/39.37ft
Lifting Weight: 500kg/1102.31lbs
Lifting Speed: 8m/min; 26.24ft/min
Double Rope Lifting Height: 6 m/19.69ft
Lifting Weight: 1000kg/2204.62lbs
Lifting Speed: 4m/min; 13.12ft/min
Gross Weight: 26.5kg/ 58.42 lbs
Net Weight: 25.8kg/ 56.88 lbs

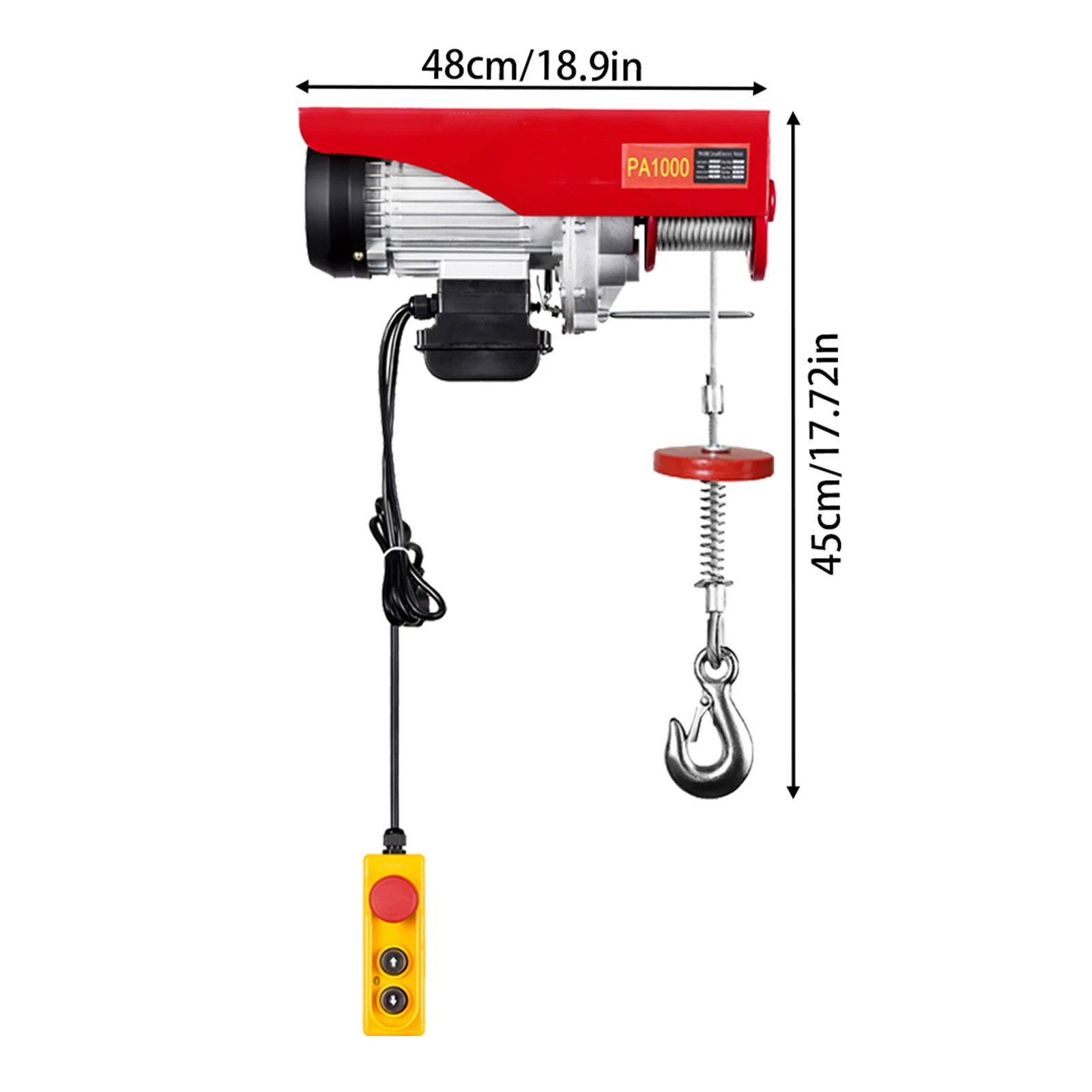

Product Size(L*H): 48*45cm/ 18.9*17*72 in

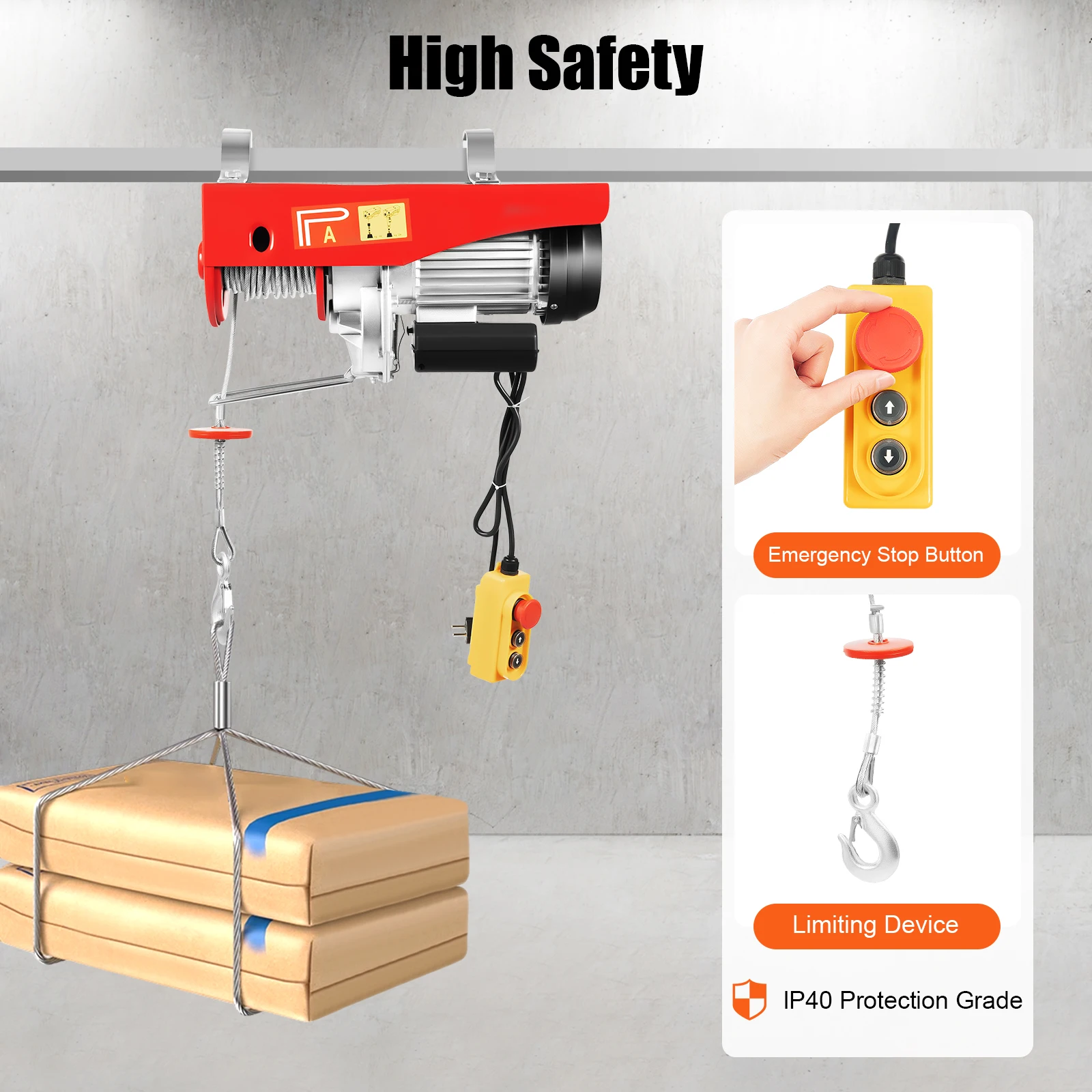

1. Safe&Reliable: This product has an overheat protection and an automatic braking function. There is a built-in safety brake mechanism so that you can simply press the red emergency stop button when required. The pure copper core motor adopts a longer insulated wire package, which can effectively resist high temperatures.

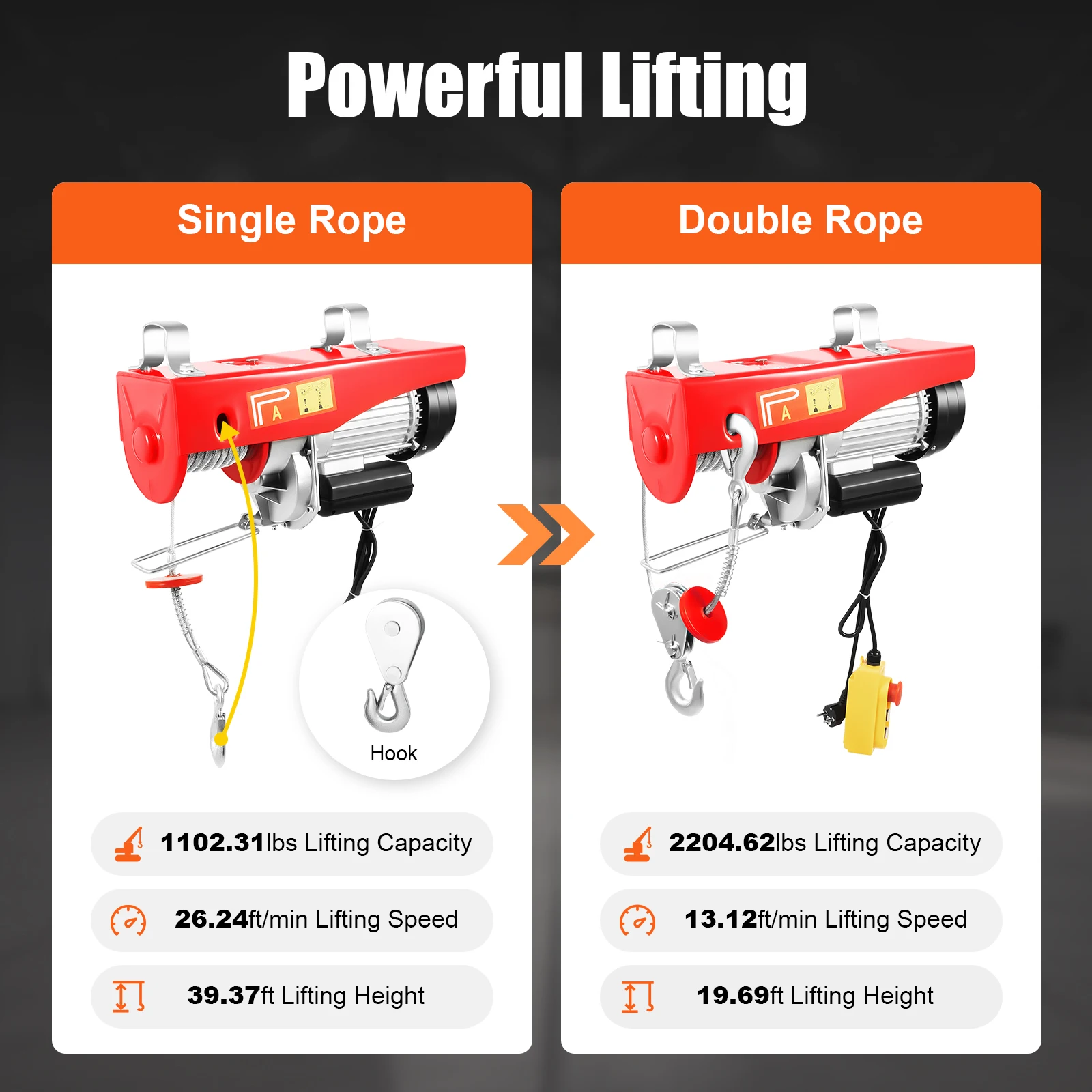

2. High Lifting Capacity: Thanks to the powerful motor and high-quality workmanship, this electric hoist meets various requirements for strength and rigidity. The load capacity is 1102 lbs on a single rope with a lifting speed of 26.24ft/min and 2204 lbs on a double rope with 13.12ft/min.

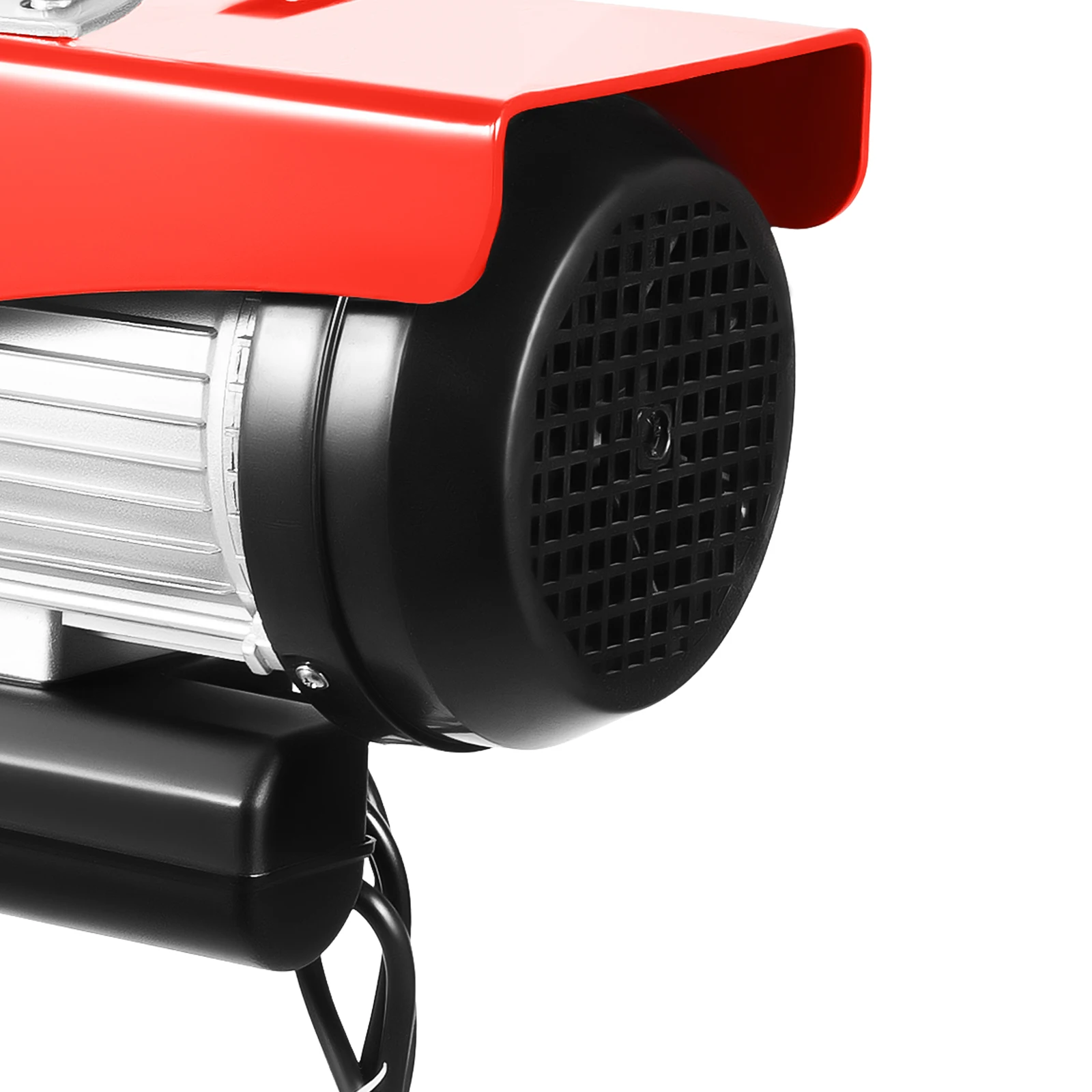

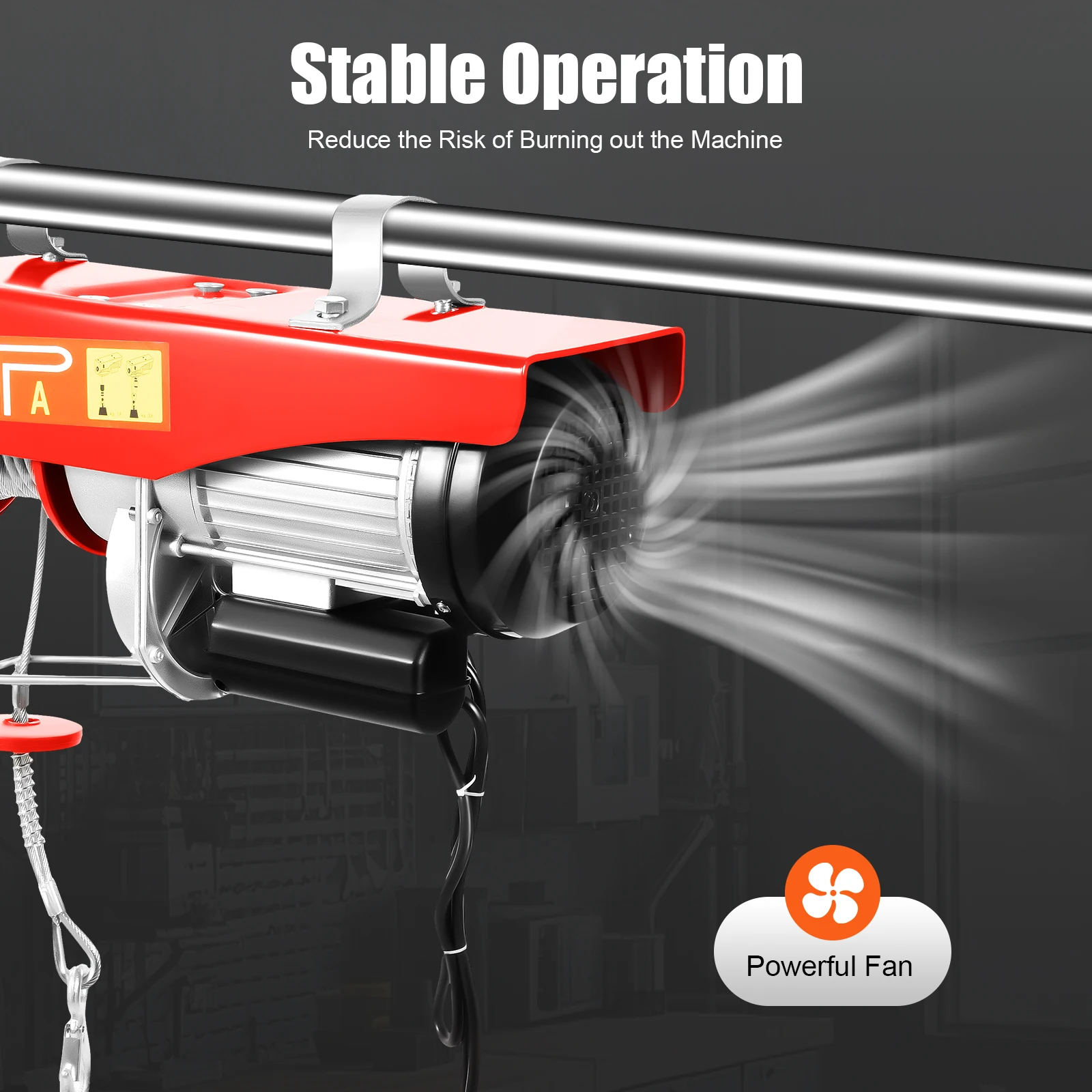

3.High Heat Dissipation Capability: This electric hoist has a built-in fan and mesh-type heat dissipation holes, which can quickly dissipate heat and reduce the risk of burning out the machine, ensuring the stable operation of the machine for a long time.

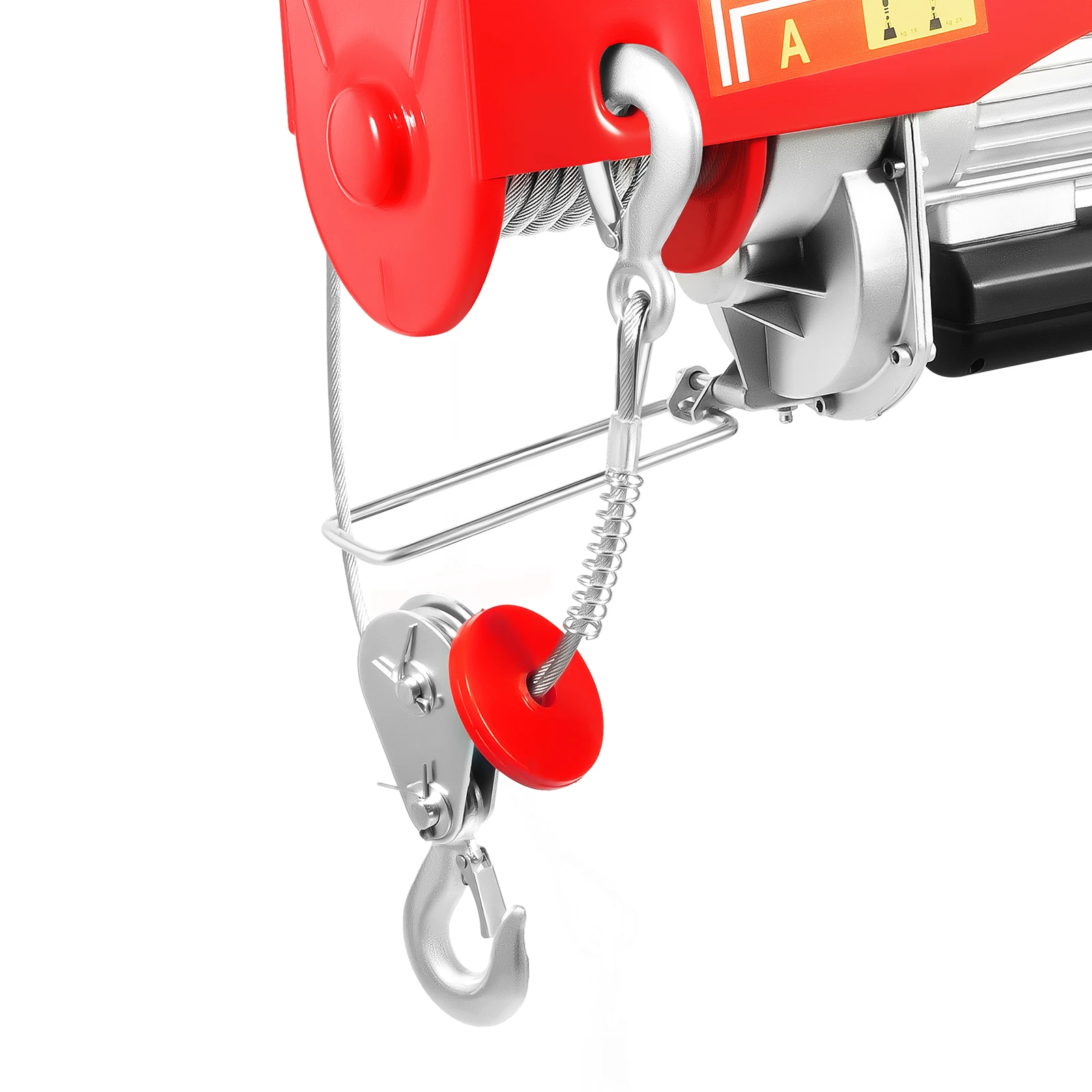

4. Stop Device: The product is equipped with an anti-rush top limiter, which can effectively prevent the wire rope from shaking from side to side, and will automatically cut off the power when the goods reach the top. It can avoid the condition of damage to the machine caused by lifting too high.

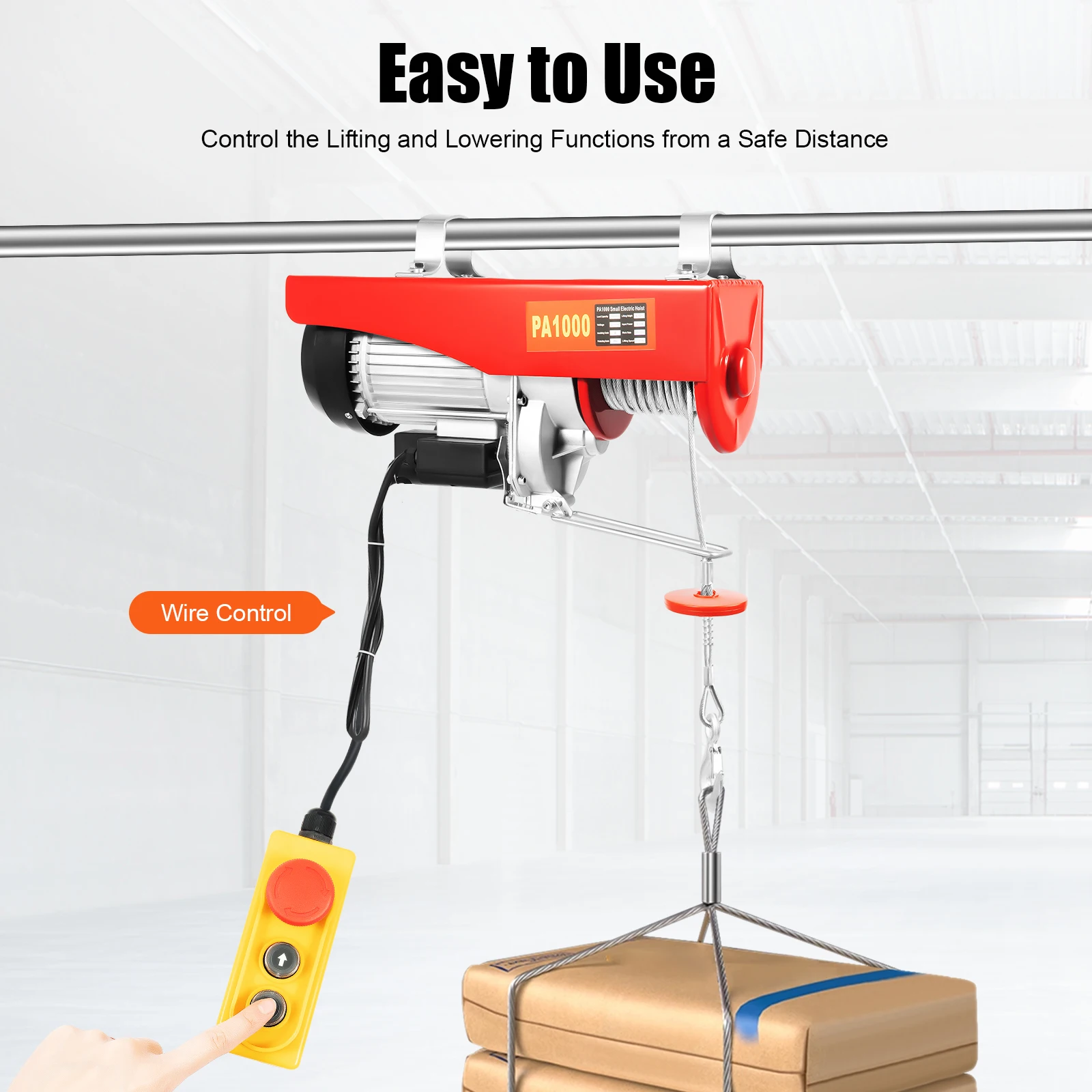

How to Use

It starts with a metal or solid wood pole to provide enough weight to suspend the crane from the ceiling indoors or outdoors.

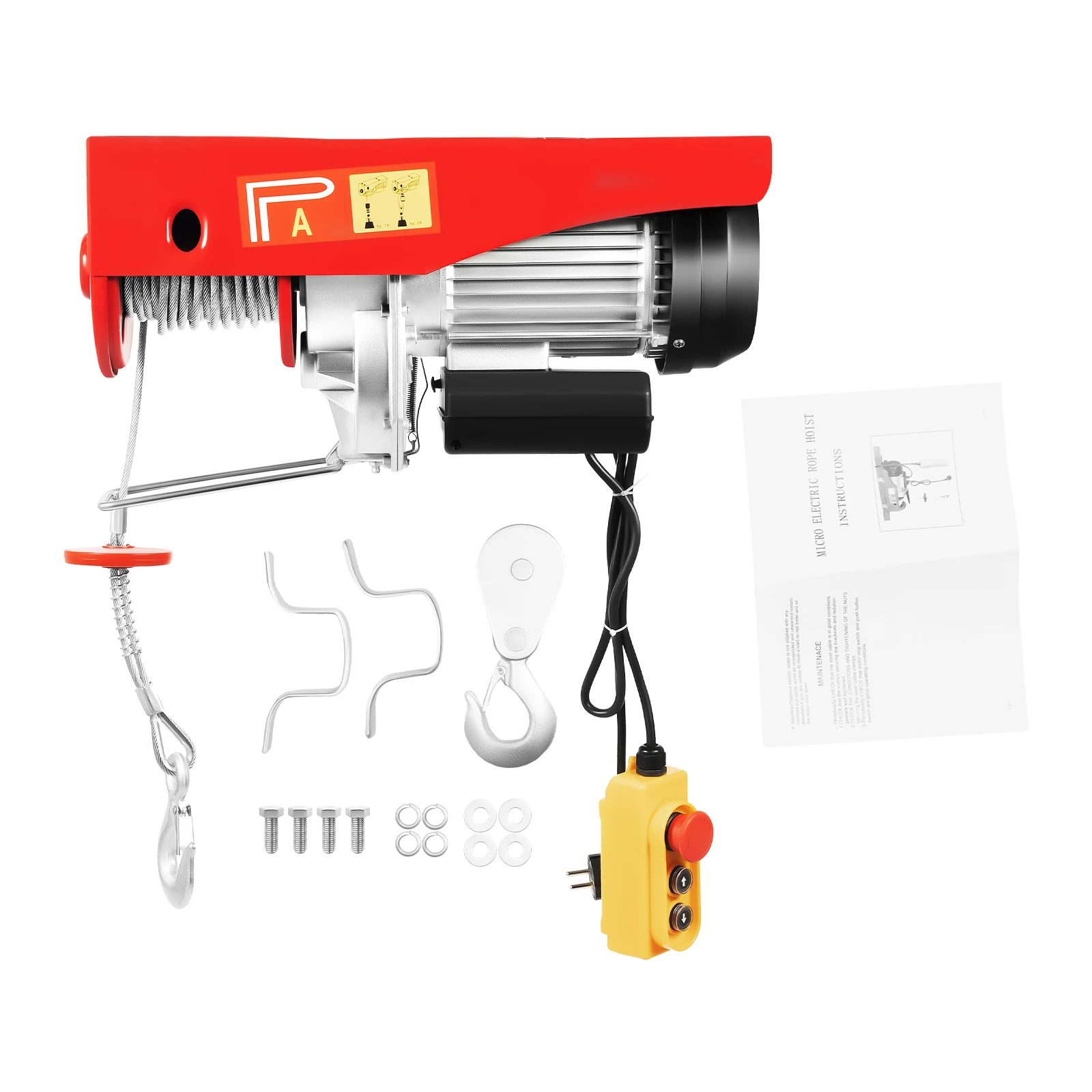

Package Included

1 * Lift Electric Hoist

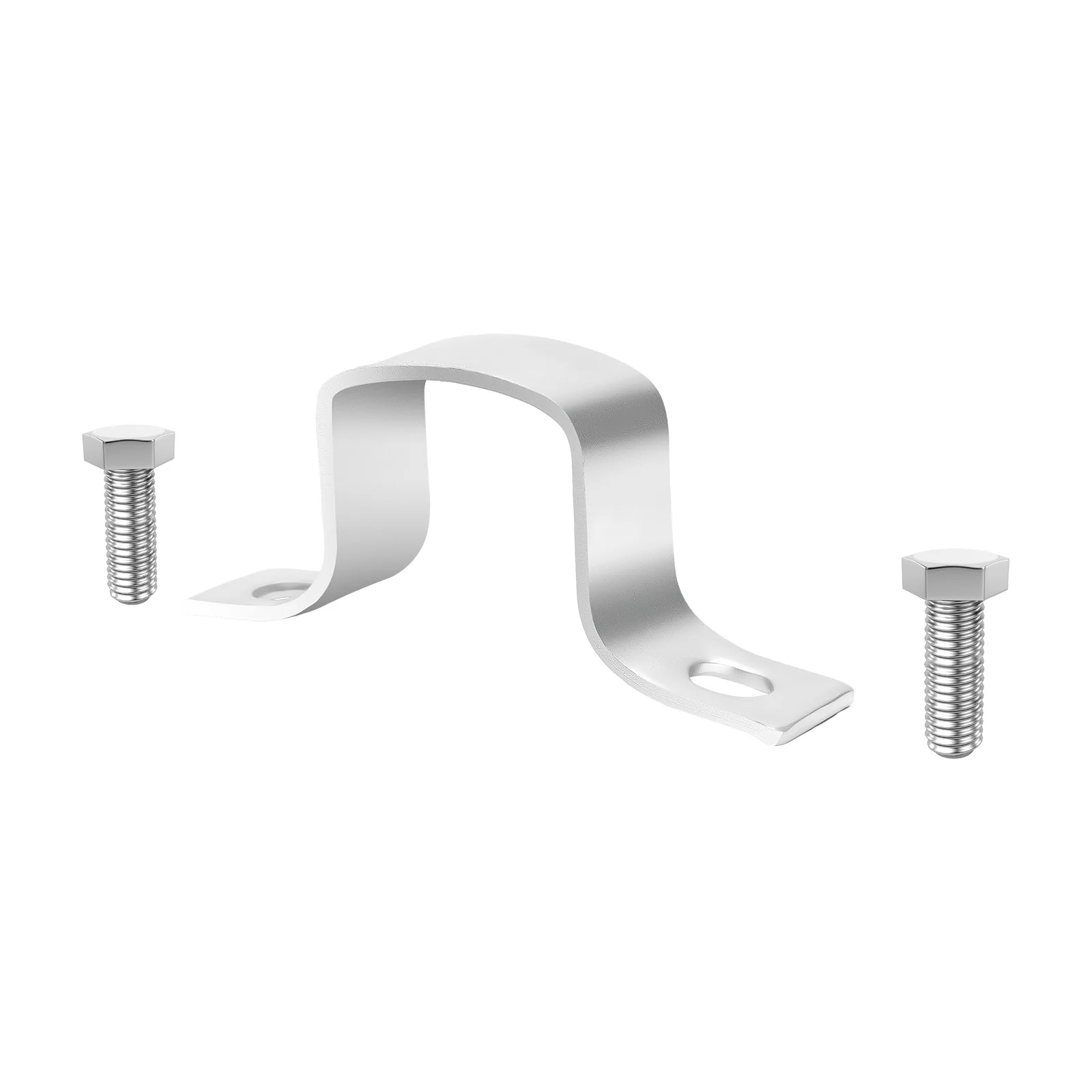

All Accessories for Installation

Details
