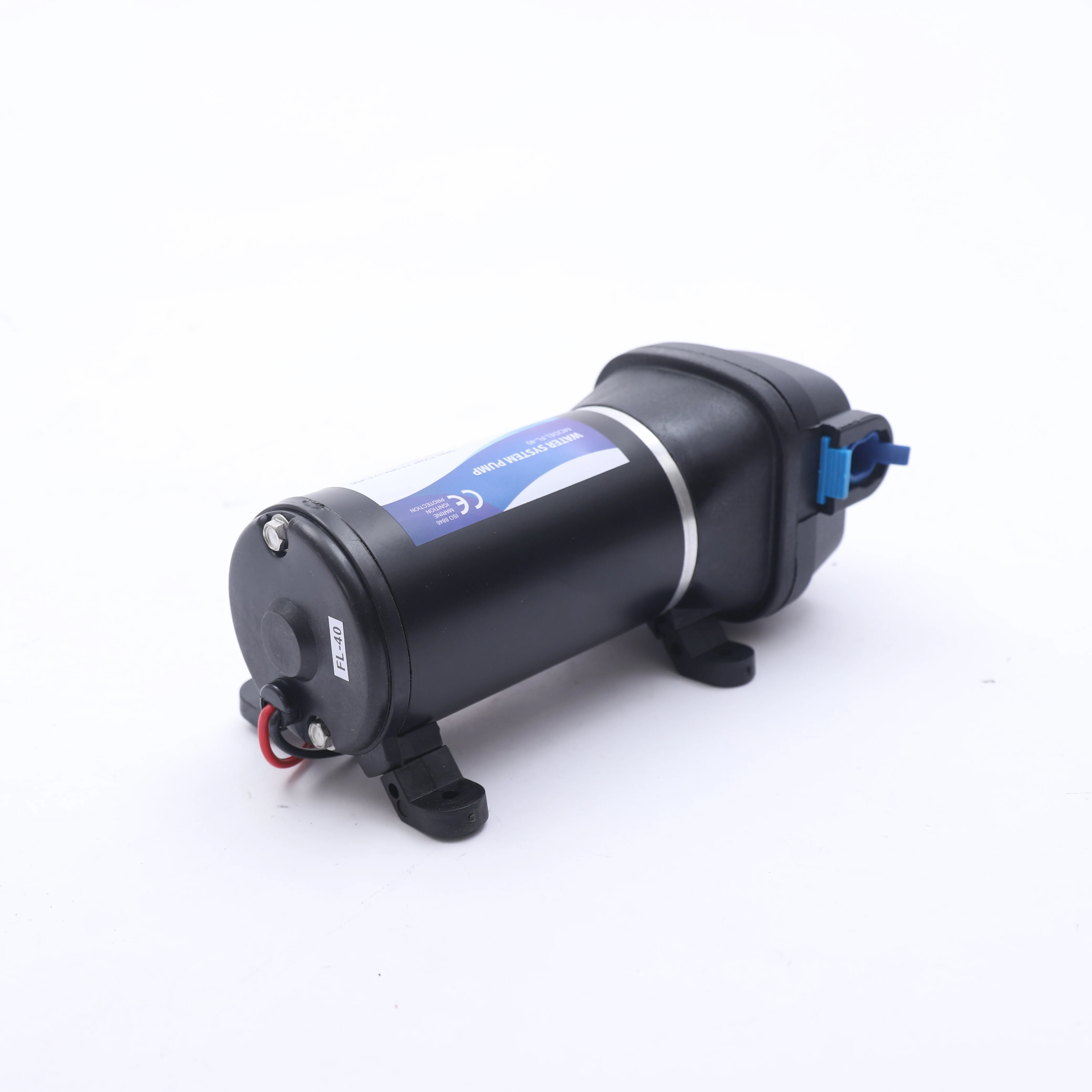

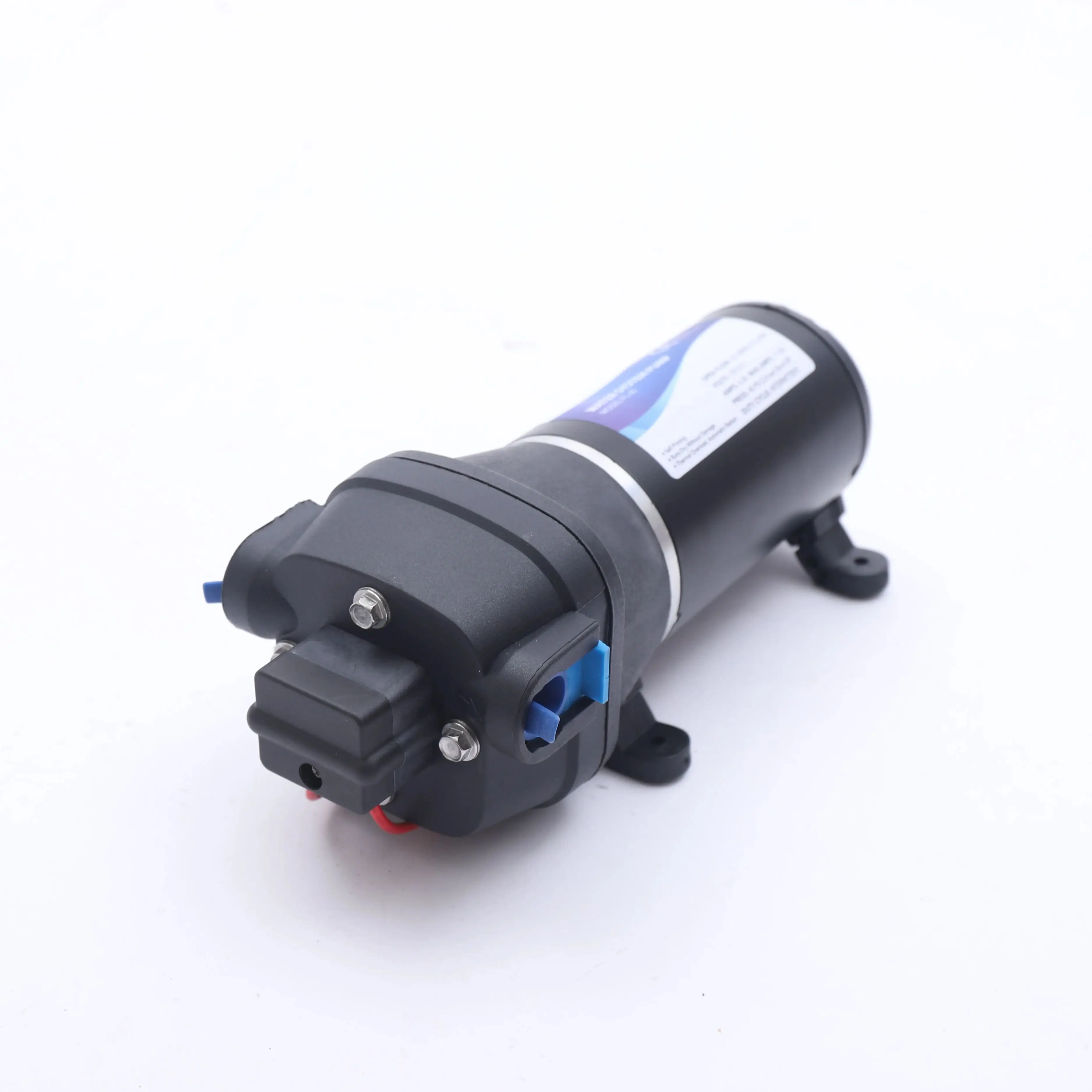

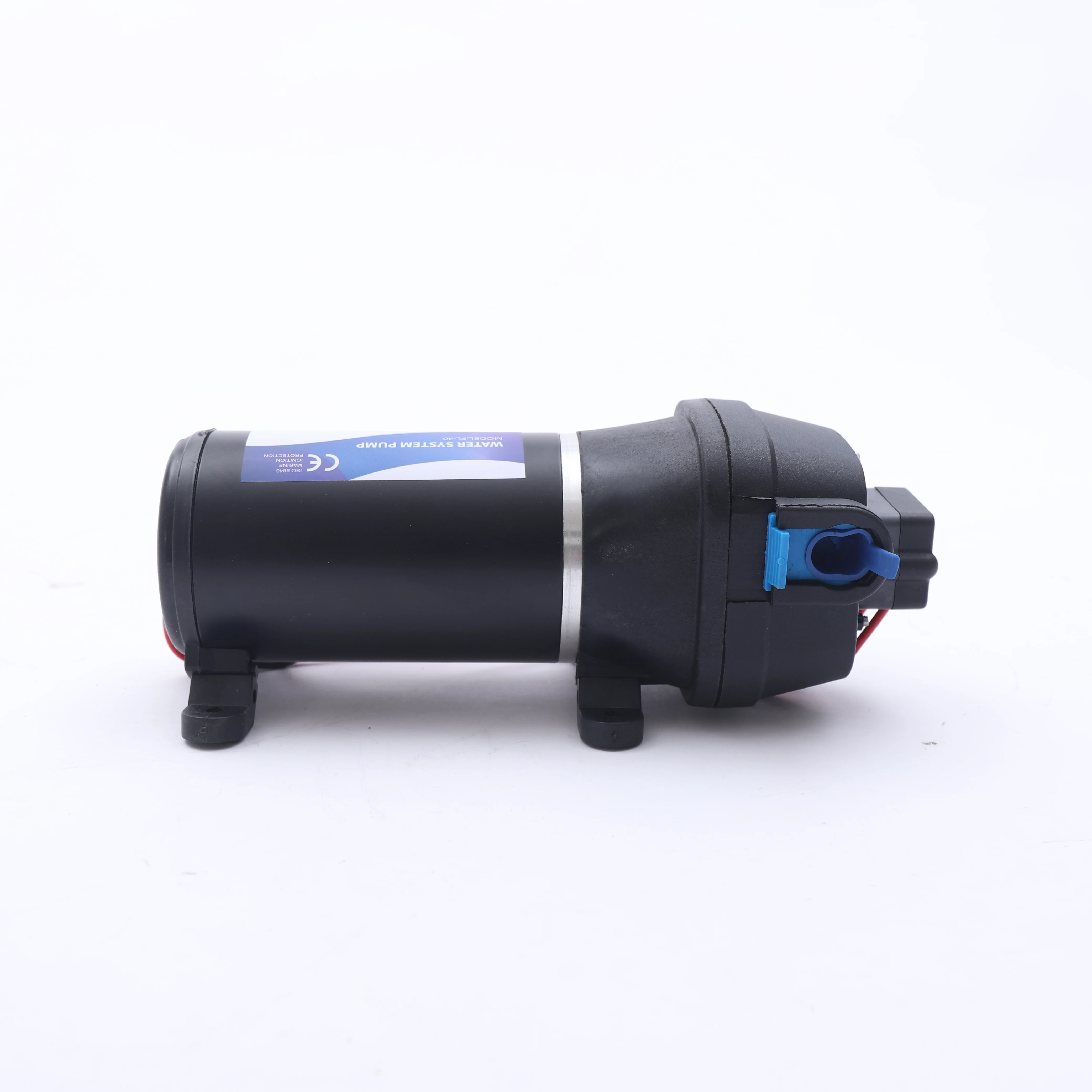

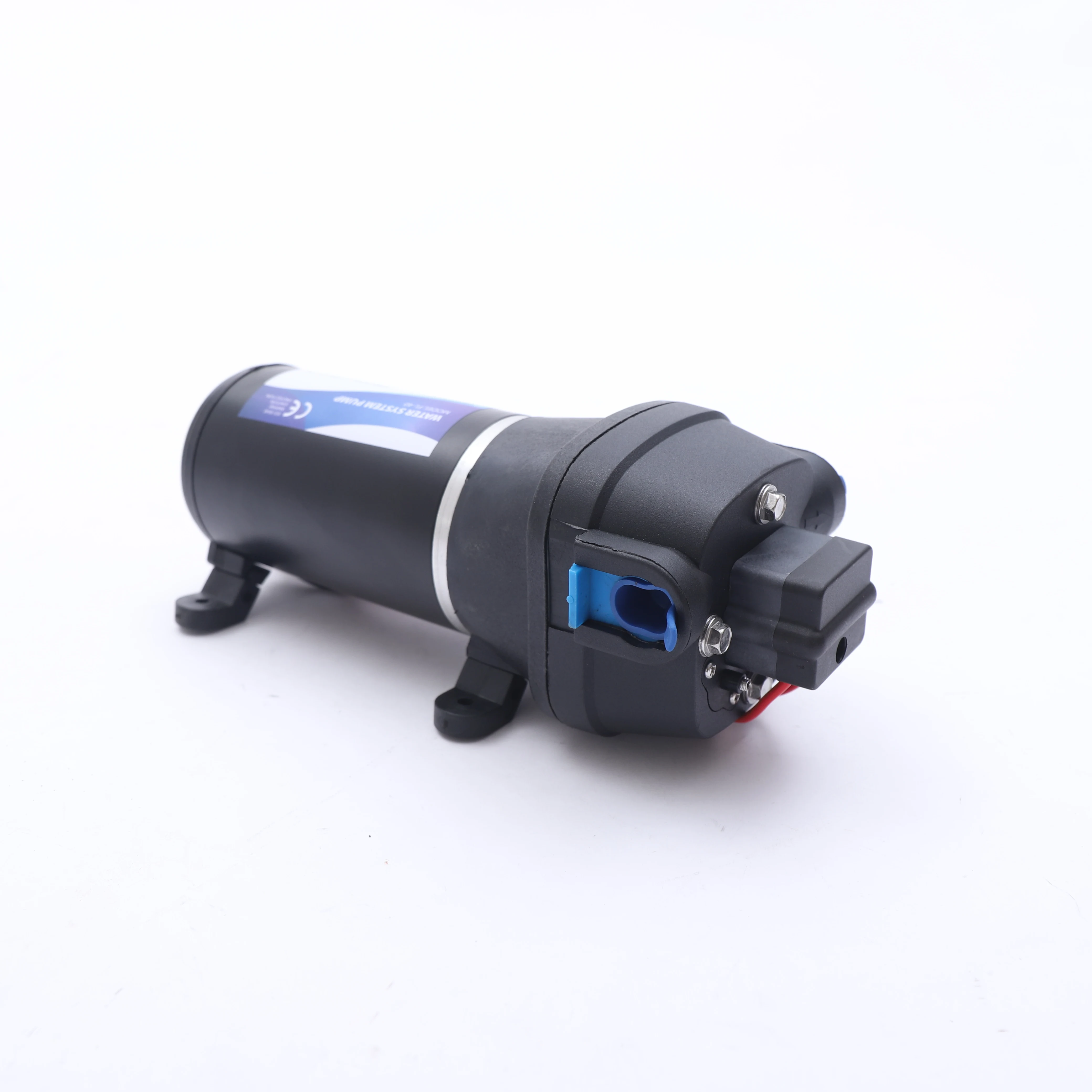

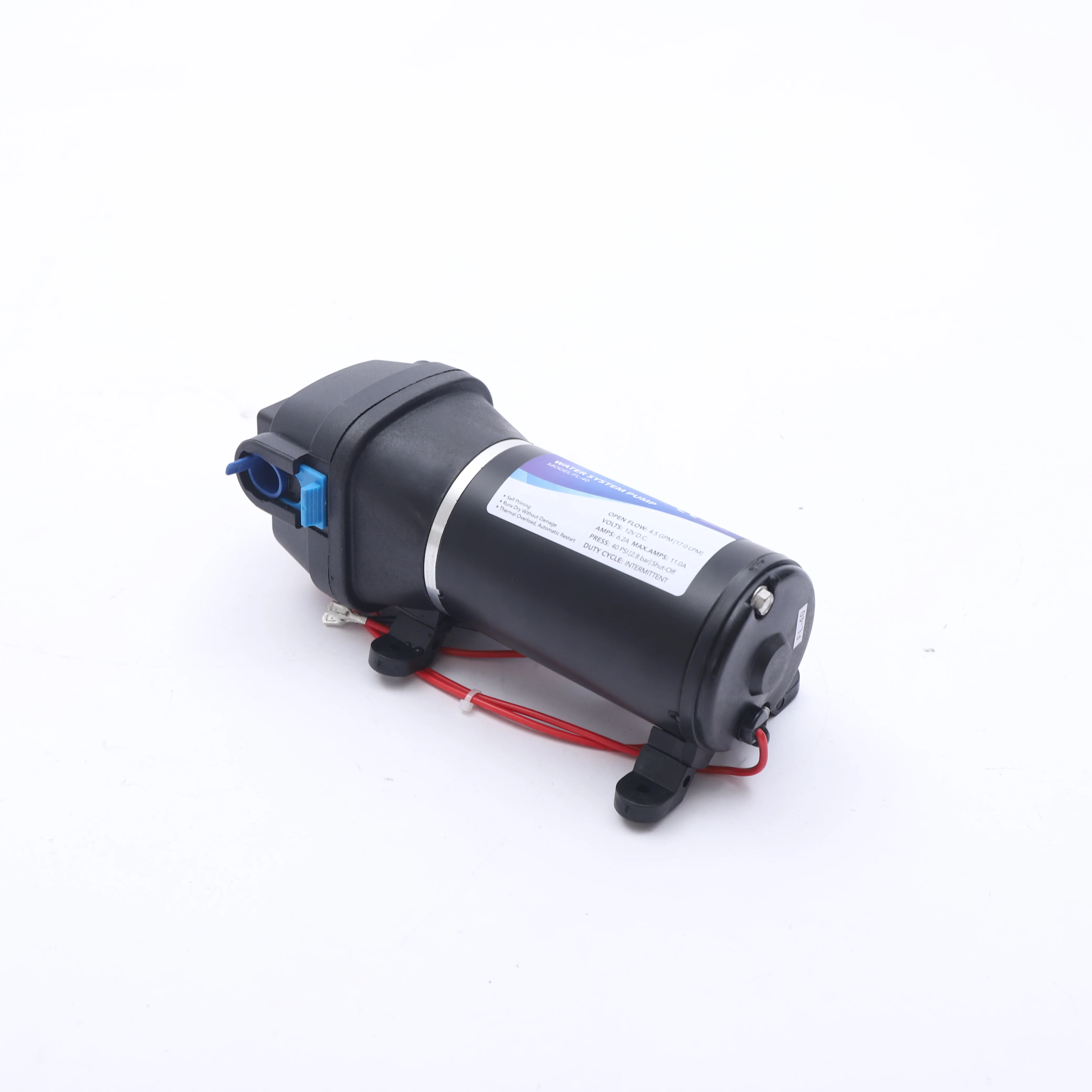

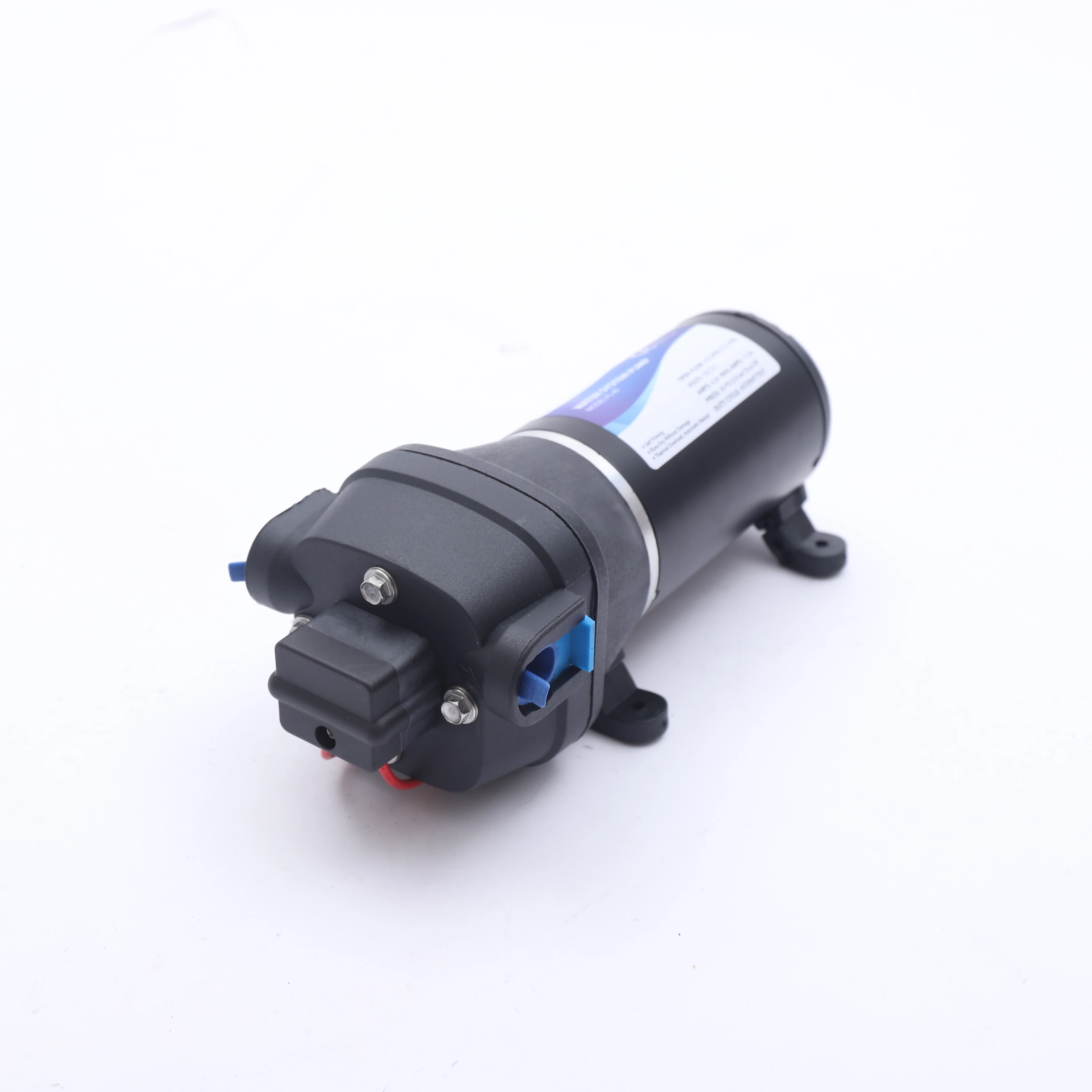

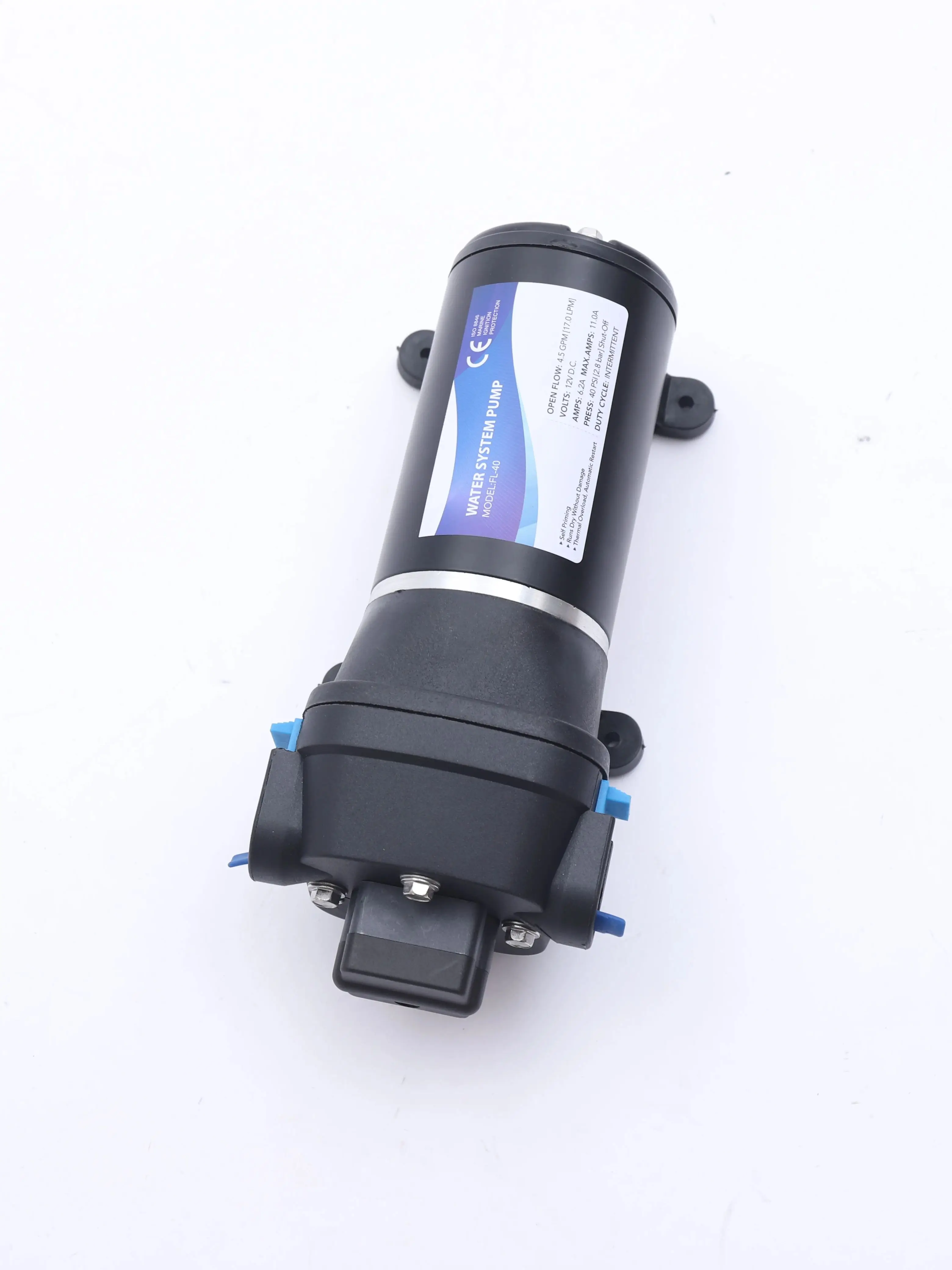

12V Electric Water Transfer Pump 28m Lift Booster Pump With Filter Self-priming Diaphragm Pump With Automatic Pressure Switch

This booster pump adopts an energy-efficient motor with a stable output of 132 watts strong power, instantly boosting the pressure of the water flow for high-rises or areas with insufficient water pressure. With it, you can enjoy a smooth shower like a waterfall. Easy to install and simple to maintain, it is the ideal choice for modern families to upgrade their bathing life.

Specification

Mount Type: Freestanding
Assembly Required: Yes
Material: PA66, Fiberglass, All Aluminum, Rubber, Metal, 304 Stainless Steel
Color: Black
Control Method: Pressure Switch (Fully Automatic Start-Stop)
Insulation Class: B
Heat Resistance: 130℃/266℉
Noise: Around 55-60 dB
Motor Type: Pure Copper Motor
Valve & Seal Material: NBR, EPDM
Voltage: 12V DC
Current: 6.2A
Maximum Current: 11A
Adjustable Shut Off Pressure: Approx. 2.8-6.0kgf/cm²/2.75-5.88bar
Adjustable Pressure Range: Approx. 2.8-6.0kgf/cm²/2.75-5.88bar
Ambient Temperature: ≤50℃/122℉
Medium Temperature: 0~65℃/32~149℉
Medium PH: 5.0-7.5
Duty Cycle: Intermittent
Suction Range: 3m/9.84ft
Maximum Lift: 28m/91.86ft
Flow Rate: 17 LPM/4.5 GPM
Power: 132W
Connector I.D.: 12.7mm/0.5in
Connector O.D.: 20mm/0.79in
Product Size: 25.1*10.3*10.1cm/9.9*4.1*3.98in
Package Size: 37*13*11cm/14.57*5.12*4.33in
Gross Weight: 2.7kg/5.95lbs
Net Weight: 2.57kg/5.67lbs

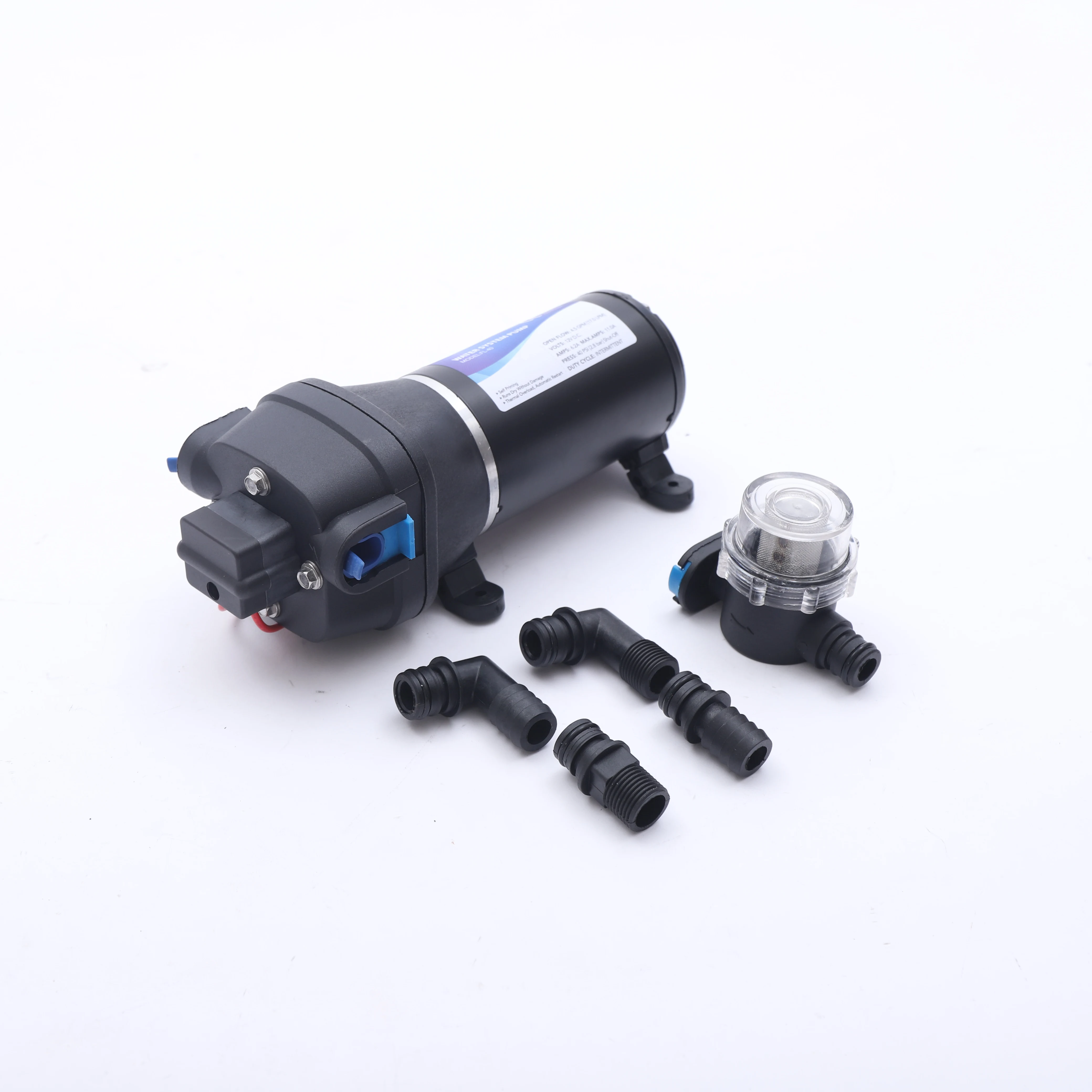

Package Included

1* Booster Pump

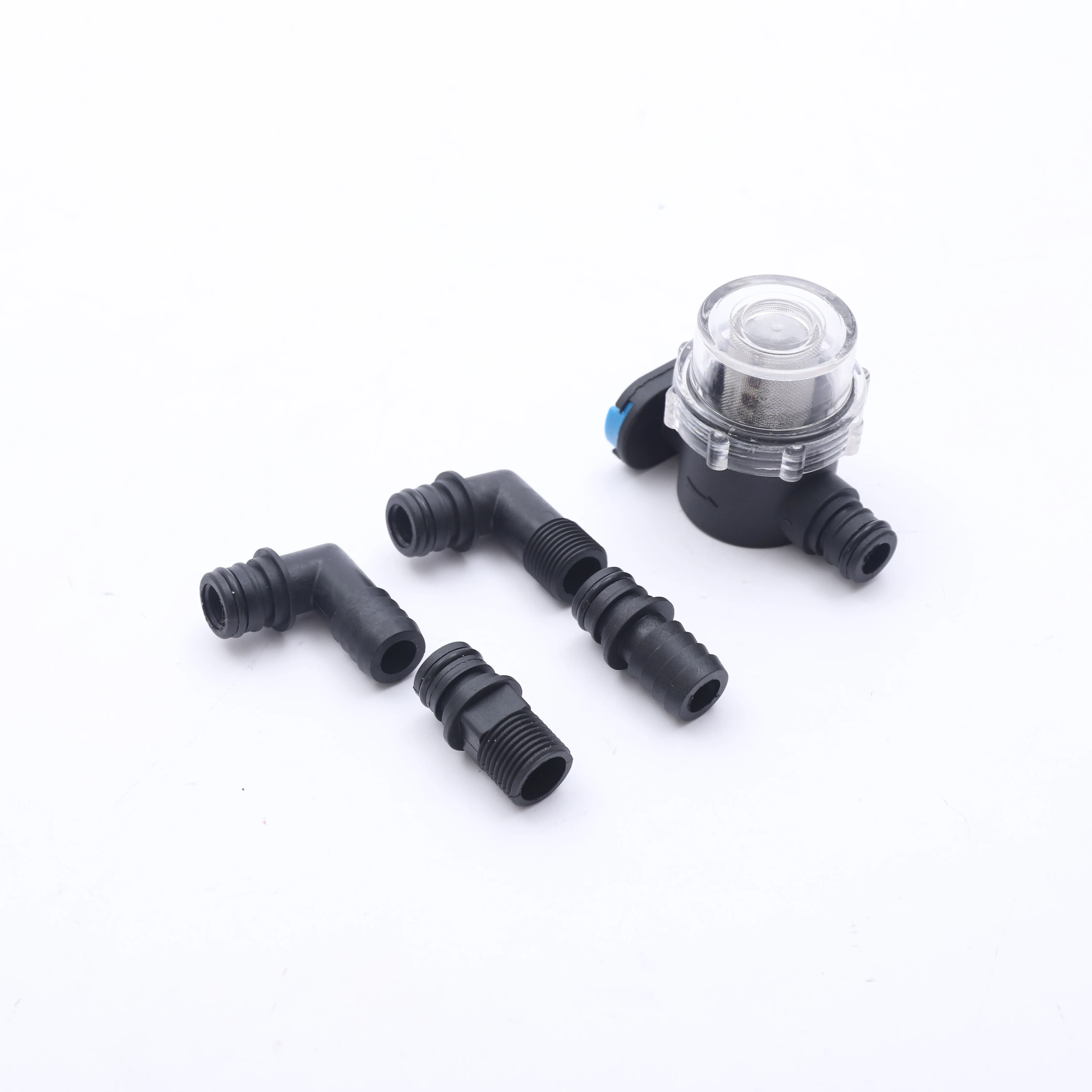

4* Connectors

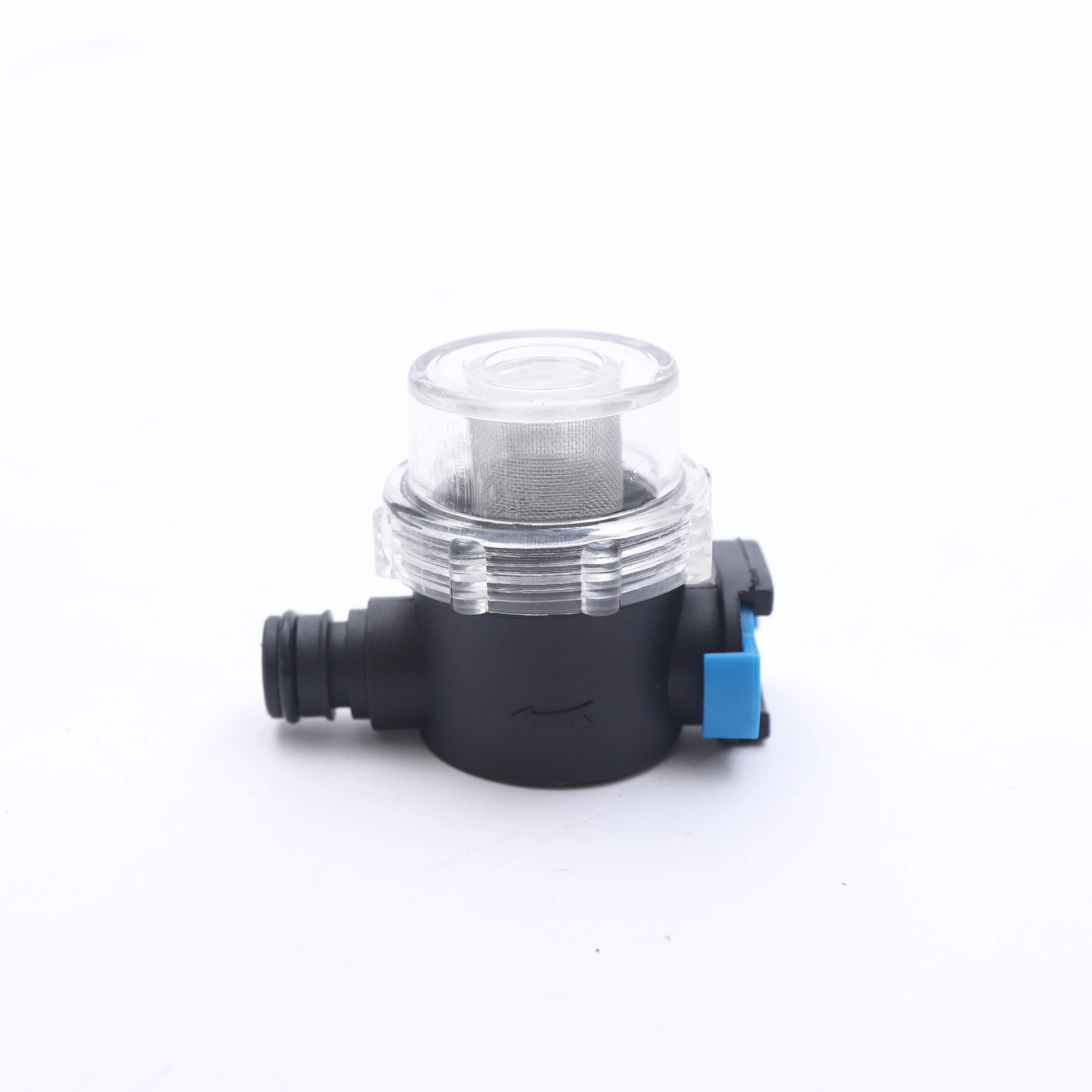

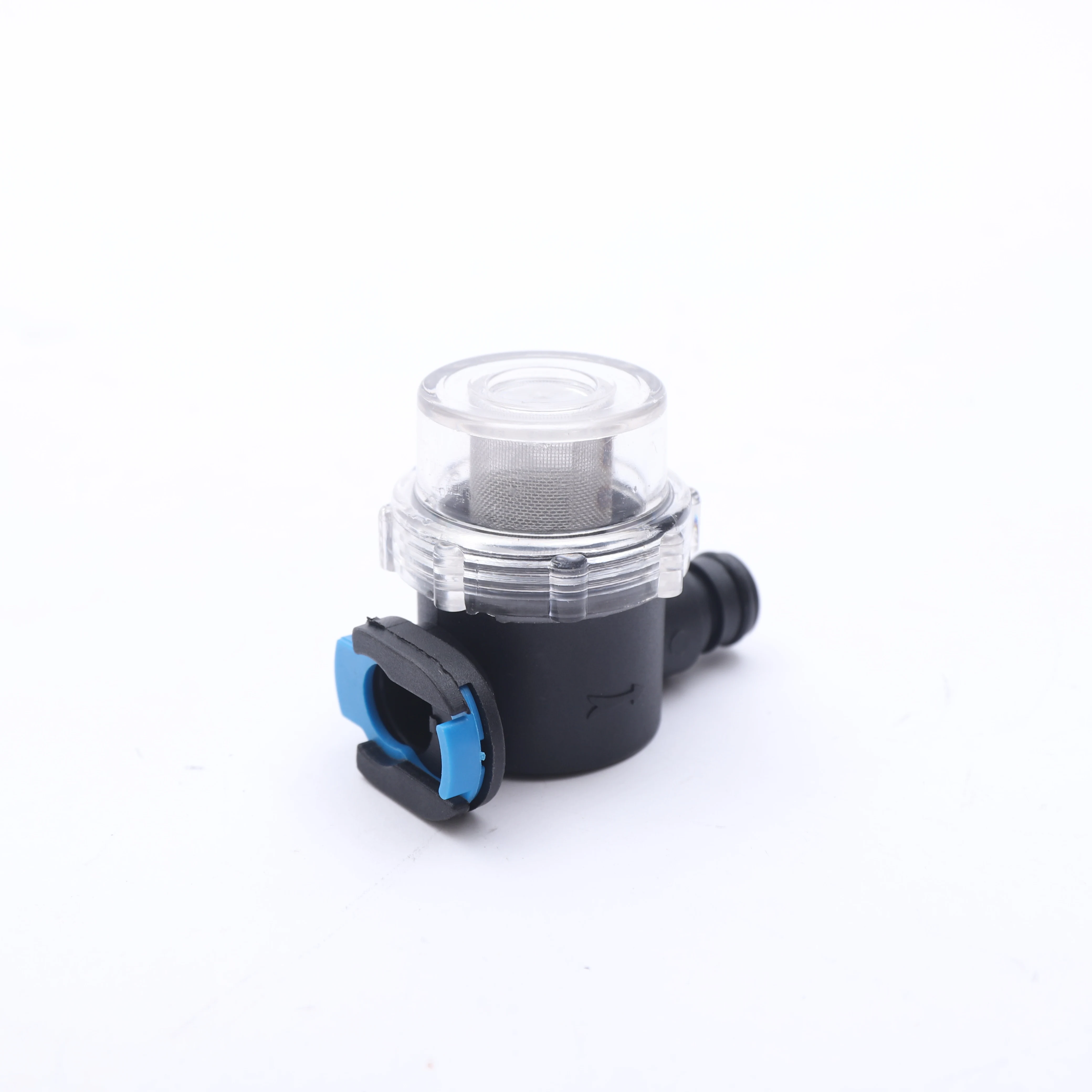

1* Filter

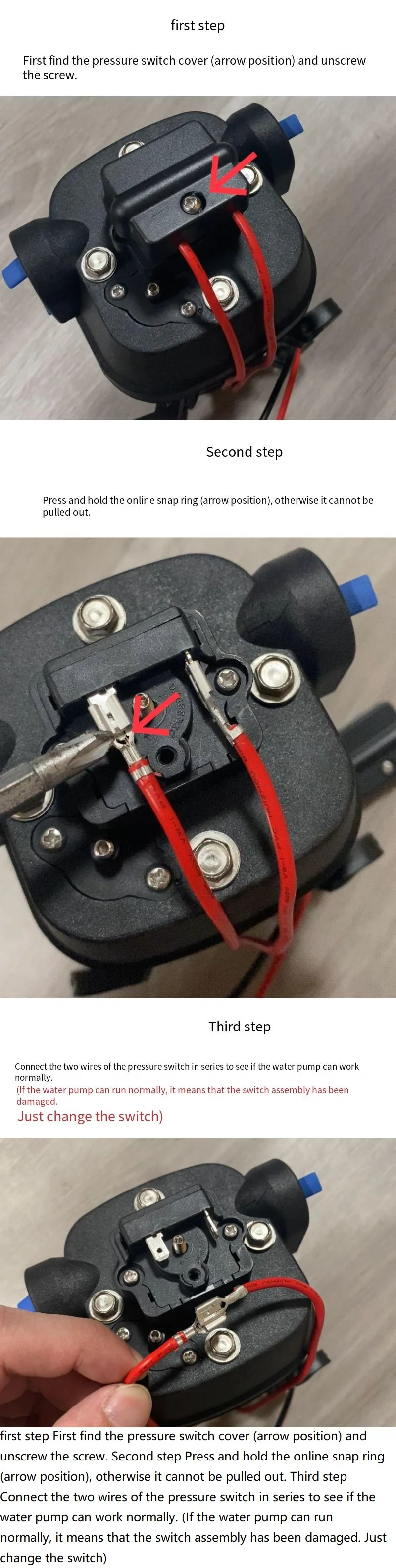

Diagram of non-functioning check

Notes

1.Please check the style and size before purchasing.
2.If the pump is to be used in an environment with sewage, be sure to use it with a filter installed at the water inlet!
3.Please do not use the pump in a flammable environment.
4.Please do not use the pump for pumping flammable and explosive liquids, including gasoline, petrol, motor oil, and kerosene.
5.Please note that this product has an adjustable shut-off pressure.
6.Please adjust the pump to the applicable pressure and do not exceed the set value, otherwise, the motor will be overloaded for a short period, which will activate the temperature control protection device!
7.The pump can be used to pump media containing solid impurities of ≤0.1% by volume and particles not larger than 0.01 inch.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
