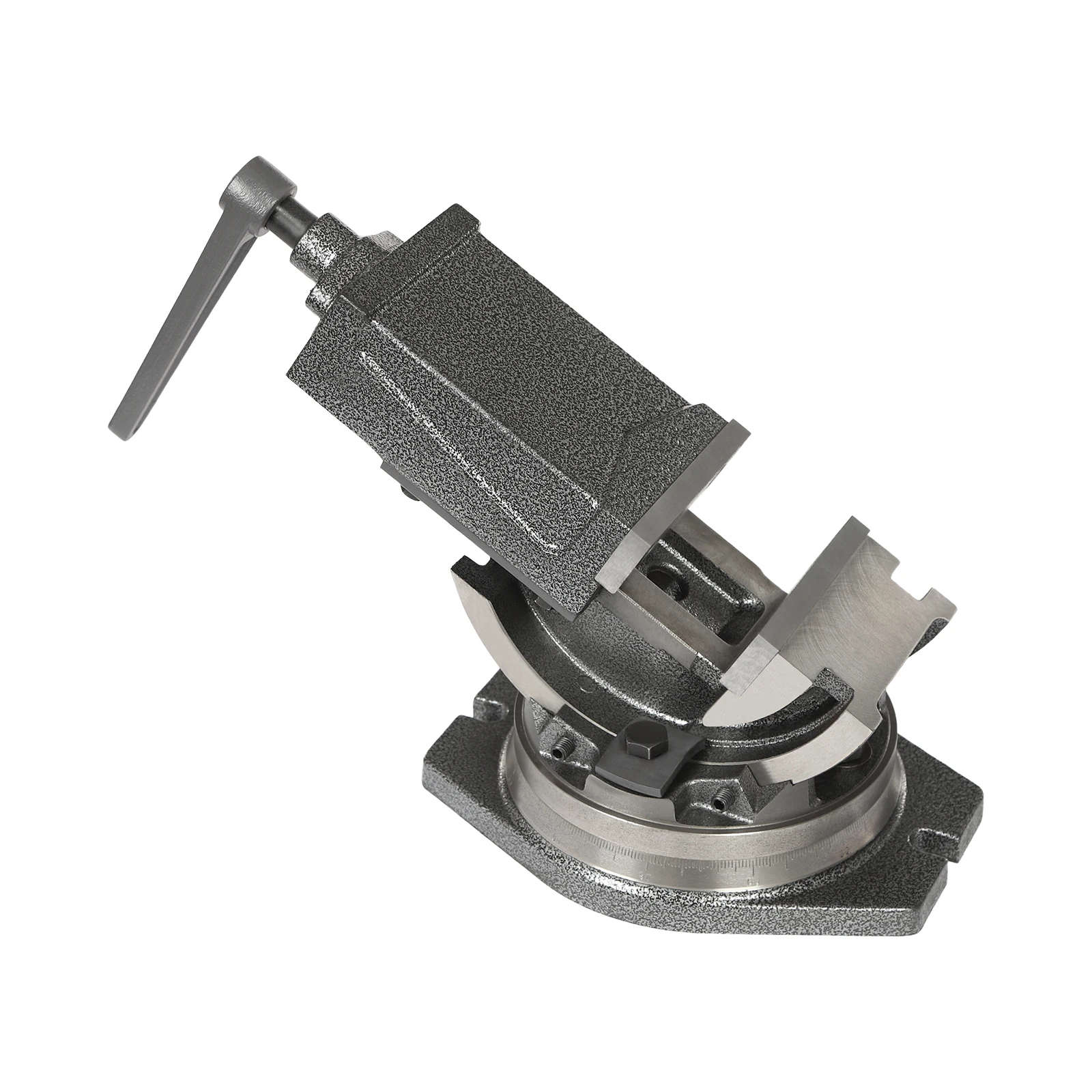

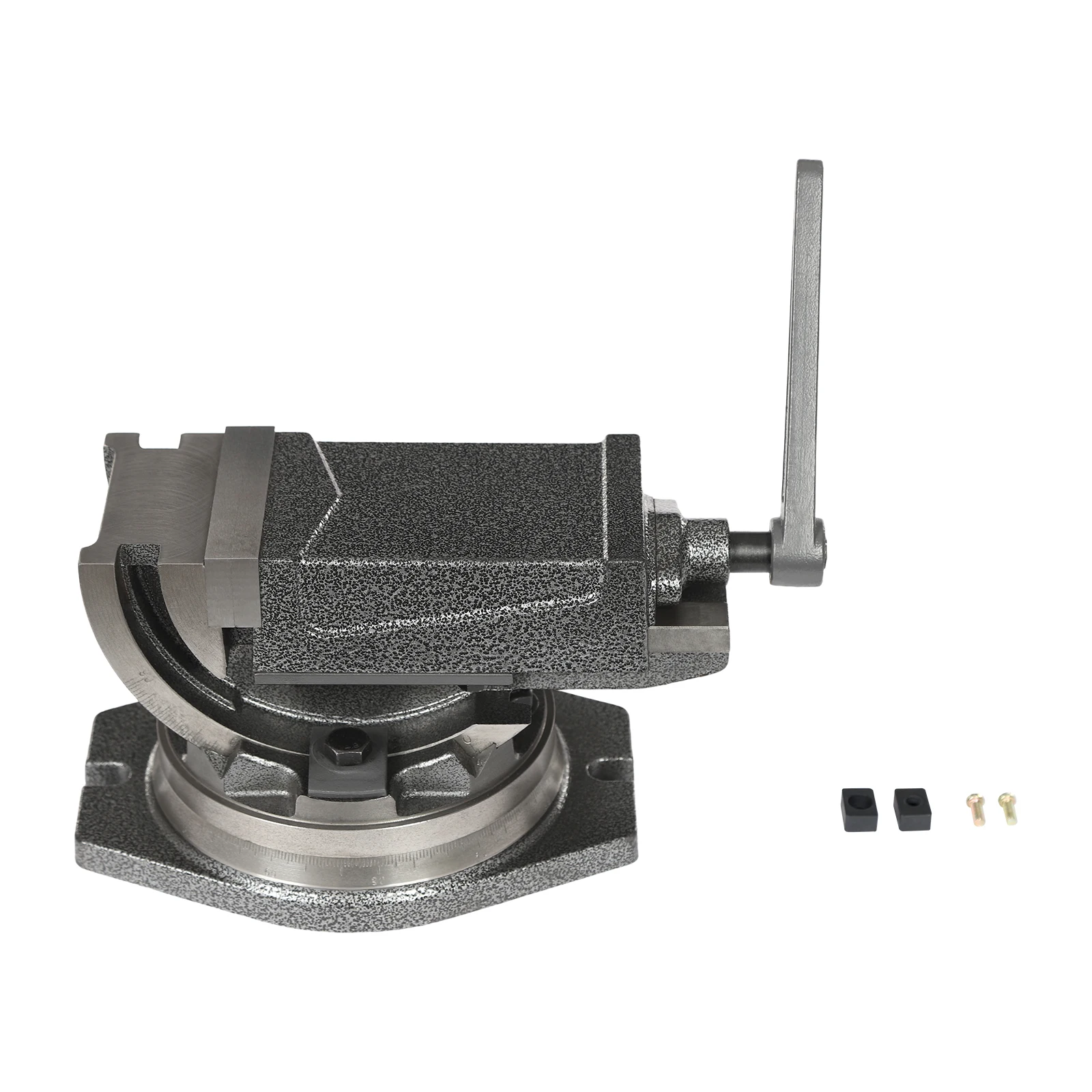

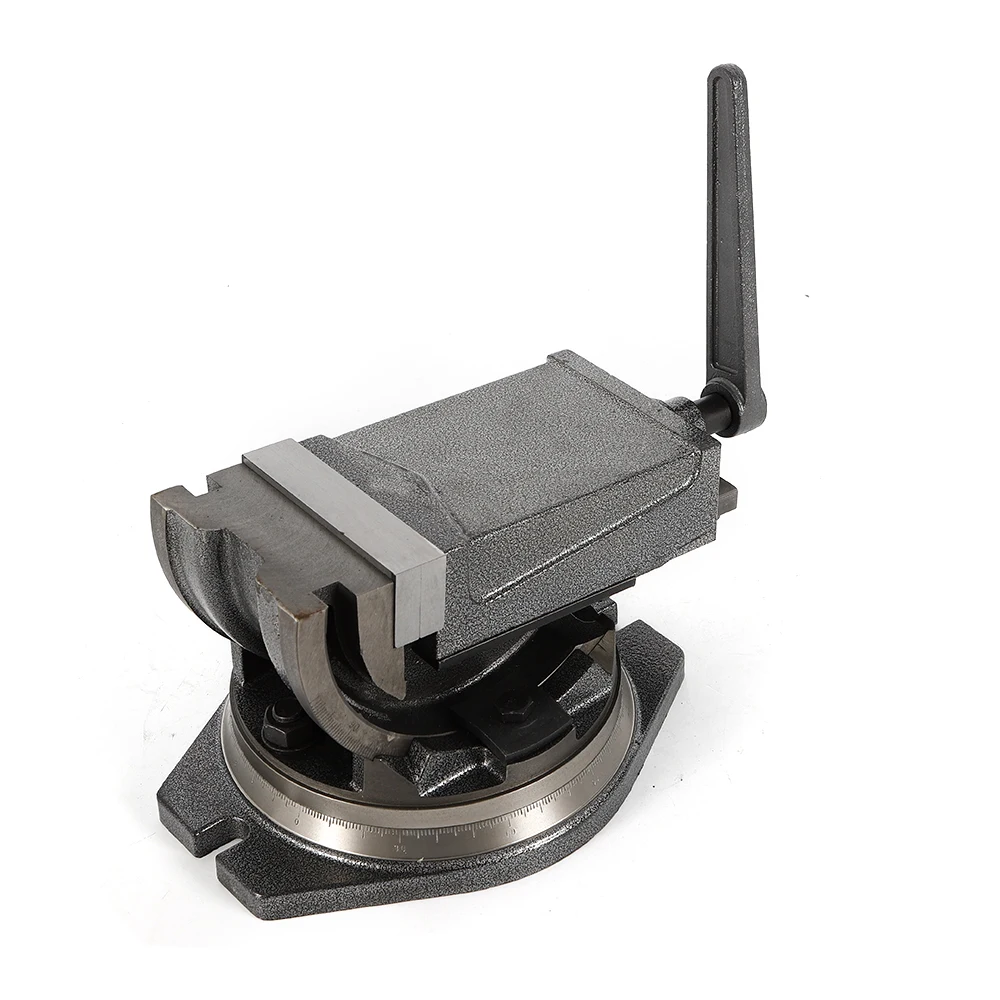

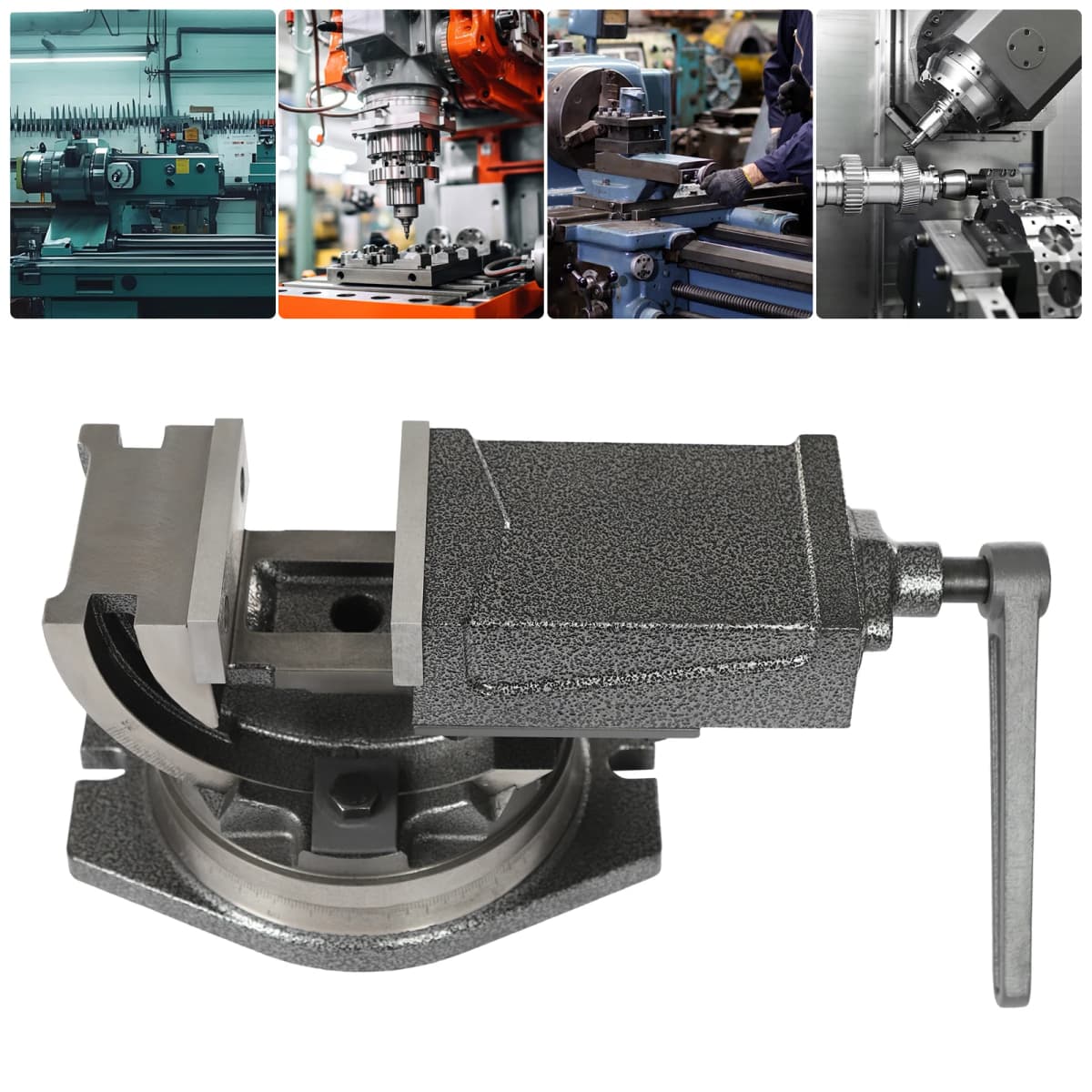

4/5Inch Drill Press Vise Household Vise Workbench Multi-Functional Heavy-Duty Bench Vice Machine

This artisanal bench vise has a maximum clamping force of up to 19/24KN and an opening of up to 3.15/3.74 inches, making it suitable for working in confined spaces. It can be tilted and locked from 0-90° from horizontal to vertical positions, and the 360° swivel chassis also allows you to rotate and lock it easily, providing the best angle for your work. There can be a 0-90° standard size scale at the tilting guide of the clamp body and the angle scale on the chassis, the scale is clearly visible, which is convenient for you to accurately align and make your machining more precise.

Application

It is suitable for grinding machines, milling machines, home, workshop, factory, and professional use. It can be used, for example, for cutting pipes, drilling, gluing, woodworking, metalworking, sewing, and also for precision work, such as rivets, watches, and jewelry. The mounting vise on the workbench, then you could do the work of grinding, clamping, fixing, etc.

4 in Specifications

Color: Silver
Material: Cast Iron
Process: Plastic Spraying
Operation Type: Manual
Crimping Force: Max. 19KN
Parallelism of the Two Jaws and Perpendicularity to the Rail Surface: <0.025mm
,100mm/3.94in
Jaw Width: 10.16cm/4 in
Max Opening Size: 80mm/3.15in
Installation Slot Distance: 20.5cm/8.07in
Product Size: 30*24*15cm/11.81*9.45*5.9in
Package Size: 65*21*20cm/25.59*8.27*7.87in
Gross Weight: 16.75kg/36.93lb
Net Weight: 15.08kg/33.25lbs

5 in Specifications

Jaw Width: 5 inch (125 mm)
Jaw Opening: 3.74 inch (95 mm)
Clamp Vise Height: 6.5 inch (165 mm)
Jaw Height: 1.8 inch (46 mm)
Base Swivel: 360º
Tilting Angle: 90º
Clamping Force: 24 KN max
Jaw Hardness: 48 HRC
Gross Weight: 55 lb (25 kg)
Package Dimensions (L x W x H): 16.5" x 9.8" x 7.5" (42 x 25 x 19 cm)

Package Included

1 x Bench Vise
Other Accessories for Use

Notes

Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
