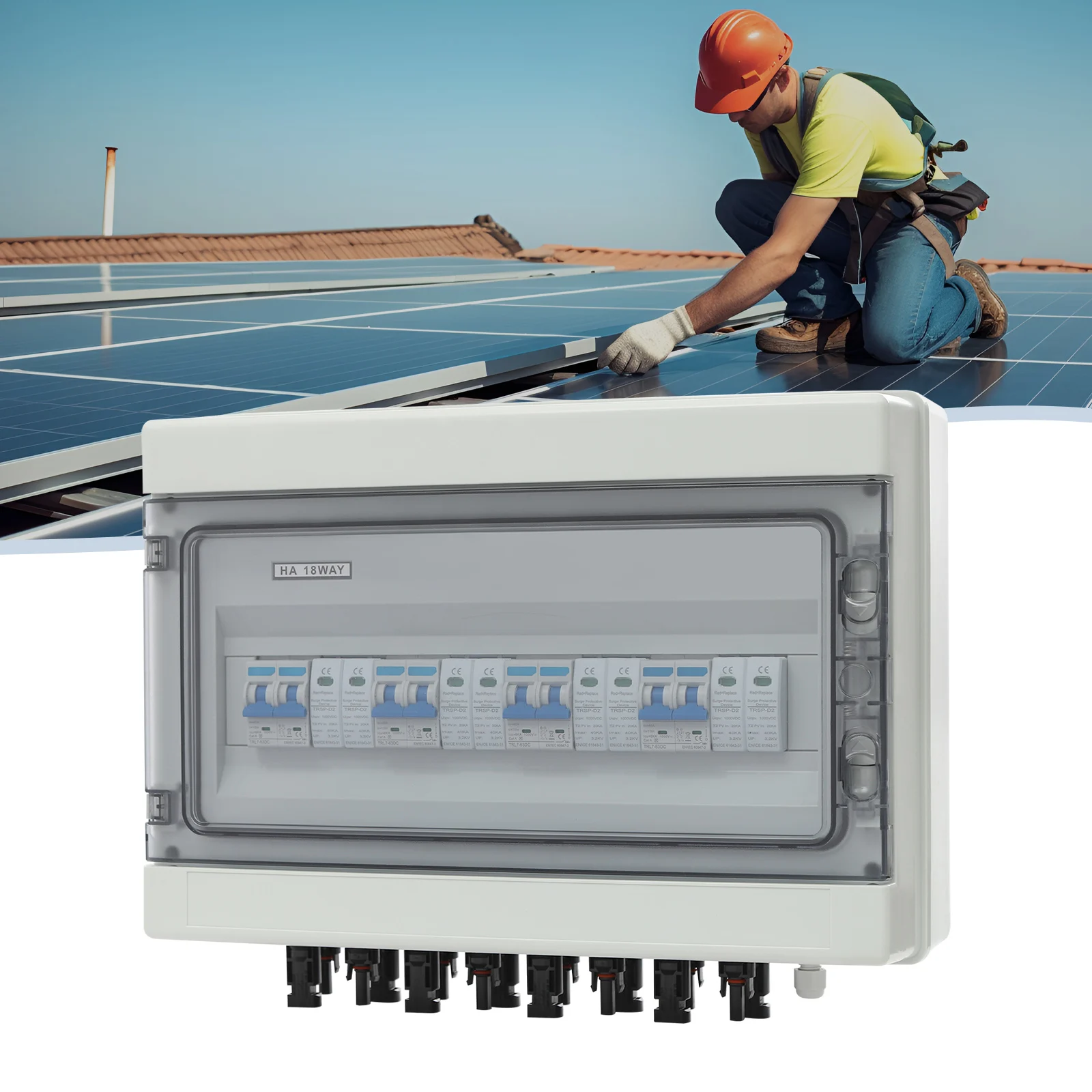

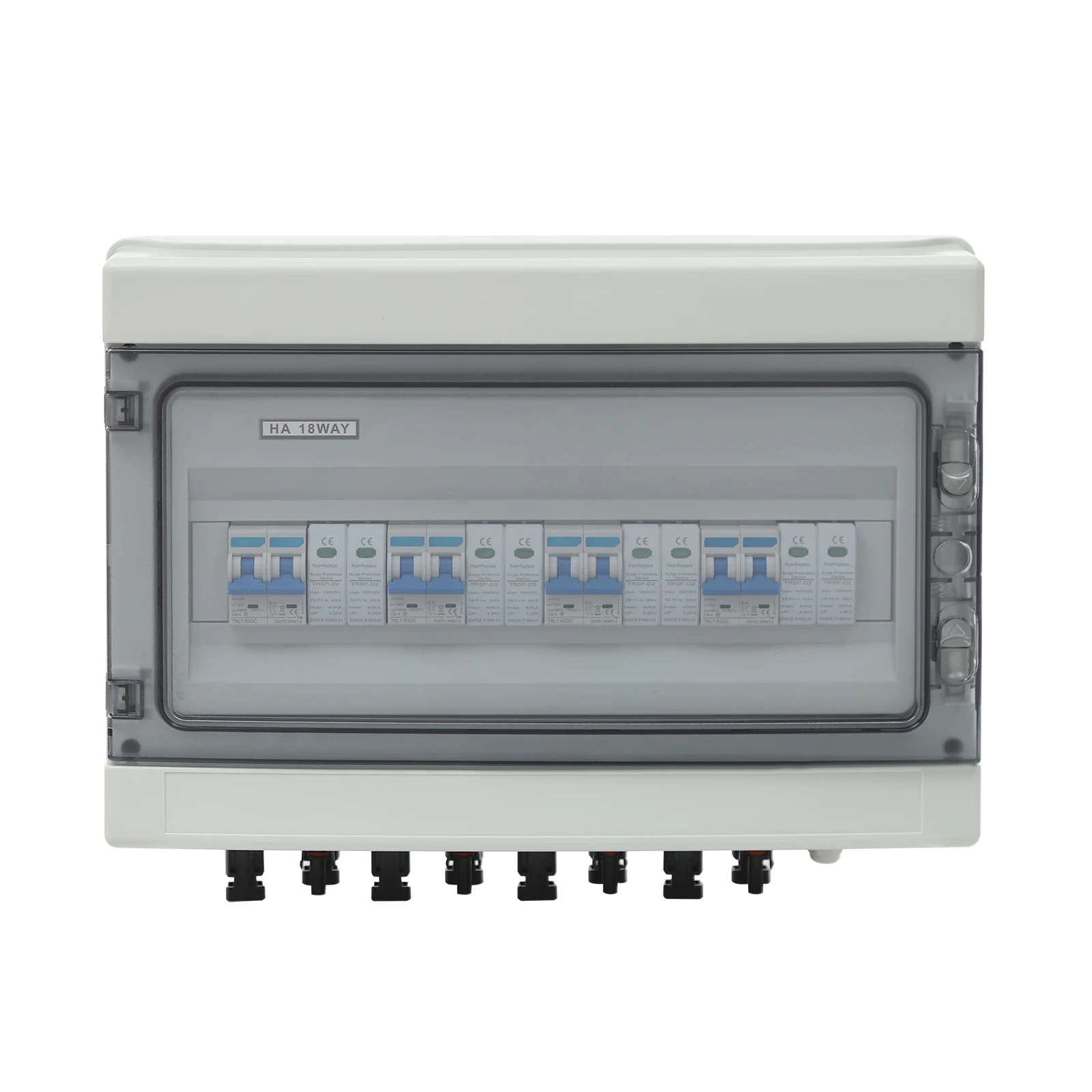

1000V Solar DC PV Combiner Box 4 in 4 Out Isolator Switch Box, 16*MC4 Terminals, IP65 Waterproof Overvoltage Protection 40A

Our solar combiner box can quickly connect your photovoltaic cables in an efficient and safe manner, ensuring unobstructed energy transfer. It is not only a sign of engineering excellence, but also a symbol of commitment to a sustainable energy future. Through this exquisite design, we contribute to building a green and environmentally friendly living environment.

⚡Key Features

Build to Last: It is made of PC+ABS, making it robust, wear-resistant, impact-resistant, environmentally friendly, safe, and has a long service life.

Powerful Function: It protects amplifiers from damage caused by overload current or voltage and protects power supplies from short circuits that can cause battery ruptures and explosions.

Two Types of Wiring: It has two types of connection (type A: faster and safer connection to solar panels is achieved through the solar plug, which is plug-and-play; type B: direct wiring through waterproof connectors and terminals) for your convenience.

Easy to Maintain: The smooth surface and simple construction allow you to wipe it clean with a single rag. In addition, the product can be manually disconnected for easy circuit inspection and maintenance.

High Efficiency: It has 4 inputs and 4 outputs with a maximum current output of 40 amps, which greatly improves the efficiency of power utilization.

Safety First: It has an IP65 waterproof rating, short-circuit protection, surge protection, and a fast arc extinguishing function, which can extinguish the arc and realize safe switching to ensure your safety when you use it.

⚡Details

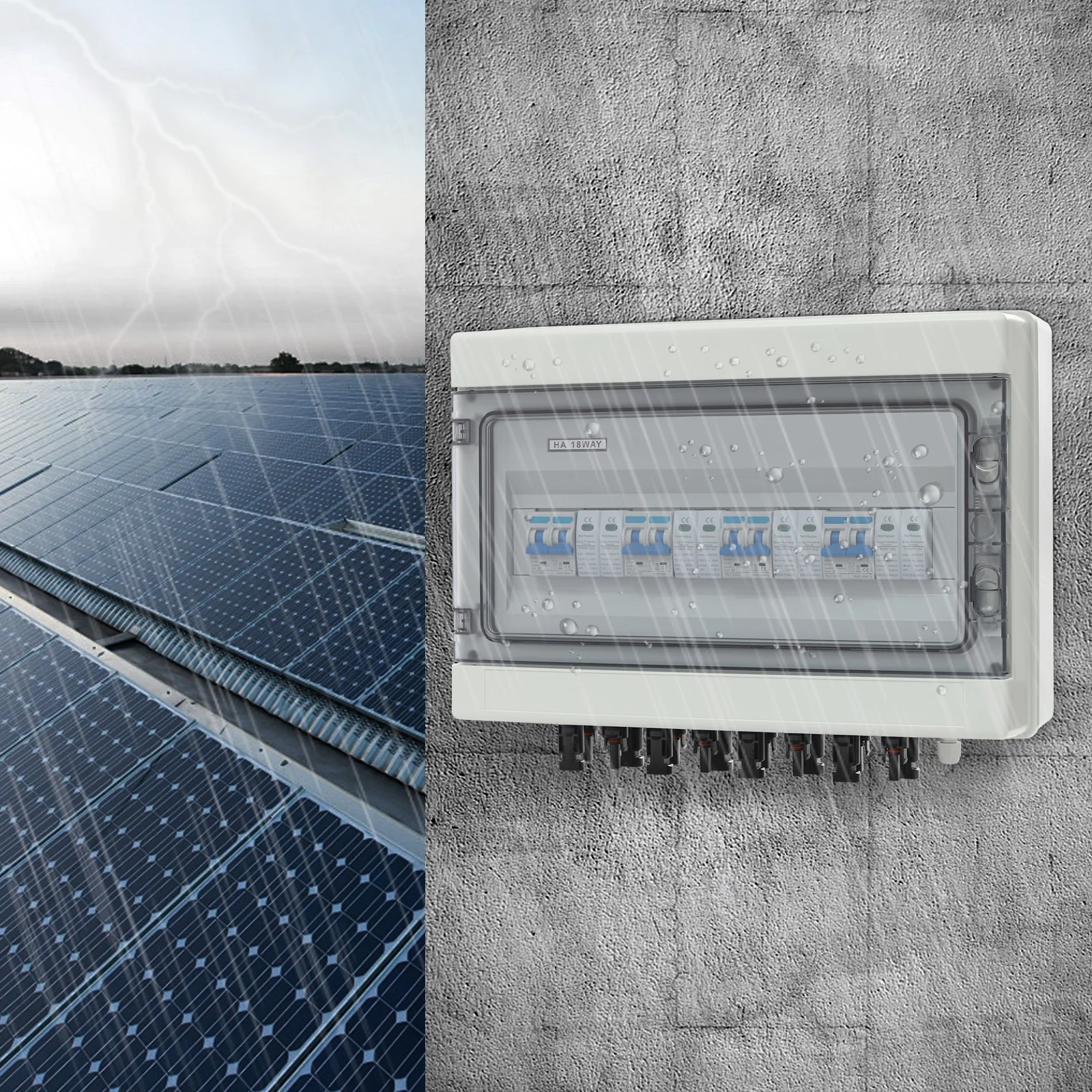

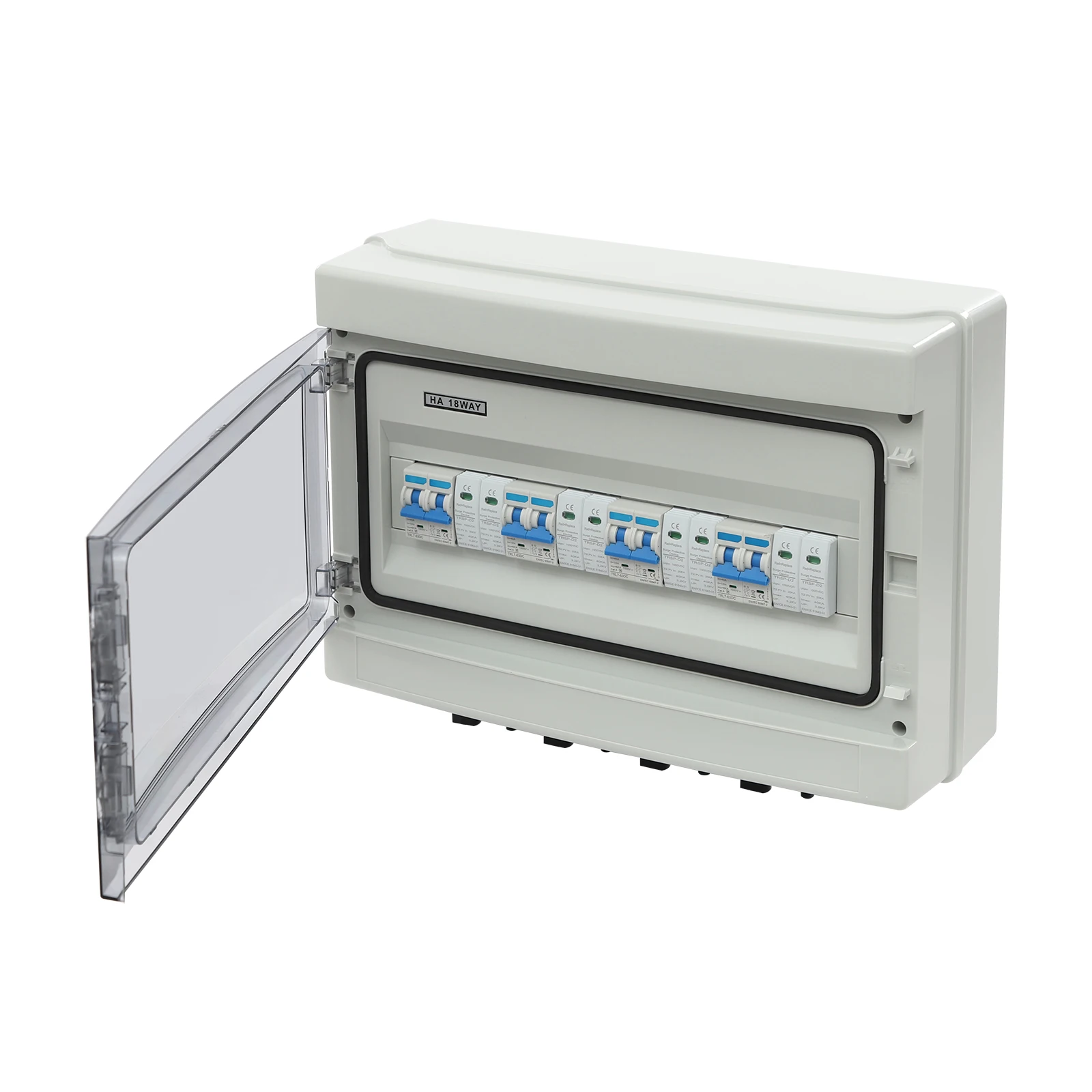

Built-in Sealing Rubber Ring: It can be used in different outdoor environments, effectively preventing dust and rain from entering.

MC4 Terminals: They make it easy for you to connect incoming and outgoing cables.

Visible Window: It is easy for you to check the status of the main switch and lightning protection.

⚡Application

It is suitable for output protection of outdoor solar panels, motor homes, electric vehicles, UPS batteries, PV arrays, RV solar, and inverters, ideal for networked photovoltaic solar mechanisms and off-grid solar power mechanisms.

⚡Specification

Color: White
Material: ABS+PC+Rubber
Assembly Required: Yes
Mounting Type: Wall-mounted
Inputs: 4 Strings
Outputs: 4 Strings
Ucpv: 1000VDC
PV In: 20KA
Imax: 40KA
UP: 3.2KV
Protection Rating: IP65
Circuit Breaker: 40A 1000V 2 Holes
Working Temperature: -25~55°C/-13~131°F
Applicable Cable: 6mm²/10AWG Cable
Surge Protection: 20-40kA 2P DC1000V

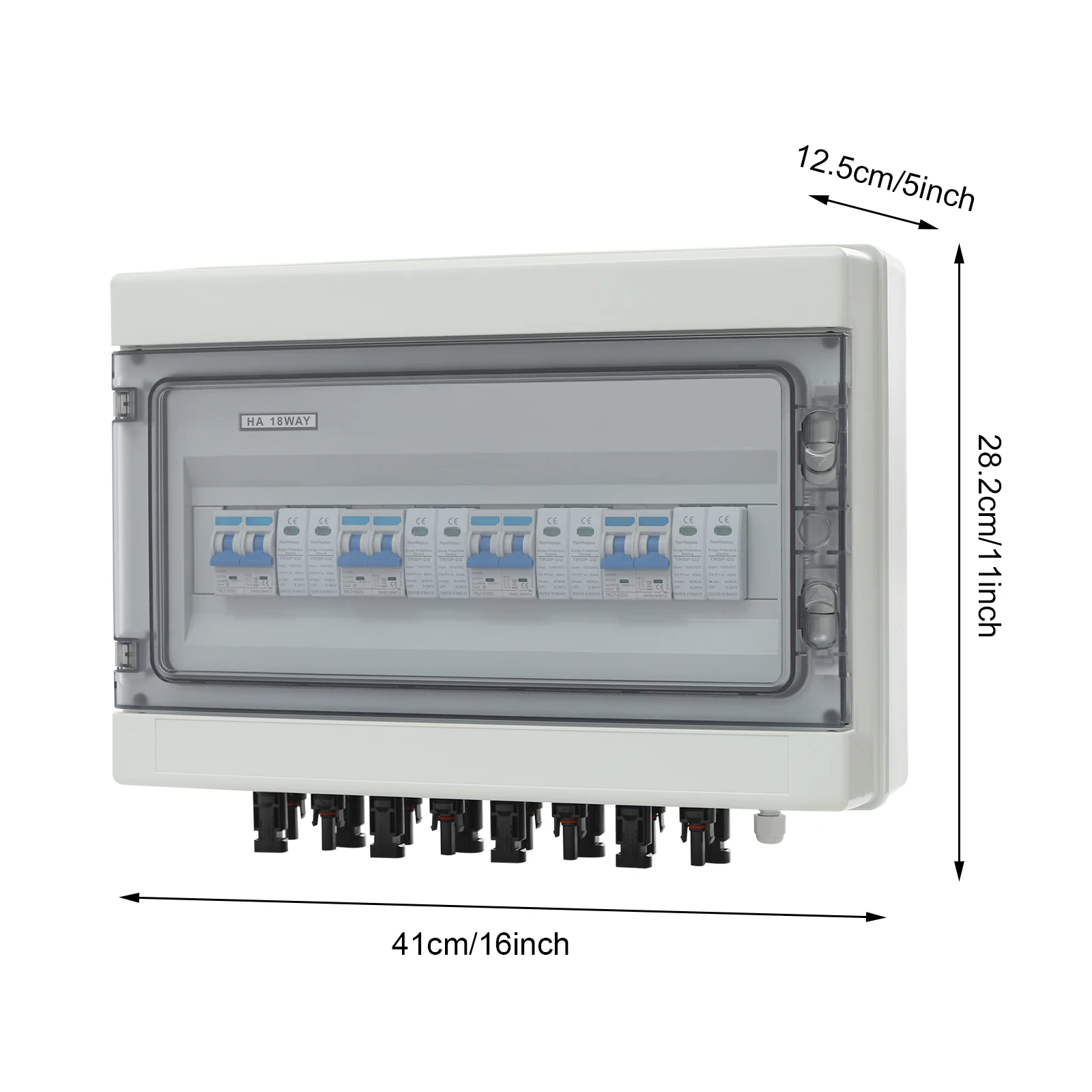

Product Size: 41*12.5*28.2cm/16*5*11 in
Package Size: 45*35*15cm/17.72*13.78*5.91in
Gross Weight: 2.3kg/5.07lbs
Net Weight: 2.19kg/4.83lbs

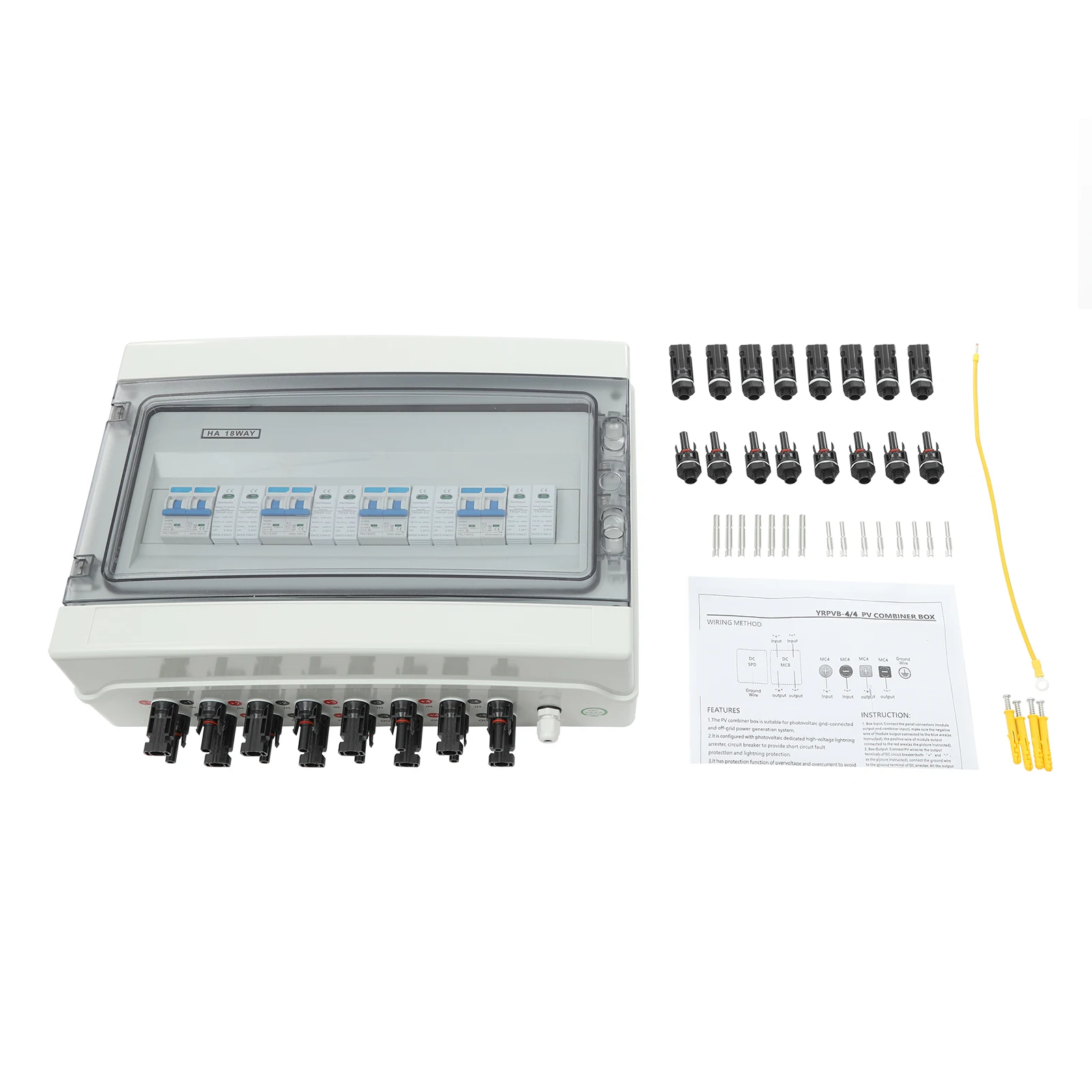

⚡Package Included

1* Solar Combiner Box
16* MC4 Terminals
1* Ground Wire
1* English Manual
All Accessories for Use

⚡Notes

1.Please check the specifications before purchasing.
2.Please press the button correctly to avoid damage to the circuit breaker and use it at the proper operating temperature to avoid overheating and stopping operation.
3.Please note that if the lightning protection indicator turns red, a lightning strike has occurred. The lightning protection module must be replaced promptly.
4.Please read the English manual carefully before use and pay particular attention to the safety instructions contained therein.
Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
