10/12 inches R-Shaped Table Saw Protective Cover with Graduation Knife | PC & Iron Integrated Molding Design for ≤30cm Saws

10/12 inches R-Shaped Table Saw Protective Cover with Graduation Knife | PC & Iron Integrated Molding Design for ≤30cm Saws Workshop Safety Guard

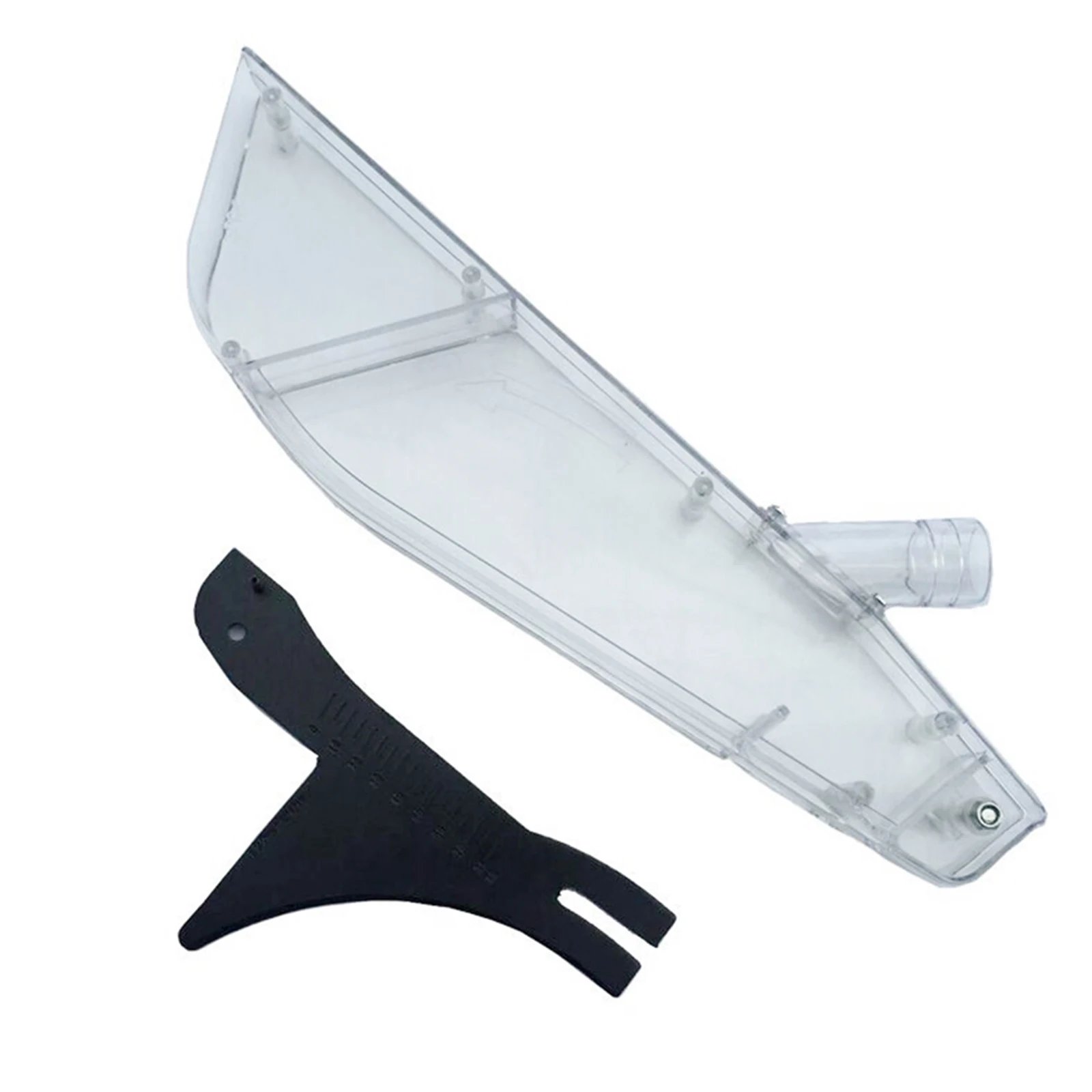

Package Included
1* Saw Protective Cover
1* Graduation Knife

Description

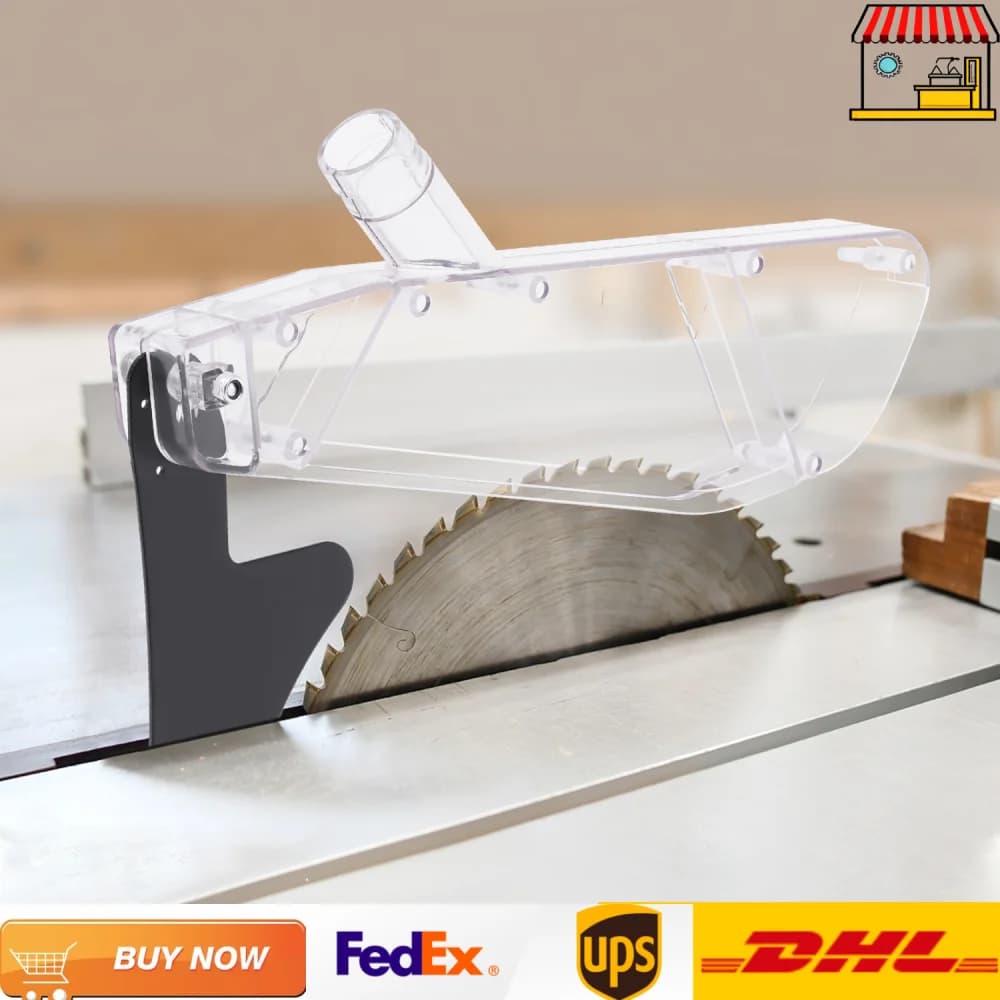

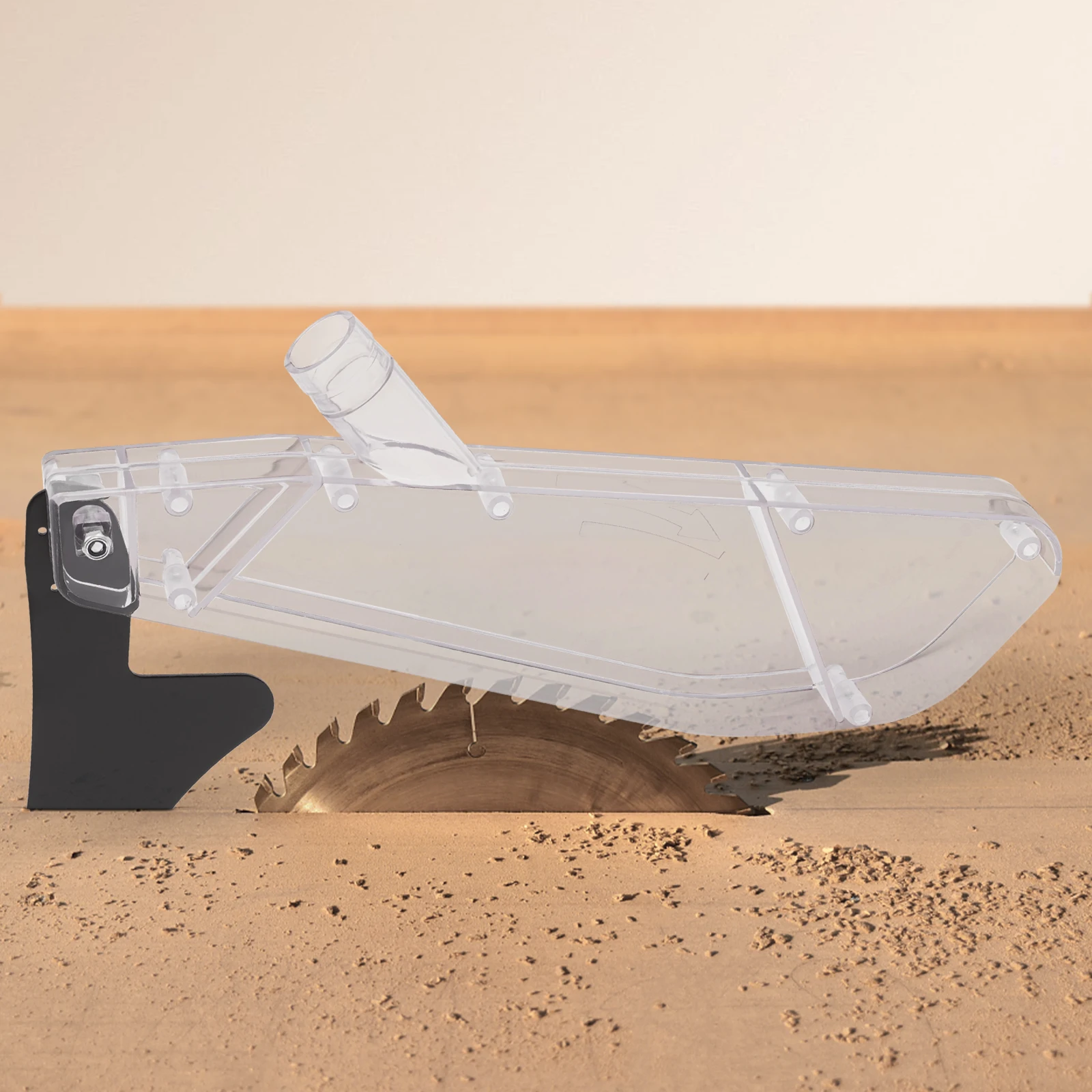

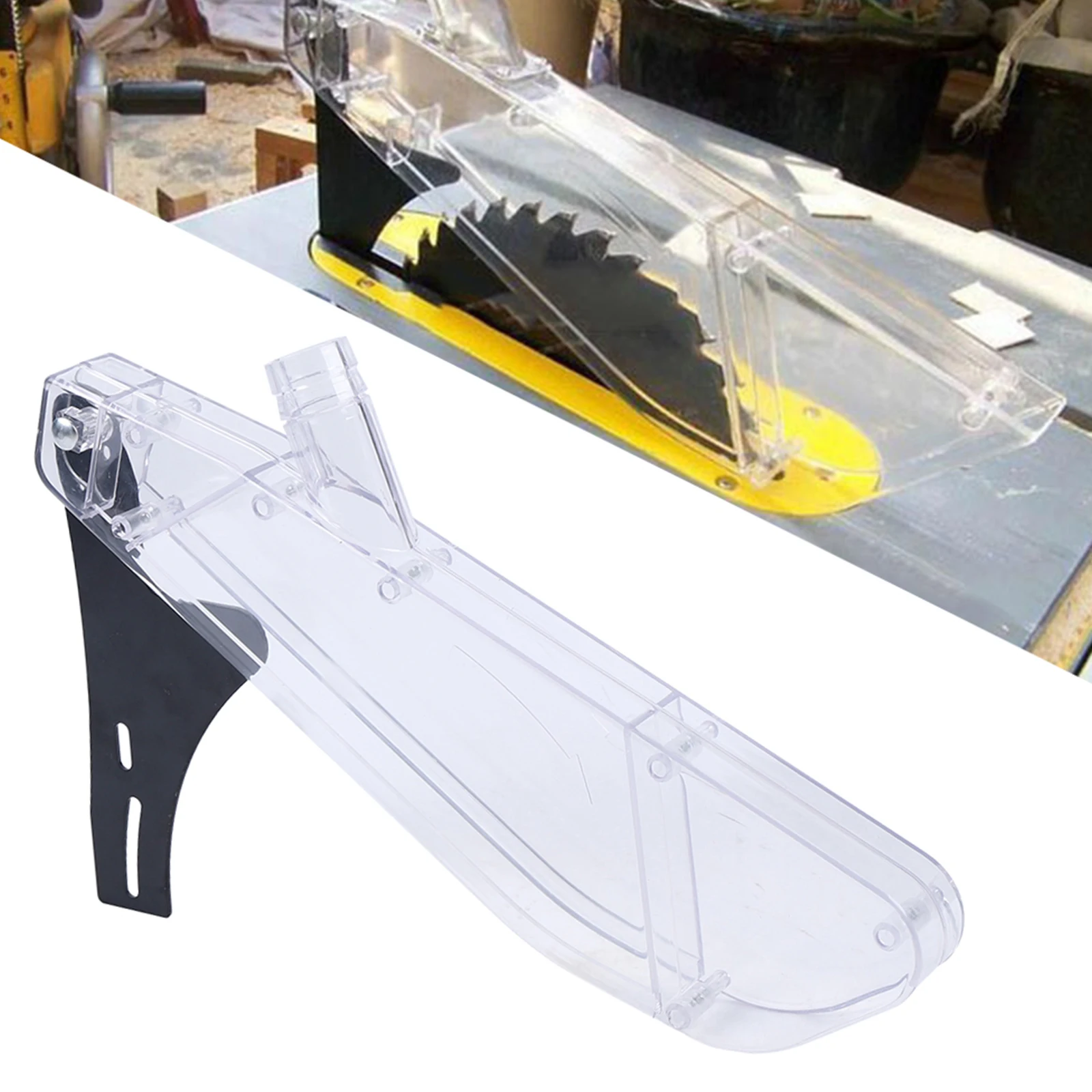

The R‑type saw-protective cover with a graduation knife will effectively protect your hands from hurting, prevent wood chips from splashing, avoid dust inhalation into the lungs, and improve cutting efficiency, which is a practical and powerful assistant to a woodworker. With high quality and exquisite workmanship, you can use this product for a long time.

How to Install

1.Make a groove on the wooden desktop, fix the graduation knife in the groove, and align it with the saw blade.
2.The graduation knife needs to be installed under and fixed to the table.
3.After assembling the graduation knife, cover the protective cover, install the screws (not included), and complete the installation.

Specification--10 inches

Color: Black, Clear
Material: PC, Iron
Process: Integrated Molding
Shape: R-shaped
Special Feature: Stand Table Saw Protective Cover
Mounting Type: Tabletop
Applicable Saw(D*H): ≤ 30*10cm/11.8*3.93inch
Working Width: 28mm/1.1inch
Graduation Knife Total Height: 22cm/8.66inch
The Max. Working Height of the Graduation Knife : 20cm/7.87inch
Max. Working Diameter: 26.6cm/10.47inch
Mounting Screw Hole Pitch: 6*70mm/0.23*2.75inch
Dusting Port Outer Diameter: 32mm/1.3inch
Graduation Knife Thickness: 2mm/0.07inch
Chute Height: 8cm/3.2inch
Total Height: 27cm/10.6inch
Saw Blade Mouth Length: 27cm/10.6inch
The Total Length of the Saw Cover: 40cm/15.8inch
Net Weight: 0.5kg/1.1 lbs
Gross Weight: 0.63kg/1.38 lbs
Package Size: 41*7*13.5cm/16.14*2.75*5.3inch

Specifications--12inches

Material :Plastic Glue
Maximum Length: 450mm
Working Length: 360mm (Maximum Diameter Of Saw Blade)
Maximum Working Height: 115mm
Maximum Working Width: 8mm
Total Height Of Dividing Knife: 220mm
Working Height Of Dividing Knife (Maximum): 200mm
Thickness Of Dividing Knife: ＜ 2.6mm
Outer Diameter Of Dust Collection Interface: 32mm
Packing Size: 40*13*7cm
Net Weight:0.85Kg
Gross Weight: 1Kg
Applicable Space：12 Inch Table Saw

Features

High-quality Material: Made of premium PC material, the protective cover is not easy to deform and has a long service life.

Saving Cleaning Time: It can collect above-table dust and prevent wood chips from flying around when cutting to effectively protect the table saw from dust and dirt, thus reducing cleaning time.

High Safety: It can minimize blade exposure, protect your hands from hurting by the saw blade, and avoid dust inhalation into the lungs, providing you with much safety.

High Efficiency: R‑type graduation knife made of high-quality iron is height-adjustable and will quickly split the material, making the operation much more convenient and improving the cutting efficiency.

Practical Assistant: This product provides workers with practical tool parts and makes the machine more durable.

Easy to Observe: The high permeability of the PC protective cover allows you to clearly view the inner workings of the shield to facilitate timely work adjustments.

Easy to Install: The simple structure with pre-made holes allows for easy and quick installation, saving you time and energy.

Notes
1.Please choose the right saw protective cover according to the size of your saw or the diameter of the exposed saw.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
