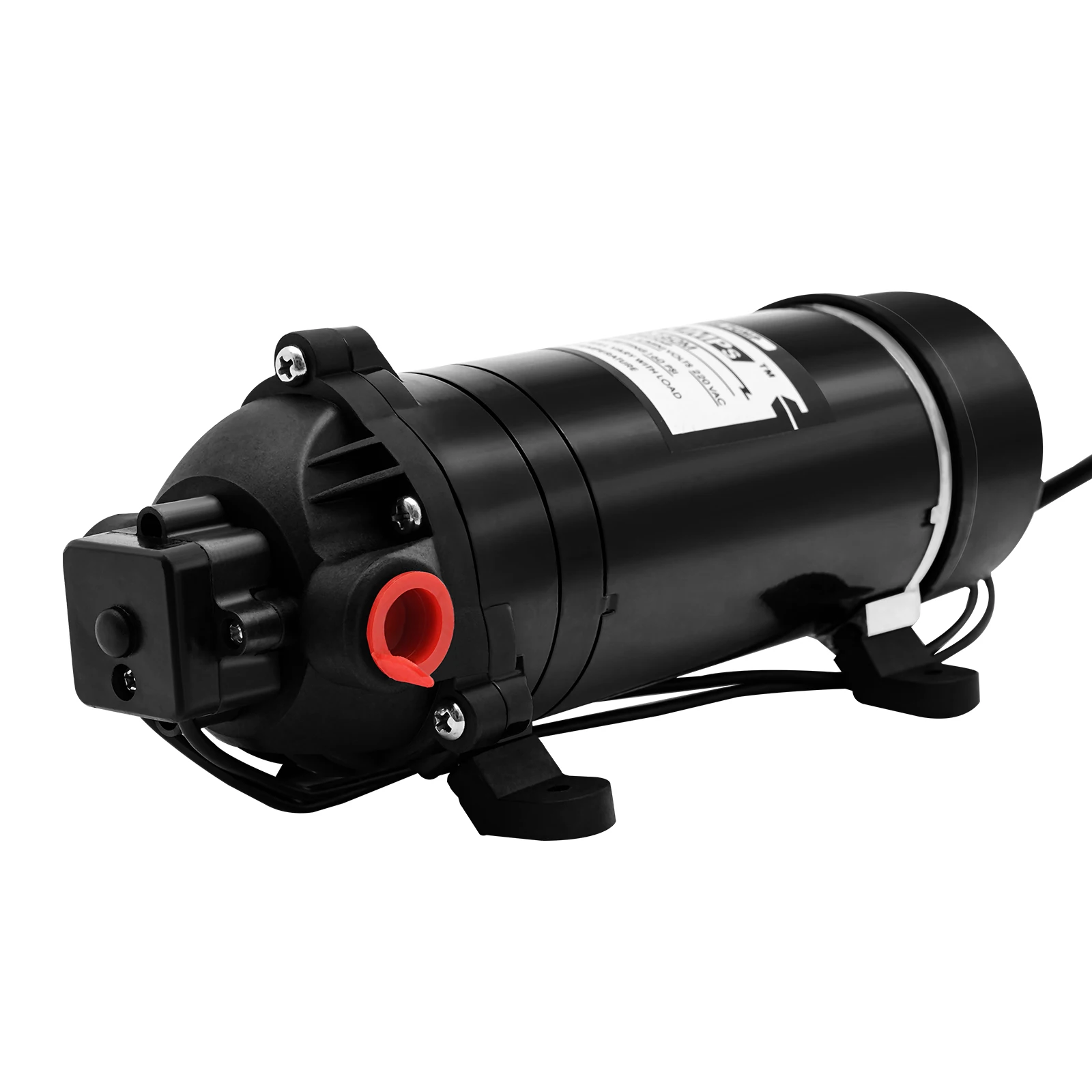

120W 160PSI Electric Water Transfer Pump 1.4 GPM Self-Priming Diaphragm Pump for Pressure Washer RV Agricultural Sprayer

120W High-Pressure Diaphragm Water Transfer Pump | 160PSI Max, 1.45 GPM Flow & Self-Priming for Vehicle Cleaning, Spraying & Liquid Transfer | 220V with Auto Pressure & Overheat Protection | 70-80dB Low Noise

Specification

Material: Rubber, Steel, Nylon
Color: Black
Run Dry: Yes
Assembly Required: Yes

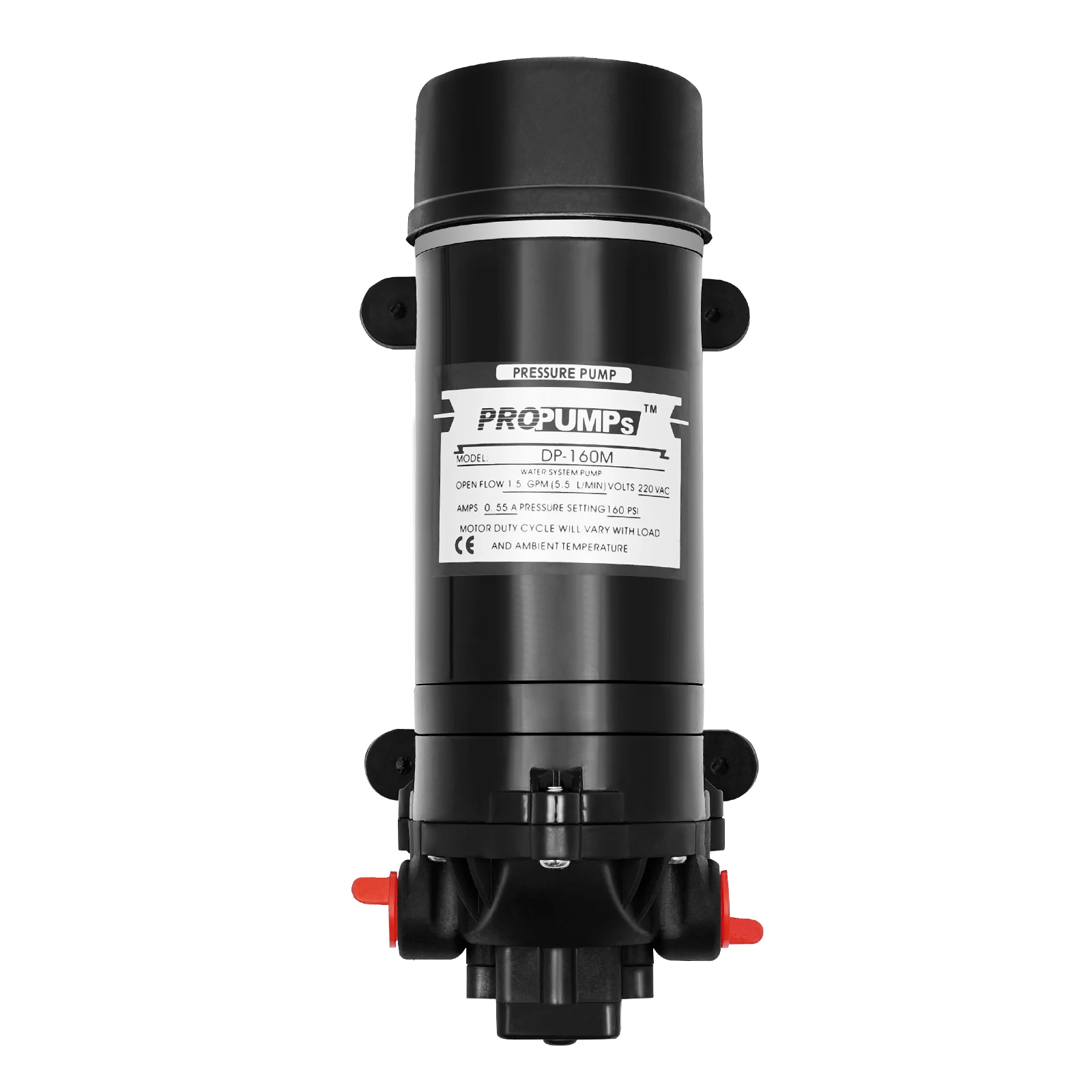

Item: DP-160M
Plug Standard: EU Standard
Voltage: 220V
Amp Draw: 0.55A
Type: 3 Chamber Diaphragm
Flow: 5.1-5.5L/Min, 1.35-1.45gal/Min
Maximum Withstand Temperature: 65℃/149℉
Insert Size: 9.5mm/0.37in Hose Barb, Thread
Outlet Size: 9.5mm/0.37in Hose Barb, Thread
Self-Priming: 0.5-1m/1.64-3.28ft
Max Pressure: 160Psi(11Bar)
Maximum Working Pressure: 80-90 Psi
Power Cord Length: About 1.9m/6.23ft
Power of Motor: 120W
Working Noise: Approx. 70-80dB
Net Weight: 2.85kg/6.28lbs
Gross Weight: 3kg/6.61lbs

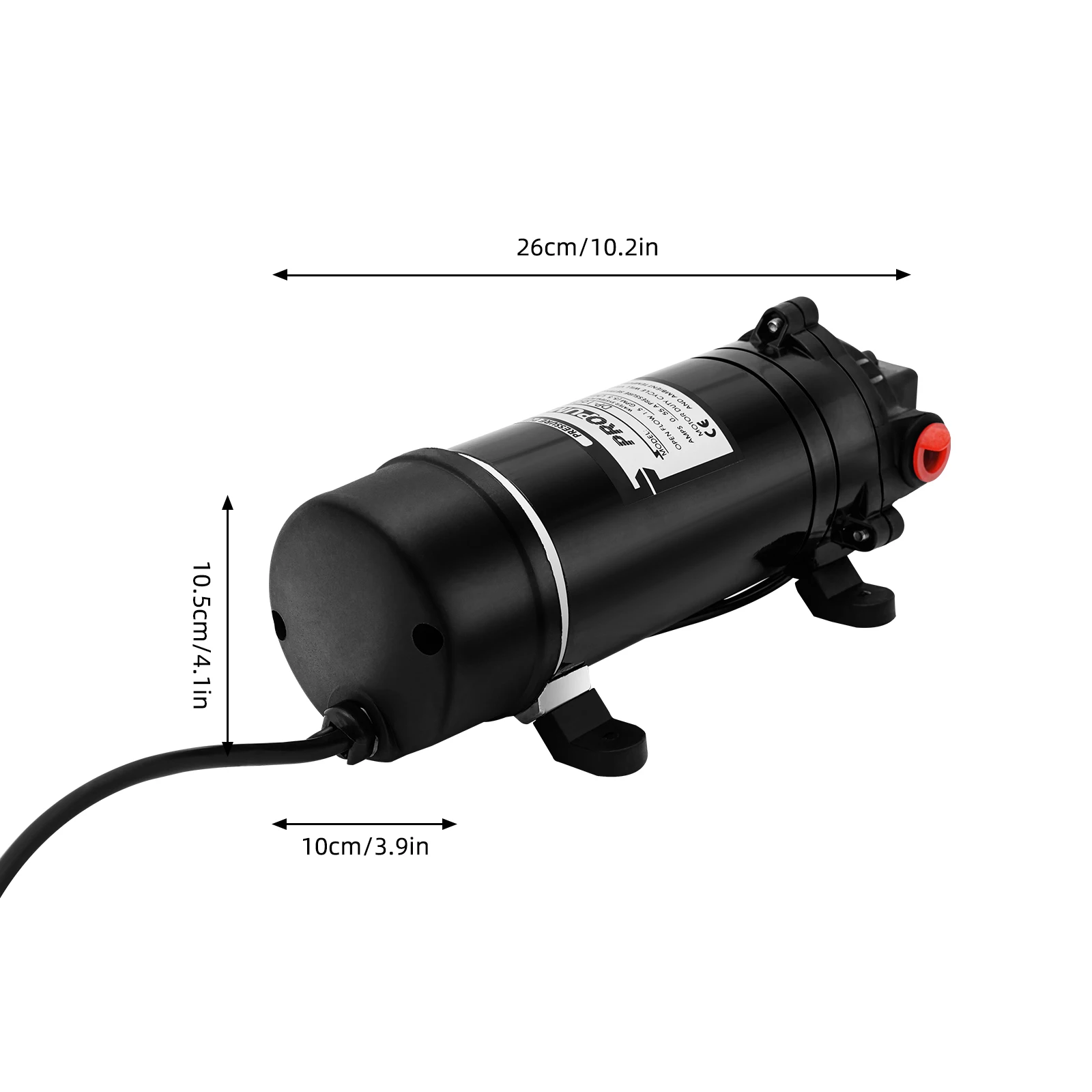

Product Size: 26*10*10.5cm/10.2*3.9*4.1in
Package Size: 34*12*10.5 cm/13.39*4.72*4.13 in

Key Features

1. Built to Last

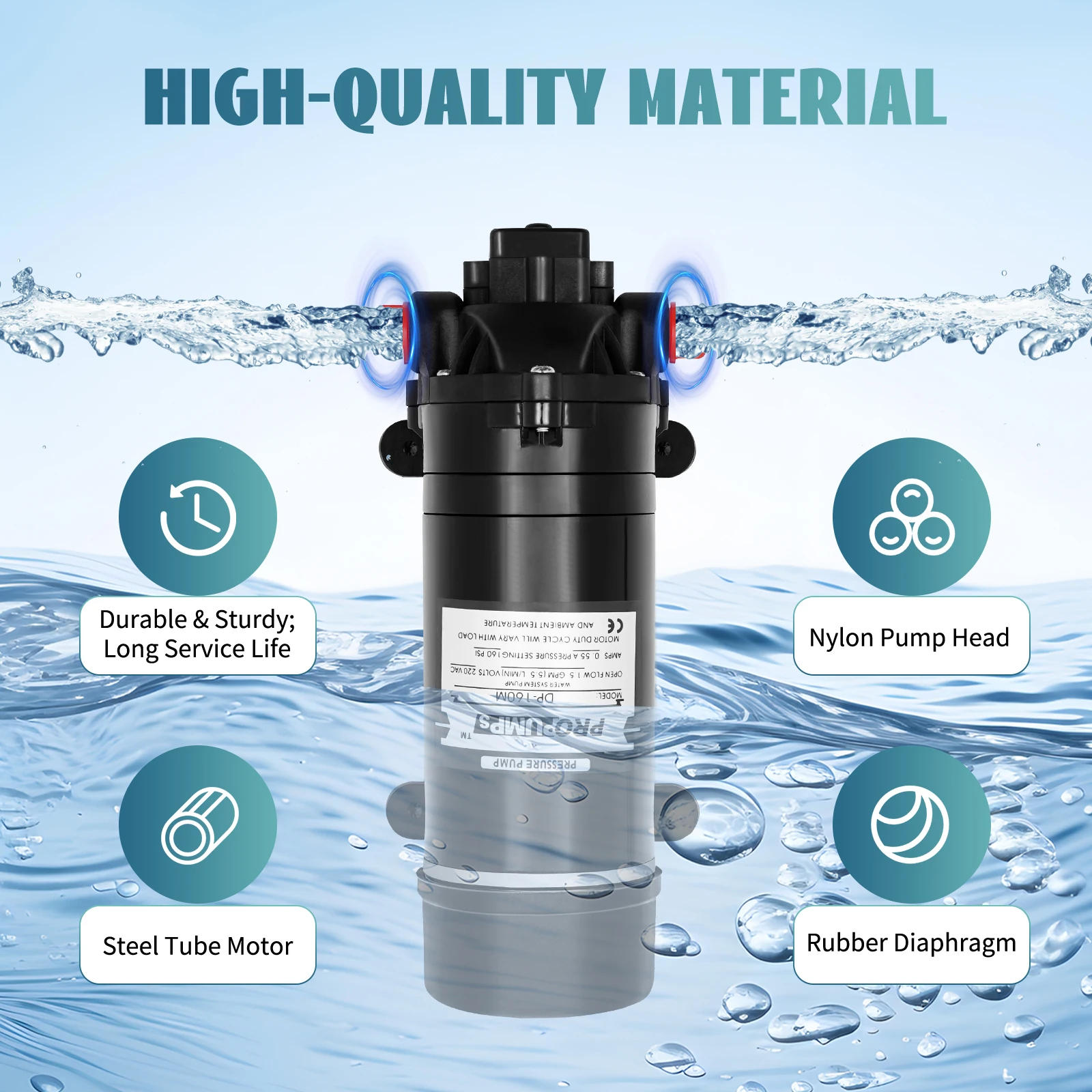

Features a robust steel tube motor, nylon pump head, and heat-resistant rubber diaphragm, offering strong chemical resistance and a long service life even in tough conditions.

2. Plug and Play Ready
Sets up in seconds—just connect the hose and accessories, then plug in. It self-primes without extra equipment, making it ideal for outdoor use.

3. Powerful & Efficient Performance

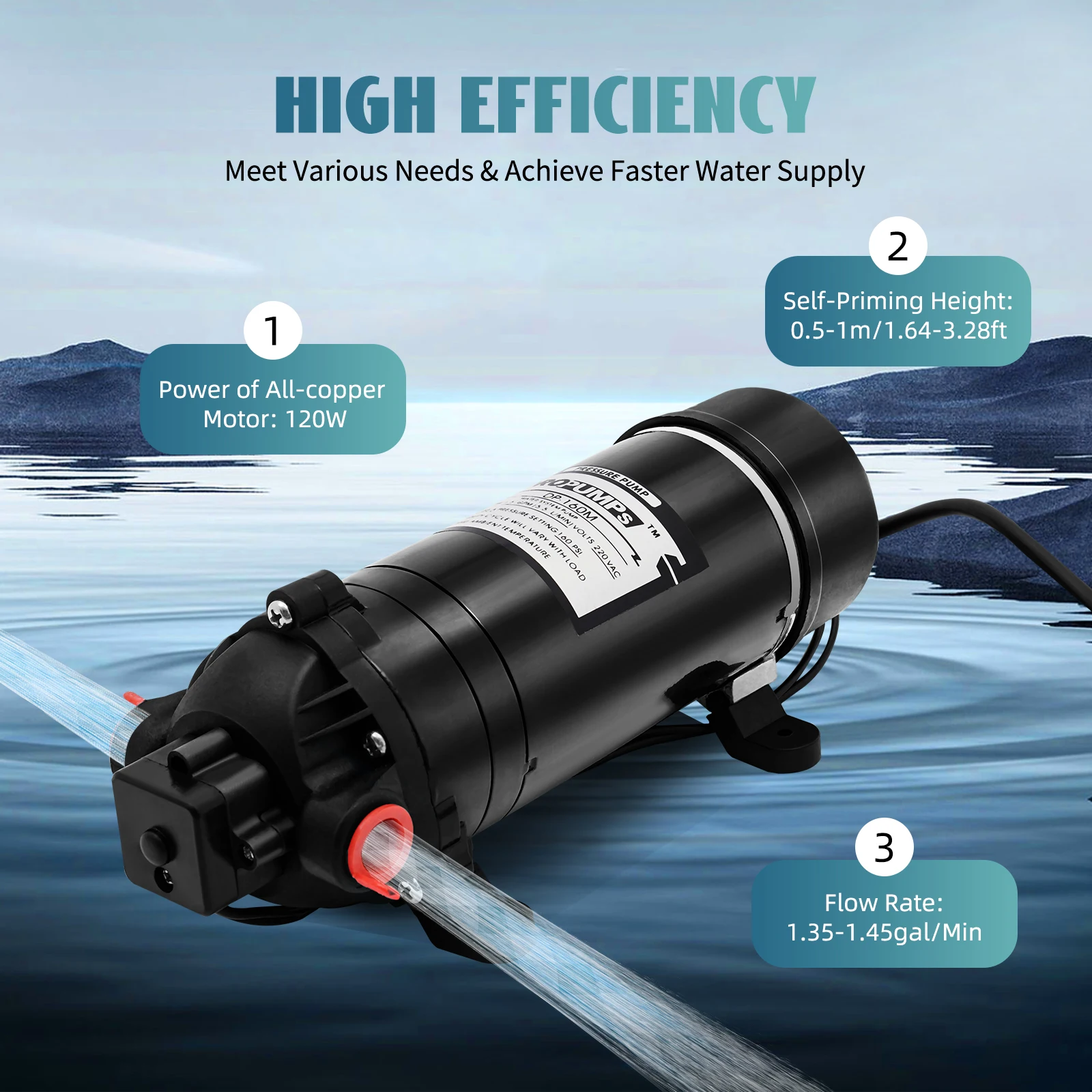

Driven by a 120W all-copper motor, it delivers a fast flow rate of 1.4 GPM and a self-priming height of 3.3 ft, meeting a wide range of water transfer needs.

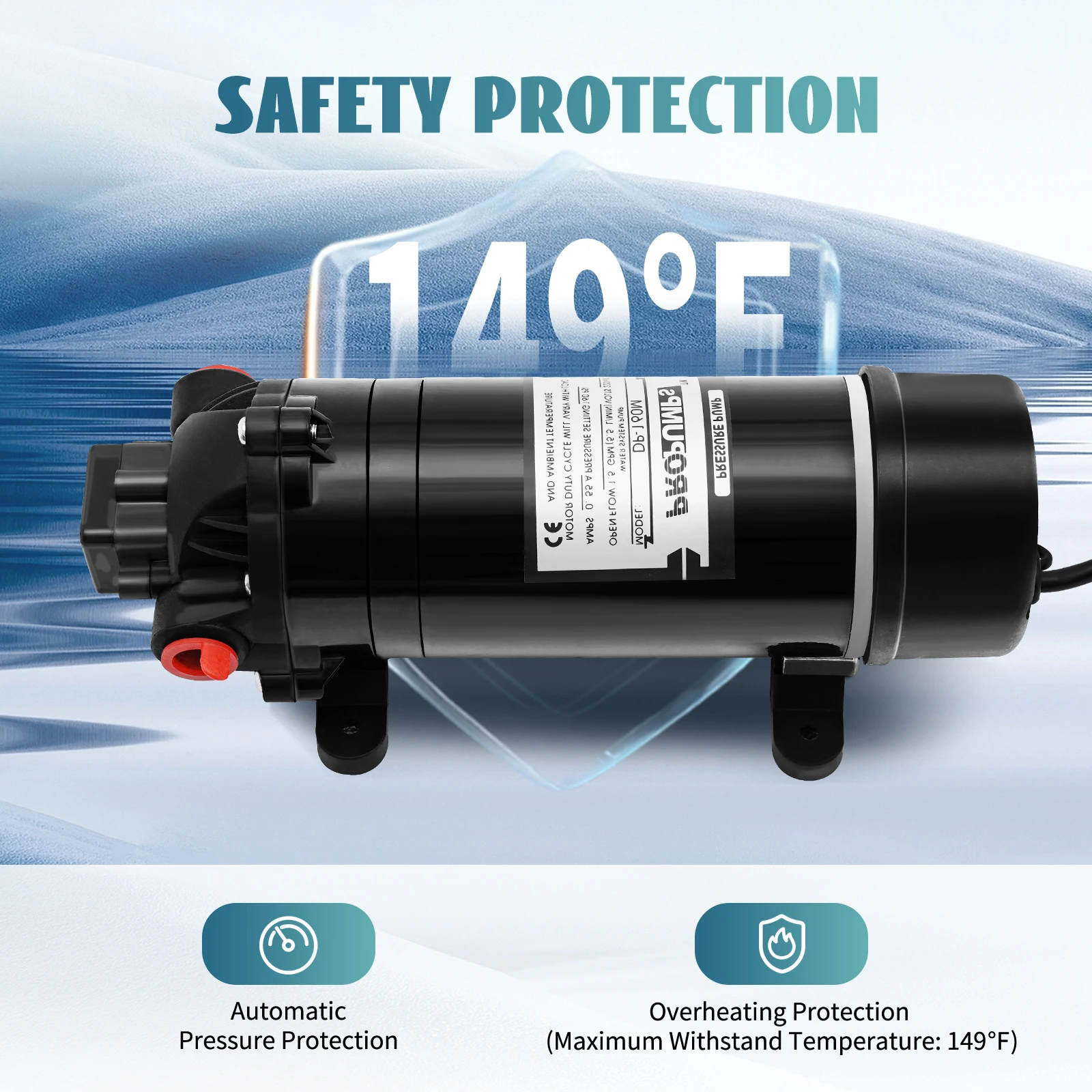

4. Safe & Reliable Operation
Equipped with automatic pressure and overheating protection, it monitors flow to prevent damage and can handle medium temperatures up to 149°F.

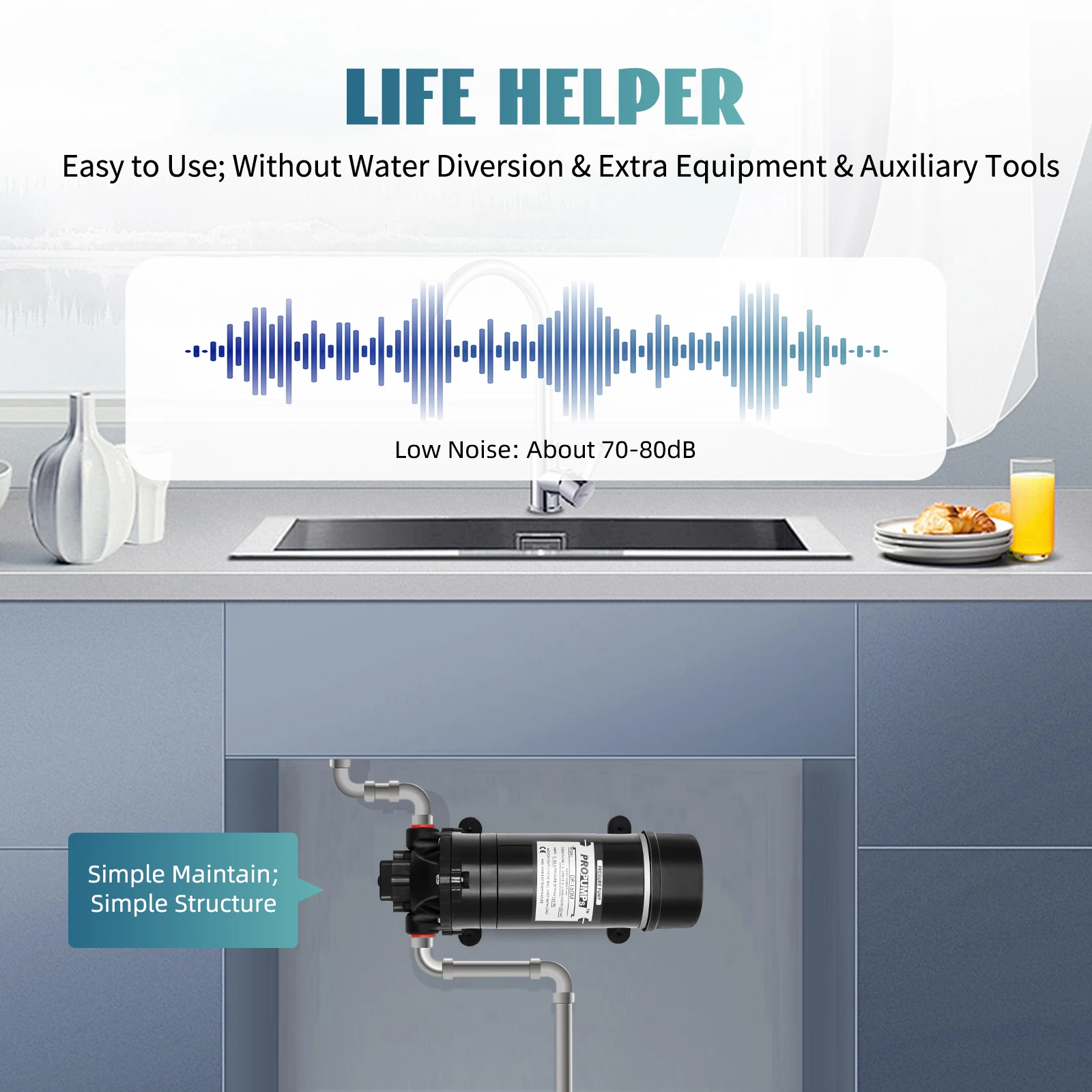

5. Compact & Low-Noise Design

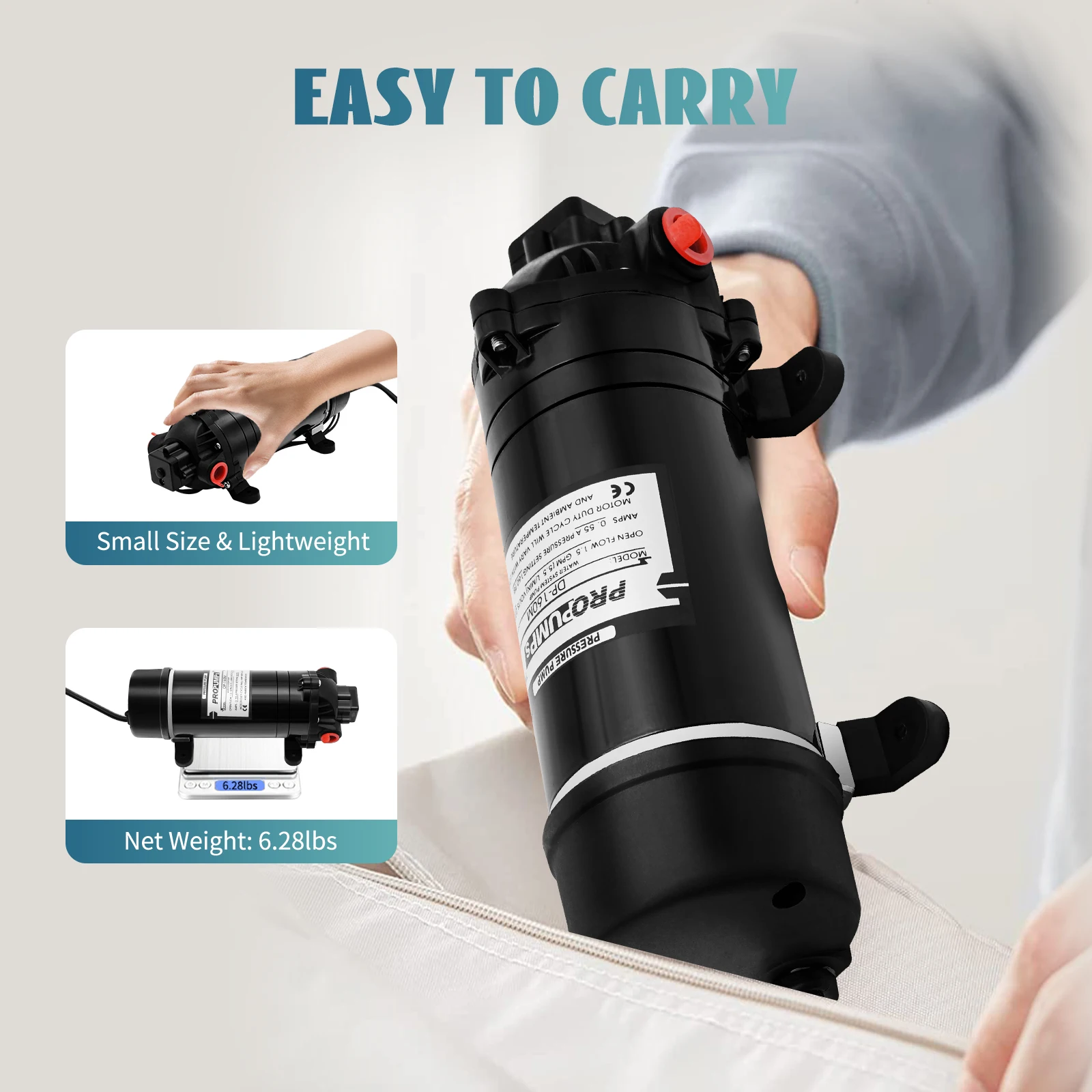

Lightweight and small (only 6.3 lbs), it’s easy to carry anywhere. The motor runs quietly at 70–80 dB, keeping your work environment peaceful.

Details

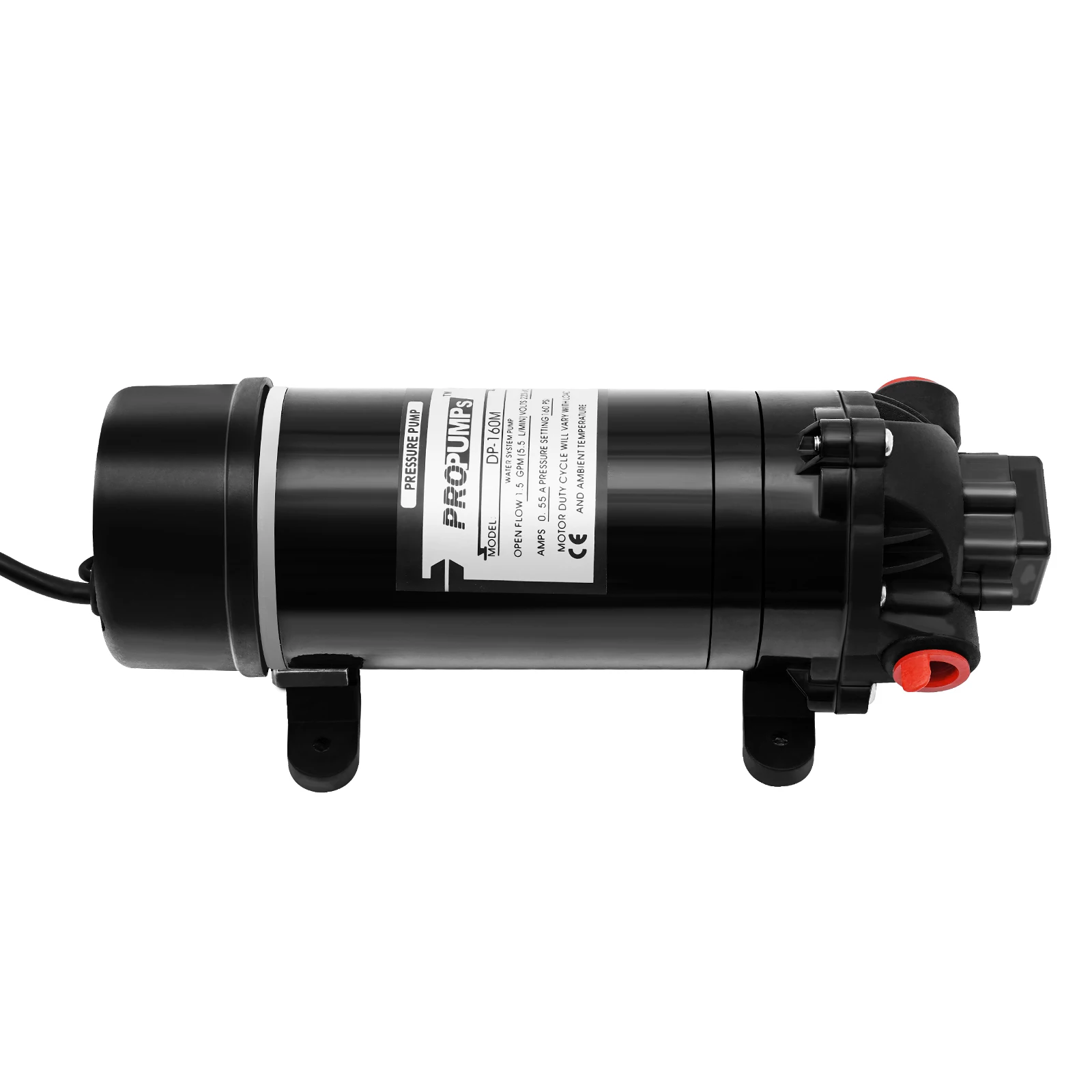

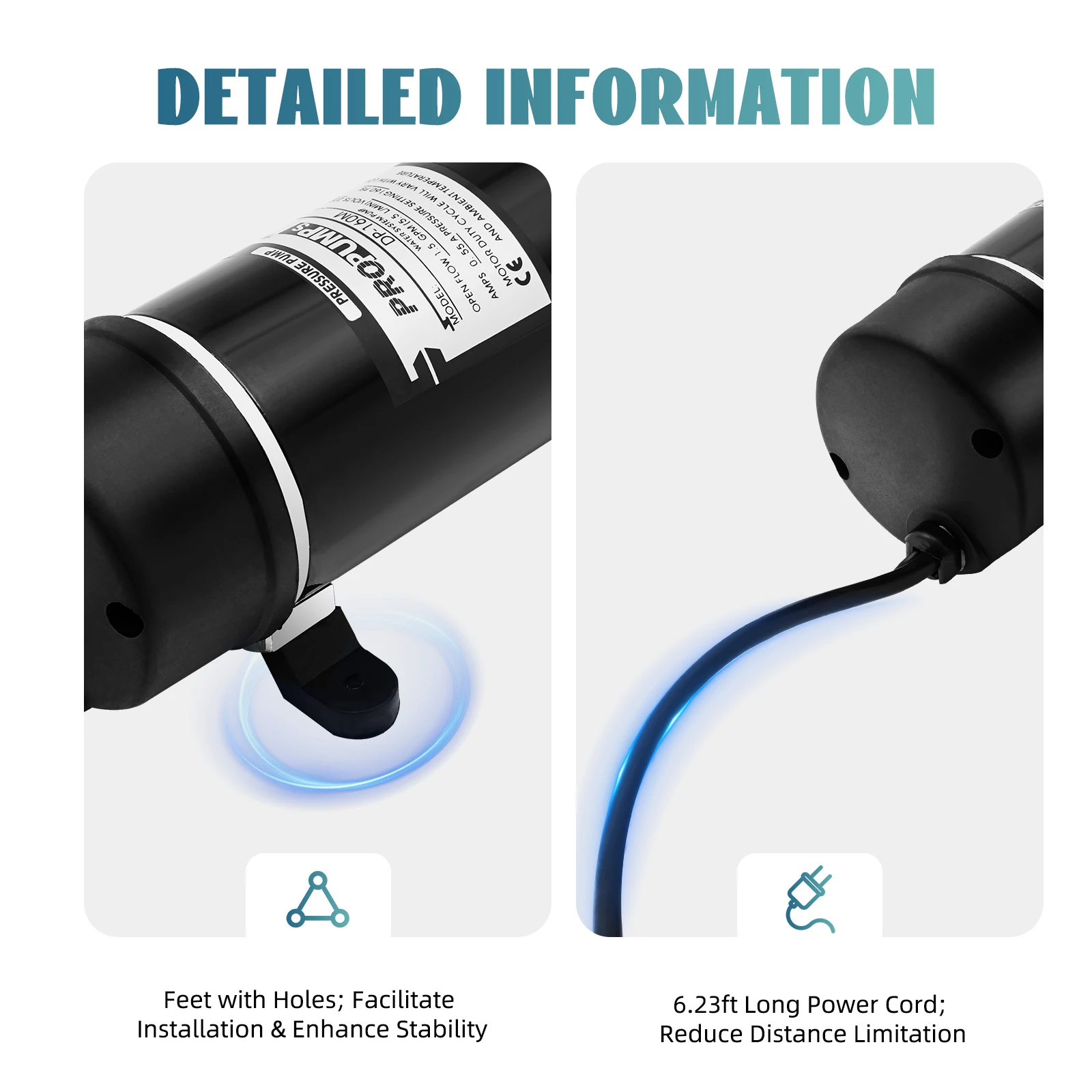

★ Feet: The four feet with holes facilitate installation and enhance the stability of the product, thus guaranteeing it runs more smoothly and efficiently.

★ Anti-vibration Pad: It can effectively reduce the vibration amplitude of the product and avoid the body from being knocked accidentally.

★ Special Valve: The special valve for liquid input and output has stable performance and can effectively improve self-priming efficiency.

★ Long Power Cord: The 6.23ft long power cord can effectively reduce the distance limitation of your use, thus providing you with higher freedom of use.

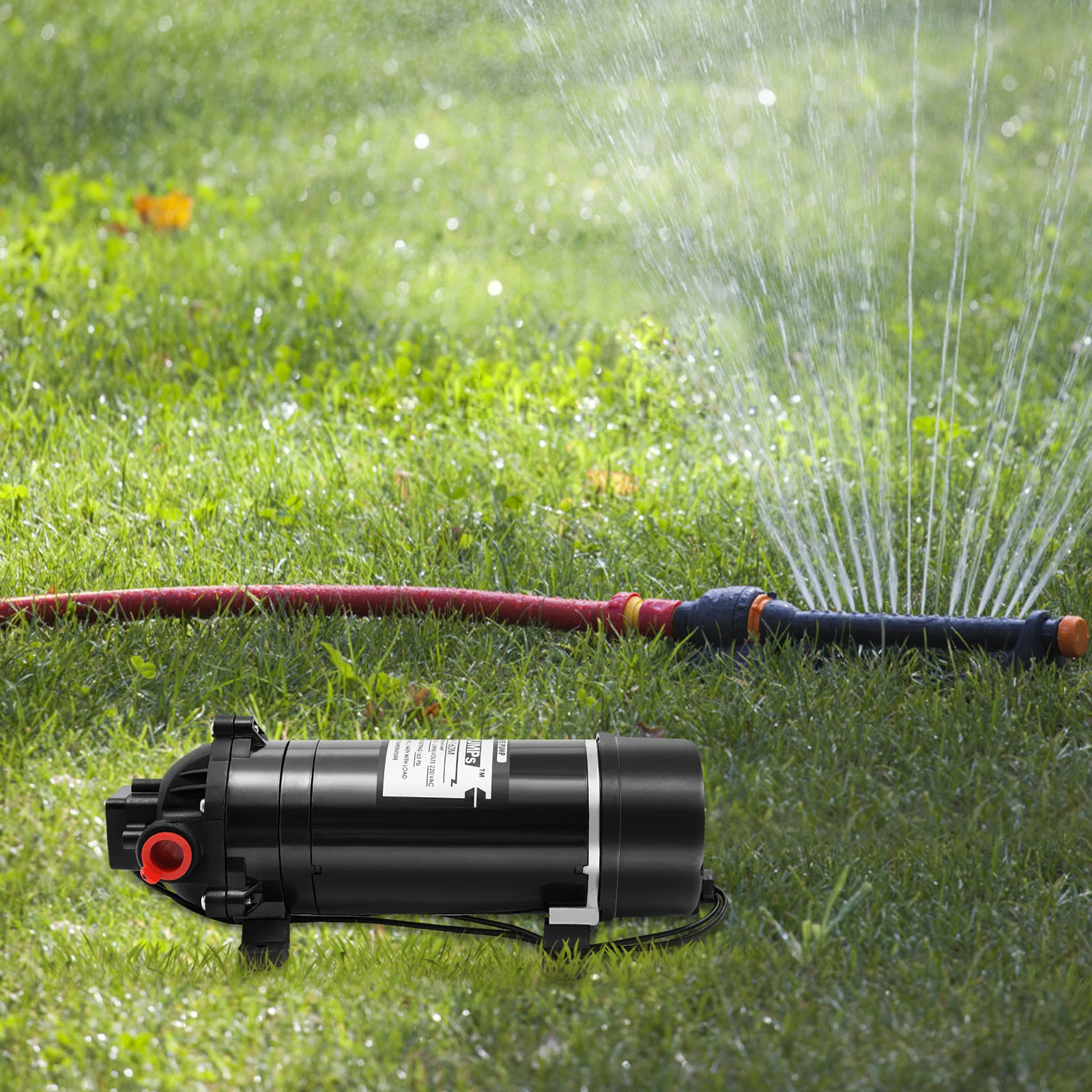

Application

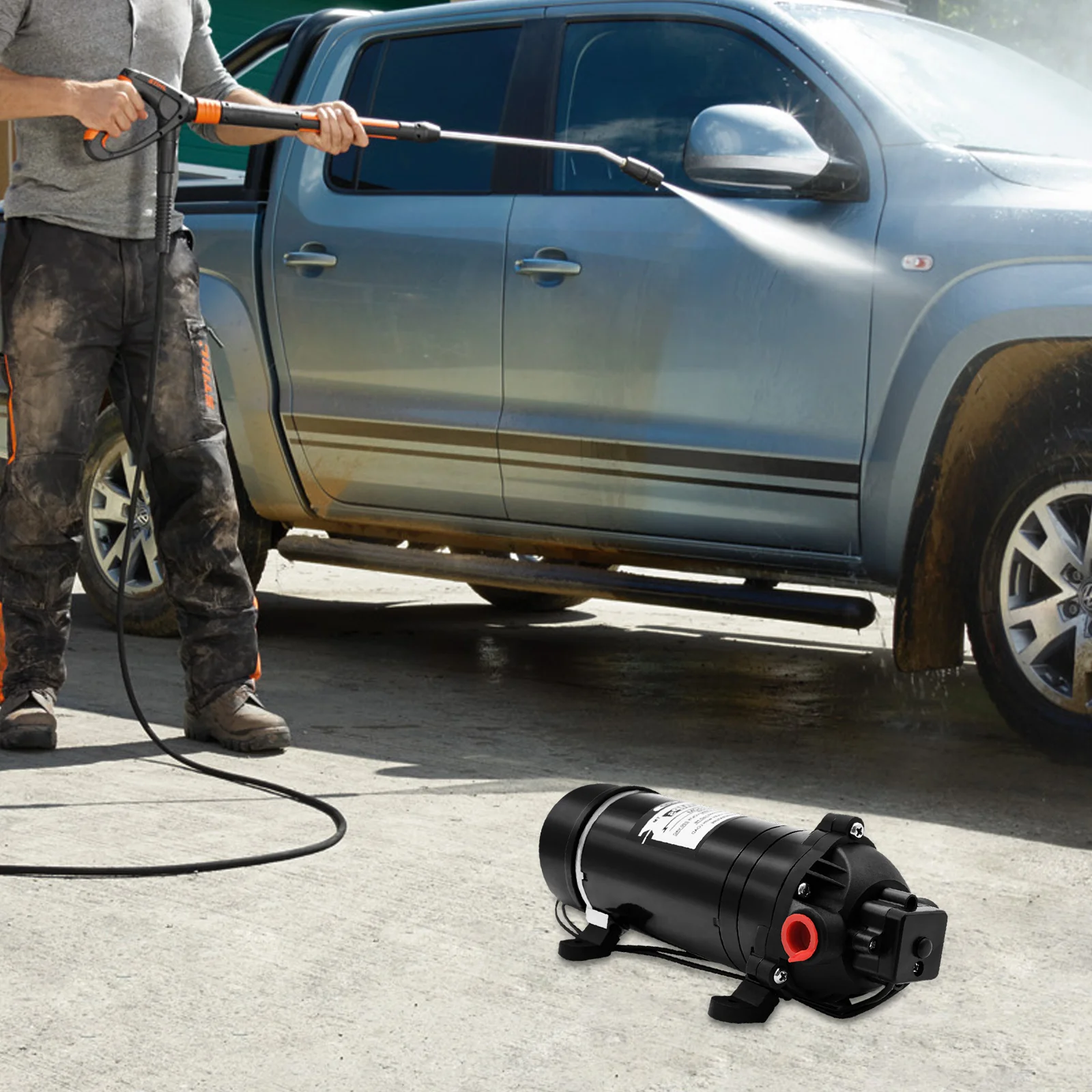

It is widely used in general industrial equipment, pharmaceutical equipment, chemical equipment, sprayers, and spraying devices of high-pressure equipment, etc. It is suitable for agriculture (lawn and garden), tourist vehicles, special vehicles, ships, vehicle cleaning, air conditioning cleaning, carpet cleaning, floor cleaning, water purification, filtration equipment, chemical metering, fluid supply, food and beverage filling, liquid transfer, etc.

How to Use

1. Please make sure the end of the outlet hose is properly connected.
2. Carefully plug the pump into a 220-volt, 50 Hz, grounded AC outlet to begin operation.
3. The pump is self-priming and water should begin to flow in 30 seconds or less. (a) If water does not flow, unplug the outlet and check how the pump is installed and the inlet and outlet connections. (b) Operating the pump without water for an extended period of time may damage the pump and cause it to malfunction.
4. Please unplug the pump when pumping is completed. The pump may become hot during operation. Please be careful when near or touching the pump.

Package Included

1 * Water Transfer Pump
1 * English Manual

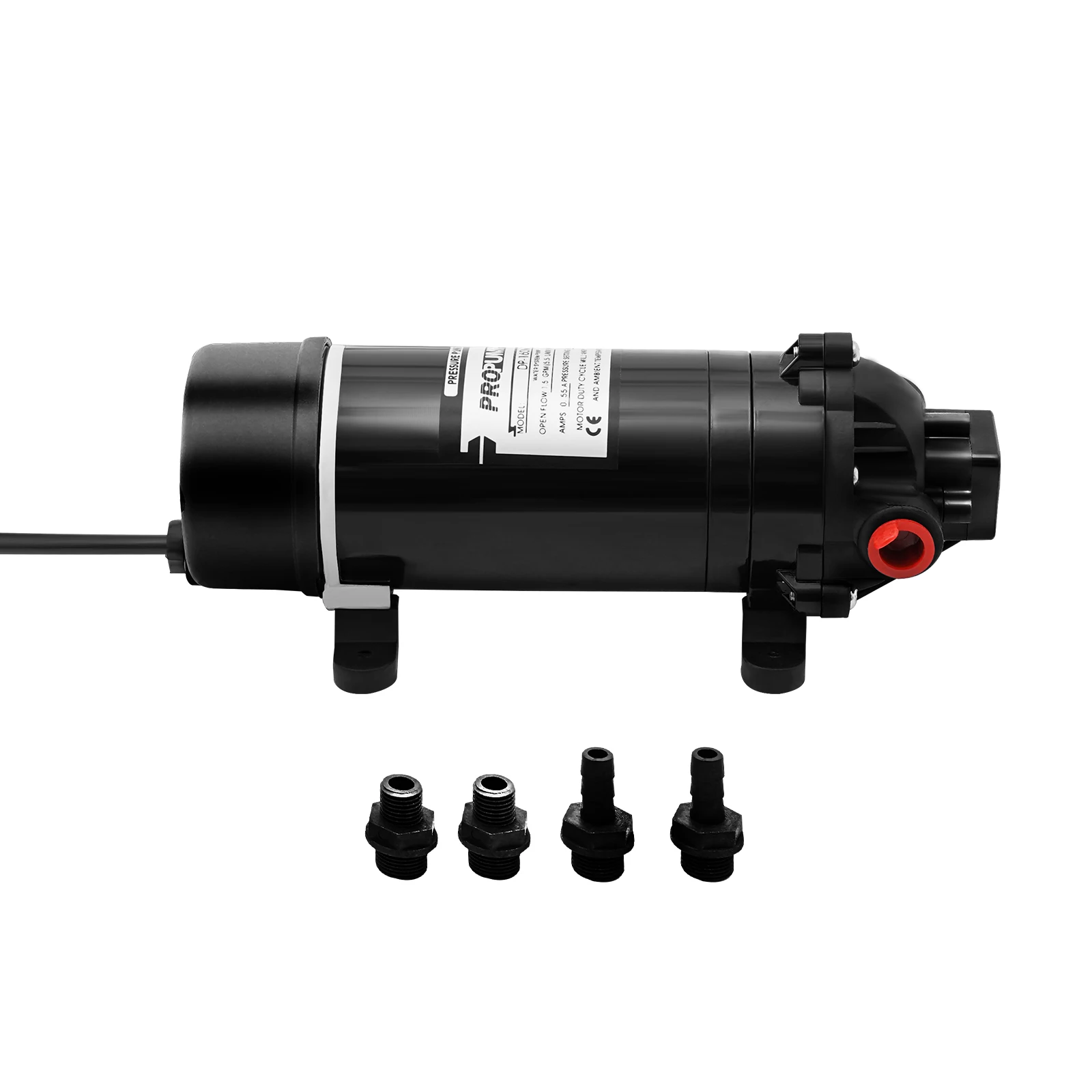

All Accessories for Installation

Notes

1.Only clean water can be pumped, and liquids with impurities cannot be pumped.
2.Products with electrical plugs are designed for use in the EU. Please check compatibility before purchasing.
3.When the pressure switch is stopped, the pressure is 160 Psi. The maximum working pressure is 80-90 Psi.
4.This is a self-priming pump, so please do not wet the motor.
5. Before first use, for avoiding running the pump dry, please fill the pump head with water to wet the impeller, thus.
6.This product does not include water inlet and outlet hoses, so please configure them yourself.
7.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
