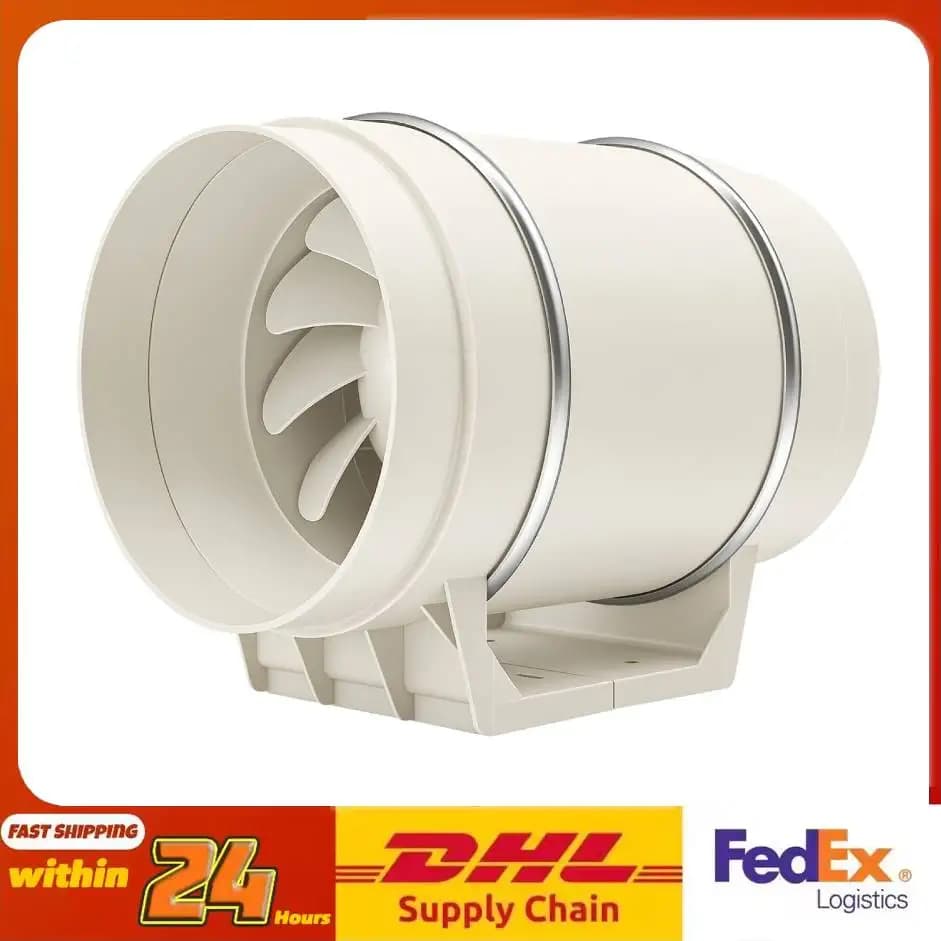

HF-200 Tubular Fan 220V 130W Plastic White All Copper Motor Low Noise Moisture-proof Radiator Fan Ventilator

Specifications

Color: White
Material: PP
Mounting Type: Inline Duct Mounting or Wall-mounted
Power Source: Corded Electric
Plug Type: EU Standard
Motor Type: Pure Copper Motor
Voltage: 220V
Frequency: 50Hz
Speed: 2600rpm
Power: 136W
Noise: About 60db
Static Pressure: 380 Pa
Air Flow: 900 m³/h
Maximum Motor Operating Temperature: 125°C/257°F
Maximum Ambient Temperature: 60°C/140°F
Diameter of Air Outlet: 19.5cm/7.68in

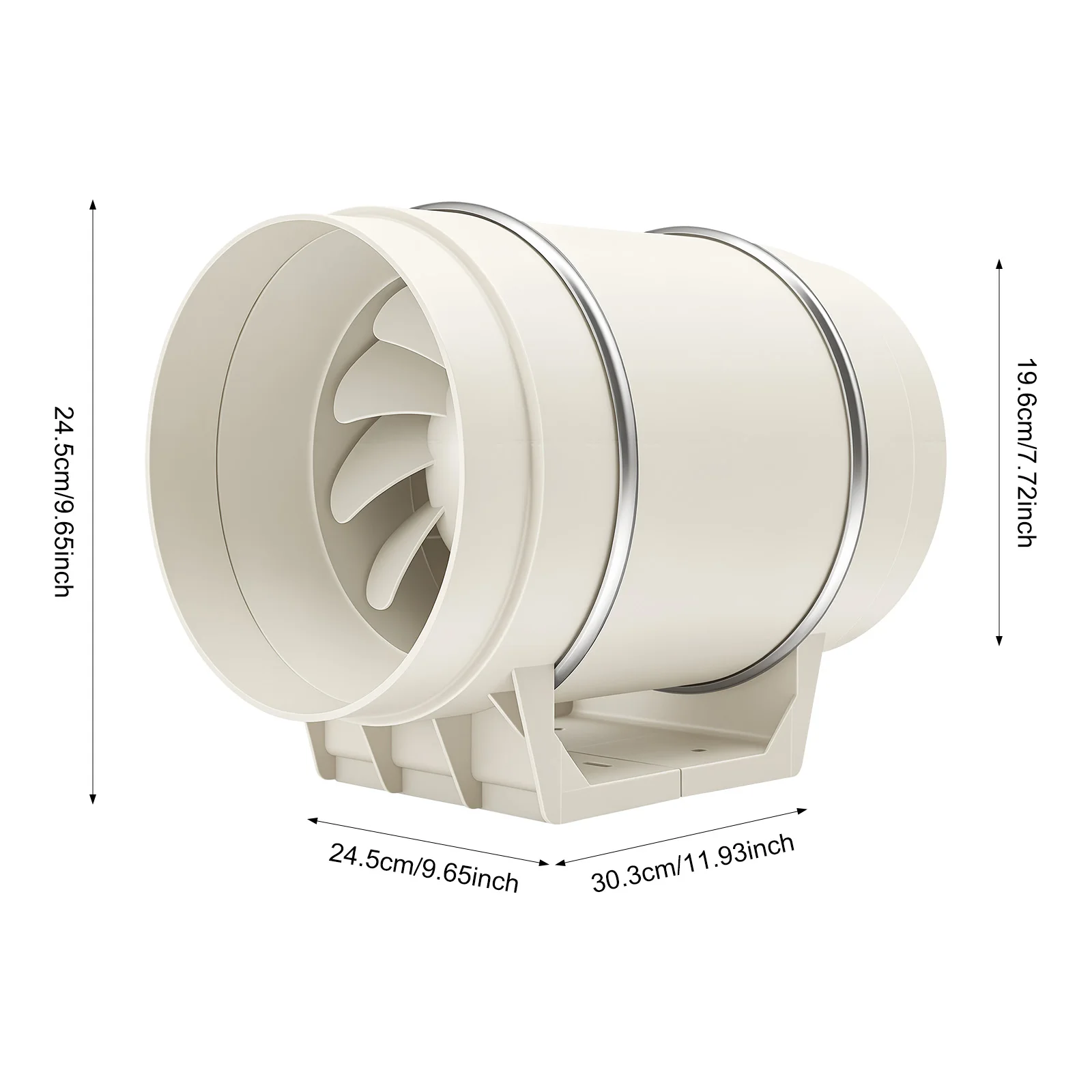

Product Size: 30.3*24.5*24.5cm/11.93*9.65*9.65in
Air Vent Size: 19.6cm/7.72in
Package Size: 31*25.5*25.5cm/12.2*10.04*10.04in
Gross Weight: 3.4kg/7.5lbs
Net Weight: 3.23kg/7.12lbs

Package Included

1* Inline Duct Fan
1* English Manual
Other Accessories for Use

Description

Our inline duct fan significantly promotes indoor air circulation, ensuring a fresh and pleasant environment. It not only enhances the quality of air within the space, but also creates a healthier and more comfortable atmosphere for the occupants. Through sophisticated design and efficient operation, this fan is ideal for optimizing indoor ventilation mechanism.

Key Features

Build to Last: The product is made of high-class PP, which is sturdy, wear-resistant, and impact-resistant, effectively protecting the internal components and extending the service life.

Powerful Function: The powerful 136W pure copper moter, 2600rpm, and 900 m³/h air flow can provide you with stable exhaust air, promote indoor air circulation, remove odors and air pollution, and create a healthy home environment for you.

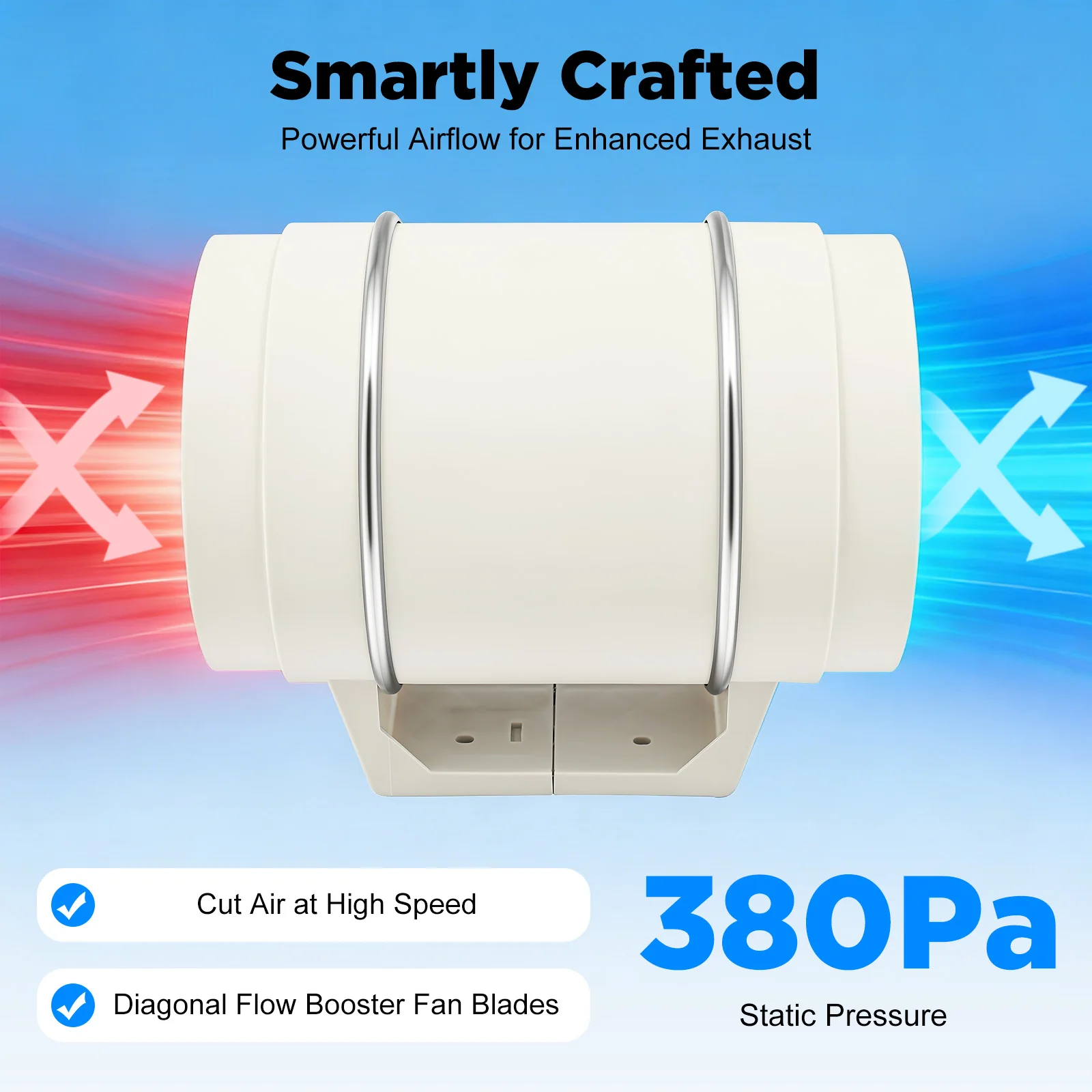

Thoughtful Design: It uses high-density diagonal flow booster fan blades, which can cut the air at high speed and evenly, thus generating a strong airflow and making the wind more powerful.

User Friendly: When used in a confined space, it effectively exhausts dirty air and introduces fresh air, thus improving air quality in indoor or enclosed environments.

Easy to Maintain: Thanks to its removable main body, detachable components, simple construction and smooth surfaces make it easy for you to clean it.

Details

Fixed Base: A thickened fixed base ensures a more stable installation.

Humanized Buckle: It can facilitate you to disassemble and install the product without additional tools.

Application

It is suitable for pipes up to 7.87 inches in diameter. It is suitable for a variety of ventilation occasions in industry, home, garden and so on. It can be used in factory workshops, moxa rooms, chess rooms, restrooms, bathrooms, basements, attics and so on.

Notes

1.We recommend professional electricians to operate to avoid damage to the motor.
2.Please turn the fan off immediately if the blades get stuck by other objects.
3.To maintain optimal performance of the exhaust fan, please clean the fan regularly based on usage.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
