NEJE E80 130W Laser Module Head for Laser Wood Marking Engraver Cutter Router 3D Logo Smart CNC Laser Engraving Cutting Machine

All our Laser Module have 2 Years Warranty

NEJE E80 Laser Engraving Module

Description

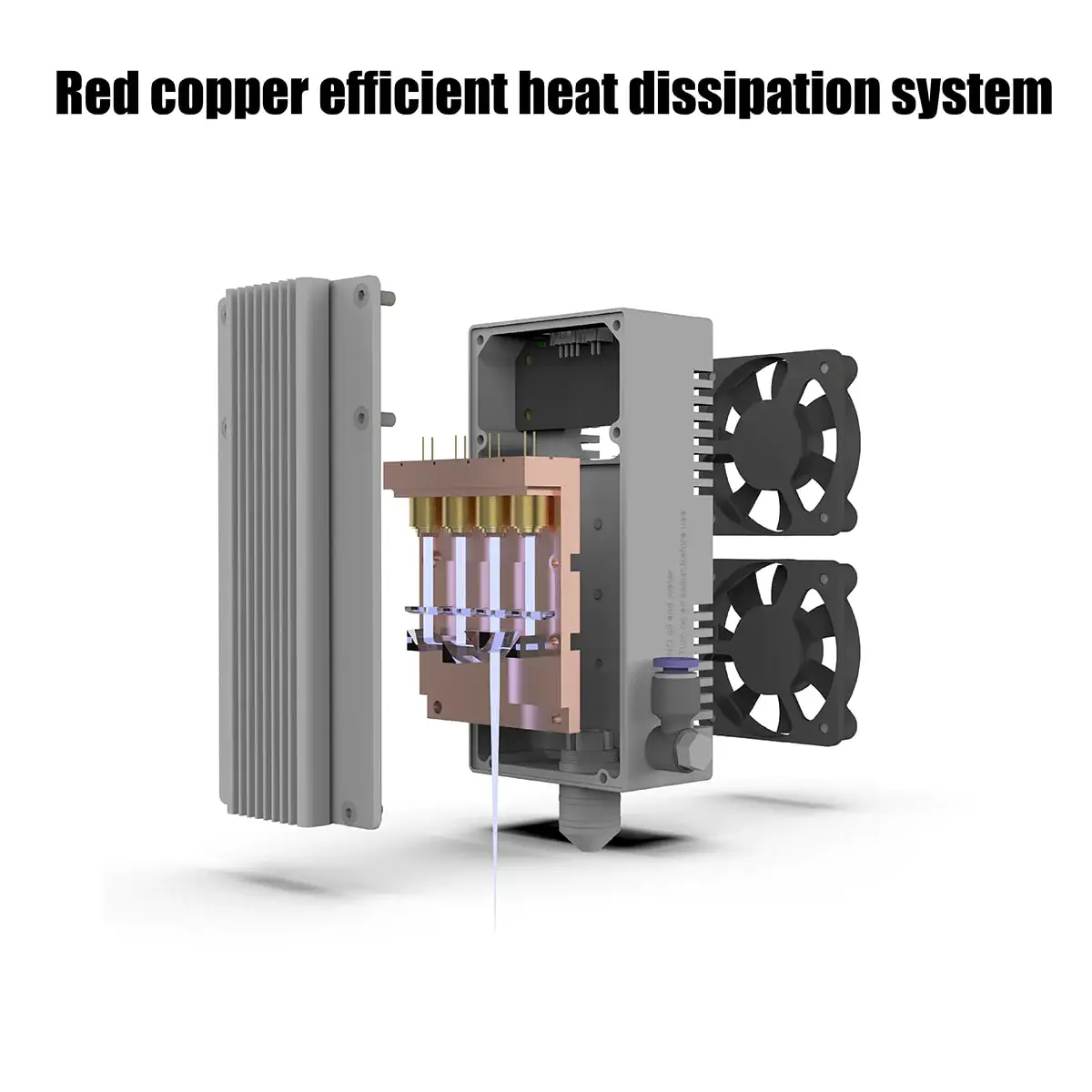

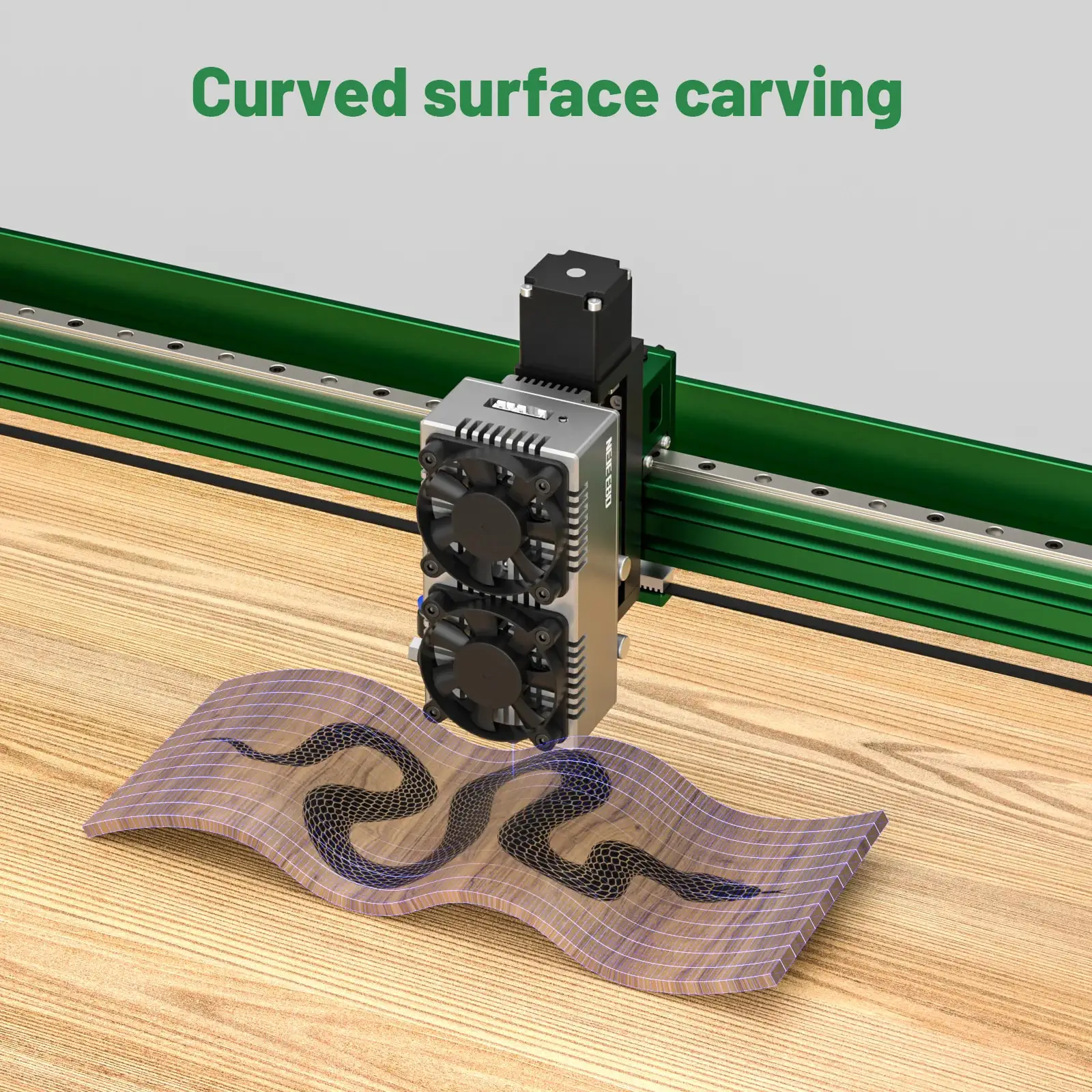

The NEJE E80 laser module has superb performance and ultra long lifespan.It adopts a top-level light source without damaging the diode structure,a matrix optical system with greater manufacturing difficulty,an innovative copper fast heat dissipation system,and a reliable driving design that has undergone 10 years of precipitation.The E80 module has outstanding and delicate results in engraving and cutting.It has excellent performance in stainless steel color carving,3D relief,high hardness material cutting,and thick board cutting efficiency.In terms of performance and lifespan,it far exceeds the conventional 30W or 40W modules on the market.

Interface

24V: Power positive .

GND: Power ground or power negative.

TTL/PWM: TTL = PWM, input 3.3V~24V to turn on laser module, conect to GND to turn off laser module.

Temperature: do not connect, please ignore.

Connect 24V and GND pin to 24V power, ensure the power adapter is sufficient, 3A-5A is recommended.

Connect TTL/PWM pin to your control board PWM output pin.

E80 driver has very high conversion efficiency, input 65W can output 24W optical power.
