50W Vibration Motor Brushless High-speed Motor 1000~3000rpm Adjustable Speed IP65

Description
Our vibration motor is made of high-quality materials and adopts advanced technology, with strong power and smooth operation. It is capable of maintaining efficiency and stability in various complex environments. Its structure is simple and has a high protection level, so it is easy to install and maintain. It is the ideal choice for you to improve the efficiency of your equipment and ensure smooth production!

Key Features
Sturdy and Durable: The product is made of high-quality aluminum alloy and 304 stainless steel, using spray molding technology, with high strength, wear resistance, excellent insulation properties, and long service life.

Strong Power: The 50W brushless high-speed motor, with a maximum speed of 3000rpm, high-performance bearing, and high-precision rotor endow this product with strong power, which can work normally even under heavy loads and meet various commercial purposes.

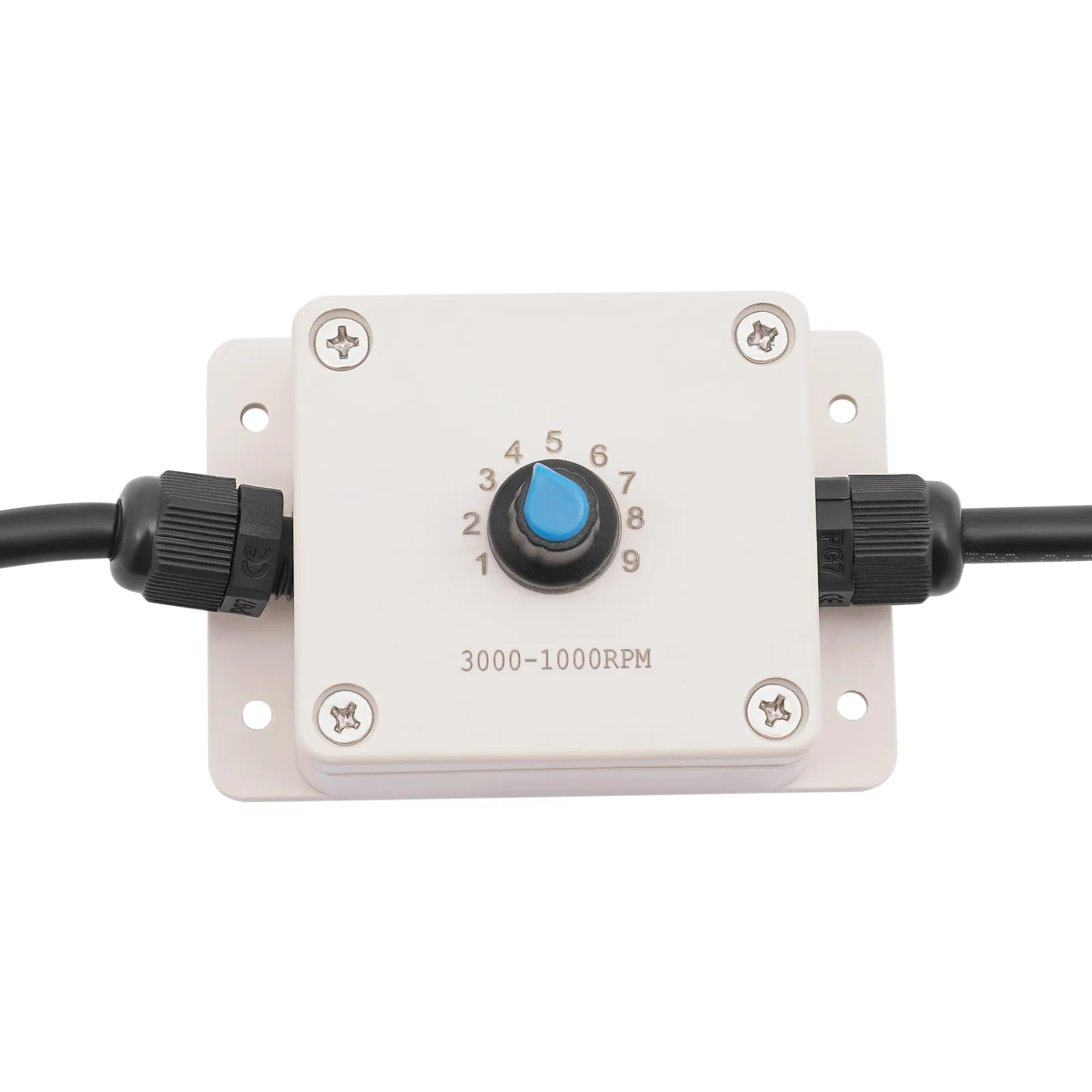

Adjustable Speed: By turning the knob on the speed controller, you can select 9 speeds with a range of 1000~3000rpm to meet your various vibration needs.

Good Sealing Performance: The watertight sealing O-ring, 304 stainless steel protective cap, and one-piece sealing structure provide excellent sealing performance for this product to withstand harsh environments.

High Safety: IP65 protection, Class F insulation, premium bearing that can withstand temperatures up to 356 ℉, and a large-channel cooling system are designed to ensure your safety in use and extend its service life.

Easy to Clean: The smooth surface and simple structure allow you to easily remove dust from the surface of the motor with a towel.

Ready to Use: Thanks to its simple construction and detailed English manual, all you need to do is wire it up and you're ready to use.

Protective Packaging: The pearl cotton provides comprehensive protection for products to ensure that it is fully delivered to you to the greatest extent possible.

Customer Service: We aim to provide high-quality products and services. If you have any questions, please feel free to contact us. We will reply as soon as possible and solve the problem for you.

Details
Pre-drilled Holes: Pre-drilled holes in the motor and speed controller base help you quickly secure them with tools such as screws (not included), allowing for more stable operation.

Anti-twisting Protection Cover: It helps wires resist twisting and vibration and protects the power supply, thus prolonging the life of the product.

Round Corners: It can better care for your skin and enhance the aesthetics of the product.

Application
This product can be widely used in mining, metallurgy, coal, electric power, construction, medical, casting, food, grain machinery, and other fields. It can be used in large steel rolling equipment, large precision machine tools, mining winches, trams, shopping malls massage equipment, micro-vibration screens, 5D cinema game chairs, and so on.

Specifications

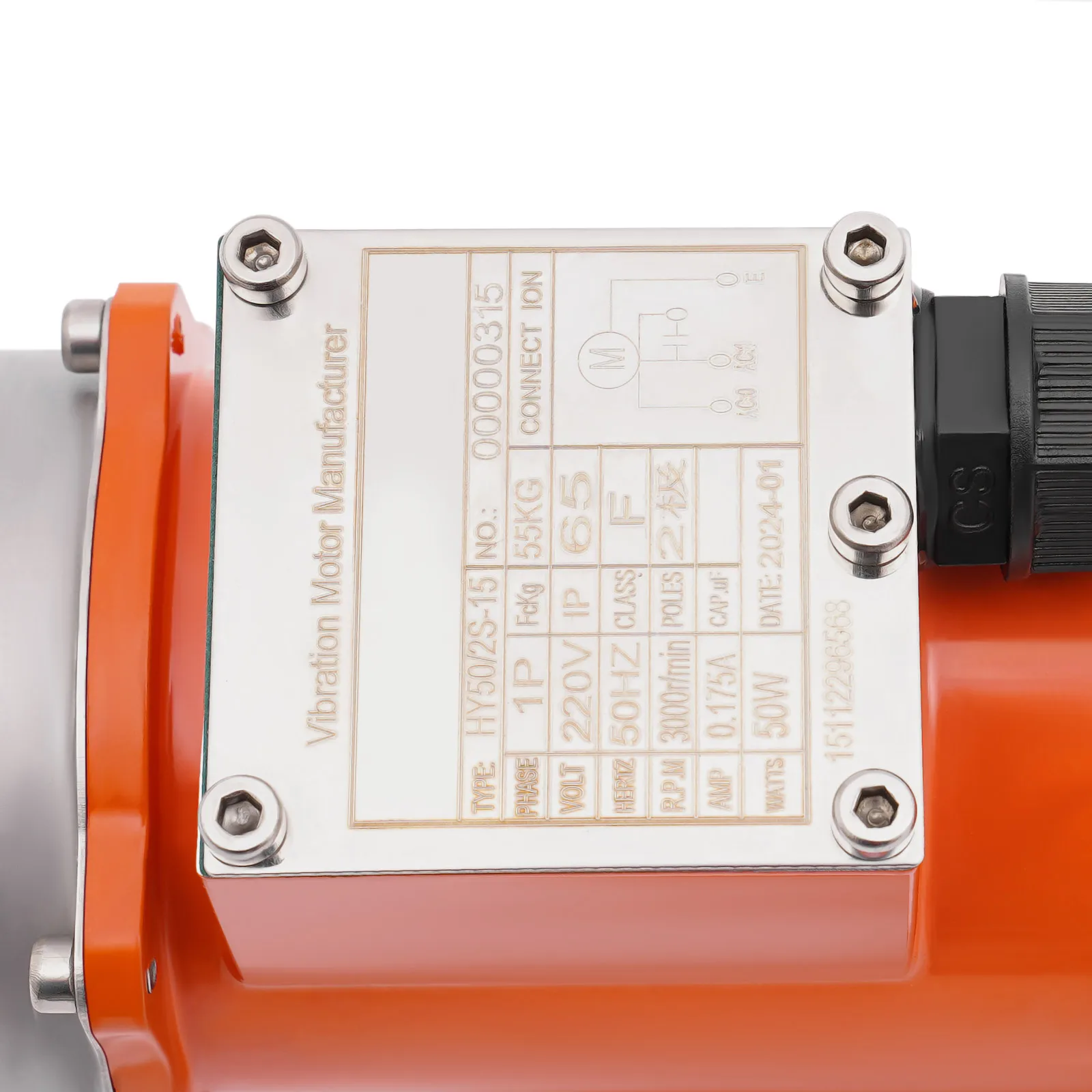

Model: HY-50/2S-15
Color: Silver, Orange, Black, White
Material: Aluminum Alloy, 304 Stainless Steel, Copper
Surface Treatment: Spray Molding
Motor Type: Brushless Pure Copper Motor
Assembly Required: No
Voltage: 220V, 50HZ

Power: 50W
Current: 0.175 A
Noise: 60dB
Protection Grade: IP65
Class: F
Speed Gears: 9
Poles: 2
Phase: 1P
FcKG: 55kg/121.25 lbs
Speed Range: 1000~3000 rpm
Maximum Speed: 3000rpm
Maximum Temperature Resistance of Bearing: 180°C/356 ℉
Operating Temperature: -20-50°C/-4-122℉
Gross Weight: 2.05 kg/4.52 lbs
Package Size: 23*16*13cm/9.05*6.3*5.12 in

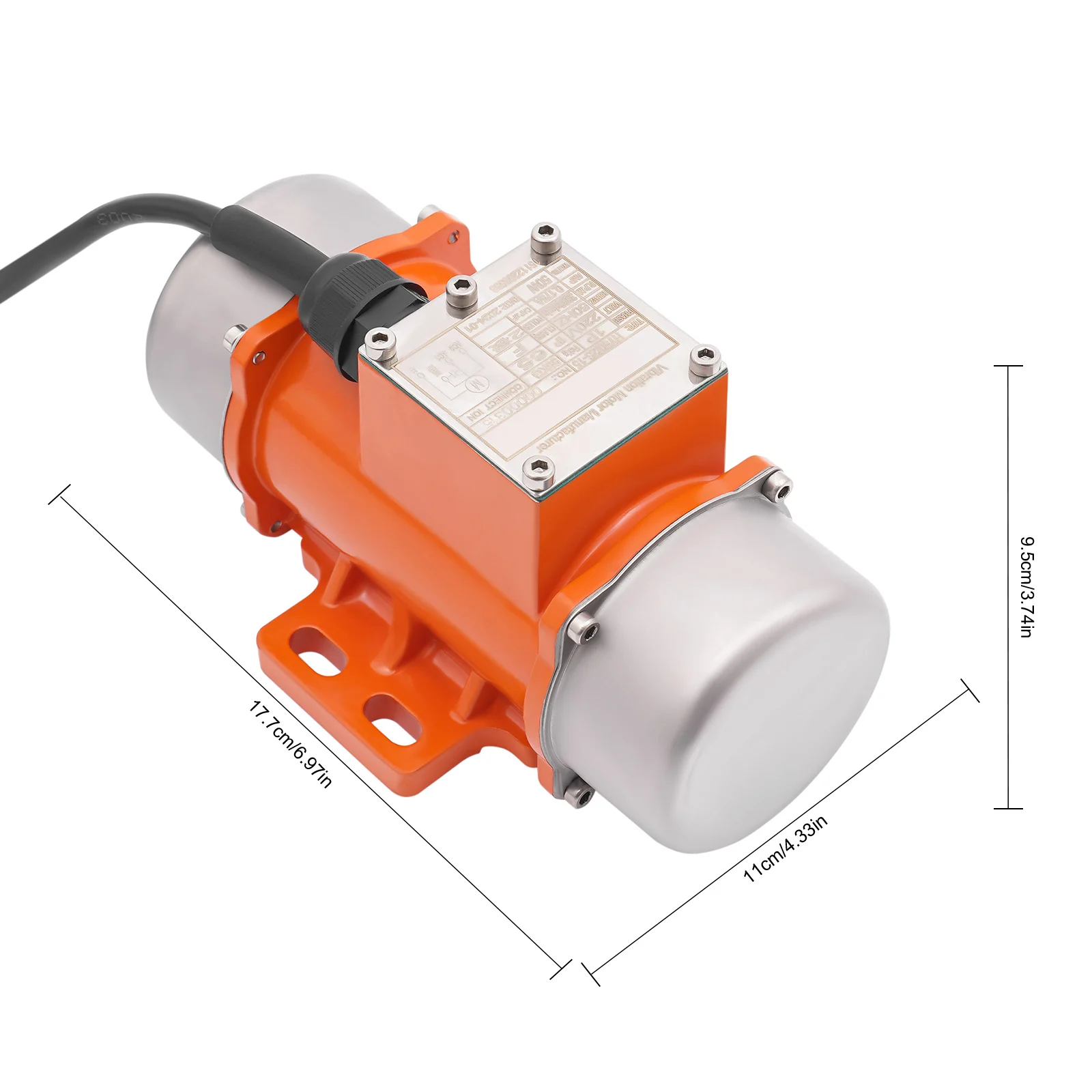

Product Size: 17.7*11*9.5cm/6.97*4.33*3.74 in

Package Included

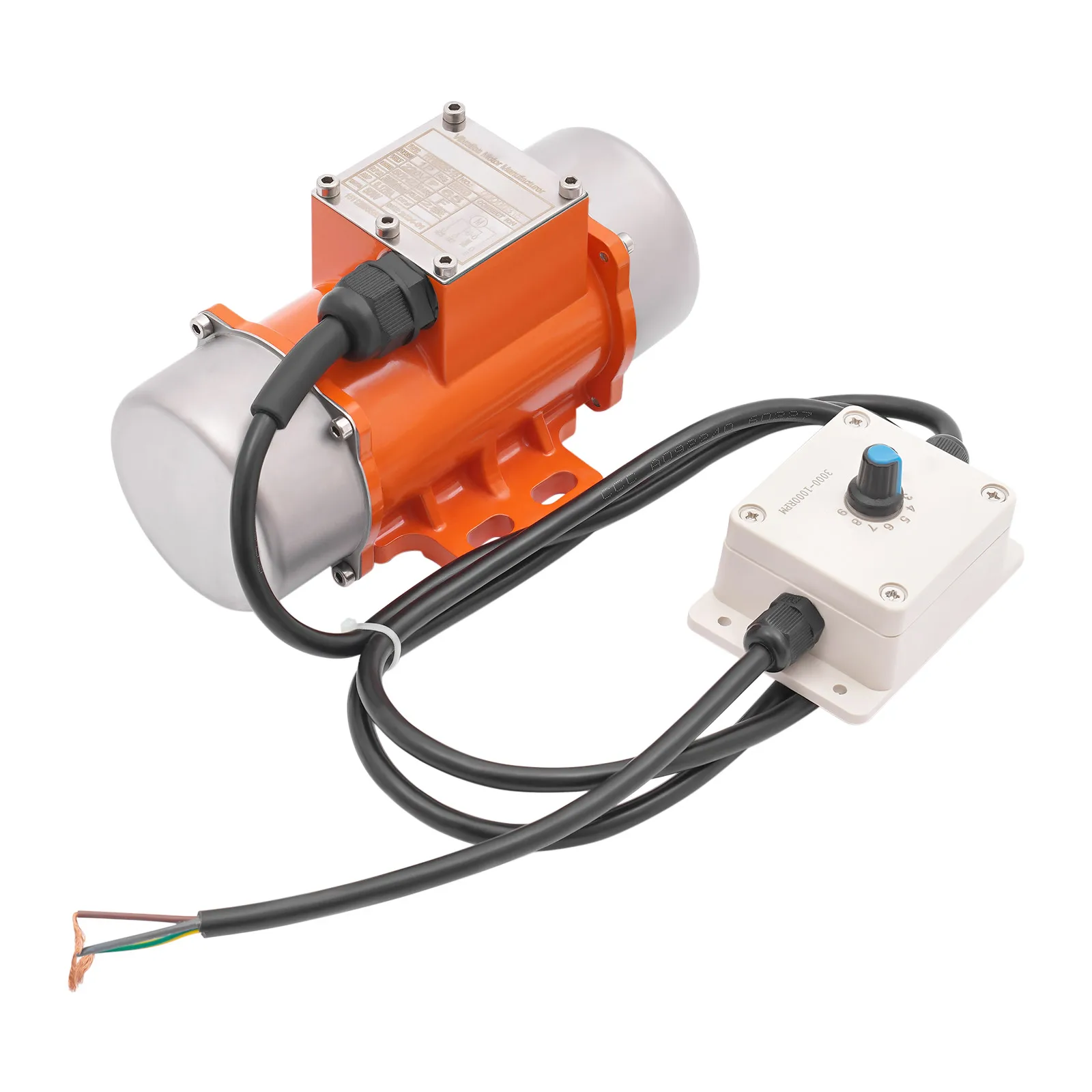

1* Vibration Motor
1* Speed Governor
1* English Manual

Notes
1.Before use, please fix the motor with screws (not included) to avoid safety accidents, and remember to regularly check the tightness of the installation screws and remove dust on the surface of the vibrating motor.
2.Please note that the angle of this eccentric block is not adjustable.
3.To ensure the normal installation and use of the motor, please confirm the motor model and installation size before purchasing.
4.Please note that the temperature rise of the motor increases gradually at elevations greater than 0.62 miles above sea level.
5.Please note that you should read the instructions carefully before use.
6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
