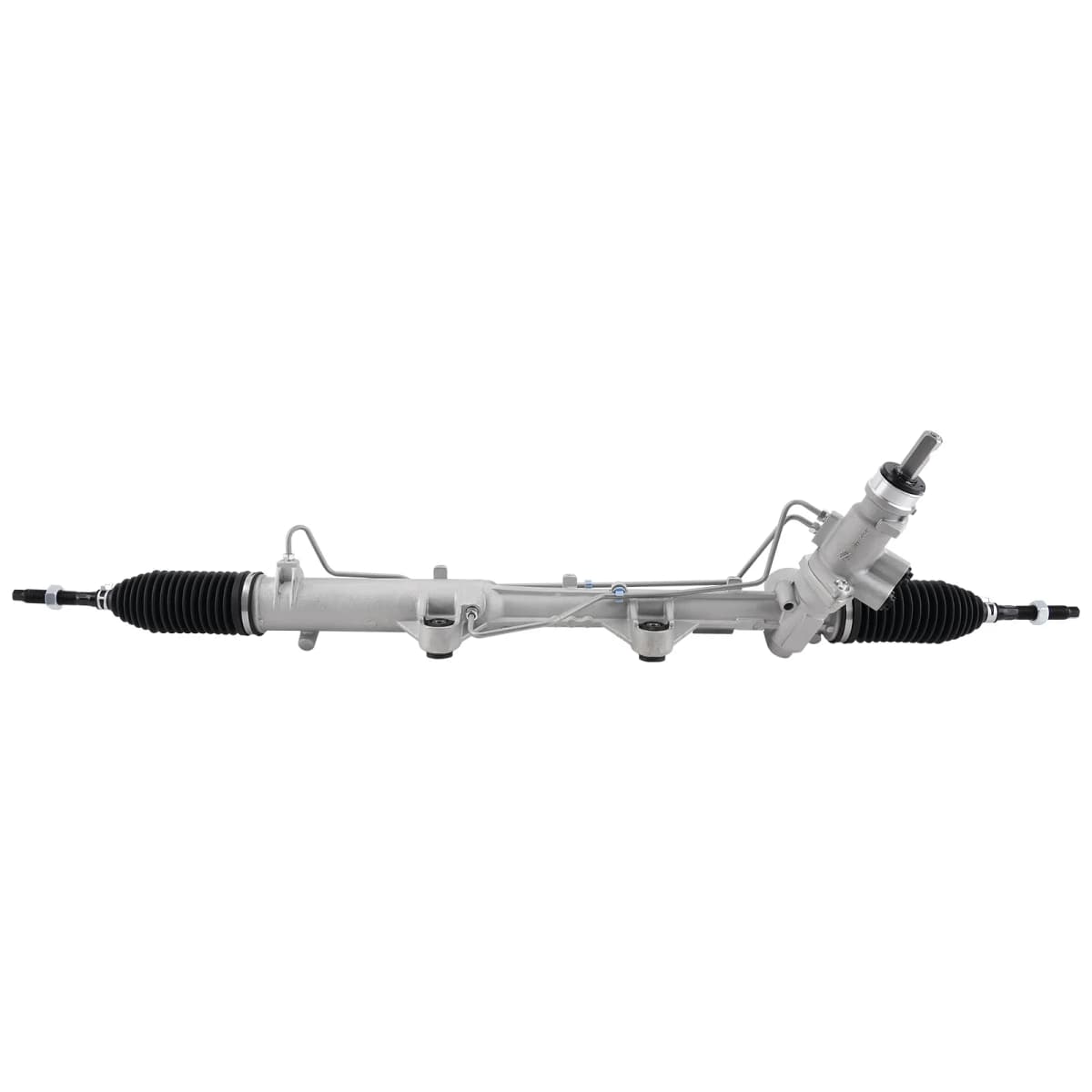

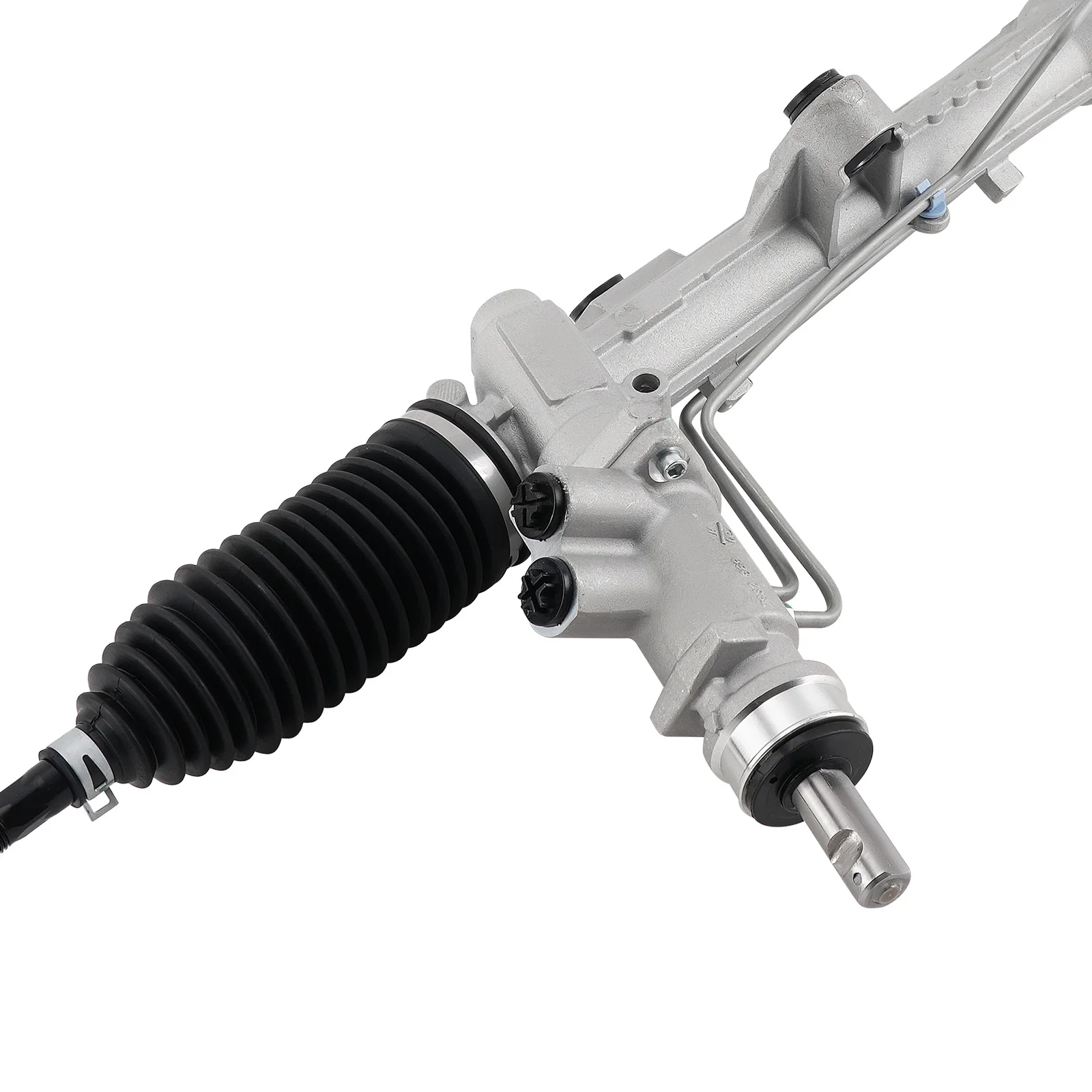

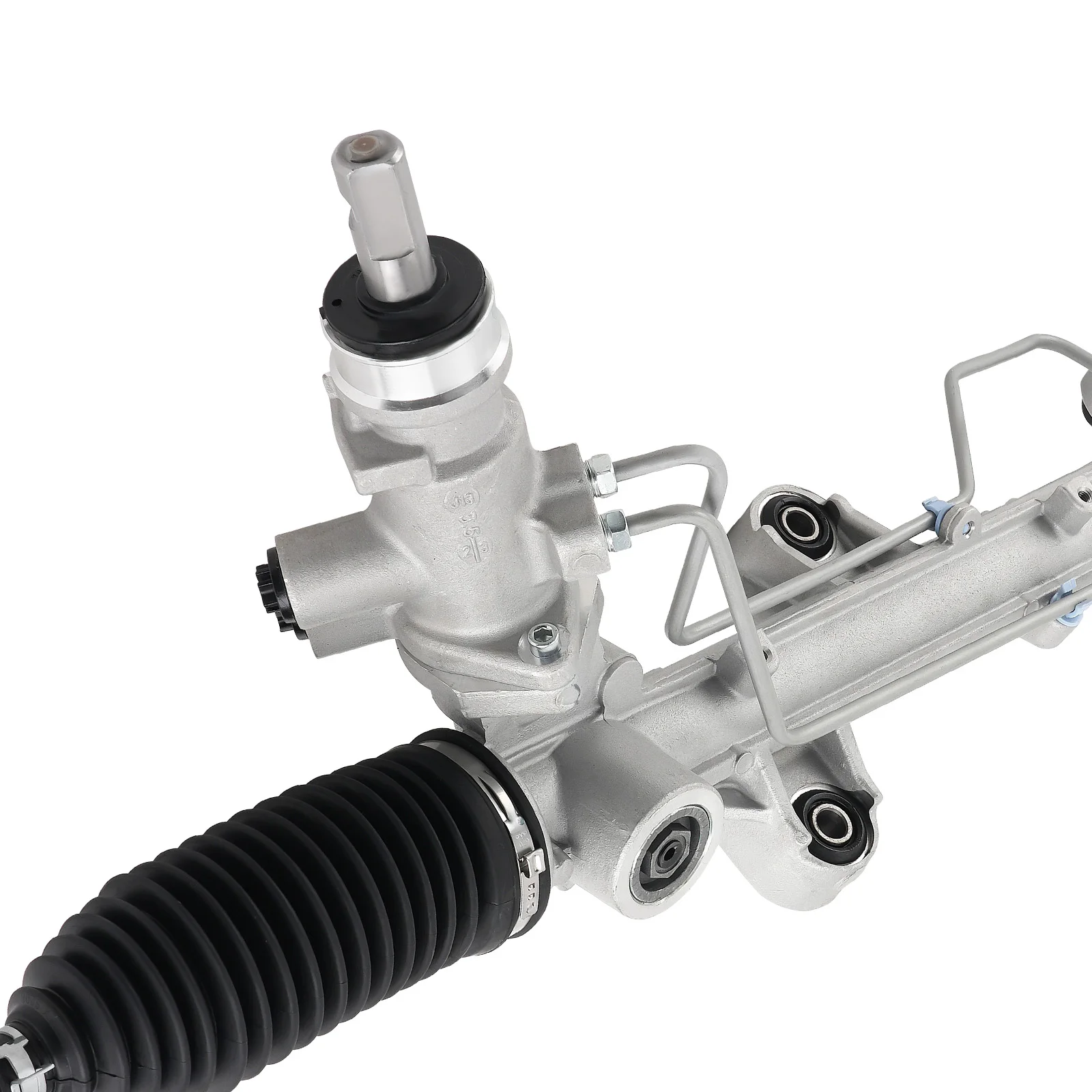

Power Steering Rack Gear For VW Multivan Transporter V VI 03-21 7H1422061J 7H1422055M

steering gear for VW Multivan Transporter V VI 1.9-3.2L 2003-2021 7H1422061H

Application:

For VW Multivan V 7HM, 7HN, 7HF, 7EF, 7EM, 7EN 1.9L 2003/04-2009/11
For VW Multivan V 7HM, 7HN, 7HF, 7EF, 7EM, 7EN 2.0L 2003/11-2015/08
For VW Multivan V 7HM, 7HN, 7HF, 7EF, 7EM, 7EN 2.5L 2003/04-2009/11
For VW Multivan V 7HM, 7HN, 7HF, 7EF, 7EM, 7EN 3.2L 2004/02-2009/12
For VW Multivan VI SGF, SGM, SGN, , SGM, SGN 2.0L 2015/04-2021/12
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EB, 7EJ, 7EF 1.9L 2003/04-2009/11
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EB, 7EJ, 7EF 2.5L 2003/04-2009/11
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EB, 7EJ, 7EF 3.2L 2004/02-2009/11
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC 1.9L 2006/06-2009/11
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC 2.0L 2003/11-2015/08
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC 2.5L 2003/04-2009/11
For VW Transporter Bus 7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC 3.2L 2003/11-2009/12
For VW Transporter Kasten 7HA, 7HH, 7EA, 7HH, 7EA, 7EH 1.9L 2003/04-2009/11
For VW Transporter Kasten 7HA, 7HH, 7EA, 7HH, 7EA, 7EH 2.0L 2003/11-2015/08
For VW Transporter Kasten 7HA, 7HH, 7EA, 7HH, 7EA, 7EH 2.5L 2003/04-2009/11
For VW Transporter Kasten 7HA, 7HH, 7EA, 7HH, 7EA, 7EH 3.2L 2003/04-2009/11
For VW Transporter Fahrgestell 7JD, 7JE, 7JL, 7JL, 7JY, 7JY, 7JZ, 7JZ, 1.9L 2003/04-2009/11
For VW Transporter Fahrgestell 7JD, 7JE, 7JL, 7JL, 7JY, 7JY, 7JZ, 7JZ, 2.0L 2003/11-2015/08
For VW Transporter Fahrgestell 7JD, 7JE, 7JL, 7JL, 7JY, 7JY, 7JZ, 7JZ, 2.5L 2003/04-2009/11
For VW Transporter Fahrgestell 7JD, 7JE, 7JL, 7JL, 7JY, 7JY, 7JZ, 7JZ, 3.2L 2003/08-2009/11
For VW Transporter Bus SGB, SGG, SGJ SGG, SGJ 2.0L 2015/04-2021/12
For VW Transporter Kasten SGA, SGH SGH 2.0L 2015/04-2021/12
For VW Transporter Fahrgestell SFD, SFE, SFL, SFE, SFL, SFZ 2.0L 2015/04-2021/12





OEM Number:

7H1422055M, 7H1422061C, 7H1422061G, 7H1422061H, 7H1422061HX, 7H1422061J， 7E1422061HX



Specification:

Distance Between Mounting Holes (IN):1.46"
Input Shaft Diameter (IN)：0.68"
Input Shaft Length (IN)：1.89"
Number of Mounting Holes：4
Rack Length (IN)：45.08"
Thread Length (IN)：2.38"
Return Port Thread Size：M18*1.5
Pressure Port Thread Size：M16*1.5
Total Turns Lock To Lock (MM):3.4




Scope of delivery:



1x power steering gear and pinion



Note



1. To avoid malfunctions, professional installation is recommended.

2. If you are unsure of compatibility or are looking for other car parts, please contact us. We will be happy to offer any assistance. The following information will be helpful: VIN (Vehicle Identification Number), detailed vehicle model, part number, and photos of the part.
