GEYA GRT8-EC 10A Dual Function Timer Relay On Delay Or Off Delay Relay AC220V/DC24V Or ACDC24V-240V Time Relay CE CB ROHS

GEYA GRT8-EC 10A Dual function Timer Relay on Delay or off Delay Relay AC220V/DC24V OR AC380V Time Relay CE CB ROHS

General
Dual function time relay can be used for industrial equipment, lighting control, heating element control, motor and fan control, with two delay modes, and the delay range covers 0.1 seconds to 10days.

Function Features

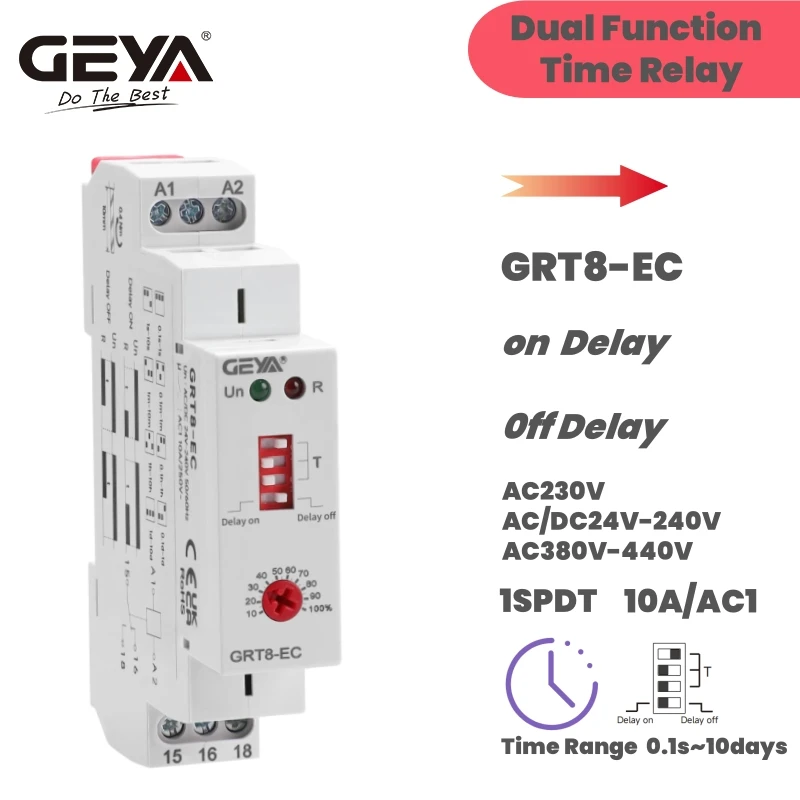

- GRT8-EC Dual-function Time Relay
- Function: on Delay or off Delay Timer Relay
- Voltage Range: AC230V OR AC/DC24V-240V OR AC380V-440V
- Output: 1 × 10A(AC1) 1SPDT (1NO1NC)
-Time scale 0.1 s - 10 days divided into 8 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 0.1-1min, 1min-10m, 0.1h-1h, 1h-10h, 0.1d-1d, 1d-10day

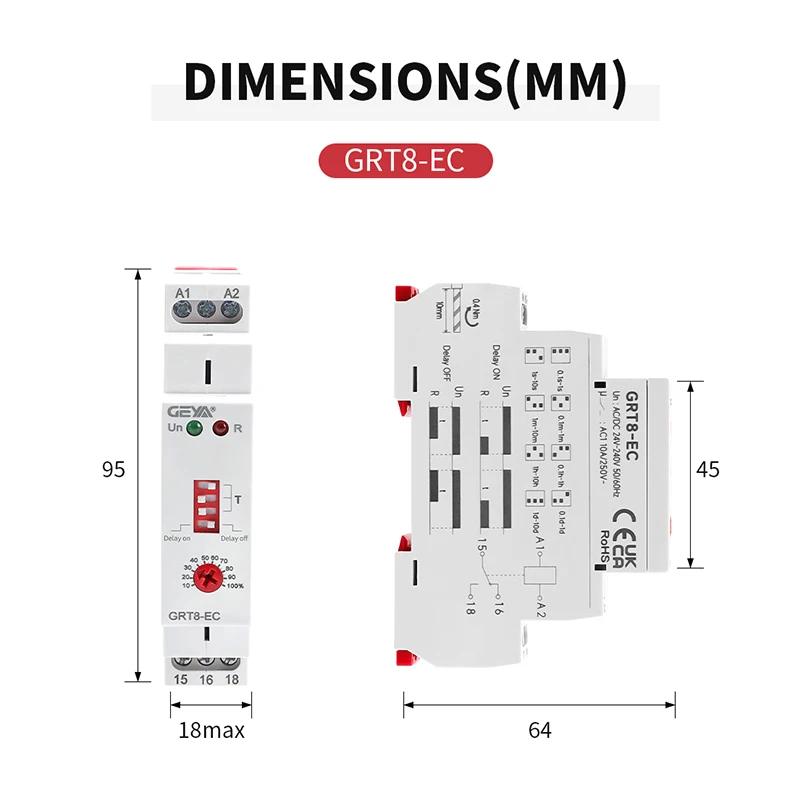

- 1-MODULE 18mm, DIN rail mounting, convenient install.

Technical Data
