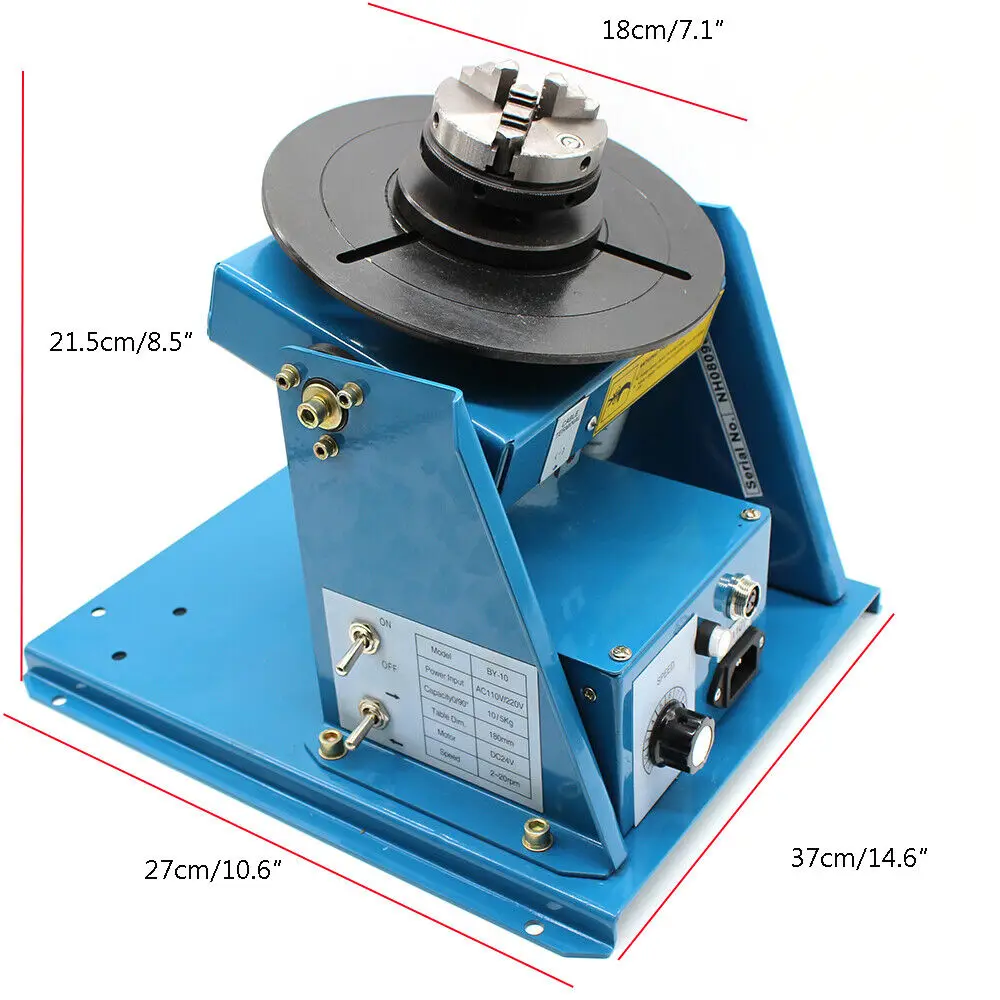

10KG Rotary Welding Positioner Turntable Tilte Table Welding Positioning Machine 0-90º With Mini Chuck 220V

Specifications:

Input Voltage: 220v 60hz

Horizontal Loading Capacity：10kg

Vertical Loading Capacity：5kg

Working Table Tilting Angle：0-90°

Table Diameter: 180mm

Worktable Height: 220mm

Worktable Speed: 2-10 R/Min

Rated Welding Current：80a

Drive Motor: Dc24v 15W

Table Turning Angle: 0-90°

Workbench Rollover: Manual

Rotary Motor: 15w

Product Dimensions: 370 * 270 * 215mm

Net Weight: 9kg

Features:

Speed Regulation.

Structure of Precision, Easy to Operate, Flexible to Use.

Especially Suitable for Under 10kg Flange, Steel Pipe and Other Seam Welding.

High-quality

Dc Motor, the Worktable Running Smoothly, Welding Speed Can Be Stepless

Regulation, Large Adjustment Range, High Adjustment Precision;

Light Weight, Easy to Use, Handling, Easy to Operate;

Clamp and Worktable Choose Simple Mechanical Connection Way, High Positioning Accuracy;

Using Foot Switch Control Table Rotation, Easy to Control Rotation;

Packages:

1x Rotary Welding Positioner Turntable Table

1x Foot Pedal

1x Mini Chuck

1x Power Line
