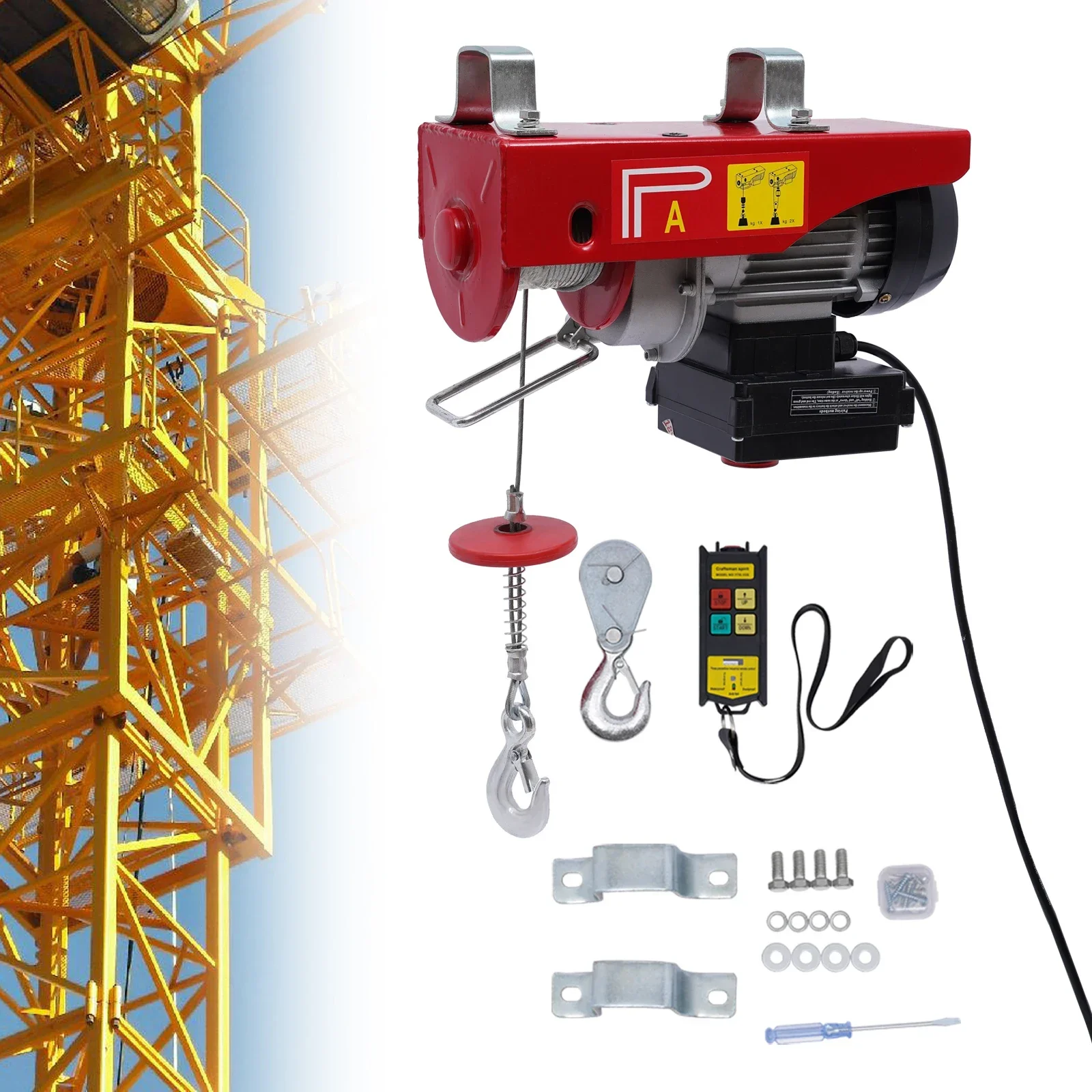

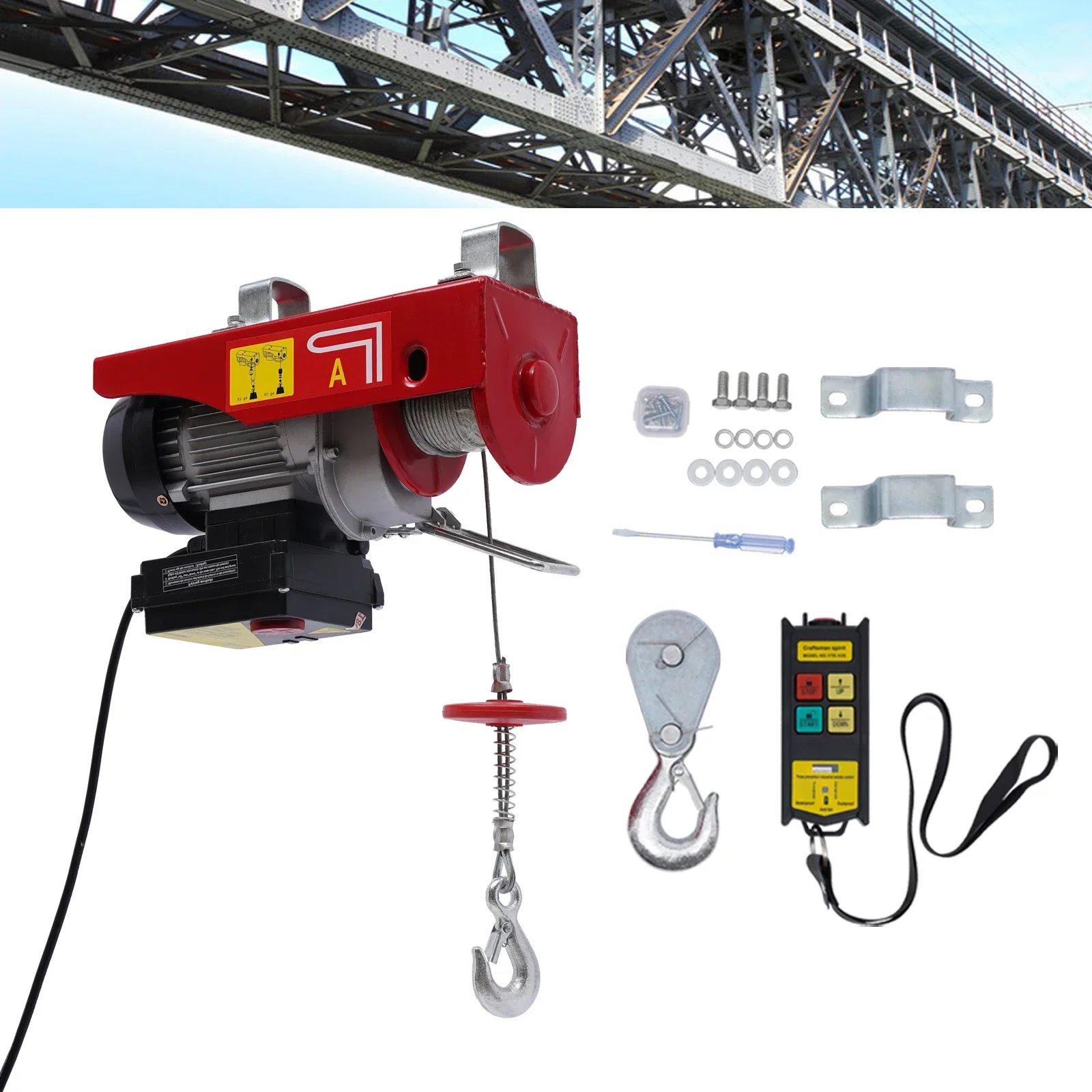

440LBS Electric Hoist With Wireless Remote Control & Slings Electric Winch 110V Electric Hoist For Lifting In Factories

Specification

Model: PA200

Hook Material: Galvanised Alloy Steel

Housing Material: Alloy Steel

Motor Housing Material: Aluminum

Cable Material: Galvanised Steel

Motor Type: Pure Copper Motor

Plug Type: EU Plug

Voltage: 220V

Input Power: 510W

Load Capacity: 100 kg/220lbs (Single Cable), 200 kg/440 lbs  (Double Cable)

Single Cable Lifting Speed: 10m/min(32.8ft/min )

Double Cable Lifting Speed: 5m/min(16.4ft/min)

Lifting Height: 12 m/39.4ft (Single Cable), 6 m/20 ft (Double Cable)

Length of Steel Cord: 12m/39.4ft

Diameter of Steel Cord: 3mm/0.12in

Distance Controlled by Remote Control: 100-200m/328-656ft

Product Size: 34*35*13cm/13.38*13.78*5.12in

Package Size: 38.5*15.5*24cm/15.16*6.1*9.45in

Gross Weight: 11kg/24.25lbs

Net Weight: 10.1kg/22.27lbs

Package Included

1 * Electric Hoist

1 * Lifting Sling

1 * Hook

2 *Mounting Clamp Brackets

1* Remote Control

1* English Manual

All Accessories for Use

Description

There are problems at work where things are so heavy that it is very difficult to move them purely by hand. The development of modern technology has brought great convenience to mankind, both in life and at work. This electric hoist features a pure copper motor with galvanized steel cable, which guarantees a powerful lifting capacity and high work efficiency. It will be a great assistant for your lifting work and you can't afford to miss it!

Key Features

High Loading Capacity: The strong galvanized steel wires and forged hooks guarantee a high loading capacity. The load capacity is 220lbs on a single rope with a lifting speed of 32.8ft/min and 440 lbs on a double rope with 16.4ft/min.

Good Heat Dissipation: The motor has an aluminum casing and a large cooling fan on the side to ensure good heat dissipation, thus allowing longer continuous working hours and also extending its lifespan.

Sturdy and Durable: It is made of alloy steel housing, all copper motor, galvanized steel wire, and an alloy steel hook, which gives it good hardness and wear resistance so that you can use it for a long time.

Compact and Lightweight: Its proper size (13.38*13.78*5.12in) and weight (22.27lbs) allow the electric hoist to be easily placed or carried wherever it is needed.

Stable Performance: It adopts high-speed bearings that keep the bearing rotation gap unchanged for a long time use of the motor. It has a stable rotor axially, high motor force, and low noise, ensuring good working performance.

Easy to Install: We provide a fully equipped installation kit and user instructions, so you can install it easily. You can freely choose between horizontal or vertical mounting.

Wide Application: It can be used with a wide range of lifting equipment in garages, ceilings, attics, barns, lofts and anywhere else you can imagine.

Excellent After-Sales Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Robust Steel Cable: It is equipped with a thickened braided steel cable (0.12in diameter) with a galvanized surface, which is strong, anti-twist, rust-proof, and break-resistant, making it safe and secure to use.

Wireless Remote Control: We are equipped with wireless remote control, which can control up and down, stop and start from a distance for great convenience. It is dustproof, anti-fall, and waterproof, making it suitable for harsh working environments.

Limit Switch: It is fitted with a limit switch to prevent the steel cable from swaying for increased stability during use. At the same time, it will automatically stop lifting when it touches the hook, avoiding damage to the machine if it is lifted too high, making it safe and convenient to use.

Copper Motor: It adopts a high-powered pure copper motor(510w) with strong power, good heat dissipation, and stability, improving your work efficiency. In addition, it operates at low noise, giving you a more comfortable working environment.

Application

The electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, car manufacturers, railway construction, etc. for lifting regular or irregularly shaped objects.

Notes

1. Please note that the width and height of the boom should not exceed the internal dimensions of the mounting bracket.

2. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.

3. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. If necessary, set up a lifting area to remind unoccupied and uninvolved persons that they are not allowed in.

4. Please purchase the electric hoist corresponding to the weight required for the job.

5. Before using the machine, please read carefully all the safety instructions in the product manual.

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
