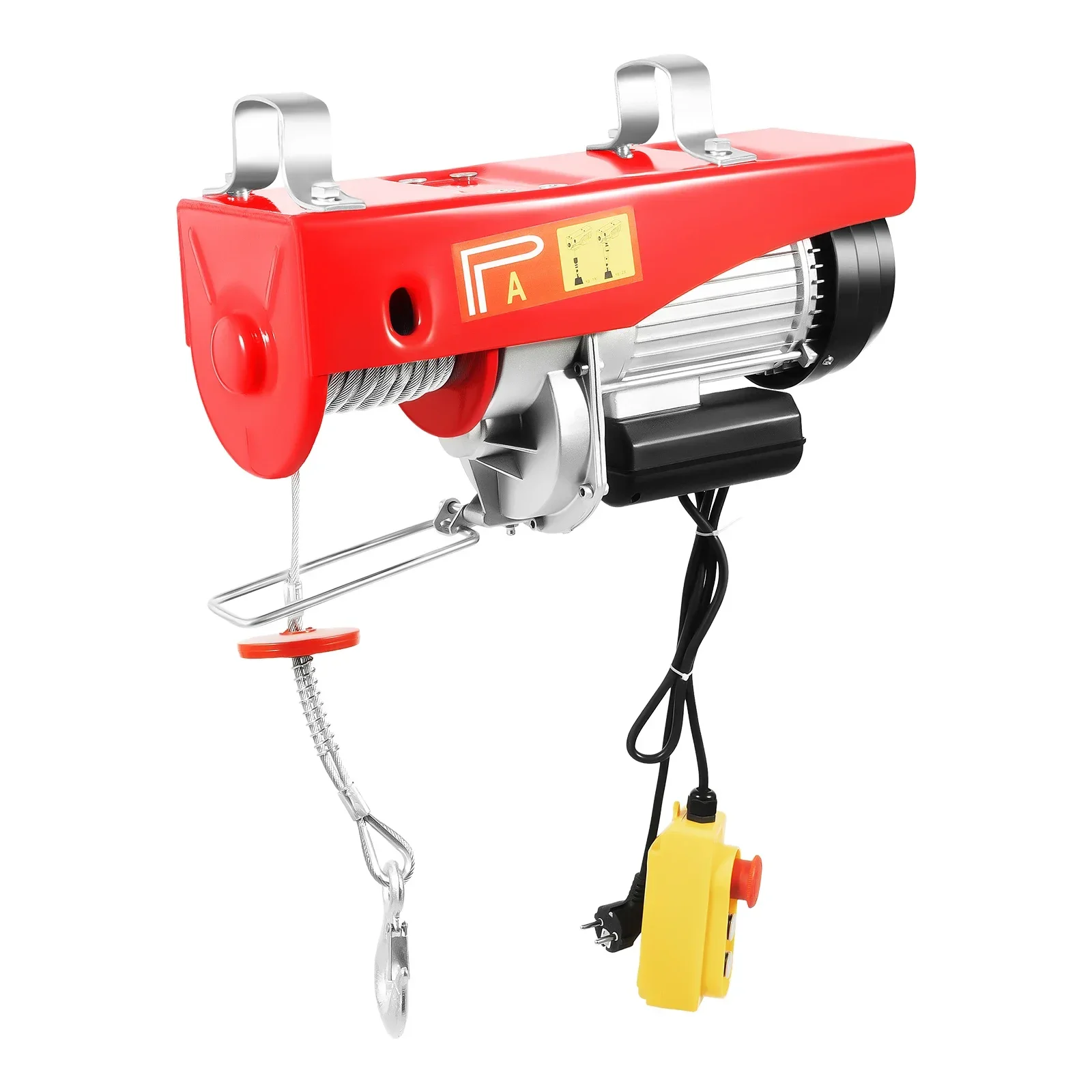

Lift Electric Hoist Single or Double Rope Operation Modes Electric Hoist Built-in Safety Brake Mechanism High Lifting Capacity

Specification
Power Cord Length: 1m/3.28ft
Color: Red, Silver
Item Shape: Cylinder
Model: PA1000 * 12 M
Assembly Required: Yes
Motor: 100% Pure Copper
Material: Iron, Aluminum
Lifting Mechanism: Electrical
Product Type: Load Bed Structure
Protecting Grade: IP40
Voltage: 220V
Power: 1600W
Frequency: 50Hz
Mating Capacitor: 60μF
Wire Rope Length: 12 m/39.37 ft
Wire Rope Diameter: 6mm/0.24in
Single Rope Lifting Height: 12 m/39.37ft
Lifting Weight: 500kg/1102.31lbs
Lifting Speed: 8m/min; 26.24ft/min
Double Rope Lifting Height: 6 m/19.69ft
Lifting Weight: 1000kg/2204.62lbs
Lifting Speed: 4m/min; 13.12ft/min
Gross Weight: 26.5kg/ 58.42 lbs
Net Weight: 25.8kg/ 56.88 lbs
Product Size(L*H): 48*45cm/ 18.9*17*72 in
Package Size: 53*18*35cm/ 20.87*7.09*13.78in
Package Included
1 * Lift Electric Hoist

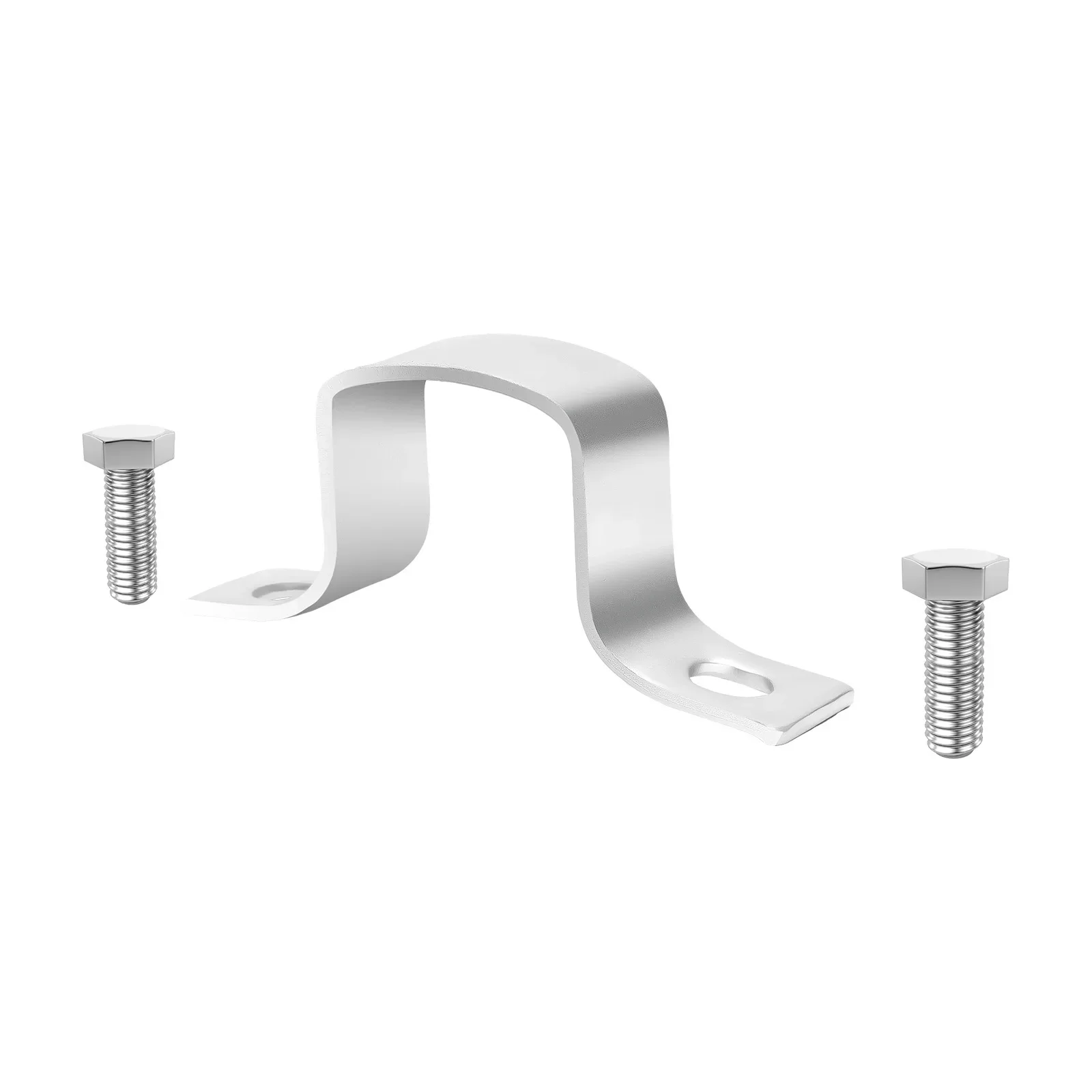

All Accessories for Installation
Notes
Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

Description
The robust lift electric hoist is the ideal helper for your garage or workshop. Simply lifting and moving heavy loads is not a problem. The powerful motor and the sturdy wire rope provide high durability and high bearing capacity. And the product's automatic braking function and overheating protection mechanism also provide safety in use.
Key Features
High-quality Material: This product is made of sturdy iron and aluminum as raw materials for long-term use. It also adopts high-strength braided steel wire rope with an anti-twist design, which can effectively extend the service life of the product.

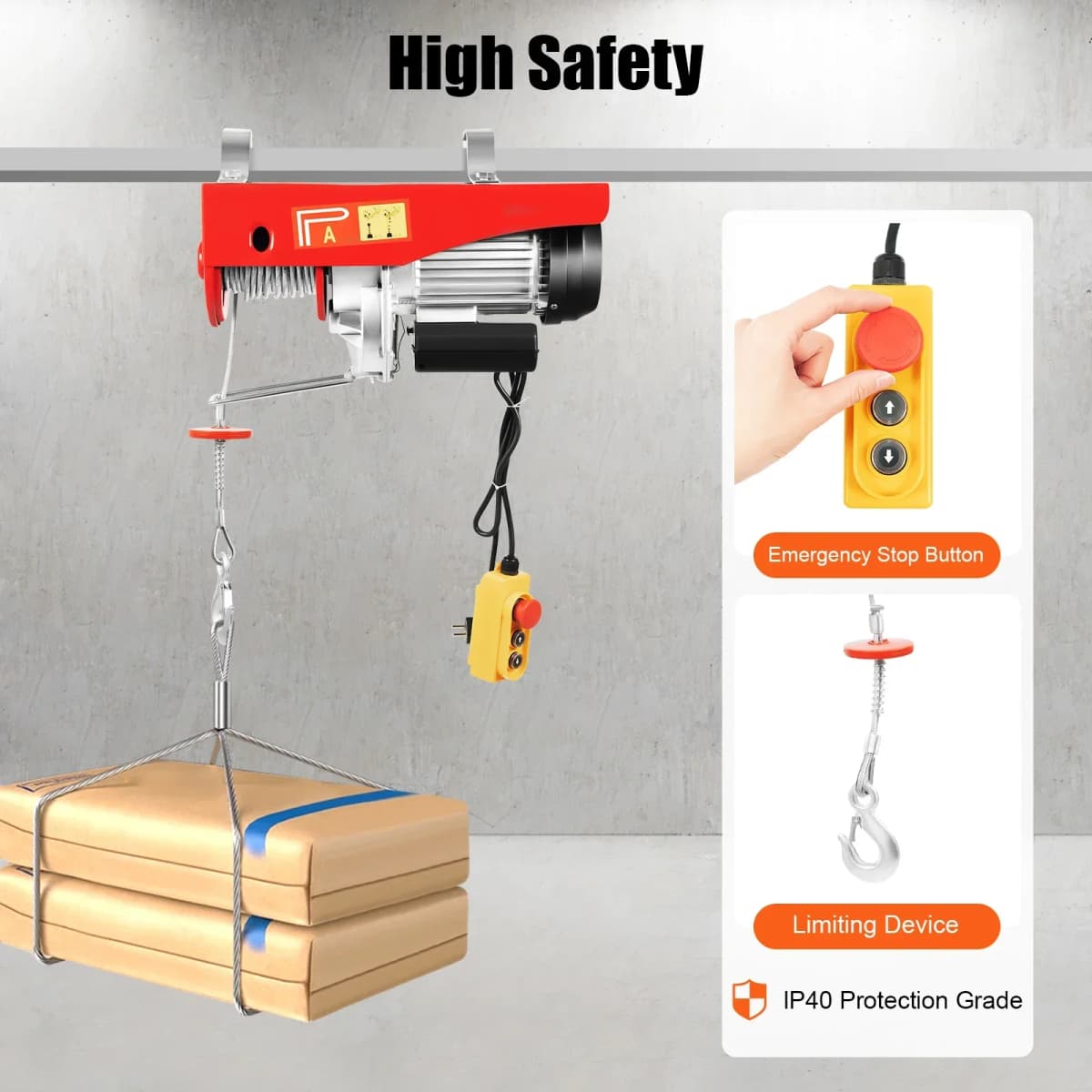

Safe&Reliable: This product has an overheat protection and an automatic braking function. There is a built-in safety brake mechanism so that you can simply press the red emergency stop button when required. The pure copper core motor adopts a longer insulated wire package, which can effectively resist high temperatures.
High Lifting Capacity: Thanks to the powerful motor and high-quality workmanship, this electric hoist meets various requirements for strength and rigidity. The load capacity is 1102 lbs on a single rope with a lifting speed of 26.24ft/min and 2204 lbs on a double rope with 13.12ft/min.
Convenient Storage: The size of this miniature lift electric hoist is only 18.9*17*72 inches, the compact and lightweight design makes it easy to place the lift electric hoist wherever you need it.
Multiple Operation Modes: This product can be used with a single rope or double rope, you can choose different operation modes according to your lifting weight and lifting height.

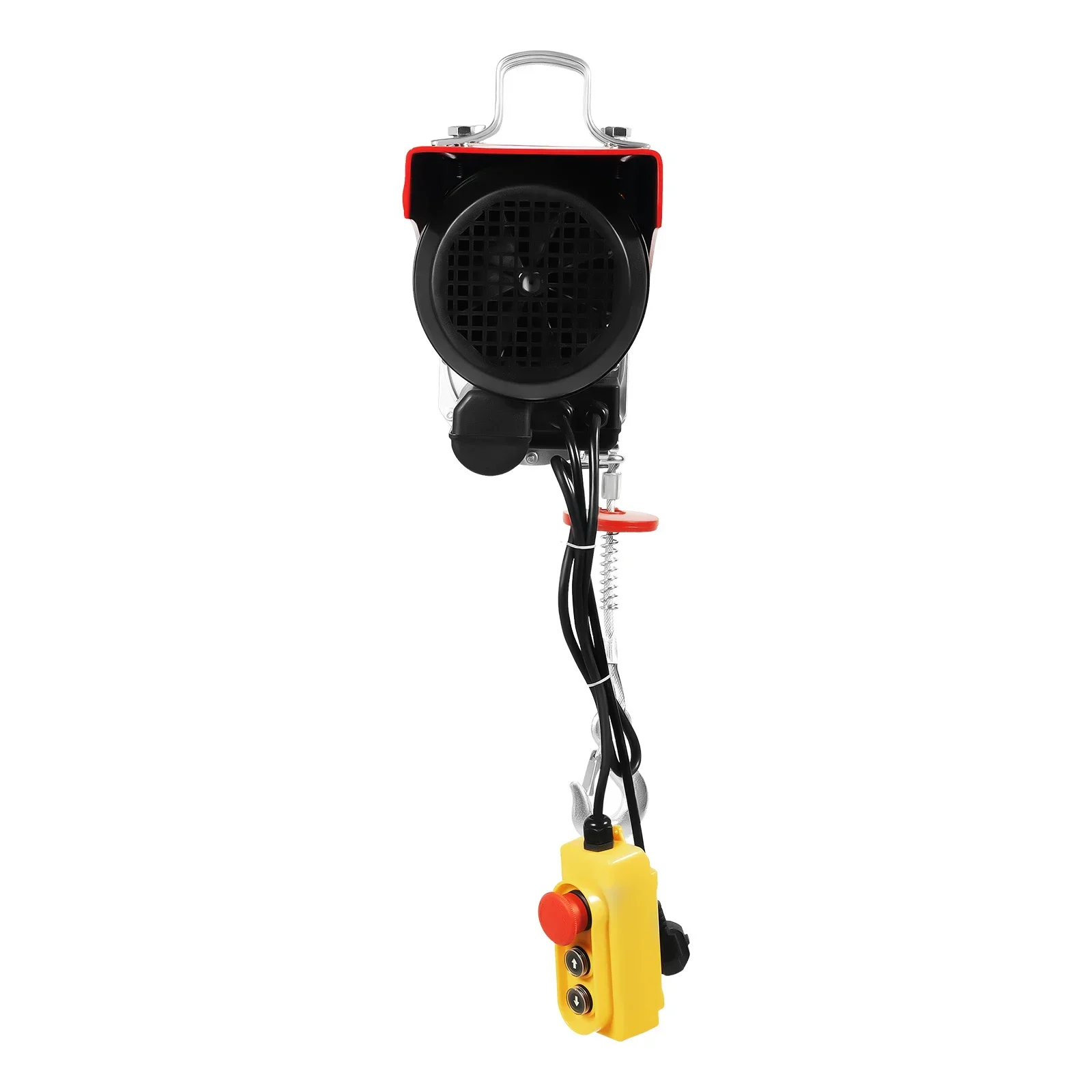

High Heat Dissipation Capability: This electric hoist has a built-in fan and mesh-type heat dissipation holes, which can quickly dissipate heat and reduce the risk of burning out the machine, ensuring the stable operation of the machine for a long time.
Stop Device: The product is equipped with an anti-rush top limiter, which can effectively prevent the wire rope from shaking from side to side, and will automatically cut off the power when the goods reach the top. It can avoid the condition of damage to the machine caused by lifting too high.
Easy to Use: This product adopts a control panel to control the machine. There is an up button and a down button on it, which allows you to lift the load without having to do it manually and be used vertically or horizontally as you need.
Easy to Install: With its simple structure, and we provide a fully equipped installation kit , so you can install it easily.
Details
Powerful Motor: The operational motor is made of premium copper that helps with heat dissipation. The copper is highly-conductive, which means it can provide higher powers while operating.
3.28ft Power Cord: The wired remote control with a length of 3.28ft allows you to control the hoist's raising and lowering functions from a safe distance.
Extended Silicon Steel Rotor: The silicon steel rotor adopts a one-piece molding design, which can effectively reduce the gap between the stator and rotor, thus making the motor more powerful.
External Capacitor: The capacitor is placed in the handle, which is far away from the motor. Therefore, it is not easy to burn the motor.
Clear Button Cover: The buttons on the control panel are protected by a clear cover. It not only won't affect your operation but also can effectively keep the buttons clean.
How to Use
It starts with a metal or solid wood pole to provide enough weight to suspend the crane from the ceiling indoors or outdoors.
Application
This product can be used with monorail cars, hand crane, and electric monorail crane. It also can be used with wall pillars and single pillars, as well as with gantry cranes.
