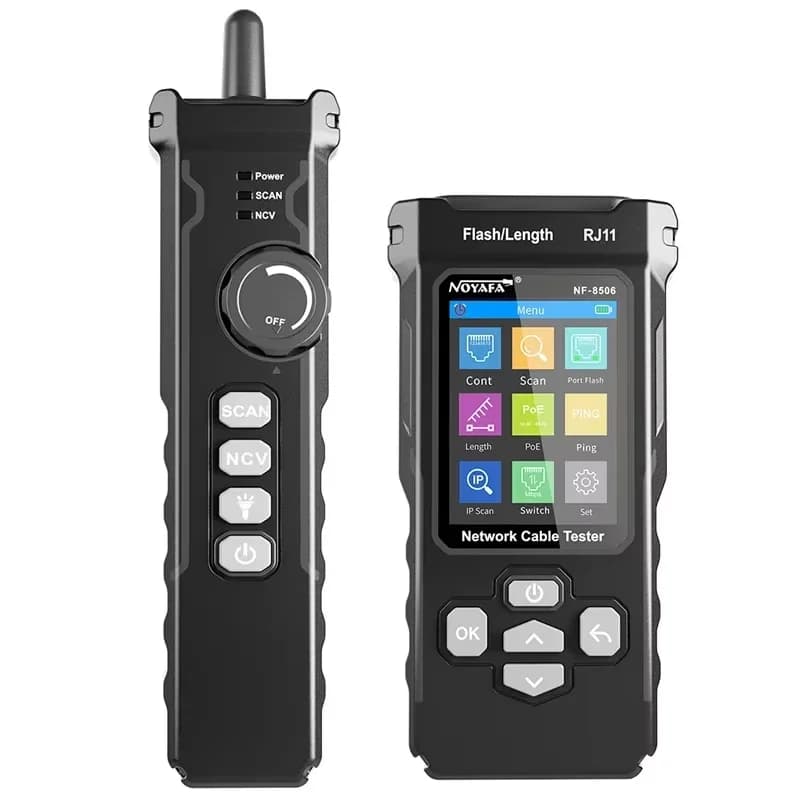

NOYAFA NF-8506 Network Cable Tester Multifunction Cable Tracker Support PING Test/IP Scan/PoE Measure Length Wiremap Tester

Description:

Brand: NOYAFAProduct Name: Network Cable TeaterType: NF-8506Dimension(LxWxD): 200x50x33mm, 150x75x35mmLight Function: YesNCV Function: YesLow Battery Reminder: YesPower: 3.7V 1440mAH Lithium Battery

Item Function:

1. Line-to-line Test: Test the short circuit, open circuit, crossover, normal, etc. of the network cable.
2. Length Test: Network cable length breakpoint test, no calibration required. (Note:The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instruments. The length must be between 2.5 meters and 200 meters.)
3. Line Hunting mode: Normal mode/Anti-jamming mode.(1)The closer the receiver probe is to the target line, the stronger the signal and the louder the sound. The adjuster on the receiver is used to adjust the sensitivity when line hunting.(2)Note: The hunt mode of the receiver should be consistent with the hunt mode of the transmitter.
4. POE Test: Can test the real-time voltage of each line; the switch standard (IEEE8023AT/AF/BT); the output power level (Class1-8) and the power supply method.
5. Port Flashing Function: Quickly find the target cable on the switch/router.
6. Ping Test Function:For the first time, it is recommended to enter the IP interface first, perform the IPv4 parameter settings, and then start the test after each parameter settings.
7. IP Scanning Function
8. Network Cable Rate Function:After the detection is successful, the rate of the mesh (10M/100M/1000M) and the dual -work mode will appear. (full dual -work/half dual -work)
9. Setting Function: Mainly you can view or change the language, backlight time, automatic shutdown time, contrast and version options.

Package Include:

1Set x NF-8506Network Cable Teater

Please Note:

1. Please read the manual before using or servicing this equipment.
2. The network cable cannot be powered on during length measurement, and cannot be connected to equipment and instruments. Otherwise the instrument will be burned.
