SYK-15Ton /10 Dies 16mm-101mm Hydraulic Knockout Punch Kit Hole Punch for Metal, Steel, Plastic

This Hydraulic Knockout Kit has various cutting dies fitting many materials like aluminum, steel, plastic. It works without scratching the surface of workpieces and is widely used in metallurgy, petrol, electrical appliance, ship, machinery and so on.

Specifications:

Model: SYK-15T 10
Max Working Pressure: 15 Ton
Max thickness for metal: 3.5 mm
Max working stroke: 25 mm
10 Dies: 16mm,20mm,26.2mm, 32.6mm,39mm,51mm,63mm ,76mm,89mm,101mm
Package Size: 48 * 25 * 17cm
Gross Weight: 19.7kg

Features:

* High efficiency and labor-saving - with hydraulic mechanism
* Suit various tasks - comes with different cutting dies
* Well-designed structure - reliable performance and simple maintenance

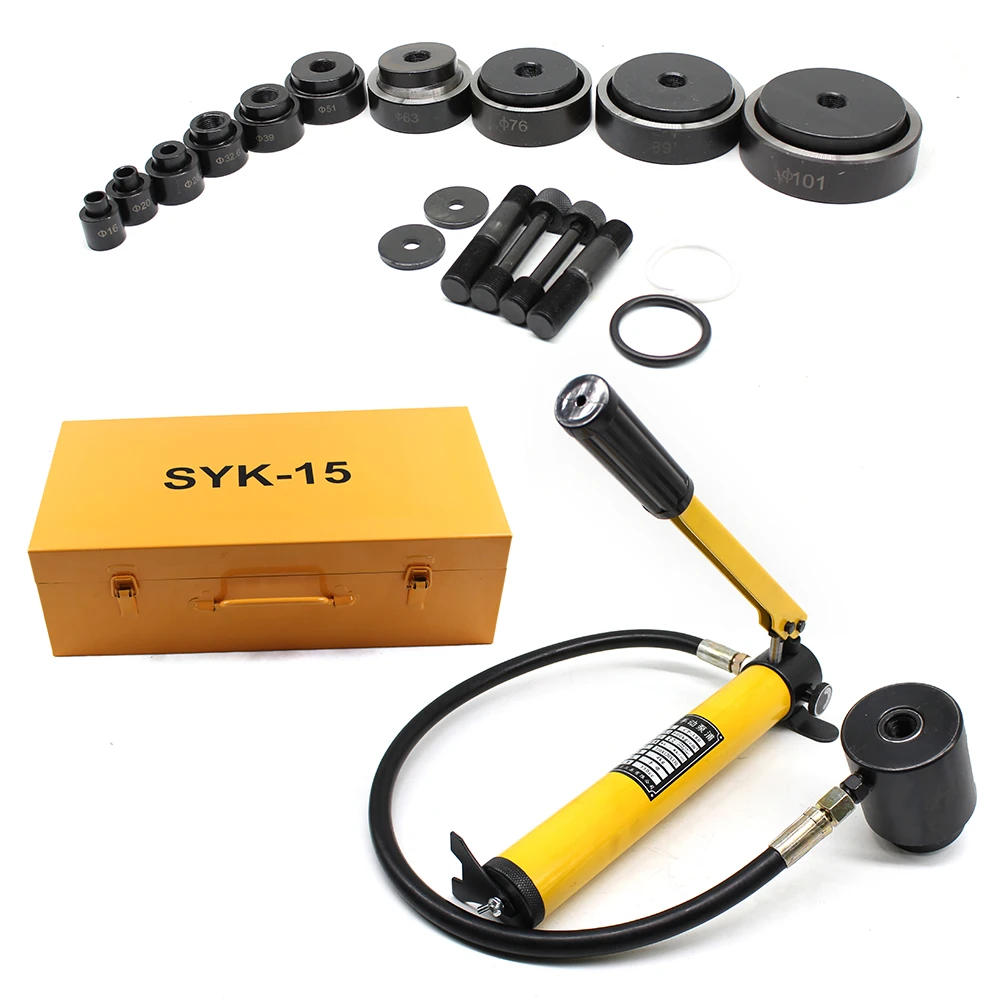

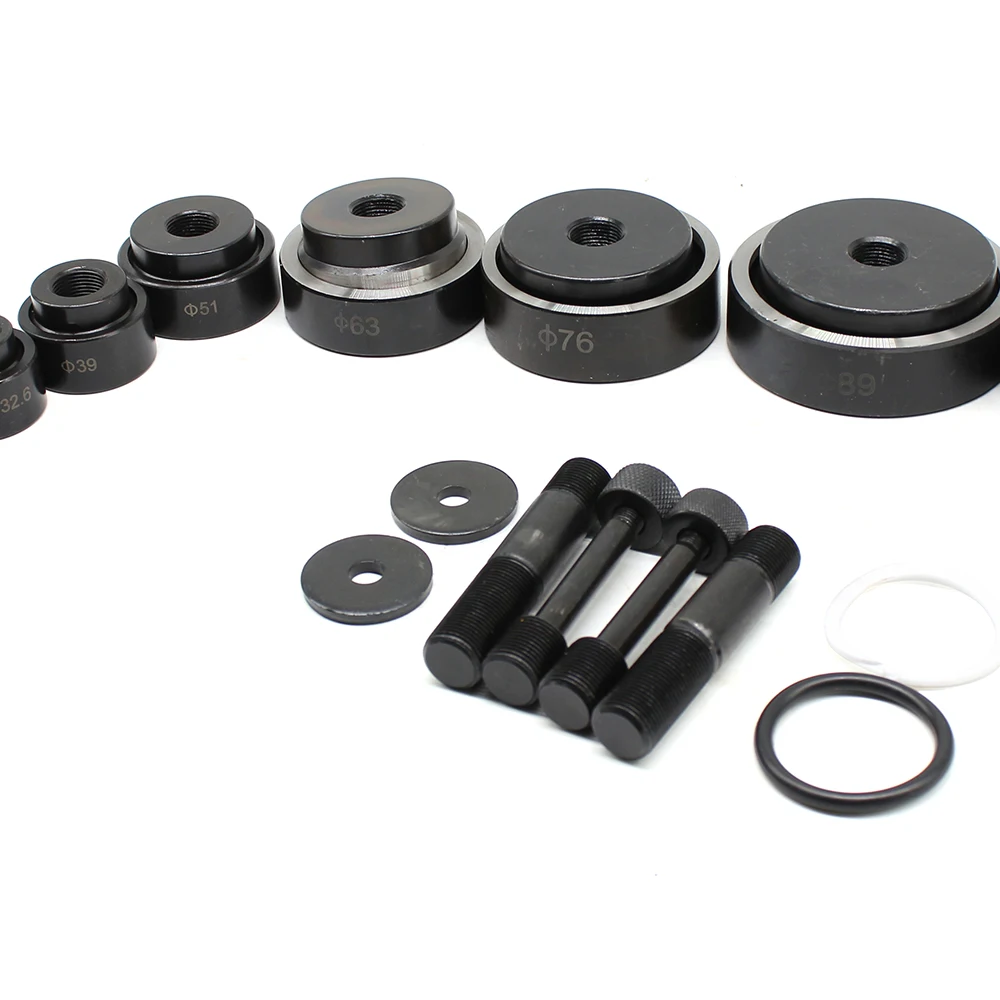

✅Package Content:

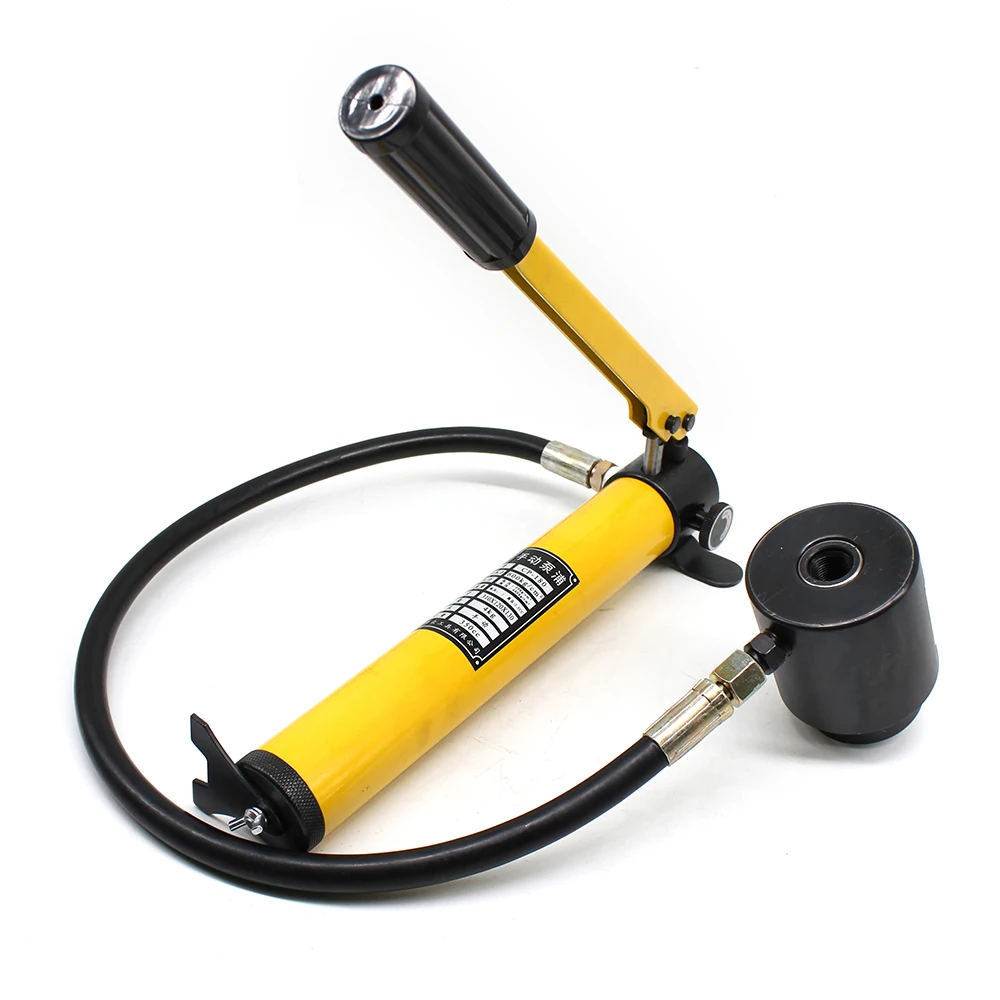

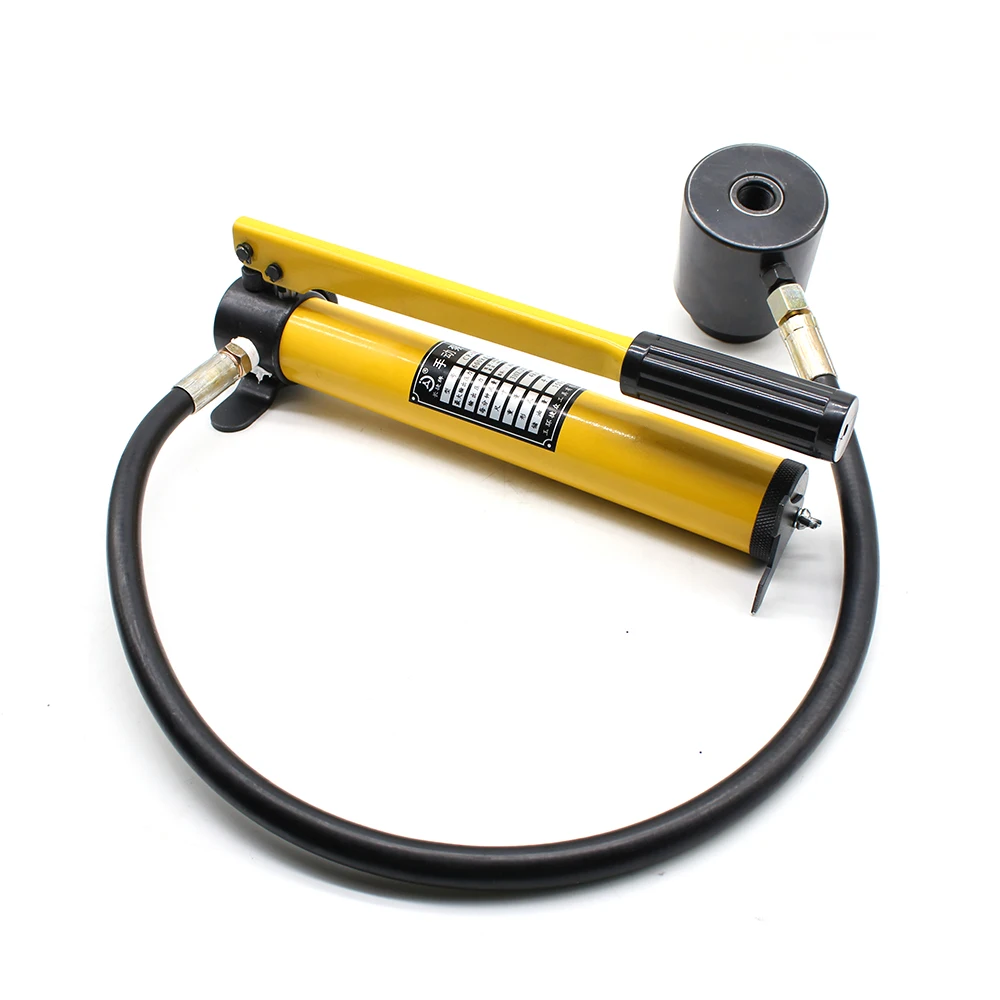

1 x Hydraulic Hole Punch
2 x Small-size Pulling Rods

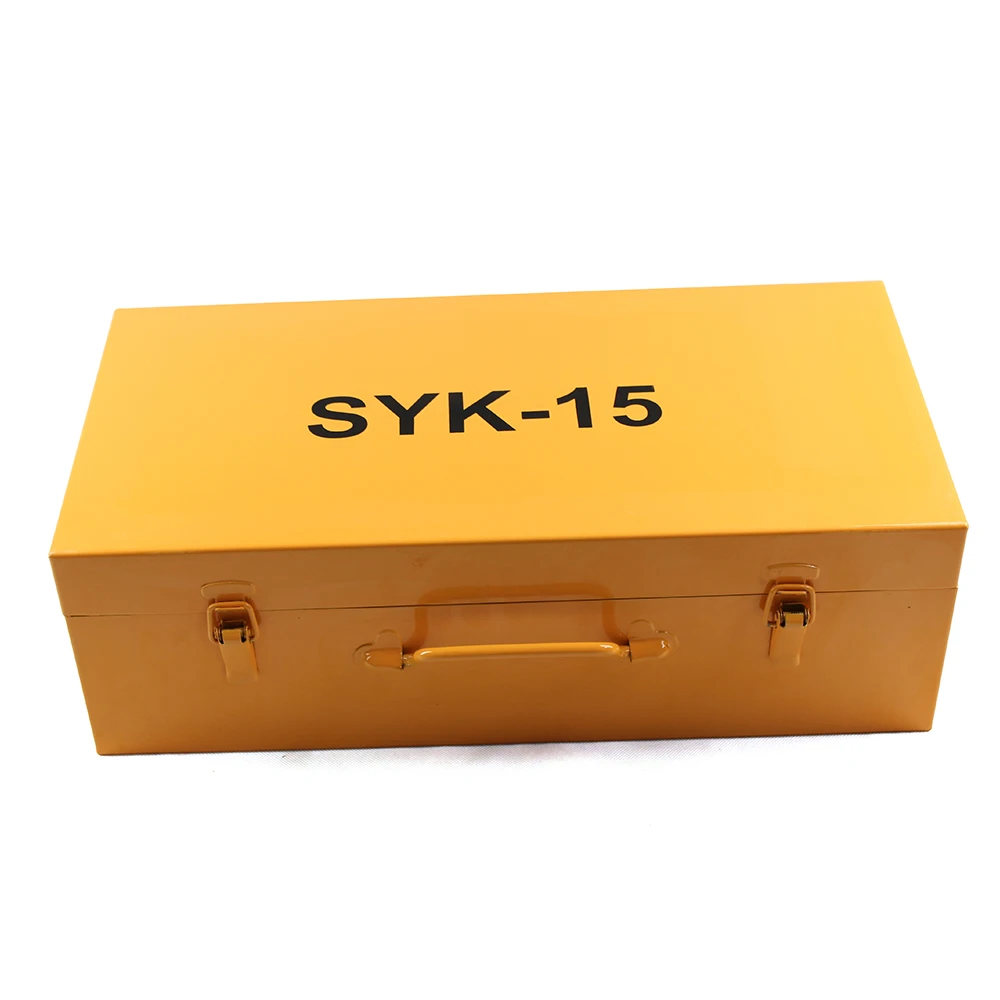

1 x Carrying Case
1 x Manual
2 x Big-size Pulling Rod ( for 15 Ton )
2 x Gasket
1 x Hose

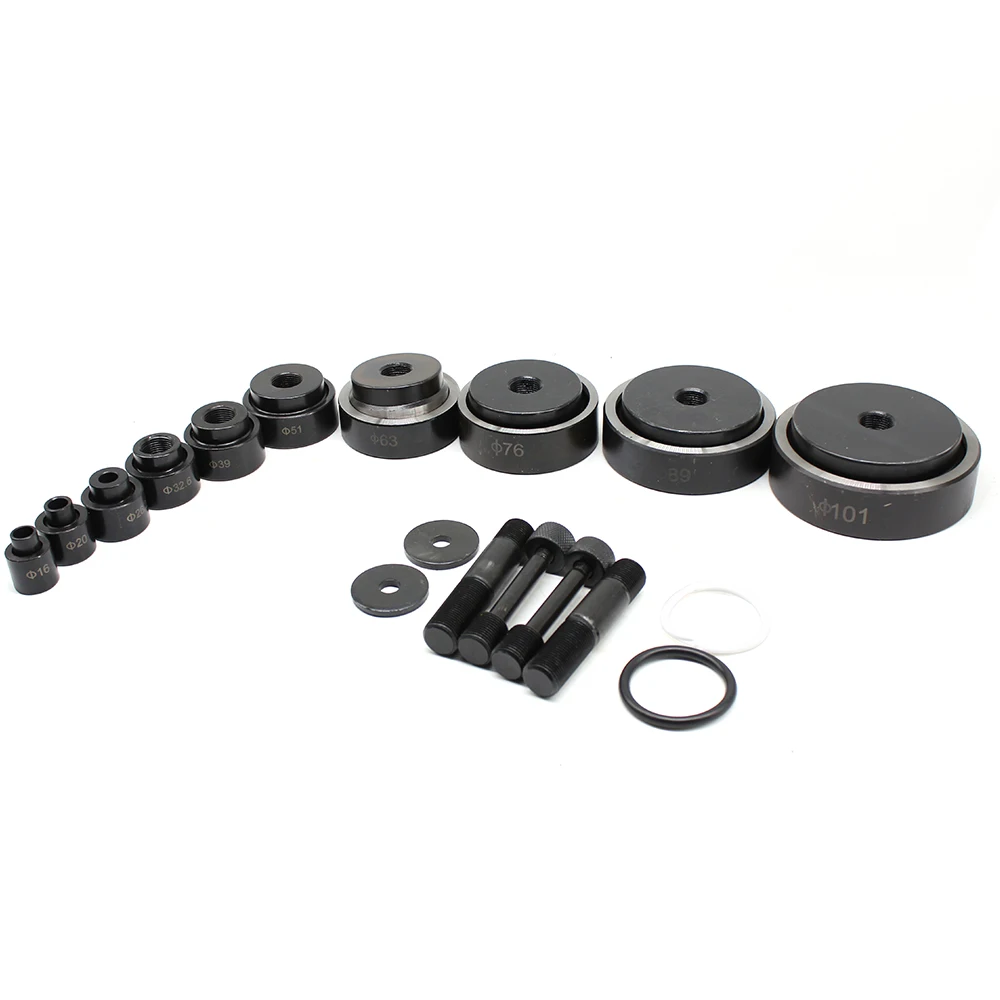

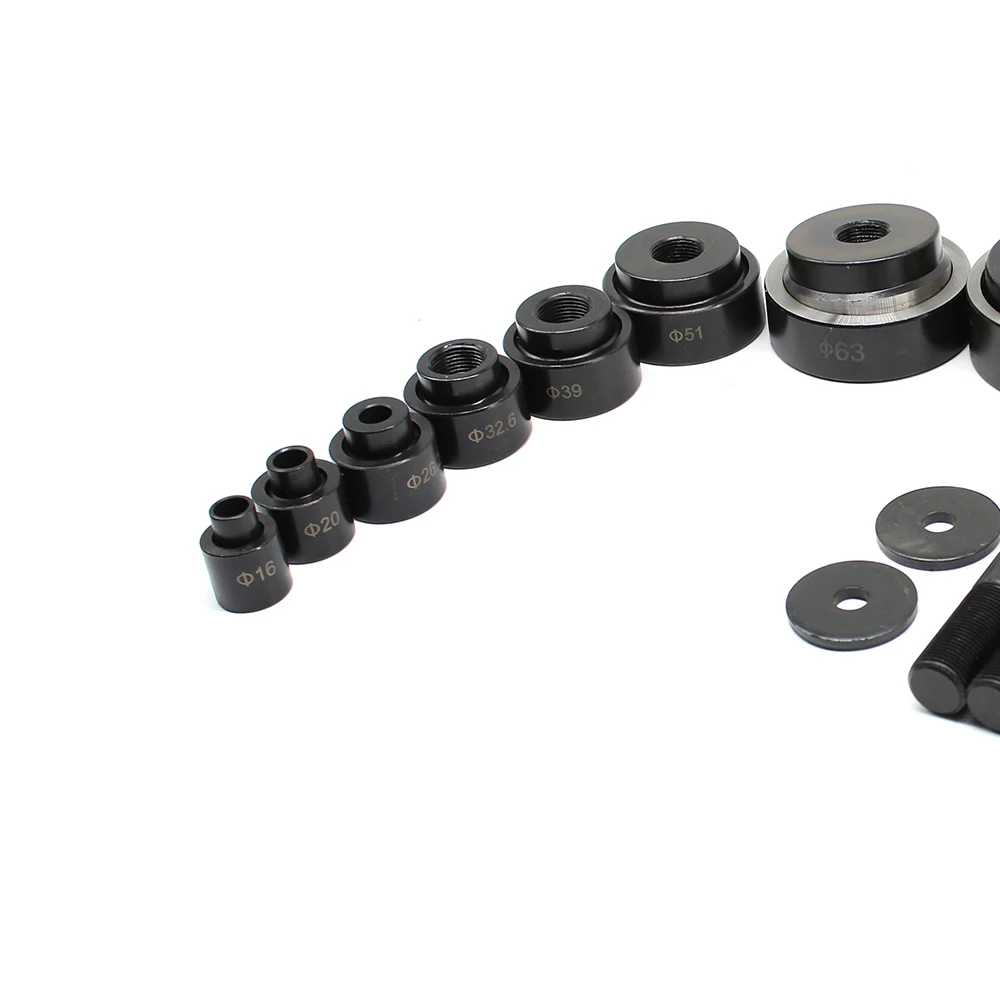

10 x Cutting Dies (φ16mm,φ20mm,φ26.2mm, φ32.6mm,φ39mm,φ51mm,φ63mm ,φ76mm,φ89mm,φ101mm)

Operating instructions:

1. Use a electric drill to punch a workpiece to make a guide hole before using the hydraulic hole punch.
2. Whirl the pulling rod into the screw of piston cylinder, then ring the rod with a gasket and pass through the lower cutting die with the rod.
3. Put the pulling rod into the guide hole, and whirl the upper cutting die through the rod to make the upper cutting die, workpiece and the lower cutting die connected tightly.
4. Shut the spill valve clockwise, and then press down the hand lever repeatedly to make the piston pump work. When the oil pressure climbing and shear force between
the cutting die increasing, the die is starting to punch until it finishes. After punching, the hand lever must be stopped pressing down immediately.
5. Loose the spill valve anticlockwise to release the oil pressure.
6. After punching, the punch kit should be detached to clean thoroughly.
