DMX 512 Controller Rechargeable Battery Wireless Transmitter 7* Wireless Receivers 8* Power Adapters For Controlling Stage Light

It is suitable for controlling stage lighting, cultural performances, sports hall lighting, urban lighting systems, and bar lighting.

Specification

Material: Zn-alloy
Color: Black, Silver
Processor Type: 32-bit ARM Processor
Connector Type: 3-pin DMX Interface
Light Source Type: LED
Working Frequency Section: 2.4G ISM, 126 Channels
Power Source: Corded Electric
Plug: EU Standard
Voltage: 5V (DC)
Transmitting Power: Max. 20dBm
Receiver Sensitivity: -94dBm
Number of Transmitter: 1
Number of Receivers: 7
Communication Distance: 400m/1312.3ft (Open Ground)

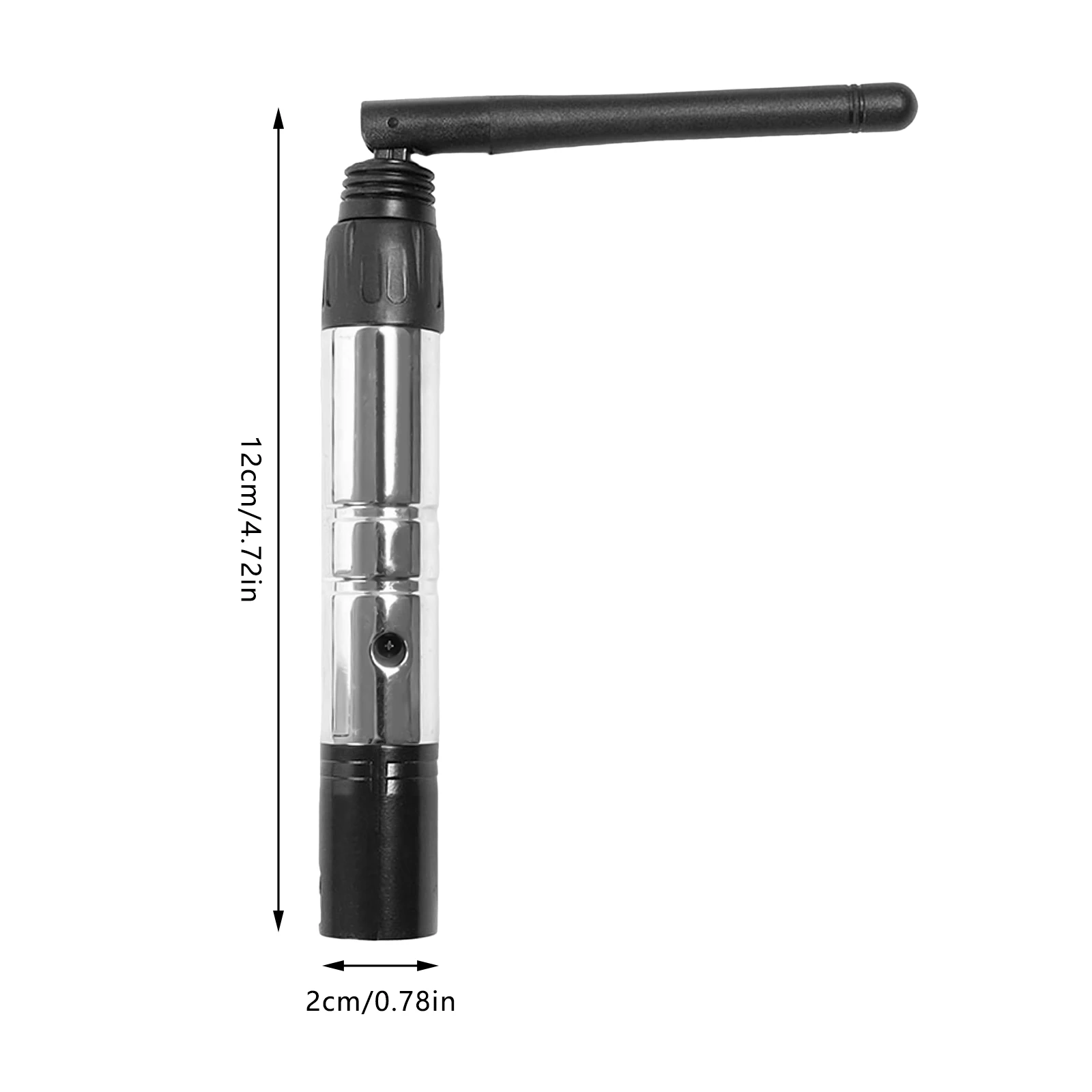

Transmitter Size: 12.5*9.5*2cm/4.9*3.7*0.8in
Each Receiver Size: 8.5*1.5cm/3.4*0.6in
Package Size: 23.2*13.5*16cm/9.1*5.3*6.3in
Net Weight: 0.8kg/1.8lbs
Gross Weight: 1kg/2.2lbs

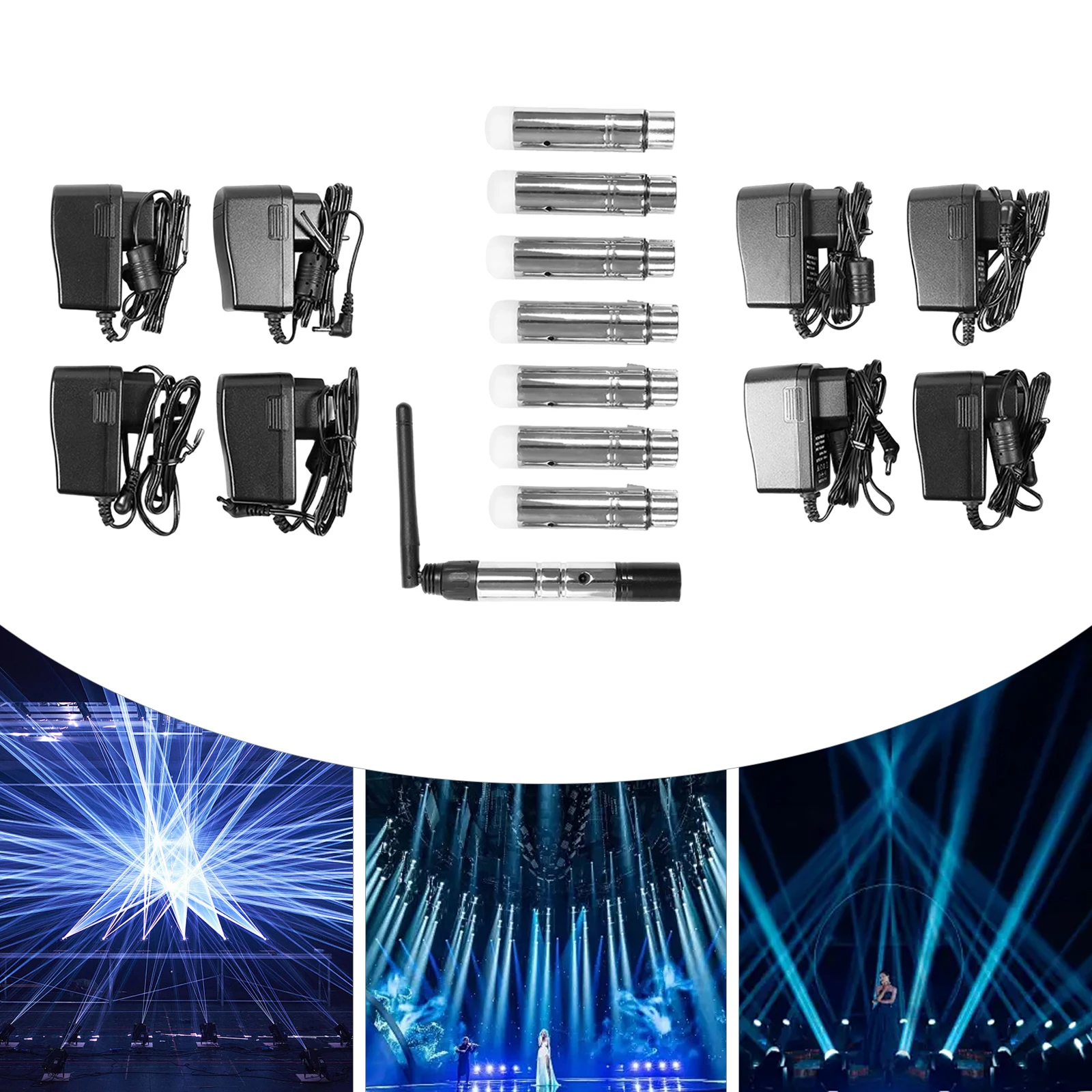

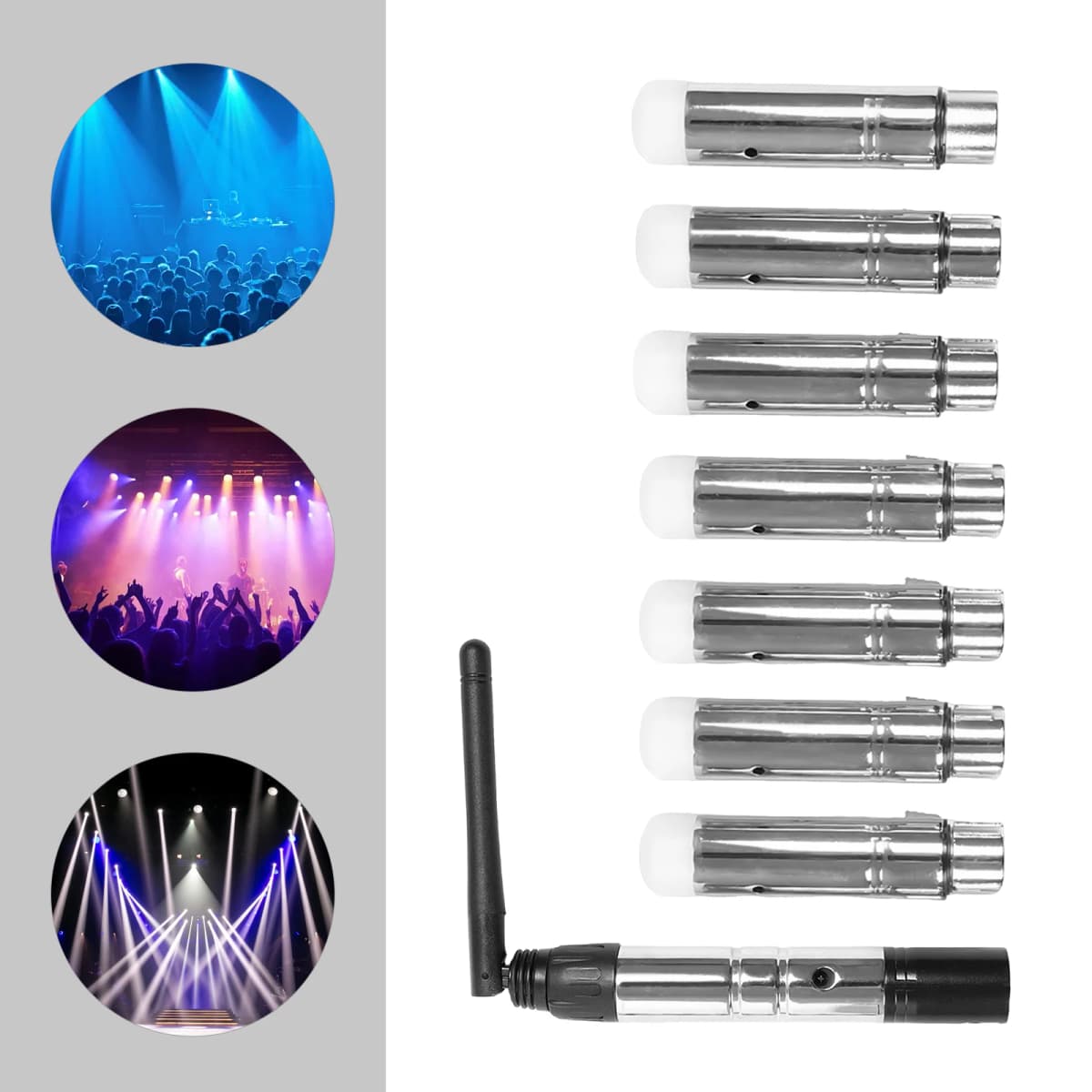

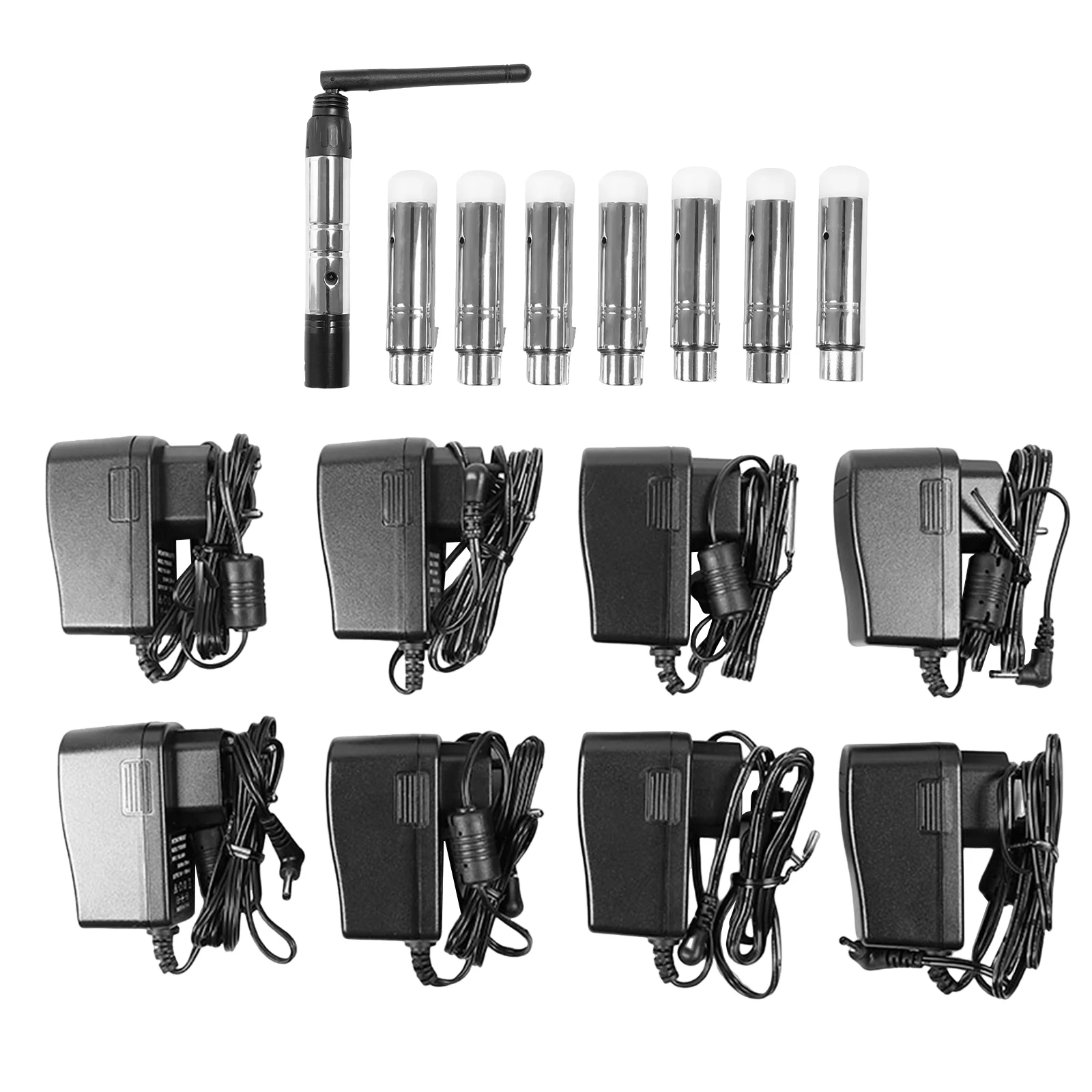

Package Included
1* DMX512 Wireless Transmitter
7* DMX512 Wireless Receivers
8* Power Adapters
1* English Manual

Notes
1.Please note that this product can only be used for equipment with a DMX512 signal.
2.Please note that the transmitter and receivers do not have built-in batteries, so the power adapters are required to work.
3.Please note that this product is not waterproof, so waterproofing work should be done well on rainy days.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Key Features

Independent Control: It has 7 sets of ID codes. You can use 7 independent wireless networks to connect multiple devices in the same place without interfering with each other, improving the stability of the devices.

Reliable Performance: Adopting the 2.4G ISM working frequency section, it has dual functions of receiving and transmitting. Through efficient GFSK modulation, its 126 channels can automatically select an interference-free frequency section, which is not affected by Bluetooth and WiFi to ensure transmission reliability.

Easy to Carry: Due to its light weight (1.8lbs) and small size (Transmitter: 4.9*3.7*0.8in; Receiver: 3.4*0.6in), the product can be easily carried to any performance venue, saving time and effort.

Extended Communication Range: It has a 1312.3ft long communication distance covering a wide range. It can easily and freely control lighting without wires, ensuring continuous and stable signal transmission even in large performance venues.

Real-time Transmission: A 32-bit ARM processor and DMA transfer method can transmit DMX512 console data and lamps' online data at high speed, ensuring real-time signal data transmission.

Built to Last: Zn-alloy material has extremely high strength and corrosion resistance, which is hard, durable, and not easily broken, guaranteeing a long service life.
