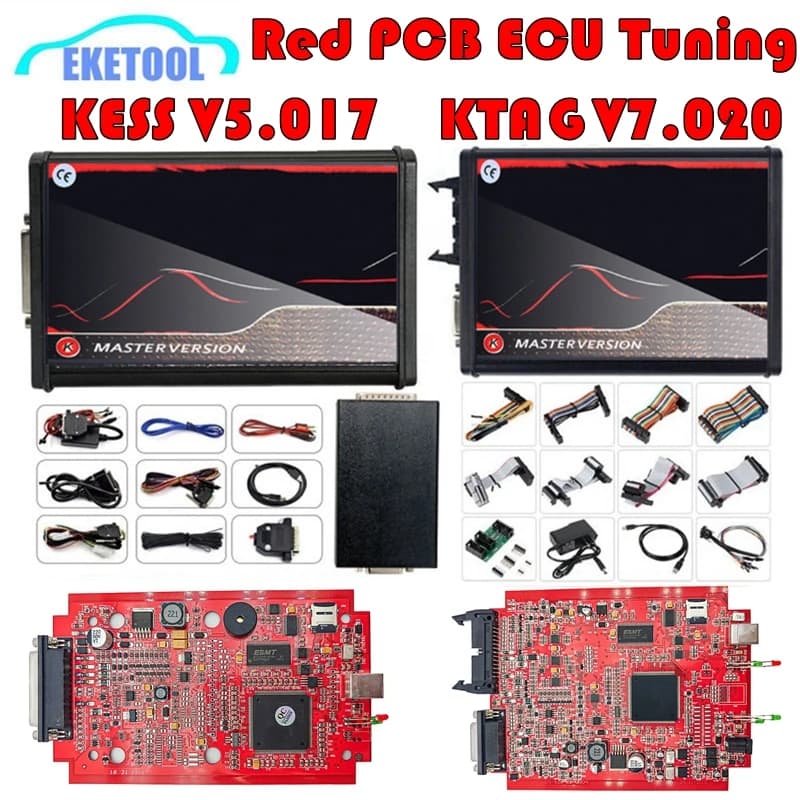

Latest ECU Programmer KESS V2.80 EU Red KTAG V7.020 4 LED 2.25 SW Online KESS V5.017 K-TAG 7.020 Master KESS 5.017 OBD2 Tuning

Full Set With Red 3D Logo Sticker, Red EU Online PCB Board, Original LPC NXP Chip ,Buzzer and SD Card.

EU Online Version High Quality Red PCB Board

KESS EU Version Red PCB Board Advantage:

The left upper corner and the lower right corner notch size is not the same

WFs = Infineon, BCR112 NPN Digital Transistor

27E = ON Semiconductor NUP2105LT1G

6DW = NXP BC817,215 NPN Bipolar Transistor

A6c =MMUN2113LT1G / MMUN2113LT3G

K5B = BC807-25-7-F PNP Bipolar Transistor

Red PCB EU Online Version With NEW 4LED

2.8x WFs = Infineon, BCR112 NPN Digital Transistor

3.7x 27E = ON Semiconductor NUP2105LT1G

4.8x 6DW = NXP BC817215 NPN Bipolar Transistor

5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your ktag PCB may already have 3 x A6c

6.2x K5B = BC807-25-7-F PNP Bipolar Transistor

Note Tips:

Please DON'T update the device online, it will damage the Unit and can not use any more .

Please Close anti-virus program when run software.

Power Adapter is US plug in the package.

Multi-Language:

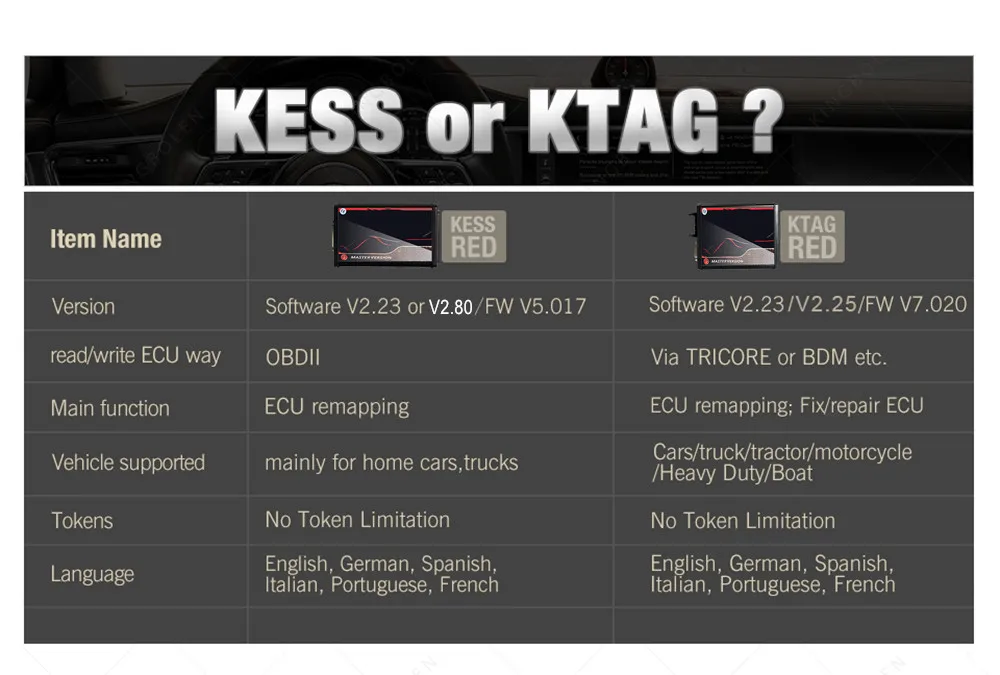

What differences between KESS 5.017 and KTAG 7.020?

If you mainly want to work for 24V truck and tractor , Ktag V7.020 is more suitable for you !

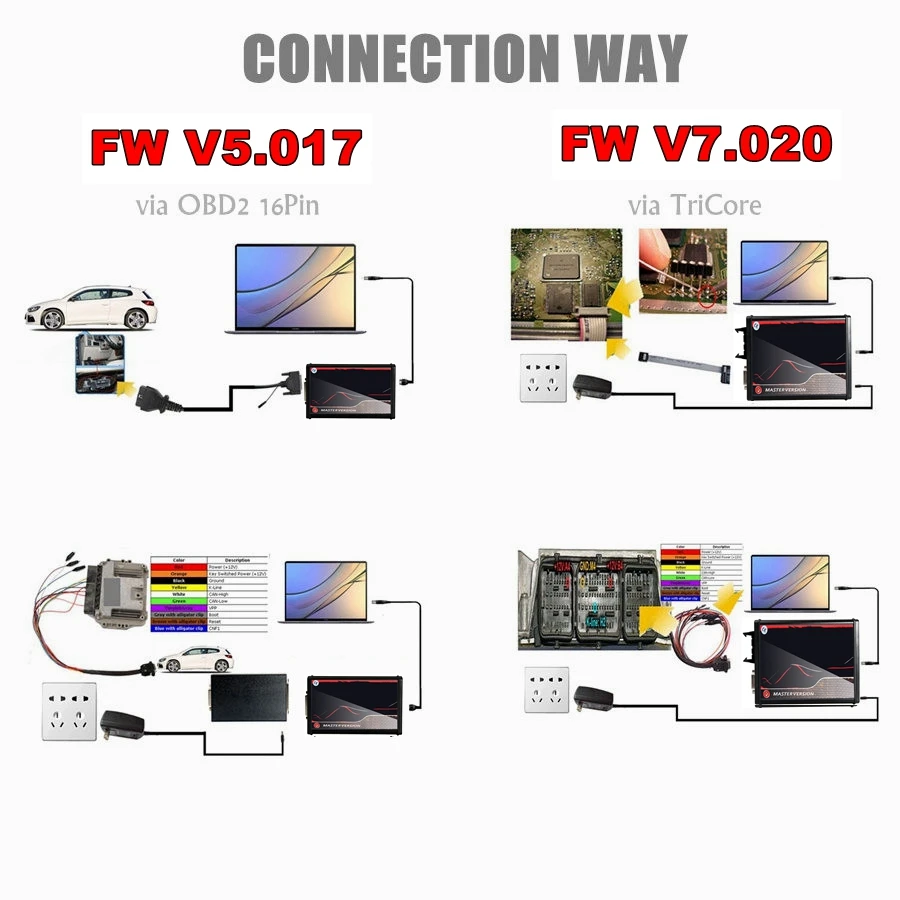

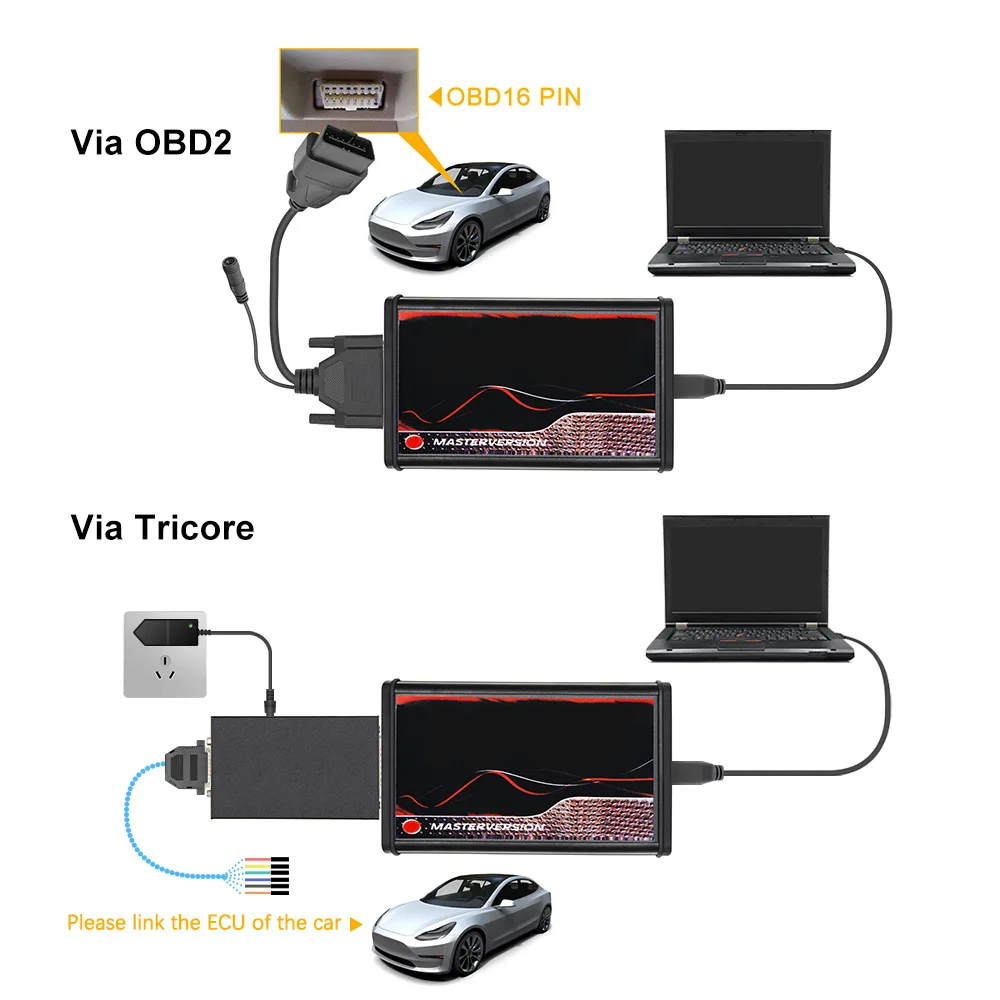

1. Different Connection Way :

For KESS V5.017,it can read ECU via OBD2 Cable Directly for most vehicles,easy to operate.

For KTAG V7.020,it read ECU via TRICORE or BDM Or Other Mode with special cable, the software will guide you how to operate.

2. Different Vehicle Coverage :

For example: KESS 5.017 and Ktag v7.020 all can work For Most for Toyota Denso ECU Protocol,But just K-TAG 7.020 can work For Toyota Hilux kun26 very well !

KTAG V7.020 can support much more truck/tractor/motorcycle than KESS V5.017 !

KESS V5.017 With NEW K-Suite 2.80 with exactly 7400 Vehicles added:

1. Online Version, can connect internet without damage .

2. Unlimited version, No token limitation, you can use all the time

3. Support universal Car / Truck / Tractor / Motorcycle , support 12V / 24V

4. Kess Firmware V5.017 cover all major brands and protocols including Line, KAN, EDC17 and MED17 and for Ford J1850.

5. KESS V5.017 can support cars/trucks/tractors/bikes! KESS supports vehicles accroding to engine. So V5.017 KESS can support new vehicles!

6. Kess V5.017can read and write ECU via OBD2 port directly, no need to disassemble ECU from the car, easy to use.

7. Multi-language available: English, German, Spanish, Italian, Portuguese, French.

8. Works on windows XP/7 32bits/8/10 64bits/11 64bits

KTAG V7.020 V2.25 4LED Hardware Display:

1. Online Version, can connect internet without damage .

2. Unlimited version, No token limitation, you can use all the time

3. Support universal Car / Truck / Tractor / Motorcycle / Boat , support 12V / 24V

4. Support multi-languages :English, German, Spanish, Italian, Portuguese, French

5. Support Multi-Systems : Win XP / WIN7 / WIN8 / WIN10....

6. All software protocols are open , all more 160 protocols than older version .

7. KTAG works via tricore / BDM / BOOT..., means need to remove ecu from car.

Q&A:

Q: For SD Card ,some customer doubt it write 4GB but when display capacity is 120mb only ,why this happened?

A:Here is professional technical reply :

This SD card belongs to an encryption card and contains encrypted data. The encrypted content is hidden and invisible, so displaying 120 is a normal phenomenon. The product's features are not missing. So Do not worry about this . If customer mind,please coinsider twice before ordering,Thanks.

Q:  When launch program shows  "Connections not established”?

A: Please check whether you install the KE-SS driver well in device manager

Q: Program pop out messaage "checksum error"?

A1: please search the software" microsoft visual C++ 2005, 2008, 2010" on google, then install it on your computer, then it can solve this problem.

A2: Contact seller to get updated DLL file to replace dll files in installation file.

Q: Wake up error?

A: It may be a gasoline car, and the customer chooses a diesel car.

please check the connection with ECU and power supply.

And also try to uninstall the software and install it again.

If all is ok and still same error, please try a new sd card to replace.

Q: External exception EEFFACE?

A: Please use our device and software only. if you use other software with this device or use other device with our software, it may cause this problem.

Please uninstall and delete software.

Paste the software to computer C:\ then run it.

Q: External exception EEFFACE?

A: Please check open Housing box check internal PCB of SD Card if loosen and put into right position and can fixed the issue .Thank you .
