18V Photovoltaic Panel 140W 160W Rigid Glass Solar Panel Monocrystaillne Solar Cell For 12V/24V Battery Charger RV Boat Car Roof

Dear Buyer:

Thank you for ordering from our store.

For Some Remote Area of Spain or France, there is no freight service, pls check the zip code as following:

For Spain:  35xxx   38xxx    07xxx    51xxx   52xxx.

For France:  987xx   986xx   984xx    971xx   988xx   975xx   976xx    973xx    974xx     972xx.

Please contact with us for confirm your zip code.

WHY CHOOSE Our Glass Solar Panel

Truly Power of 100W

32PCS 210MM*210MM Solar Cell; 3.3W/PC

100% IP 67 waterproof

Bear Hailstorm

Advantages of JINGYANG Tempered solar panels:

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.

Product description:

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

Diodes are pre-installed in junction box and a pair of 24-inches cables with MC4 connectors comes with the panel automatically

The back has 4 drill hole that can be quickly installed.

5 Years Warranty, 25 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。

100W 18V GLASS SOLAR PANEL Monocrystalline Solar Panel with  Connectors for 12V Charge Battery on Boats, Motor

Type 1:160W SOLAR PANEL

Model:CNMYPV160(72)M158

Material:Monocrystalline silicon

Maximum Power(Pmax):160W

Maximum Power Voltage(Vmp):18.5V

Maximum Power Current (Imp): 8.64A

Open-Circuit Voltage (Voc): 21.4V

Short-Circuit Current (Isc):9.4A

Solar Cell: Newly 158MM*158MM Monocrystalline

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:10A

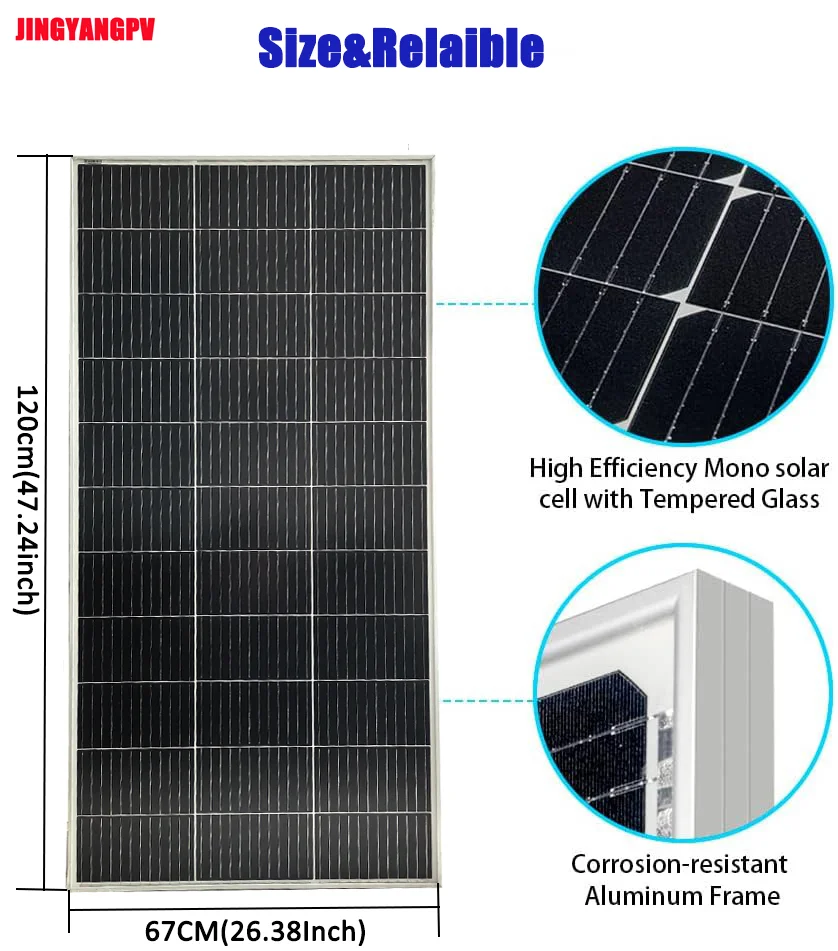

Dimension:1200mm*670mm*30mm

Package Weight: 8.5kg

(The above data is based on the laboratory standard test environment)

Type 2: 140W White Solar Panel

Quality & Warranty:

1.    Rigorous quality control meets the highest international standard

2.    5 years limited warranty on material and workmanship

3.    25-year performance guarantee at 80% of the minimal rated power output

4.    10-year performance guarantee at 90% of the minimal rated power output
